MS909 S2 WITH ADAS CALIBRATION SOFTWARE

Autel MS909 S2 with ADAS Calibration Software

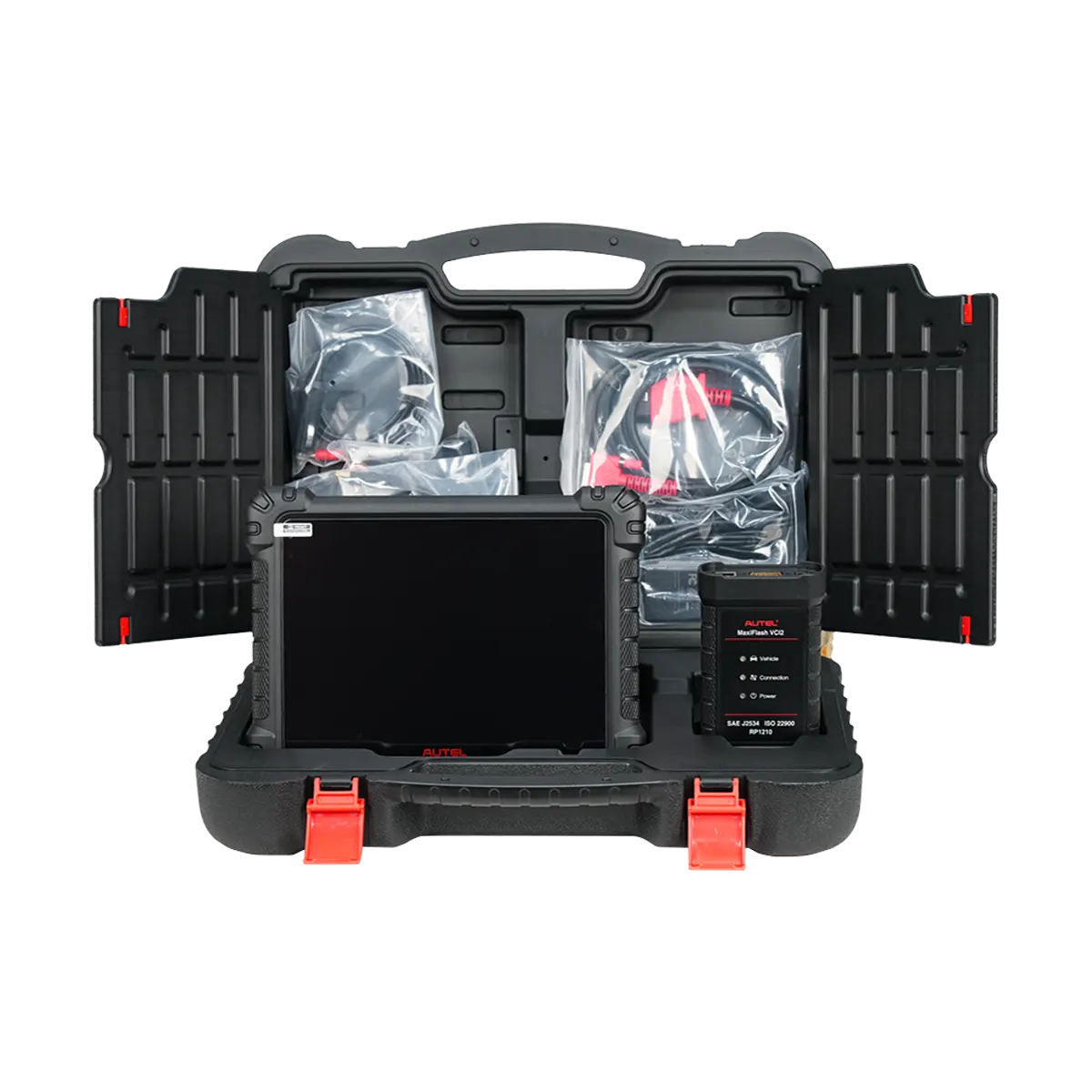

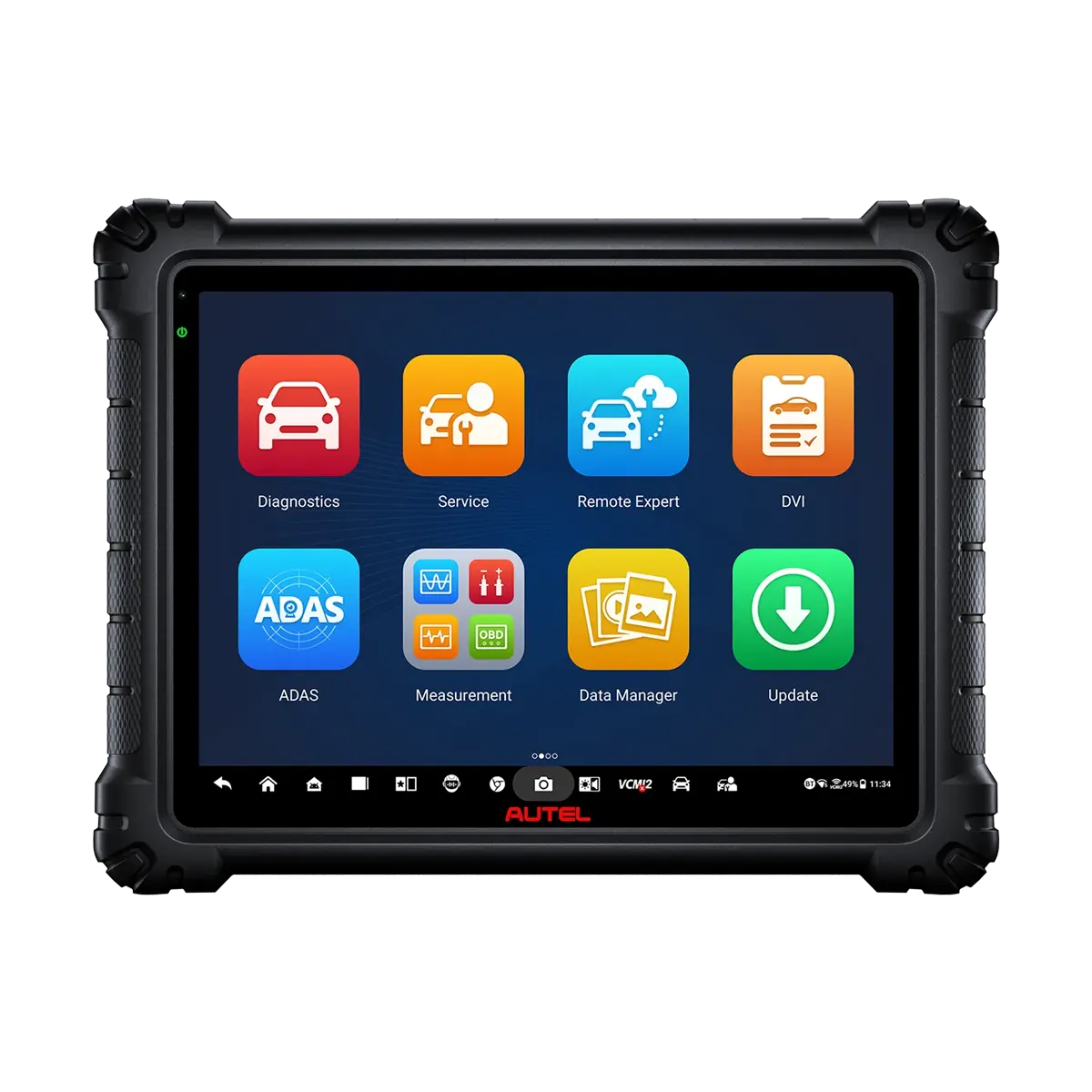

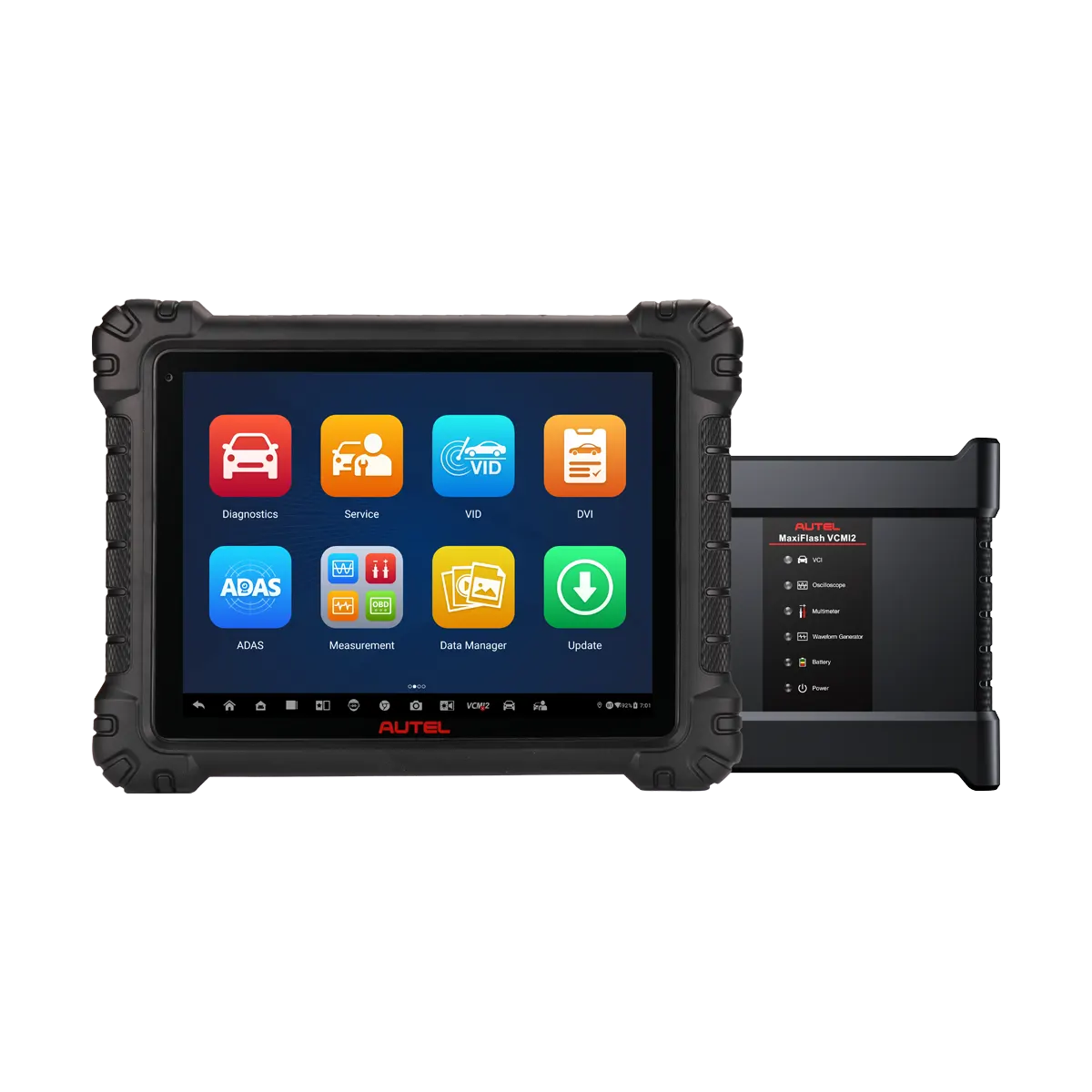

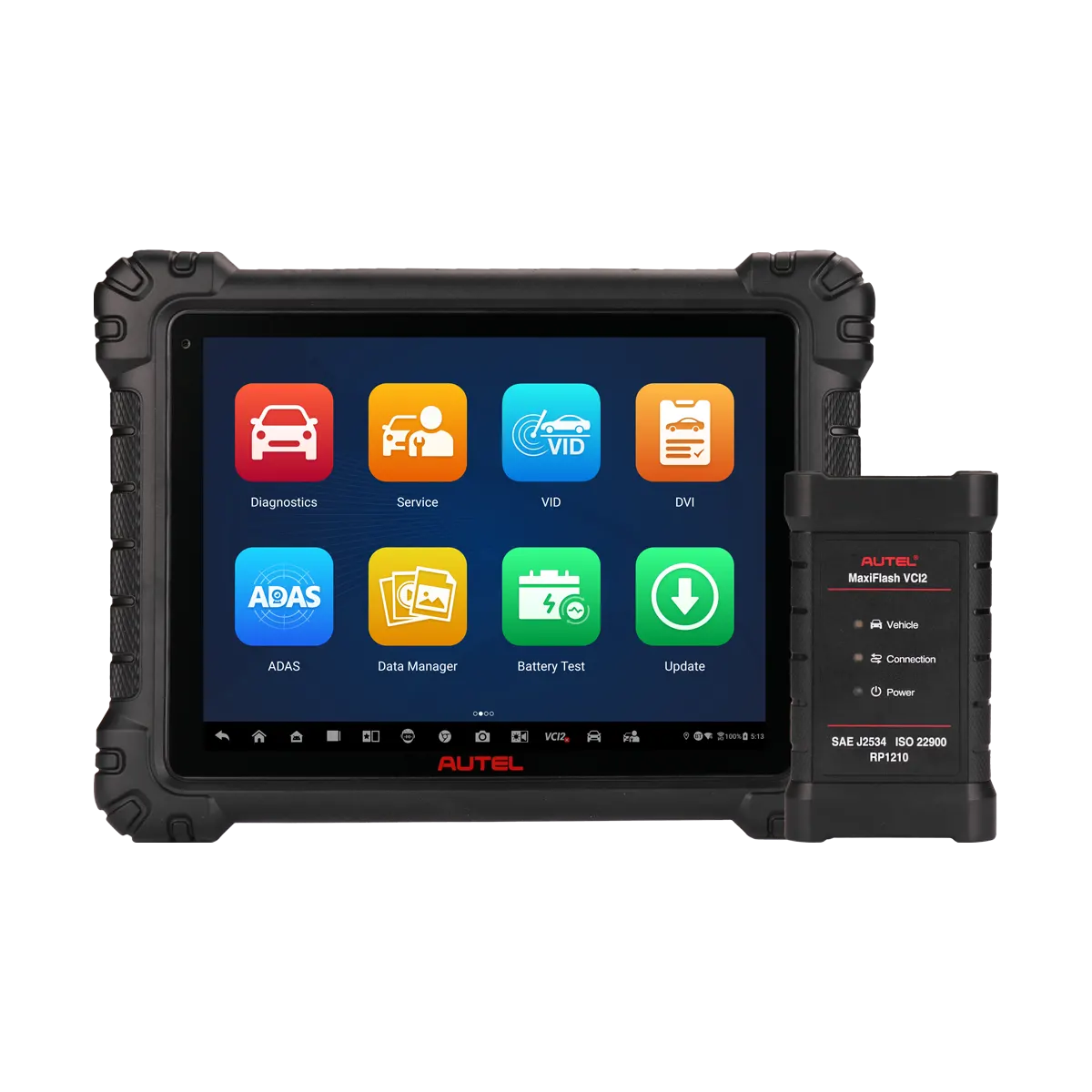

The MS909 S2 with ADAS Calibration Software (SKU: MS909S2ADAS) is the next-generation MS909 S2 diagnostic tablet with ADAS calibration software pre-activated. This configuration gives collision shops and general repair shops a single platform for full-system diagnostics, pre/post-scan reporting, and guided ADAS recalibration — on one tablet running Android 13 with a 2.7 GHz 8-core processor and the upgraded MaxiFLASH VCI2.

Important: The ADAS software activation enables the calibration procedures on the tablet. Physical ADAS calibrations still require a compatible target frame system (Autel IA700, IA900, IA900WA, or MA600). The frame and target kits are sold separately or available in bundled packages — contact us for options.

Who Needs This Configuration

The MS909S2ADAS is the right choice when:

• You own or are purchasing an Autel ADAS frame separately and need the tablet with calibration software ready to go
• You are a collision shop that needs one tablet for pre/post-scan documentation AND ADAS recalibration
• You are upgrading from an older Autel tablet and want the latest MS909 generation with ADAS capability
• You want the MS909 S2 diagnostic platform but need ADAS software included in the purchase

If you want everything — frame, targets, and tablet — in one bundle, ask us about complete ADAS system packages.

Full Diagnostic Capabilities (MS909 S2 Platform)

• Full OE-level system access — all modules, all systems on 1996 and newer U.S., Asian, and European vehicles
• Bi-directional control — actuator tests, component activation
• Coding and adaptations — module programming, variant coding, OE-level adaptation functions
• 45+ service reset functions — oil, EPB, SAS, BMS, DPF, IMMO, TPMS, and more
• All 10 OBDII test modes — live data, freeze frame, Mode 6
• Pre- and post-scan reporting — documented scan reports for insurance and customer records
• Topology 3.0 dynamic network analysis — monitor individual module communications across multiple networks
• Enhanced Live Data — Live Data Fusion, Reference Sampling, Parameter Graphing
• Security gateway access — Mercedes-Benz, Nissan, VW/Audi, Stellantis authorized (AutoAuth account required)
• Remote Expert ready — connect with remote programming experts
• MAX digital inspection app and hands-free navigation assistant built in
• MOTOR TruSpeed — one year of free integrated repair data access

ADAS Calibration Capability

With calibration software activated, the MS909S2ADAS supports guided ADAS recalibration for:

• Forward camera systems (LDW, FCW, AEB)
• Radar-based ACC systems
• Blind spot monitoring
• Rear camera systems
• 360-degree surround view systems (where applicable)

Compatible with Autel IA700, IA900, IA900WA, and MA600 frame systems.

Hardware Specifications

• OS: Android 13
• Processor: Octa-core, 2.7 GHz
• Memory: 12GB RAM / 256GB storage
• Display: 11" anti-glare, 2176 x 1600
• Battery: 15,000mAh, USB-C 45W PD fast charging supported
• Weight: 1,656.5 g (3.65 lbs)
• Dimensions: 315.4 x 240.3 x 39.0 mm
• Connectivity: Wi-Fi 6.0 dual band, Bluetooth 5.2, GPS, 2x USB-A, USB-C, HDMI 2.0
• VCI: MaxiFLASH VCI2 with J2534 and CAN FD

Why Buy the MS909 S2 WITH ADAS CALIBRATION SOFTWARE From Autel Diagnostic Tools?

Since 2016 we have helped shops choose the right Autel configuration for their workflow. Call 866-217-0063 and we will confirm whether this tablet-only ADAS configuration fits your situation, or whether a bundled system makes more sense. Free shipping, full warranty, and no-pressure guidance on every order.
