MS909 S2

Autel MaxiSYS MS909 S2 — Next-Generation Advanced Diagnostic Tablet

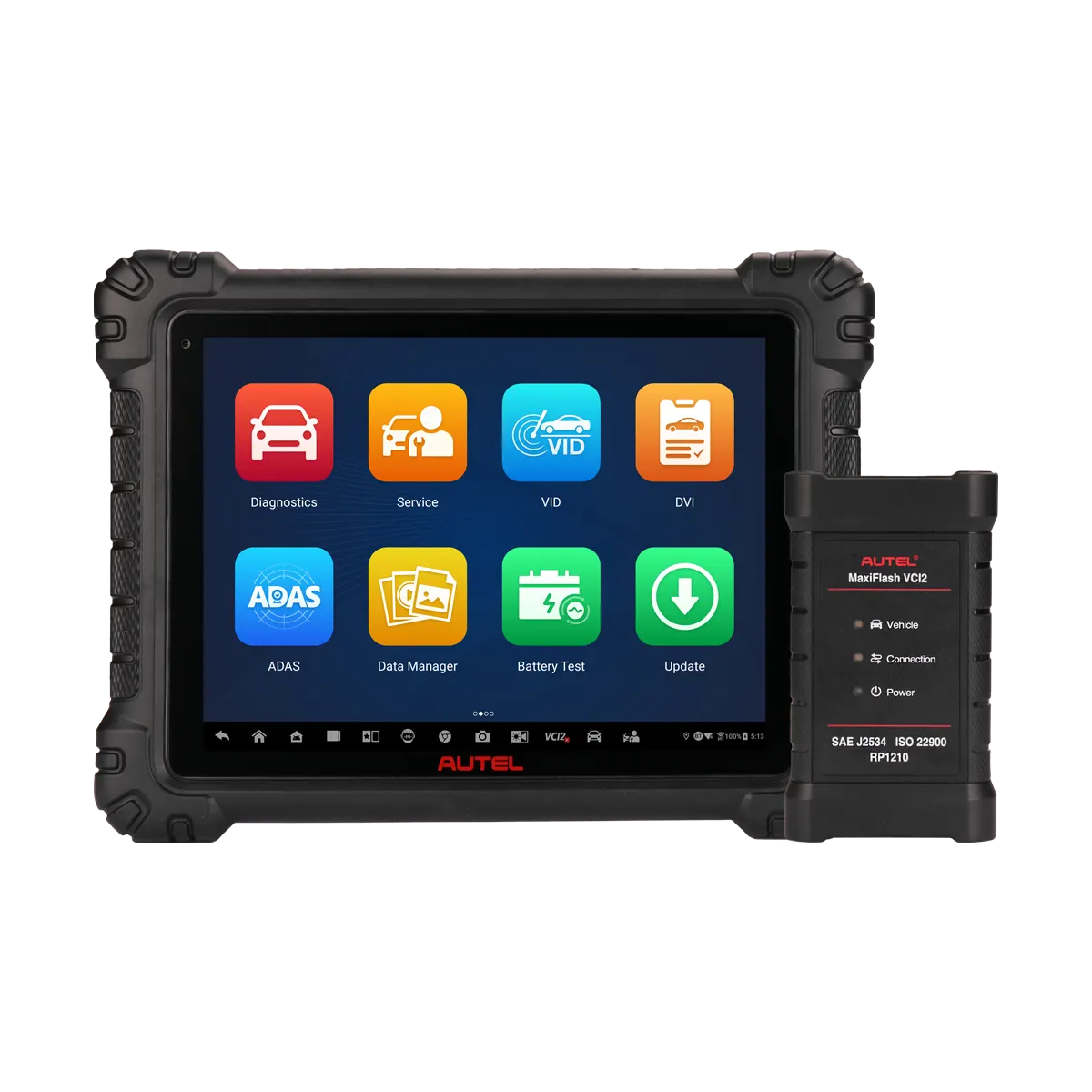

The Autel MaxiSYS MS909 S2 is an 11-inch Android 13 wireless touchscreen diagnostic tablet representing the latest generation of the MS909 line. It pairs an 8-core 2.7 GHz processor and 256GB of storage with the new MaxiFLASH VCI2 — an advanced wireless VCI with J2534 pass-through capability and CAN FD protocol support. This is a purpose-built shop tool for technicians doing serious diagnostic work across domestic, Asian, and European vehicles from 1996 forward.

At its price point, the MS909 S2 competes with the MS919 S2. The key difference: the MS919 S2 includes the 6-in-1 VCMI2 (adding a 4-channel oscilloscope, multimeter, waveform generator, and CAN bus tester). If you do not need built-in scope capability, the MS909 S2 delivers the same diagnostic software platform at lower cost.

Diagnostic Capabilities

• Full OE-level system access — all modules across all systems: engine, transmission, ABS, SRS, airbag, body, chassis, TPMS, and every other available system
• Bi-directional control — actuator tests, component activation, output commands to verify repairs
• Coding and adaptations — module programming, variant coding, and OE-level adaptation functions
• 45+ service reset functions — oil, EPB, SAS, BMS, DPF, IMMO, TPMS, throttle reset, and more with one-tap access
• All 10 OBDII test modes — live data, freeze frame, O2 tests, enhanced Mode 6
• Pre- and post-scan reporting — documented scan reports for insurance and customer documentation, essential for collision shops
• Topology 3.0 dynamic network analysis — ping and monitor individual module communications across multiple vehicle networks simultaneously; identifies communication faults others miss
• Enhanced Live Data analysis — Live Data Fusion, Reference Sampling, and Parameter Graphing in real time
• Security gateway access — authorized by Mercedes-Benz, Nissan, VW/Audi, and Stellantis (AutoAuth account required; VW/Audi requires on-tool token/sub purchase)
• Remote Expert ready — connect with programming experts who have OE tools and software remotely
• MAX digital inspection app — multi-point digital vehicle inspection application built in
• Hands-free navigation assistant — voice control for tablet navigation
• MOTOR TruSpeed repair data — one year of free access to integrated repair information
• Diesel PM reset — diesel emissions reset for light and medium-duty vehicles

MaxiFLASH VCI2

The VCI2 included with the MS909 S2 is an upgraded wireless vehicle communication interface with:

• J2534 pass-through programming capability
• CAN FD protocol support (required for newer Ford, GM, and European vehicles)
• ISO 13400 DoIP support
• Multi-protocol support across the full list of OBD and enhanced protocols
• Bluetooth connectivity to the tablet

MS909 S2 vs. MS919 S2 — Which One?

Both tablets run identical diagnostic software. The difference is the included VCI:

• MS909 S2 ($4,499 on Autel.us) — includes MaxiFLASH VCI2 with J2534. No built-in oscilloscope.
• MS919 S2 ($5,199 on Autel.us) — includes MaxiFLASH VCMI2, a 6-in-1 device that adds 4-channel oscilloscope, waveform generator, multimeter, and CAN bus tester.

If your technicians regularly diagnose electrical issues that need waveform analysis — misfire diagnostics, injector testing, CAN bus signal analysis — the MS919 S2 makes more sense. If diagnostics, coding, and programming are the primary workflow, the MS909 S2 covers it at a lower cost.

ADAS Calibration

The MS909 S2 is ADAS-capable with an optional software upgrade and ADAS target package purchase. The tablet connects to Autel IA700, IA900, and compatible frame systems. ADAS calibration is not included out of the box.

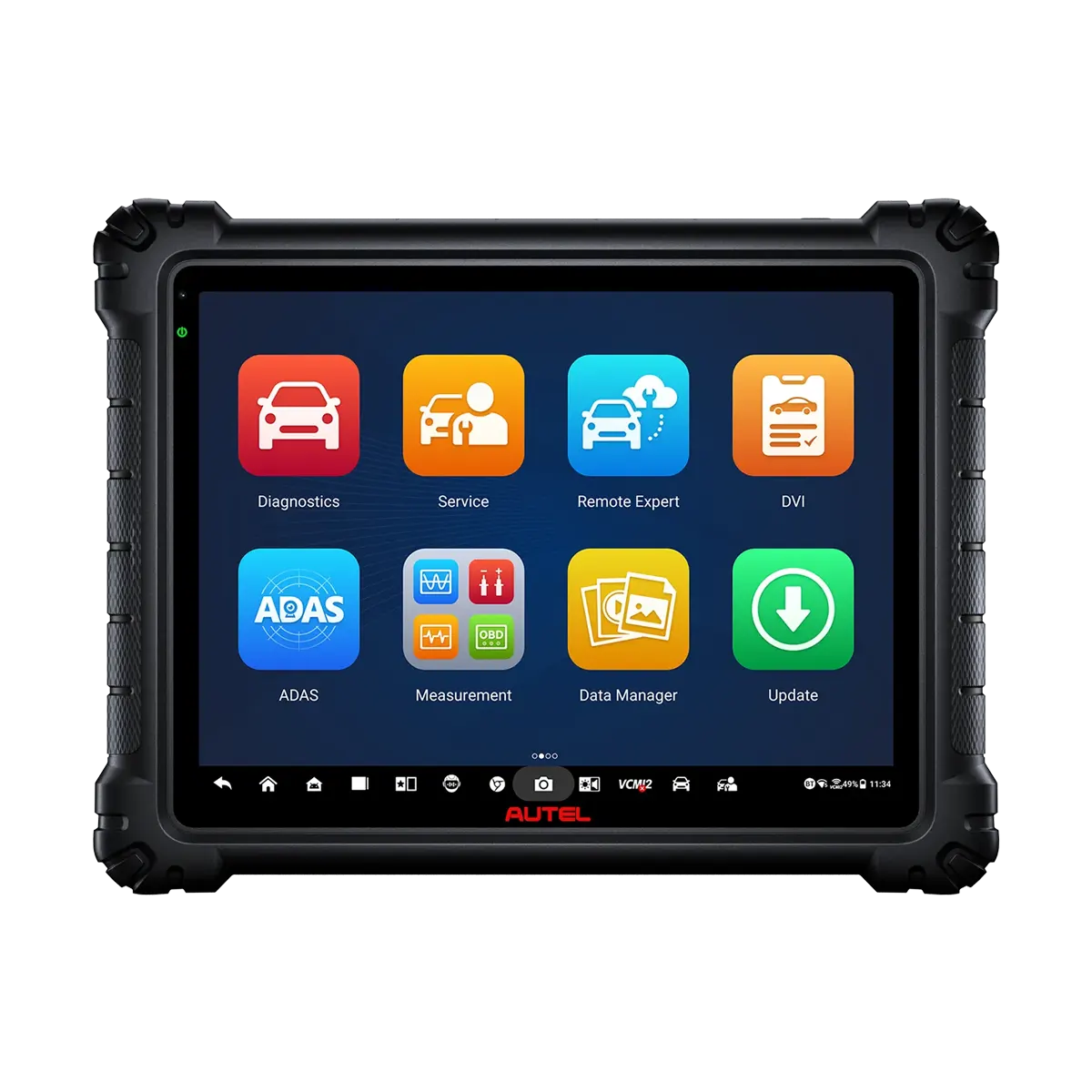

Hardware Specifications

• Operating System: Android 13
• Processor: Octa-core, 2.7 GHz
• Memory: 12GB RAM / 256GB onboard storage
• Display: 11-inch anti-glare screen, 2176 x 1600 resolution
• Battery: 15,000mAh 3.85V lithium-polymer
• Charging: 12V 6A DC adapter or USB-C 45W (15V/3A) PD fast charging
• Weight: 1,656.5 g (3.65 lbs)
• Dimensions: 315.4 x 240.3 x 39.0 mm (12.42" x 9.46" x 1.54")
• Connectivity: Wi-Fi 6.0 dual band (802.11 a/b/g/n/ac/ax 2x2 MIMO), Bluetooth 5.2, GPS, 2x USB-A, USB-C, HDMI 2.0, SD card up to 256GB
• Camera: 16MP rear autofocus with flash, 16MP front
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -10 to 60°C (14 to 140°F)

Protocol Support

PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART, BMW DS2, BMW DS1, SAE J2819 (VAG KW81/KW82), SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), ISO 13400 (DoIP), CAN FD

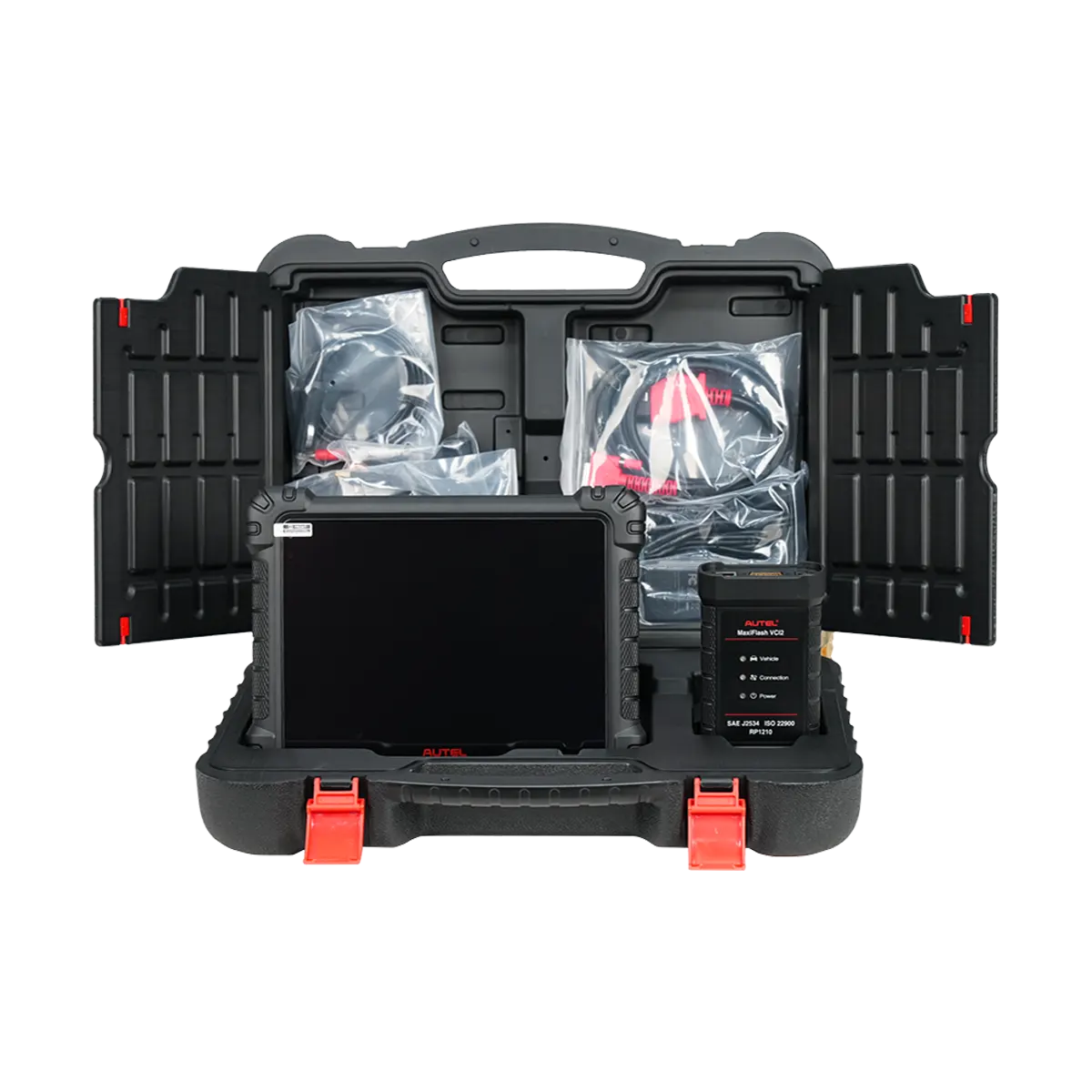

What Is Included

• Autel MaxiSYS MS909 S2 tablet (Android 13)
• MaxiFLASH VCI2 (wireless, J2534)
• OBD2 cable, 12V/6A DC power adapter, USB-C cable
• Carrying case
• One-year limited warranty
• One year of free software updates via Wi-Fi
• One year of free MOTOR TruSpeed repair data access
