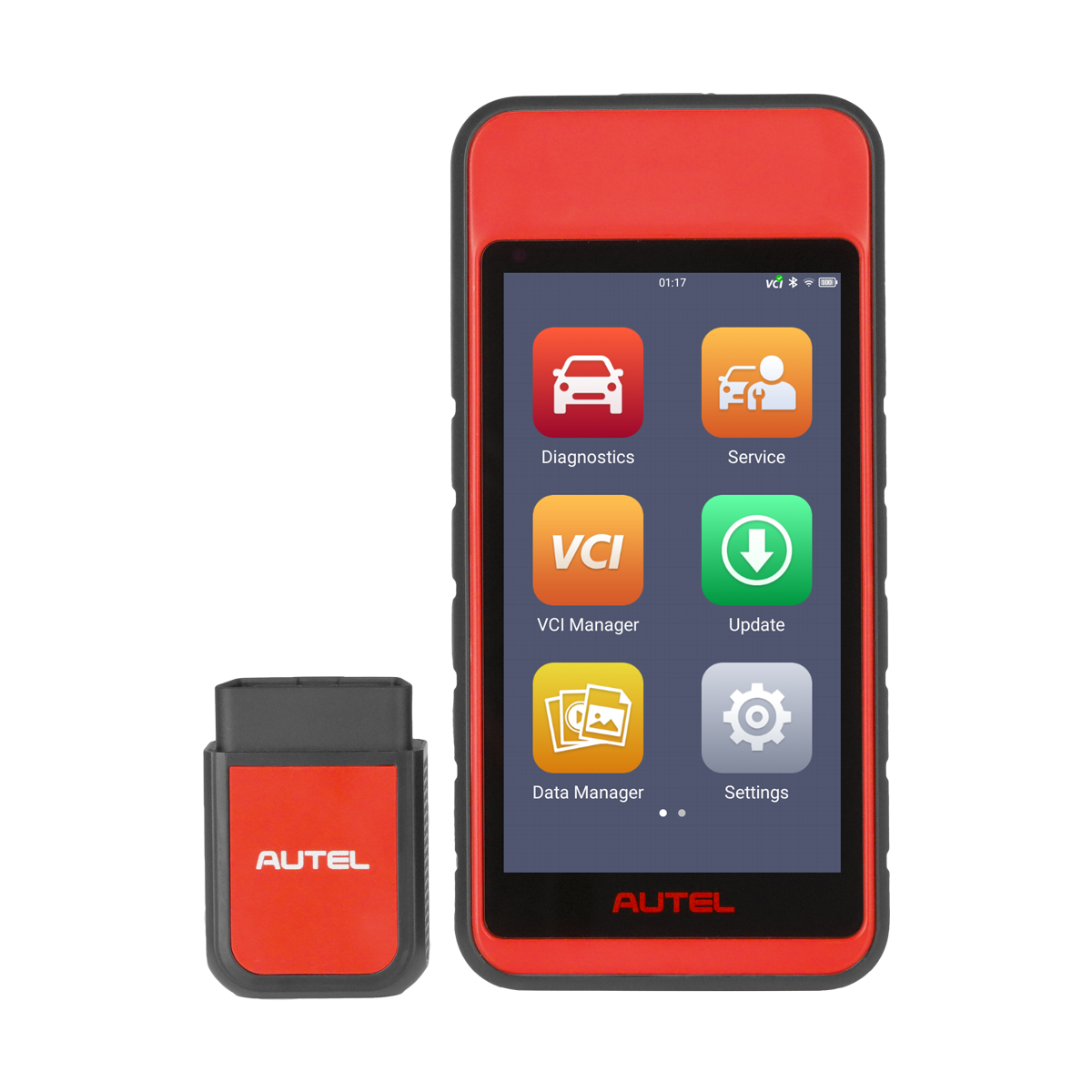

MD909 PRO

Autel MD909 PRO — Wireless Android Tablet with All-Systems Diagnostics and 11 Service Functions

The Autel MD909 PRO is a wireless Android-based touchscreen diagnostic tablet that gives a general repair shop real scanning capability — all-systems coverage, 11 service functions, Bluetooth VCI with CAN FD support, security gateway access, and cloud report management — in a 5.5-inch touchscreen package at $400.32. It sits between a basic code reader and the professional MaxiSYS tablet line, and for many shops doing domestic and import service work, it hits the right spot.

Who Needs the MD909 PRO

This tool is aimed at shops that have outgrown a basic OBD reader but are not ready to invest in a full MaxiSYS tablet. If you are doing oil resets, DPF regens, brake bleeds, steering angle resets, and battery registrations on 1996-and-newer domestic, Asian, and European vehicles — and you want wireless operation, cloud report storage, and the ability to access newer vehicle security gateways — the MD909 PRO covers that work.

All-Systems Diagnostic Coverage

• Wireless all-systems scan — covers U.S., Asian, and European vehicles from 1996 and newer
• Read and erase codes across all modules in all systems, not just the powertrain
• Freeze frame and live data — view real-time sensor readings to diagnose faults in context
• All 10 OBDII test modes — full compliance for emissions and readiness testing
• Quick browser-based code lookup — built-in reference without leaving the tool

11 Service Functions

The MD909 PRO provides direct-to-system access for 11 common service tasks, including:

• Steering Angle Sensor Reset — calibrate SAS after alignment or steering work
• DPF Regeneration — force stationary regen on diesel vehicles
• Brake Bleed — actuate ABS pump for brake system bleeding on equipped vehicles
• Battery Maintenance (BMS) — register new batteries on BMS-equipped vehicles
• Oil Light Reset — reset oil service interval reminders
• Plus six additional service functions for common maintenance procedures

Bluetooth VCI with CAN FD and DoIP Support

The MD909 PRO ships with a Bluetooth-enabled VCI that supports newer vehicle communication protocols:

• CAN FD (Controller Area Network Flexible Data-rate) — required for diagnostics on many 2019-and-newer vehicles
• DoIP (Diagnostics over Internet Protocol) — for Ethernet-based vehicle communication on late-model vehicles
• Wireless operation from the tablet to the VCI — no cable running through the shop

Supported protocols include: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (High/Middle/Low speed and Single Wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte, Honda Diag-H, TP2.0, TP1.6, and CAN FD.

Security Gateway Access

Late-model Stellantis and Nissan vehicles use security gateway modules that block unauthorized diagnostic access. The MD909 PRO can access these gateways on select vehicles from Dodge, Chrysler, RAM, Jeep, Alfa Romeo, Fiat, Maserati, and Nissan. An AutoAuth account is required and must be set up before using this feature.

Cloud Report Management and Sharing

• Cloud Management Storage — store and access diagnostic reports from the cloud
• Email and text-based report sharing — send reports directly to shop management systems or customers from the tool
• Wireless and networked printing — print reports without USB connection

Battery Testing Integration

The MD909 PRO is compatible with the Autel BT506 battery tester (purchased separately). When paired, the combination provides comprehensive battery and charging system analysis including advanced adaptive conductance testing for state of charge and state of health evaluation.

Hardware Specifications

• Operating System: Android 9.0
• Processor: Quad-core, 1.5 GHz
• Memory: 2 GB RAM, 64 GB ROM
• Display: 5.5-inch LCD capacitive touchscreen, 1280x720 resolution
• Connectivity: Wi-Fi 802.11 a/b/g/n/ac; USB Type-C; Bluetooth
• Battery: 3.8V / 5000 mAh lithium-polymer; charges via 5V DC (5V/1.5A adapter)
• Power Consumption: 700 mA at 3.8V (LCD on, Wi-Fi on, default brightness)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Dimensions (W x H x D): 89.0mm x 183.0mm x 22.0mm (3.5 in x 7.2 in x 0.87 in)
• Weight: 368g / 0.8 lb.
• Sensors: Ambient Light Sensor
• Audio: Microphone input; speaker output

Warranty and Updates

• One-year limited warranty
• Free software updates for the life of the tool

MD909 PRO vs. the MaxiSYS Line

The MD909 PRO delivers wireless scanning, cloud reporting, and security gateway access at a price well below the MaxiSYS MS906 and MS909 series. The tradeoff: it does not support bi-directional active tests, coding, or adaptations. If your shop needs to command actuators, program modules, or perform adaptations on European vehicles, move up to the MaxiSYS line. If code reading, service resets, and report management are the priority, the MD909 PRO handles that work at a fraction of the cost.
