Autel MaxiSYS IA1000T — ADAS Calibration Frame with Digital Targets
The IA1000T is the IA1000 calibration frame paired with three digital LDW target monitors. This package does not include a tablet or activation card — those are required separately. It is the right package for shops that already own a compatible MaxiSYS Ultra series tablet and want the IA1000 frame with digital target capability.
Note: Manufacturer research pulled the closely related IA1000TDT page (which includes the Ultra S2 tablet). The IA1000T differs in that the tablet must be purchased separately.
What's Included

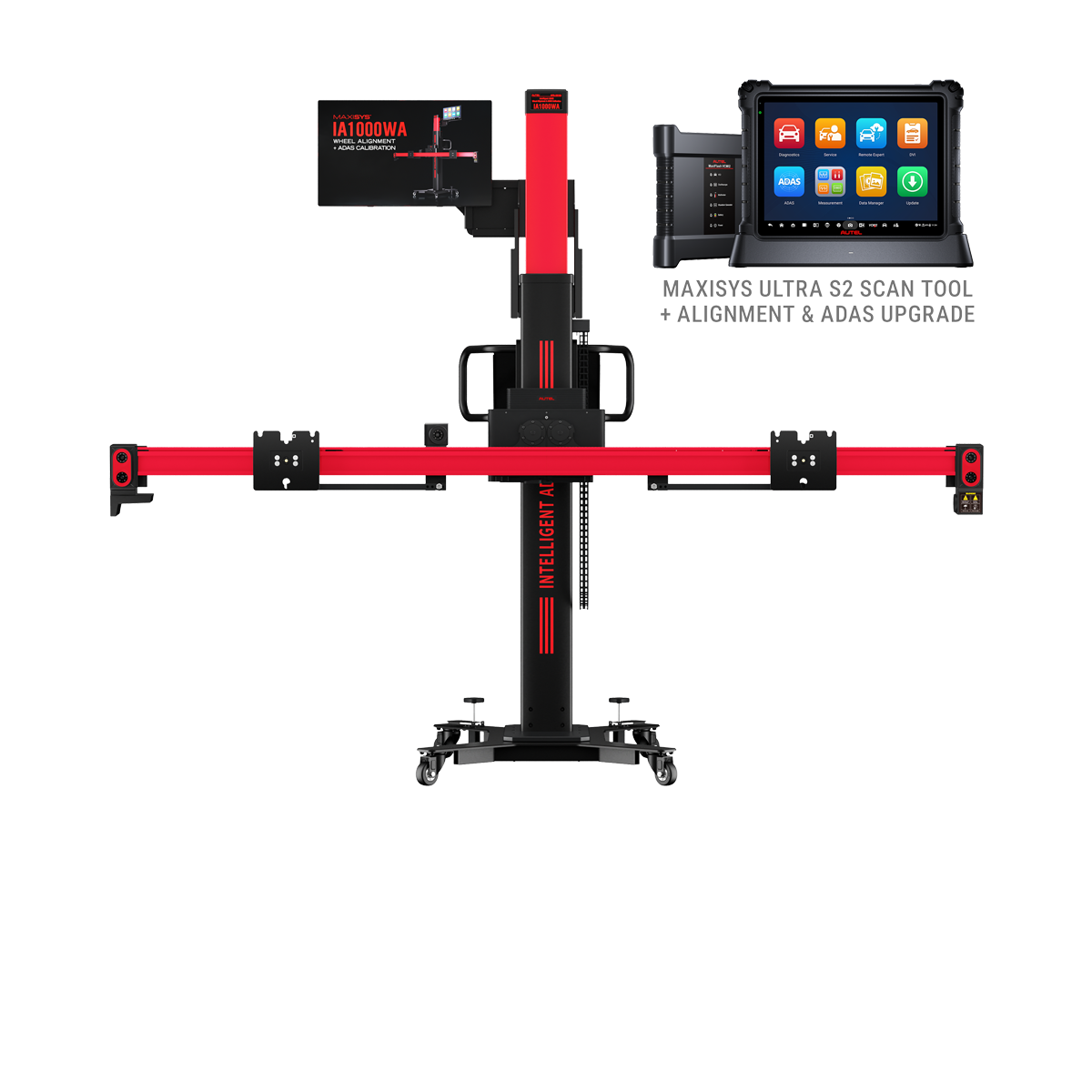

- IA1000 Calibration Frame (model AUTEL-CSC1000) with robotic crossbar and 6 HD cameras
- Digital Targets — 3 Monitors
- Digital Target Activation Card
What You Need to Supply
- MaxiSYS Ultra Tablet (Ultra S2 or compatible) — sold separately
- IA1000 Activation Card — required to activate ADAS calibration functions
IA1000 Platform Core Features
- 6 high-definition cameras at 3072 x 2048 px each — 0.02° calibration accuracy
- 5-way robotic automated forward-facing target placement — crossbar positions itself

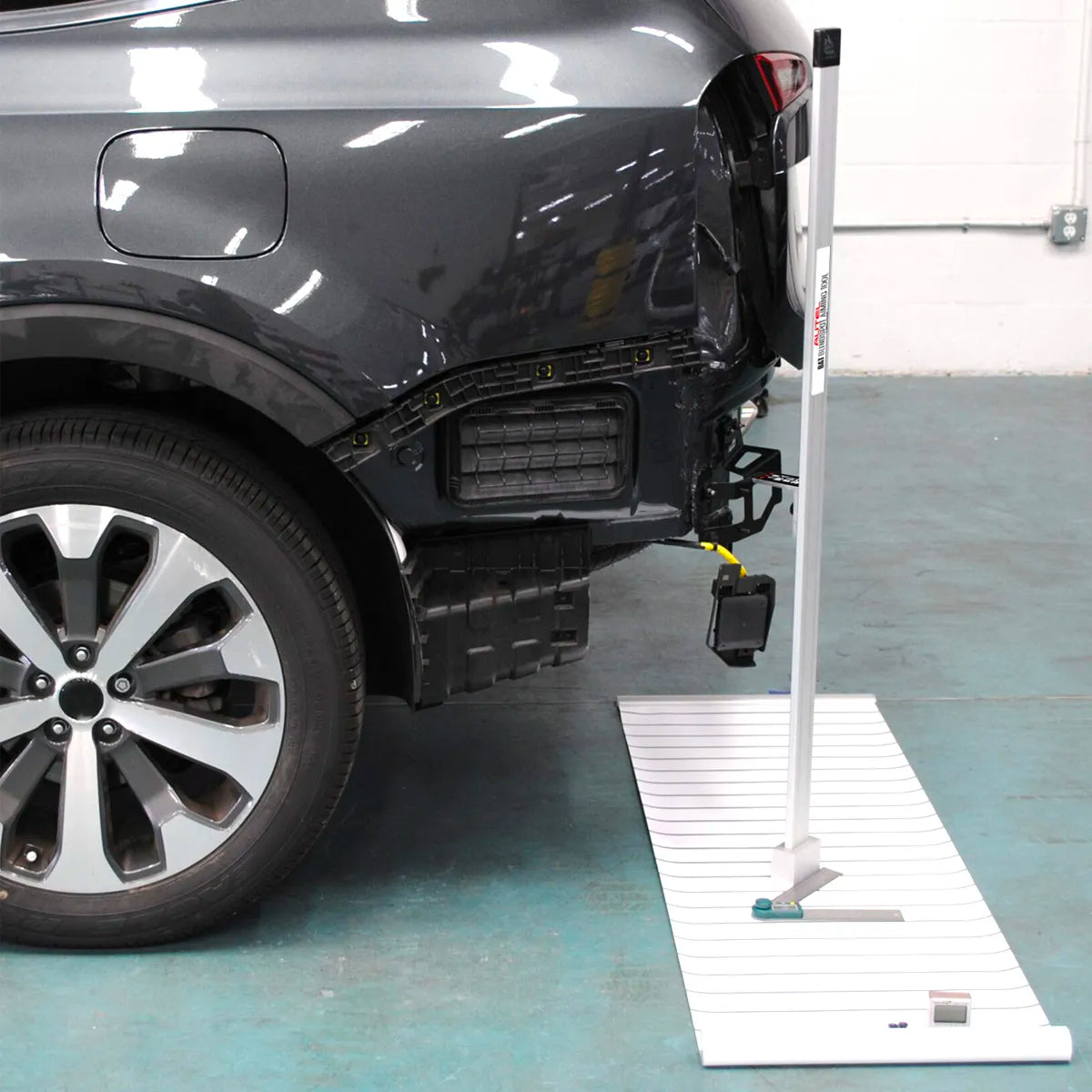

- Laser-guided Blind Spot, ACC, and AVM pattern positioning
- Advanced wheel alignment beyond camber/caster/toe — full OEM-spec measurement
- Digital Go-No-Go confirmation — prevents advancement when target placement is out of spec
- Pre/Post Scan reports for insurance documentation and compliance
- OEM-sourced calibration procedures throughout
- Powered by MaxiSYS Ultra S2 with Topology 3.0 for complete vehicle scanning
- Coverage for U.S., Asian, and European vehicles
- OTA software and target updates
- Automated unlevel floor compensation
Digital Target Monitors
The three digital monitors auto-project the correct calibration pattern for each ADAS calibration step — no manual pattern selection, no physical target management. Self-adjusting brightness handles shop lighting variation. OTA updates push new OEM-sourced target coverage automatically.

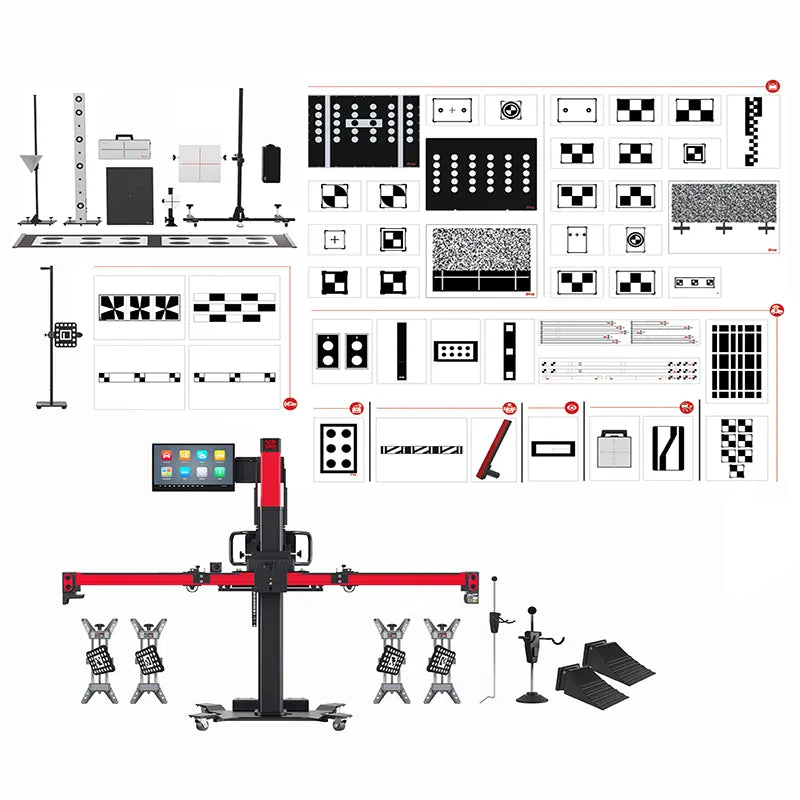

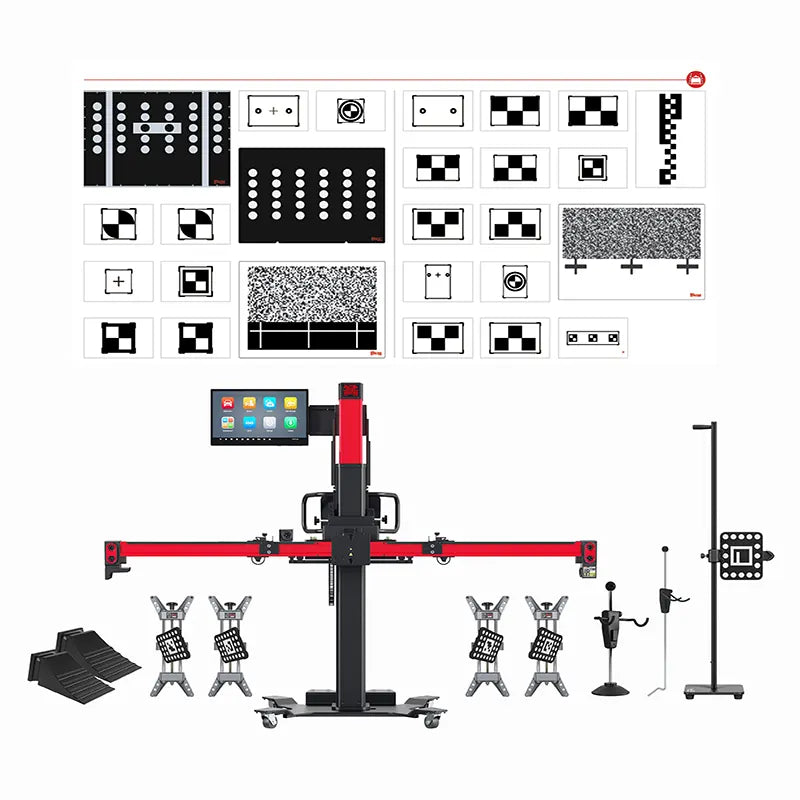

IA1000 Package Lineup
- IA1000 — Frame only
- IA1000T — Frame + Digital Targets (tablet required separately)
- IA1000TDT — Frame + Ultra S2 + Digital Targets
- IA1000LDWT — Frame + Ultra S2 + LDW Targets
- IA1000LDWTDT — Frame + Ultra S2 + LDW Targets + Digital Targets
- IA1000AST — Frame + Ultra S2 + LDW Targets + All Systems Equipment
- IA1000ASTDT — Frame + Ultra S2 + LDW Targets + All Systems + Digital Targets
Technical Specifications
| Spec | Value |
|---|---|
| Model | AUTEL-CSC1000 |
| Rated Power | 360 W |
| Power Supply | 100–264 V, 50/60 Hz |
| Frame Folded Dimensions | 800 x 1000 x 1900 mm (31.50 x 39.37 x 74.80 in) |
| Crossbar Unfolded Length | 2700 mm (106.30 in) |
| Crossbar Folded Length | 400 mm (15.75 in) |
| Frame Height Range | 1670–2770 mm (65.75–109.06 in) |
| Crossbar Height Range | 300–2500 mm (11.18–98.43 in) |
| Cameras | 6 x 3072x2048 pixels |
| Operating Temp | -10 to 50°C (14 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Compatible Tablet | MaxiSYS Ultra Tablet Series |
