MAXISYS IA1000LDWTDT

Autel MaxiSYS IA1000LDWTDT — LDW ADAS Calibration System with Ultra S2 and Digital Targets

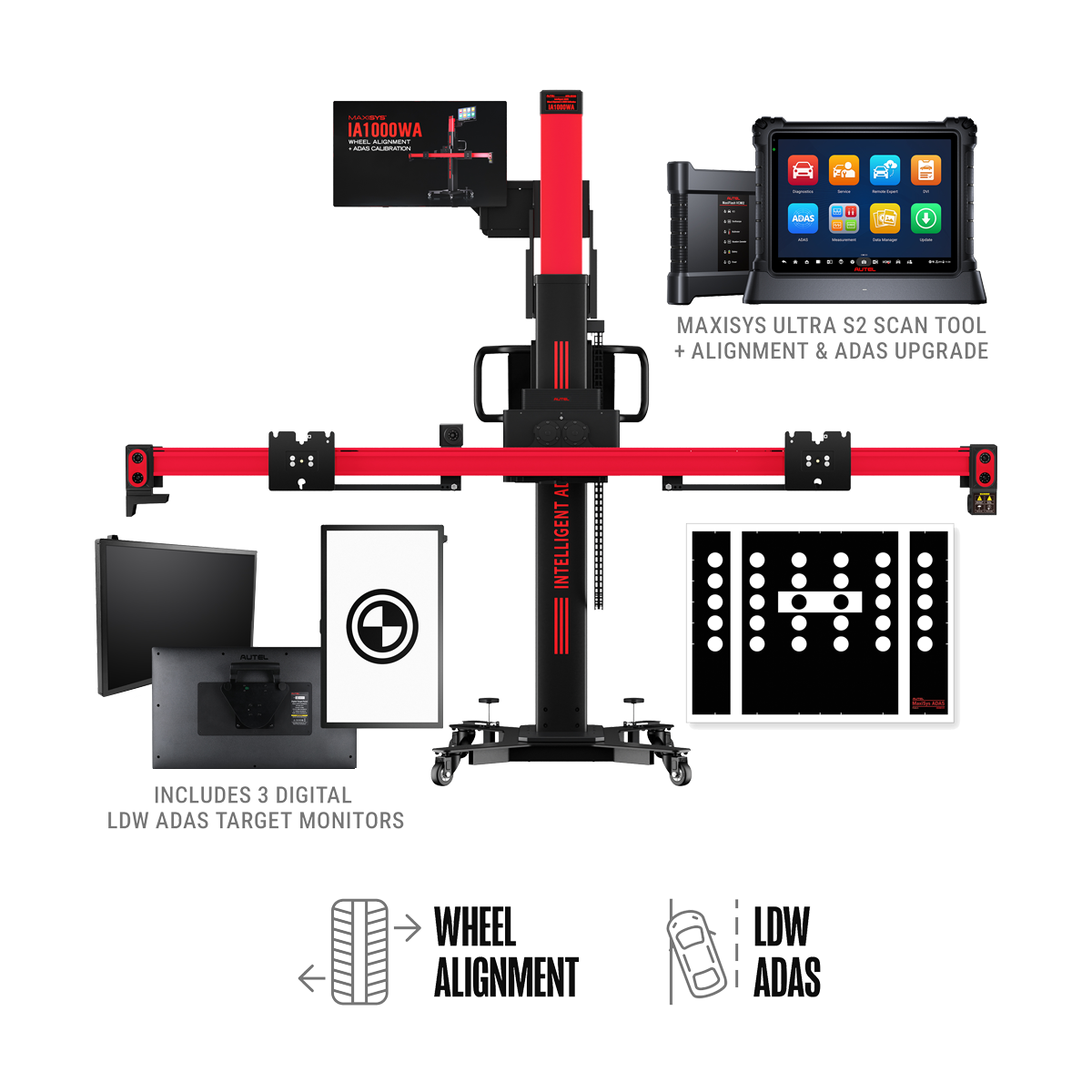

The IA1000LDWTDT is the IA1000 LDW system with digital targets added — it includes the IA1000 frame, the MaxiSYS Ultra S2 tablet, physical LDW targets, and three digital target monitors. This is the configuration for a shop that focuses on LDW camera calibrations but wants the efficiency of digital target projection alongside the physical LDW target set.

What's Included

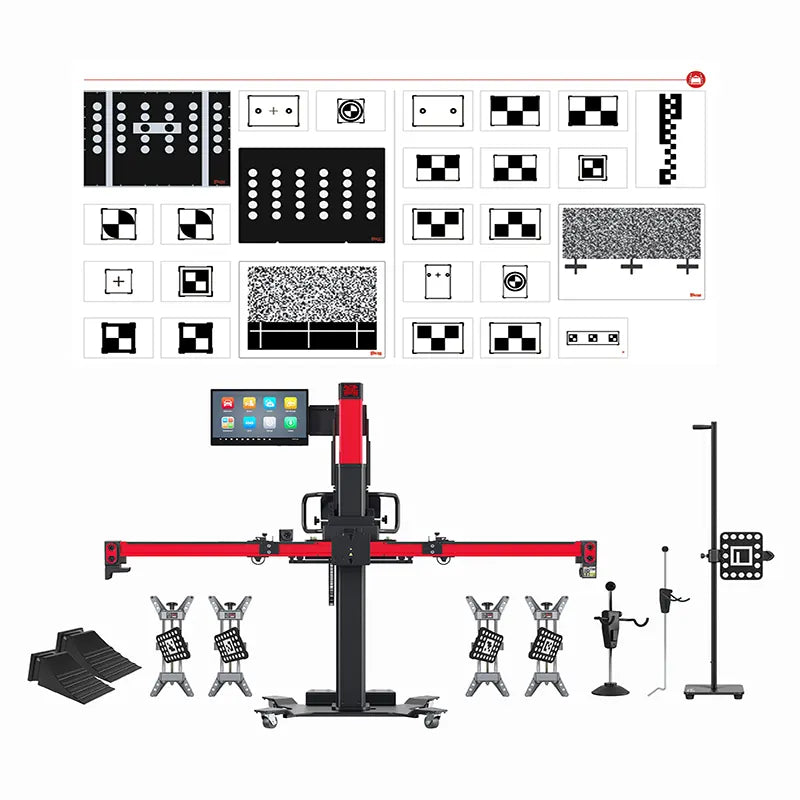

• IA1000 Calibration Frame (model AUTEL-CSC1000) with robotic crossbar and 6 HD cameras
• MaxiSYS Ultra S2 Tablet
• IA1000 Activation Card
• LDW (Lane Departure Warning) Targets — physical targets
• Digital Targets — 3 Monitors — auto-projects calibration patterns
• Digital Target Activation Card

LDW + Digital Targets: The Right Combination For

This package is suited for glass shops, collision centers, and ADAS-focused operations where LDW camera calibrations are the primary work type, and where the volume of daily calibrations justifies the speed improvement that digital targets provide. The digital monitors project the correct LDW pattern automatically, and OTA updates add new vehicle coverage as it becomes available.

Versus IA1000LDWT

The IA1000LDWT (without digital targets) includes everything in this package except the three digital monitors and Digital Target Activation Card. If you are on the fence about digital targets, consider your daily calibration volume — the more calibrations per day, the faster digital targets pay back the additional cost.

IA1000 Platform — Key Capabilities

Automated ADAS Targeting and Advanced Wheel Alignment

• 6 high-definition cameras (3072 x 2048 pixels each) combined with precision-engineered wheel clamp targets deliver 0.02° accuracy — the tightest tolerance in this class
• 5-way robotic, automated forward-facing target placement — the crossbar moves itself to the correct position, reducing setup time versus manually adjusting a static frame
• Laser-guided Blind Spot, ACC, and AVM pattern positioning for accurate radar and camera calibration placement
• Advanced wheel alignment data beyond standard camber, caster, and toe — provides full OEM-spec alignment measurement before proceeding to ADAS calibration

Target Validation and OEM-Compliant Reporting

• Digital Go-No-Go confirmation — the system will not let you advance if target placement is out of spec. This is not advisory; it is a hard stop that prevents calibrations on incorrectly positioned setups
• Validated target position data is documented in Pre/Post Scan reports — provides insurance-ready documentation showing calibration was performed to OEM specifications
• OEM-sourced calibration procedures throughout — not generic aftermarket procedures

Diagnostics Integration

• Powered by the MaxiSYS Ultra S2 diagnostic tablet with Topology 3.0 — gives you full system scan capability (read/erase codes across all modules, live data, bi-directional tests) as part of the same workflow
• Industry-leading coverage for U.S., Asian, and European vehicles
• OTA (over-the-air) software updates for continuous access to the latest OEM-sourced calibration and diagnostic coverage

Frame Design

• Robotic crossbar automatically sets vertical calibration position
• Automated unlevel floor compensation — calibrations can be performed on non-perfectly-level surfaces without failed results
• Frame folded dimensions: 800 x 1000 x 1900 mm — manageable for shop storage
• Power: 360W, 100–264V input — standard shop power

Understanding the IA1000 Package Lineup

All IA1000 packages share the same AUTEL-CSC1000 calibration frame and the same core hardware. The differences are in what's included in the box and what calibration coverage is activated. Here is the full package lineup for reference:

• IA1000 — Frame only, no tablet, no calibration targets (alignment pre-check baseline)
• IA1000T — Frame + Digital Targets (3 monitors), requires Ultra S2 tablet separately
• IA1000TDT — Frame + Ultra S2 Tablet + Digital Targets (3 monitors)
• IA1000LDWT — Frame + Ultra S2 Tablet + LDW Targets (lane departure warning cameras)
• IA1000LDWTDT — Frame + Ultra S2 Tablet + LDW Targets + Digital Targets (3 monitors)
• IA1000AST — Frame + Ultra S2 Tablet + LDW Targets + All Systems Calibration Equipment
• IA1000ASTDT — Frame + Ultra S2 Tablet + LDW Targets + All Systems Equipment + Digital Targets (3 monitors)

Choose based on what systems you need to calibrate and whether you already own a compatible MaxiSYS Ultra tablet.

Technical Specifications
