MAXISYS IA1000LDWT

Autel MaxiSYS IA1000LDWT — LDW ADAS Calibration System with Ultra S2 Tablet

The IA1000LDWT is the IA1000 calibration frame bundled with the MaxiSYS Ultra S2 tablet and LDW (Lane Departure Warning) targets. It is the entry point into the IA1000 system with a complete out-of-the-box setup — you get the frame, the tablet, and the LDW calibration targets. This package is for shops that primarily perform LDW camera calibrations and want the full IA1000 frame capability without the all-systems target set.

What's Included

• IA1000 Calibration Frame (model AUTEL-CSC1000) with robotic crossbar and 6 HD cameras
• MaxiSYS Ultra S2 Tablet — Autel's flagship diagnostic tablet
• IA1000 Activation Card
• LDW (Lane Departure Warning) Targets — physical targets for LDW camera calibrations

LDW Coverage

LDW targets cover lane departure warning camera calibrations for the majority of vehicles you will encounter — the IA1000 platform supports LDW calibrations for U.S., Asian, and European vehicles. If your ADAS workload is primarily windshield replacements and camera recalibrations (the most common ADAS shop scenario), the LDWT package provides everything needed without paying for radar, lidar, and AVM calibration equipment you may rarely use.

Upgrade Path

If you later need to add all-systems coverage (radar, lidar, AVM) or digital targets, Autel's modular architecture allows you to add components over time. Call Autel Diagnostic Tools to discuss the upgrade options available for your IA1000 frame.

IA1000 Platform — Key Capabilities

Automated ADAS Targeting and Advanced Wheel Alignment

• 6 high-definition cameras (3072 x 2048 pixels each) combined with precision-engineered wheel clamp targets deliver 0.02° accuracy — the tightest tolerance in this class
• 5-way robotic, automated forward-facing target placement — the crossbar moves itself to the correct position, reducing setup time versus manually adjusting a static frame

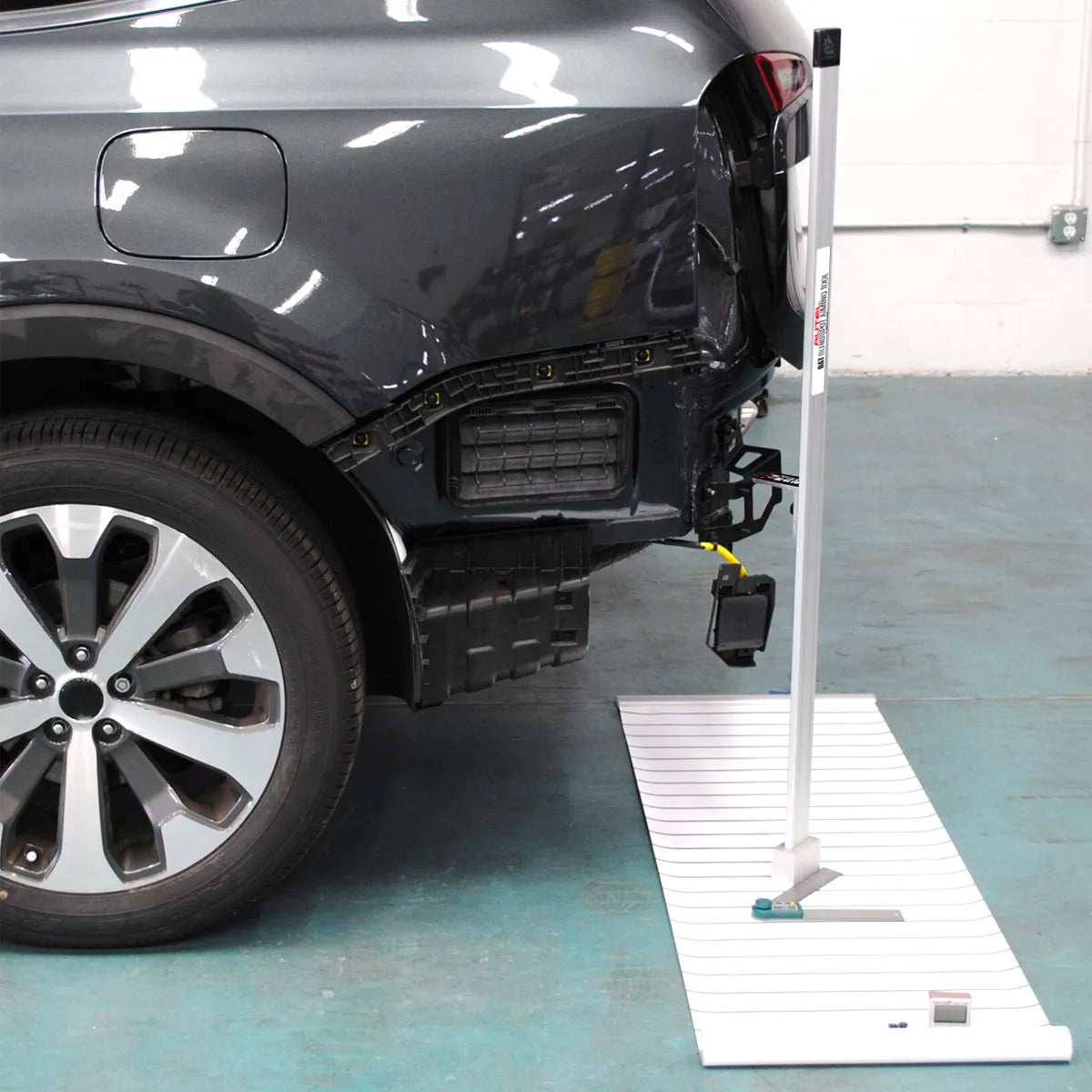

• Laser-guided Blind Spot, ACC, and AVM pattern positioning for accurate radar and camera calibration placement
• Advanced wheel alignment data beyond standard camber, caster, and toe — provides full OEM-spec alignment measurement before proceeding to ADAS calibration

Target Validation and OEM-Compliant Reporting

• Digital Go-No-Go confirmation — the system will not let you advance if target placement is out of spec. This is not advisory; it is a hard stop that prevents calibrations on incorrectly positioned setups
• Validated target position data is documented in Pre/Post Scan reports — provides insurance-ready documentation showing calibration was performed to OEM specifications
• OEM-sourced calibration procedures throughout — not generic aftermarket procedures

Diagnostics Integration

• Powered by the MaxiSYS Ultra S2 diagnostic tablet with Topology 3.0 — gives you full system scan capability (read/erase codes across all modules, live data, bi-directional tests) as part of the same workflow
• Industry-leading coverage for U.S., Asian, and European vehicles
• OTA (over-the-air) software updates for continuous access to the latest OEM-sourced calibration and diagnostic coverage

Frame Design

• Robotic crossbar automatically sets vertical calibration position
• Automated unlevel floor compensation — calibrations can be performed on non-perfectly-level surfaces without failed results
• Frame folded dimensions: 800 x 1000 x 1900 mm — manageable for shop storage
• Power: 360W, 100–264V input — standard shop power

Understanding the IA1000 Package Lineup

All IA1000 packages share the same AUTEL-CSC1000 calibration frame and the same core hardware. The differences are in what's included in the box and what calibration coverage is activated. Here is the full package lineup for reference:

• IA1000 — Frame only, no tablet, no calibration targets (alignment pre-check baseline)
• IA1000T — Frame + Digital Targets (3 monitors), requires Ultra S2 tablet separately
• IA1000TDT — Frame + Ultra S2 Tablet + Digital Targets (3 monitors)
• IA1000LDWT — Frame + Ultra S2 Tablet + LDW Targets (lane departure warning cameras)
• IA1000LDWTDT — Frame + Ultra S2 Tablet + LDW Targets + Digital Targets (3 monitors)

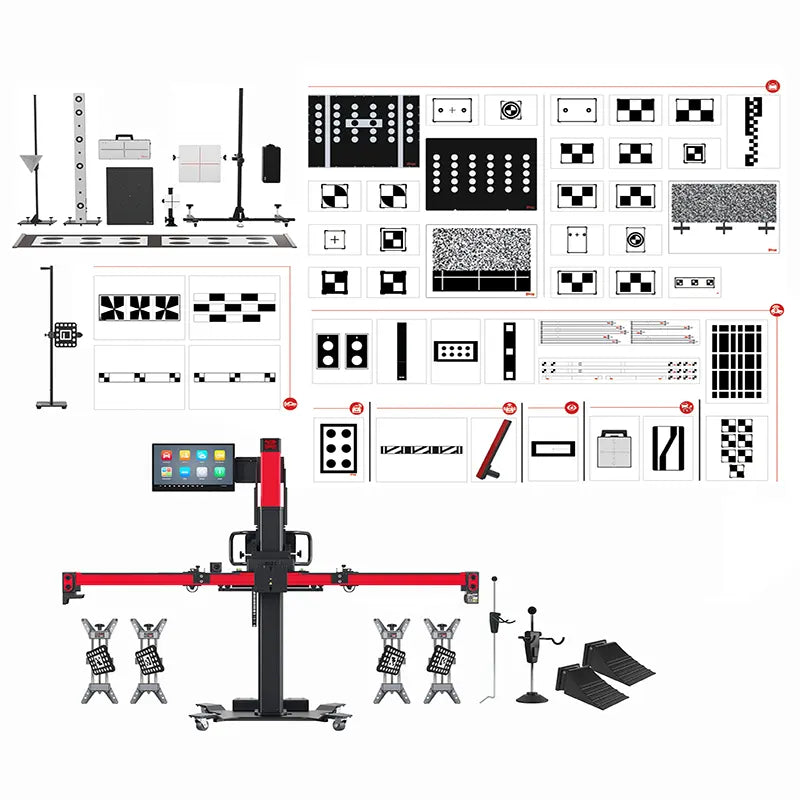

• IA1000AST — Frame + Ultra S2 Tablet + LDW Targets + All Systems Calibration Equipment
• IA1000ASTDT — Frame + Ultra S2 Tablet + LDW Targets + All Systems Equipment + Digital Targets (3 monitors)

Choose based on what systems you need to calibrate and whether you already own a compatible MaxiSYS Ultra tablet.

Technical Specifications
