ITS600 CV

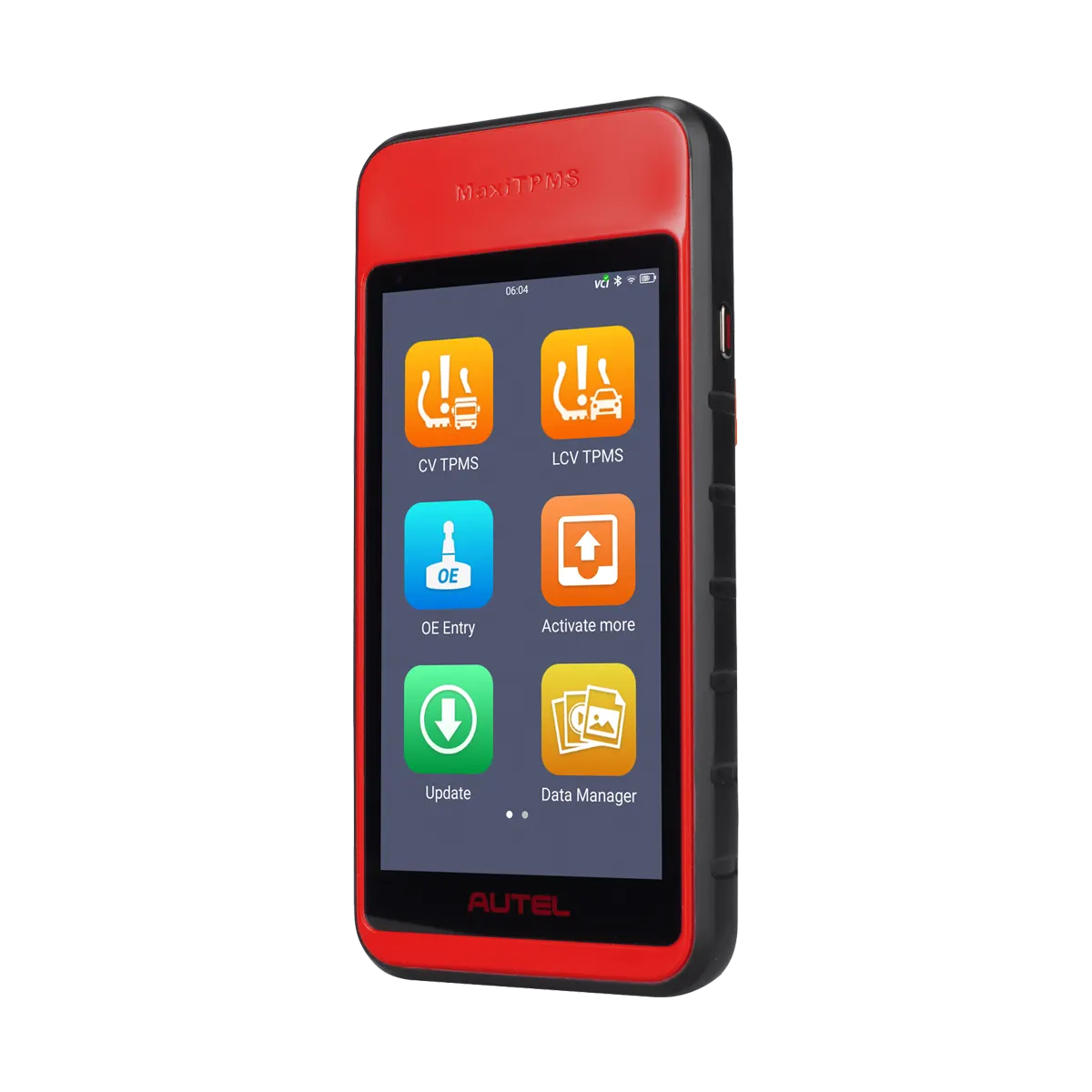

Autel MaxiTPMS ITS600 CV — Commercial Vehicle TPMS Tablet

The ITS600 CV is Autel's TPMS tablet built specifically for commercial vehicle applications — trucks, trailers, and buses equipped with direct TPMS. It handles light, medium, and heavy-duty vehicles in a single 5.5-inch Android tablet that ships with Bluetooth VCI and the DLC adapters needed for Deutsch-connected commercial equipment. If your shop or fleet maintenance operation works on Class 4-8 trucks alongside passenger vehicles, or you are a truck dealer running TPMS calibrations, this is the tool.

What Makes This Different From the Standard ITS600

The standard ITS600 focuses on passenger vehicle TPMS. The ITS600 CV extends that platform to commercial vehicles with several specific capabilities:

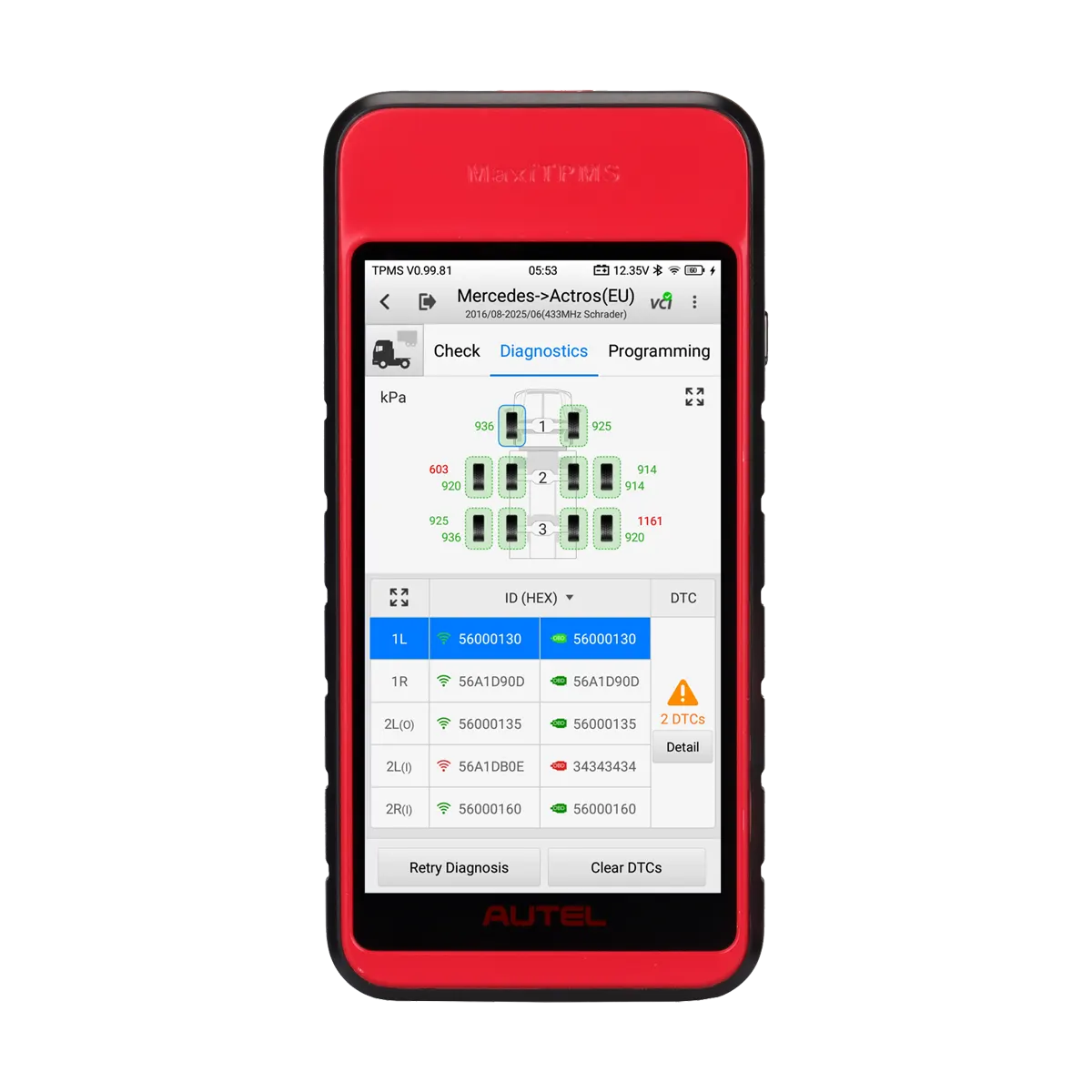

• Separate Tractor and Trailer interfaces — display up to 46 wheels and 12 axles simultaneously, showing the TPMS status of an entire rig at once
• Commercial vehicle TPMS sensor coverage — activates, reads, and relearns TPMS sensors on trucks, trailers, and buses that use direct TPMS

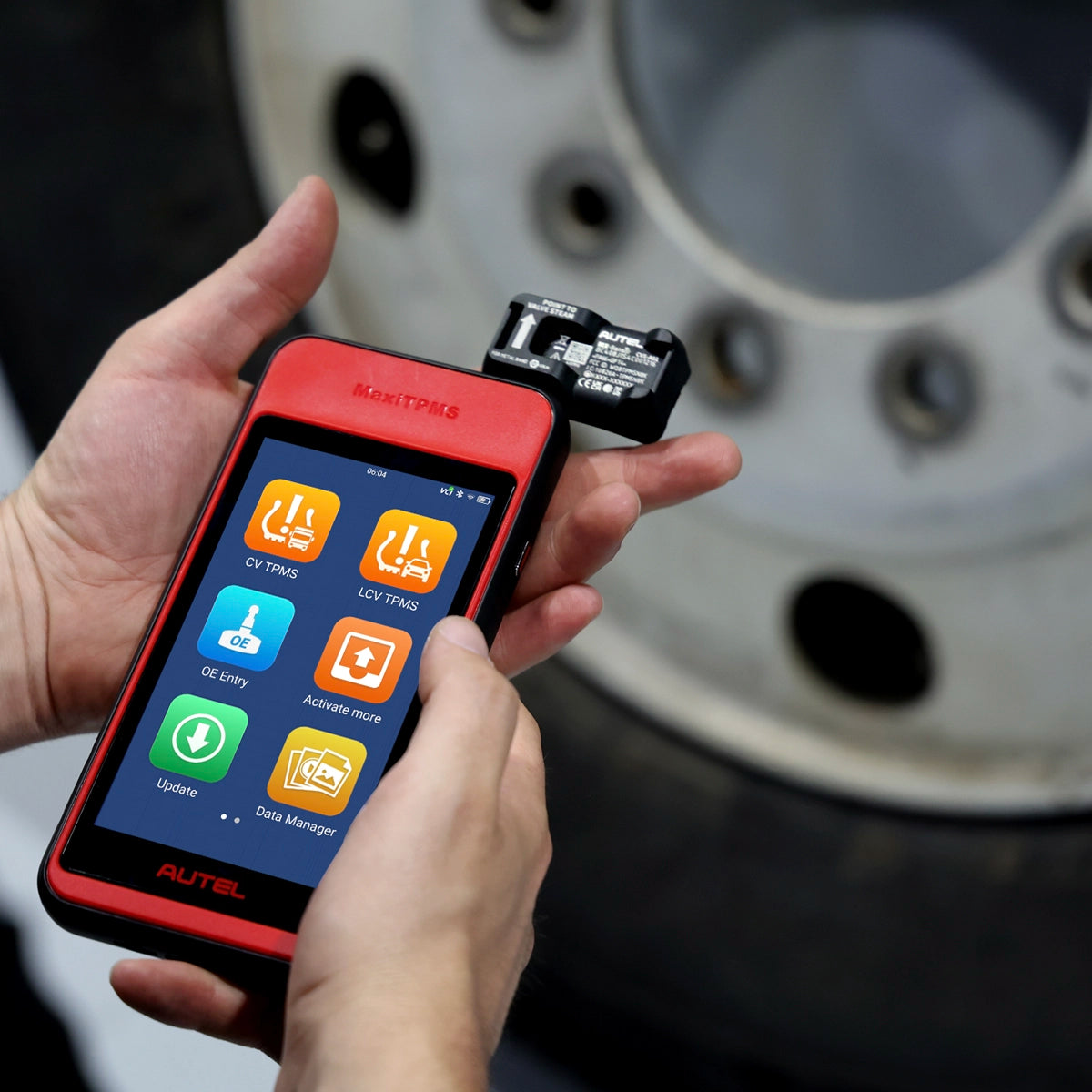

• Program Autel CVS-A01 sensor — the 433 MHz universal programmable sensor for commercial vehicles, to replace OE and programmed aftermarket sensors on the vehicle
• Deutsch 6-pin, 9-pin, and UNIU-4 DLC adapters included — ready to connect to commercial vehicle diagnostic ports without additional adapter purchases
• Generate, print, and share TPMS and tire service reports — fleet documentation capability built in

Light, Medium, and Heavy-Duty Coverage

The ITS600 CV covers the full spectrum of direct TPMS-equipped commercial vehicles. "Direct TPMS" means the vehicle has actual pressure sensors in the wheels transmitting data — not all commercial vehicles have this system, so verify your target vehicles before purchasing.

Optional upgrades are available to add Passenger Vehicle TPMS coverage and CV Diagnostics coverage — expanding the tool beyond commercial TPMS into broader commercial diagnostics and passenger car TPMS. If you work across both vehicle classes, these upgrade purchases turn the ITS600 CV into a more comprehensive tool.

Hardware Specifications

• Operating System: Android 9.0
• Processor: Quad-core, 1.5 GHz
• Memory: 2GB RAM DDR4 / 64GB ROM
• Display: 5.5-inch LCD capacitive touchscreen, 1280×720 resolution
• Camera: 8MP rear
• Battery: 3.8V / 5,000 mAh lithium-polymer
• Input Voltage: 12V (9-24V)
• Connectivity: Wi-Fi, Bluetooth, Type-C USB
• Dimensions: 183.0mm × 89.0mm × 22.0mm (7.2" × 3.5" × 0.87")
• Weight: 368g (0.8 lb)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Communication Protocols

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW/PWM, ISO11898 (Highspeed/Middlespeed/Lowspeed/Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, Honda Diag-H Protocol, TP2.0, TP1.6, ISO 13400, CAN FD, SAE-J1939, SAE-J2411 Single Wire CAN (GMLAN) — the J1939 and GMLAN protocols are key for commercial vehicle communication.

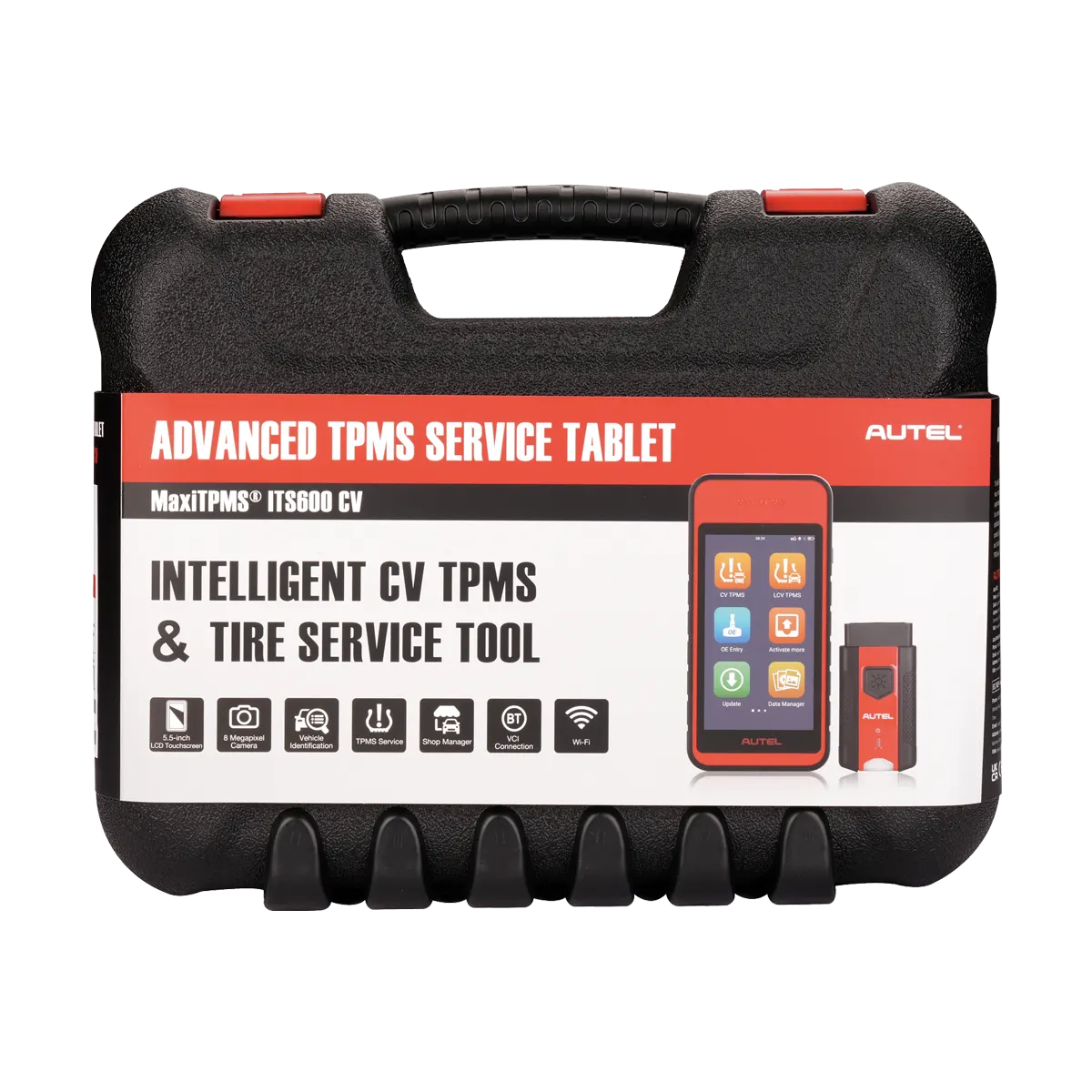

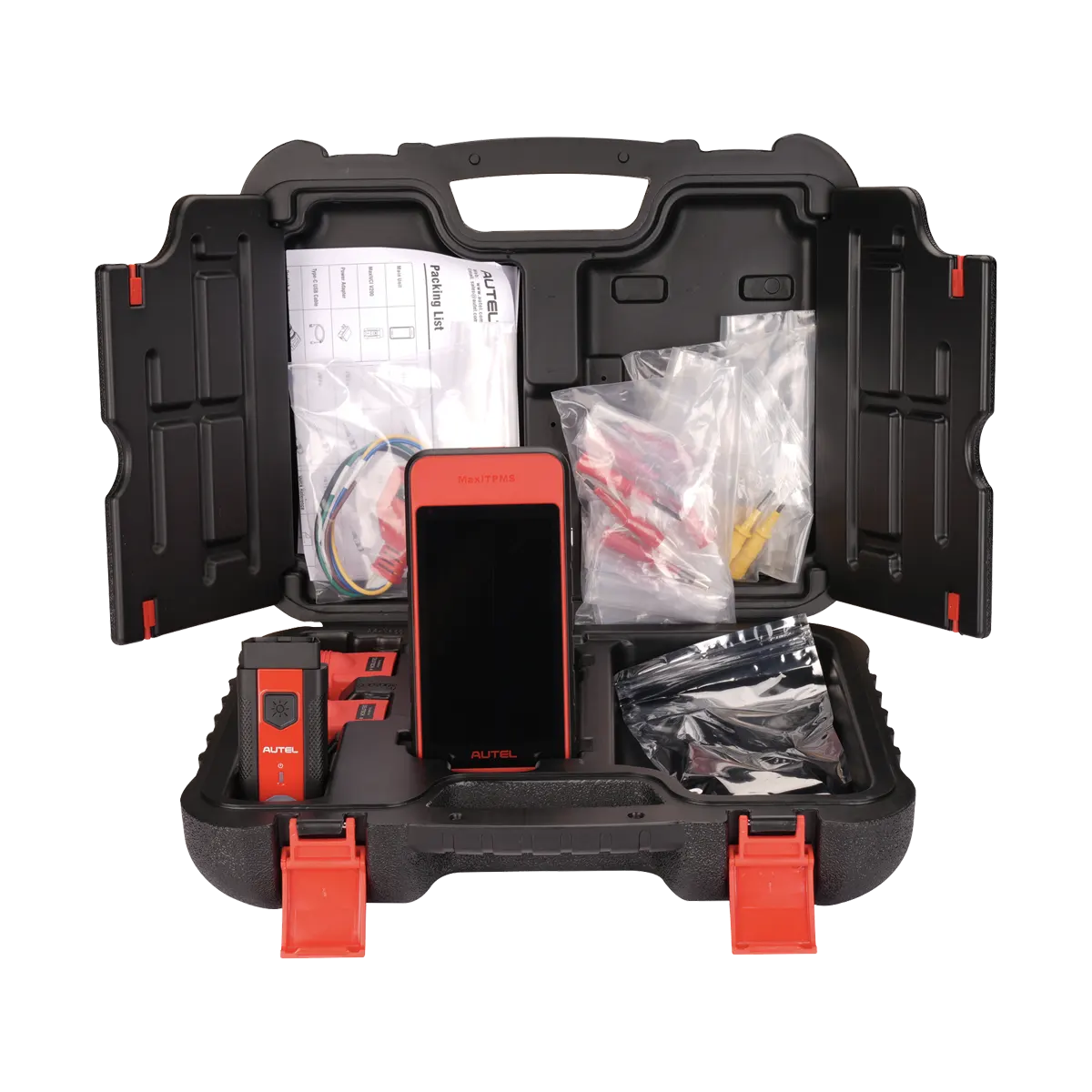

What Is Included

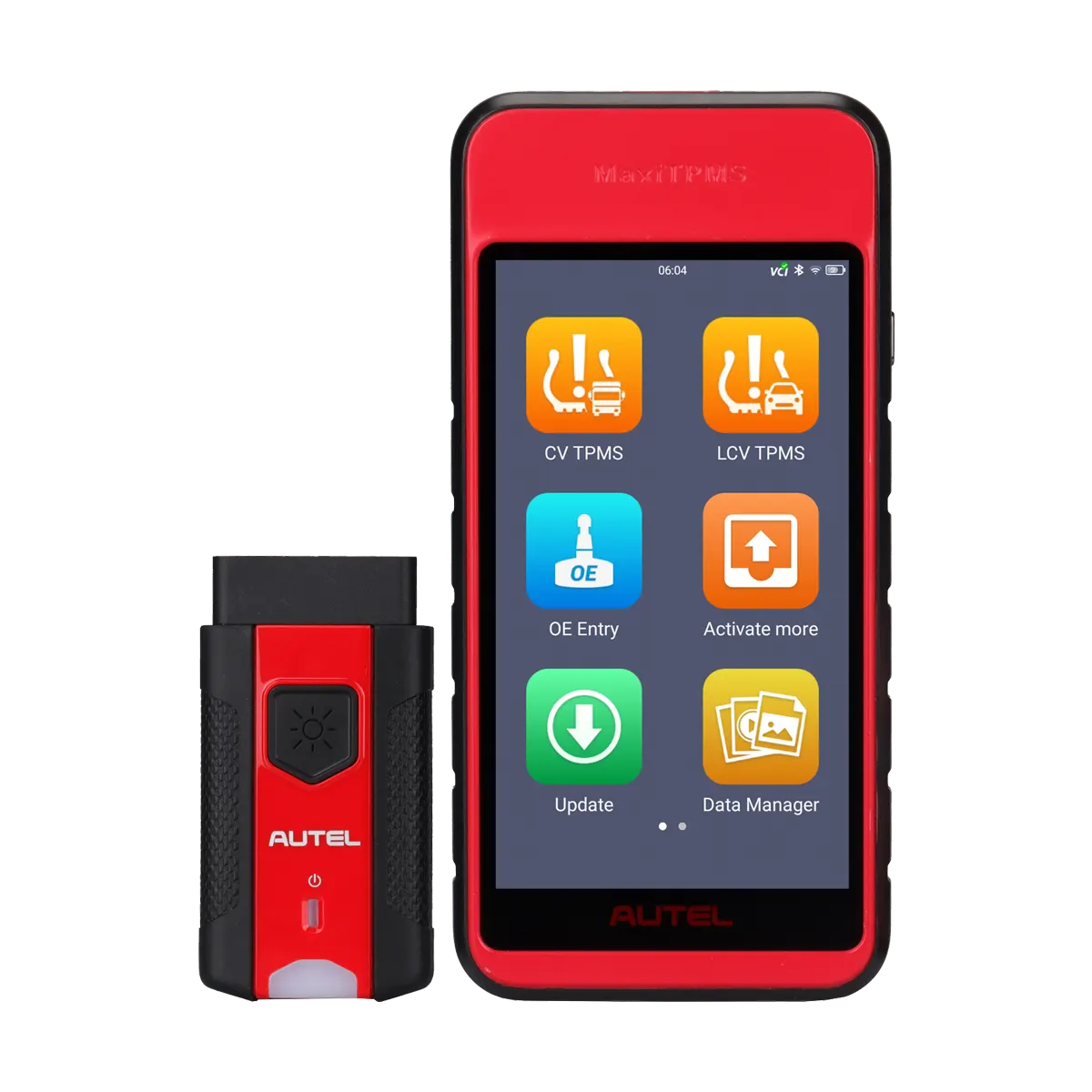

• ITS600 CV tablet with Bluetooth-enabled VCI
• Deutsch 6-pin DLC adapter
• Deutsch 9-pin DLC adapter
• UNIU-4 DLC adapter
• 1-year limited warranty

CVS-A01 universal commercial vehicle TPMS sensor sold separately. Passenger vehicle TPMS and CV Diagnostics coverage available as upgrade purchase.

Who Needs This Tool

This tool belongs in:

• Fleet maintenance shops working on Class 4-8 trucks with TPMS
• Truck dealers (RAM, Freightliner, Kenworth, Peterbilt, etc.) doing TPMS service
• Tire shops that service both passenger vehicles and commercial fleets
• Trailer rental and leasing operations with TPMS-equipped trailers

If your operation is exclusively passenger vehicles, the standard ITS600 is a better fit and costs less. The CV is a specialized tool for operations that actually work on TPMS-equipped commercial equipment.

Why Buy the ITS600 CV From Autel Diagnostic Tools?

Autel Diagnostic Tools has specialized in professional automotive diagnostic equipment since 2016. We carry both the standard ITS600 and ITS600 CV and can help you determine which platform fits your vehicle mix — and whether the CV Diagnostics upgrade makes sense for your operation.

• Free shipping on qualifying orders
• Free tech support — call 866-217-0063
• Full manufacturer warranty honored
• Honest guidance — we will confirm whether your commercial vehicles actually have direct TPMS before you commit to this tool

Call 866-217-0063 for quick answers and help!
