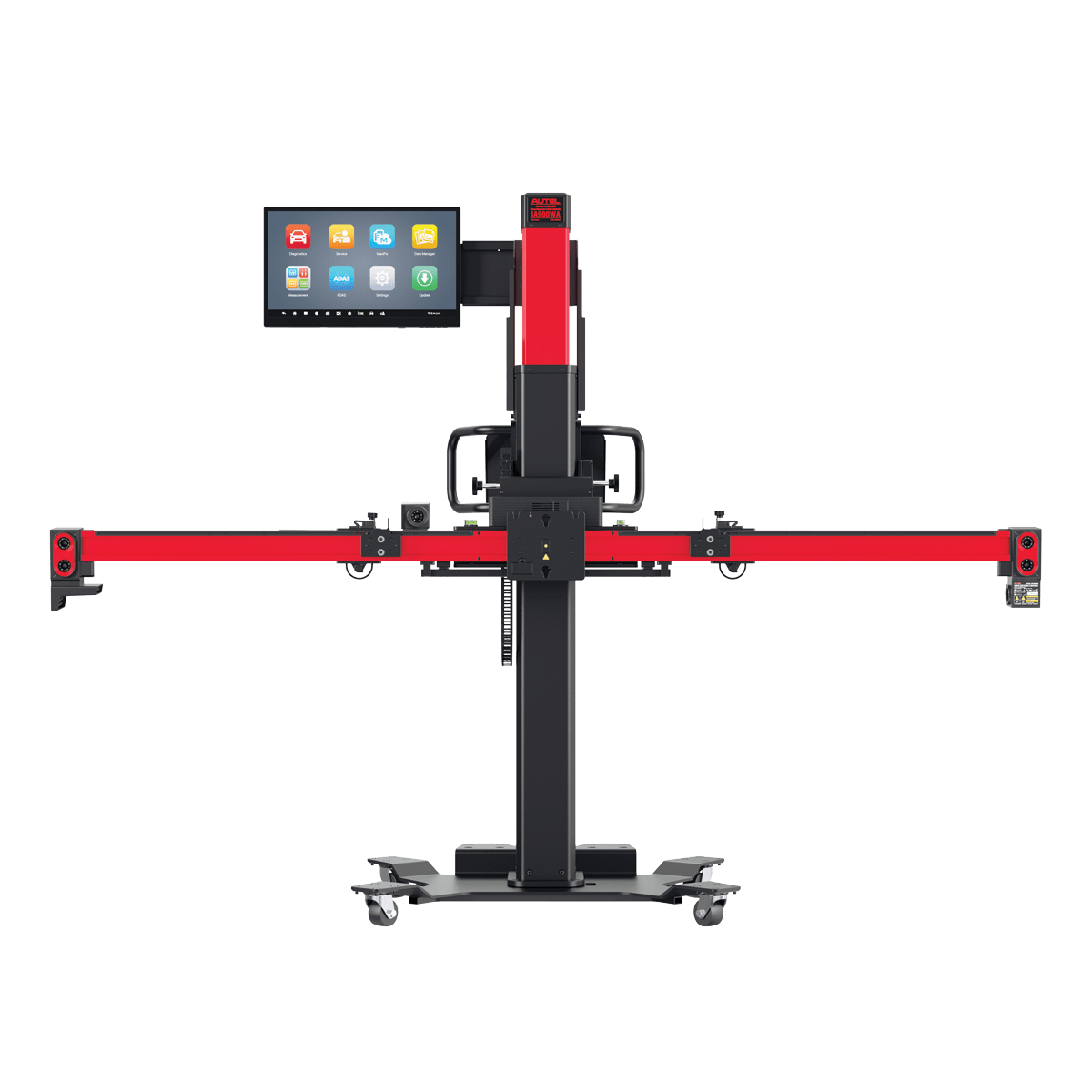

Autel MaxiSYS ADAS IA900WA with LDW Targets and MSULTRAADAS Tablet

Autel MaxiSYS IA900LDWT — IA900WA Frame with LDW Targets and MSULTRAADAS Tablet

The IA900LDWT is the complete package for shops that want the IA900WA alignment and ADAS system with both the LDW target set and the MSULTRAADAS tablet included out of the box. You get the frame, the 24-inch display, the tablet with preloaded software, and the camera calibration targets — everything needed to start doing lane departure warning calibrations and four-wheel alignments without additional purchases.

The difference between IA900LDW and IA900LDWT is one item: the MSULTRAADAS 12.7-inch wireless tablet. If you already own an Autel MaxiSYS tablet compatible with the IA900WA, save the money and go with IA900LDW. If you need the tablet included, IA900LDWT is the right call.

What You Get With the "T" (MSULTRAADAS Tablet)

• 12.7-inch MaxiSYS MSULTRAADAS wireless touchscreen tablet
• Preloaded Alignment and ADAS Calibration software
• Dual-screen operation — casts to and from the 24" frame display
• Controls crossbar pitch, roll, yaw, and center positioning
• Replaces need for a separate MaxiSYS diagnostic device in the workflow

LDW Target Coverage

The Lane Departure Warning target package covers camera calibrations for:

• Mercedes-Benz
• Nissan and Infiniti
• Hyundai and Kia
• Toyota and Lexus
• Mazda
• Mitsubishi
• Subaru
• Volkswagen and Audi
• Alfa Romeo

For shops that also perform radar, LiDAR, Blind Spot Detection, or Night Vision calibrations, the All Systems package (IA900AS or IA900AST) provides the full target set.

Frame Features

• Four-wheel alignment and ADAS calibration — single frame, single workflow
• Six high-resolution positioning and tracking cameras built into frame
• Alignment accuracy: 0.02 degrees
• Robotic crossbar movement — placement in under a minute
• Automatic crossbar height adjustment: 6-inch minimum to 7-foot maximum
• Tracks vehicle height automatically on lift
• Self-calibrating cameras
• Unlevel floor compensation
• Fully optical target placement — 6X faster than mechanical measurement
• Alignment coverage: U.S., Asian, and European vehicles, 1996 and newer

Alignment Capabilities

• Camber, caster, toe, thrust angle, SAI, toe-out on turns
• Frame alignment and engine cradle diagnosis
• Tire diameter, tread depth and pressure
• Wheel-off and raised vehicle adjustment
• Bump steer diagnosis and steering angle relearn
• Illustrated instructions, live readings, adjustment locations on one screen

What Is Included

• IA900WA calibration frame with 24-inch touchscreen display
• MaxiSYS MSULTRAADAS 12.7" wireless tablet with preloaded software
• LDW camera calibration targets and patterns
• Wheel Clamps (4x)
• Wheel Targets (4x)
• Distance Target (1x)
• Steering Wheel Lock (1x)
• Wheel Chocks (2x)
• Brake Lock (1x)
• One-year limited warranty

IA900 Configuration Options

• IA900WA — Frame only, no ADAS targets, no tablet
• IA900WAT — Frame + MSULTRAADAS tablet, no ADAS targets
• IA900LDW — Frame + LDW targets, no tablet
• IA900LDWT — Frame + LDW targets + MSULTRAADAS tablet
• IA900AS — Frame + All Systems targets, no tablet
• IA900AST — Frame + All Systems targets + MSULTRAADAS tablet

Why Buy the Autel MaxiSYS ADAS IA900WA with LDW Targets and MSULTRAADAS Tablet From Autel Diagnostic Tools?

Autel Diagnostic Tools has been an Autel specialist since 2016. We stock the full IA900 lineup and can confirm which package makes sense based on your shop's vehicle mix. Free shipping, free tech support at 866-217-0063, full manufacturer warranty, and honest advice on whether LDW coverage is enough or whether All Systems is worth the upgrade for your market.

Call 866-217-0063 for quick answers and help!
