Autel MaxiTPMS TS508WF — Advanced TPMS Service Tool in Blow Mold Case
The Autel TS508WF is a handheld TPMS service tool that handles the full range of sensor reading, activation, relearning, and MX-Sensor programming — packaged in a protective blow mold case. The "WF" designation means this version updates via Wi-Fi as well as USB, which is the main differentiator from the base TS508. For shops that want to keep the tool current without sitting down at a computer, the Wi-Fi update capability matters.
Two Service Modes: Quick and Advanced
The TS508WF gives technicians two ways to work depending on what the job requires:
- Quick Mode: Basic TPMS functions — check sensors, program MX-Sensors fast. Good for straightforward sensor swaps where you just need to verify and program.
- Advanced Mode: Full TPMS workflow — sensor check, TPMS diagnosis, MX-Sensor programming, and sensor position relearn. Use this when you need to diagnose a TPMS fault or complete a full four-sensor relearn after a tire rotation or replacement.
TPMS Functions
- Read, activate, and relearn all known OEM and aftermarket TPMS sensors
- Detect and display TPMS system faults
- Display vehicle-specific relearn procedures on-screen
- Perform OBDII relearns directly through the tool
- Placard value reset on supported vehicles
- Display sensor ID, battery life (on supported sensors), and PSI readings
- Key fob signal test
- TPMS Status Screen: read ECU sensor ID, check sensor/ECU ID matching, read and erase DTCs, view DTC descriptions
- Two MX-Sensor programming methods (MX-Sensors only)

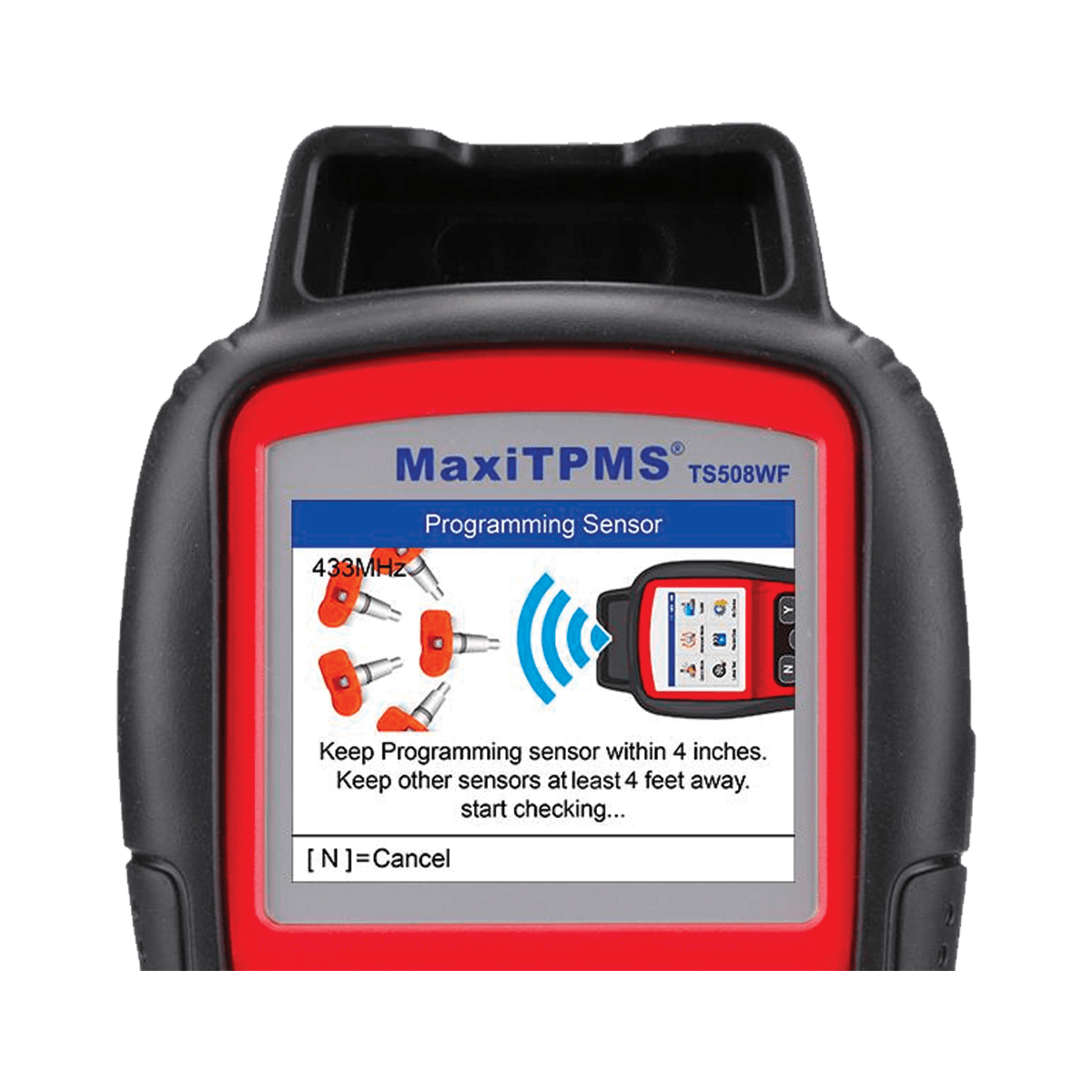

MX-Sensor Programming
The TS508WF programs Autel MX-Sensors (also called 1-Sensors), the universal programmable sensor that replaces 99.7% of OEM TPMS sensors on the road. MX-Sensors use dual 315MHz and 433MHz frequencies and are available with rubber or aluminum valve stems at $39.95 each. For a shop doing regular tire service, stocking MX-Sensors and programming them with the TS508WF is a straightforward, profitable workflow.
Software Updates
Software updates are free for the life of the tool. The TS508WF updates two ways:

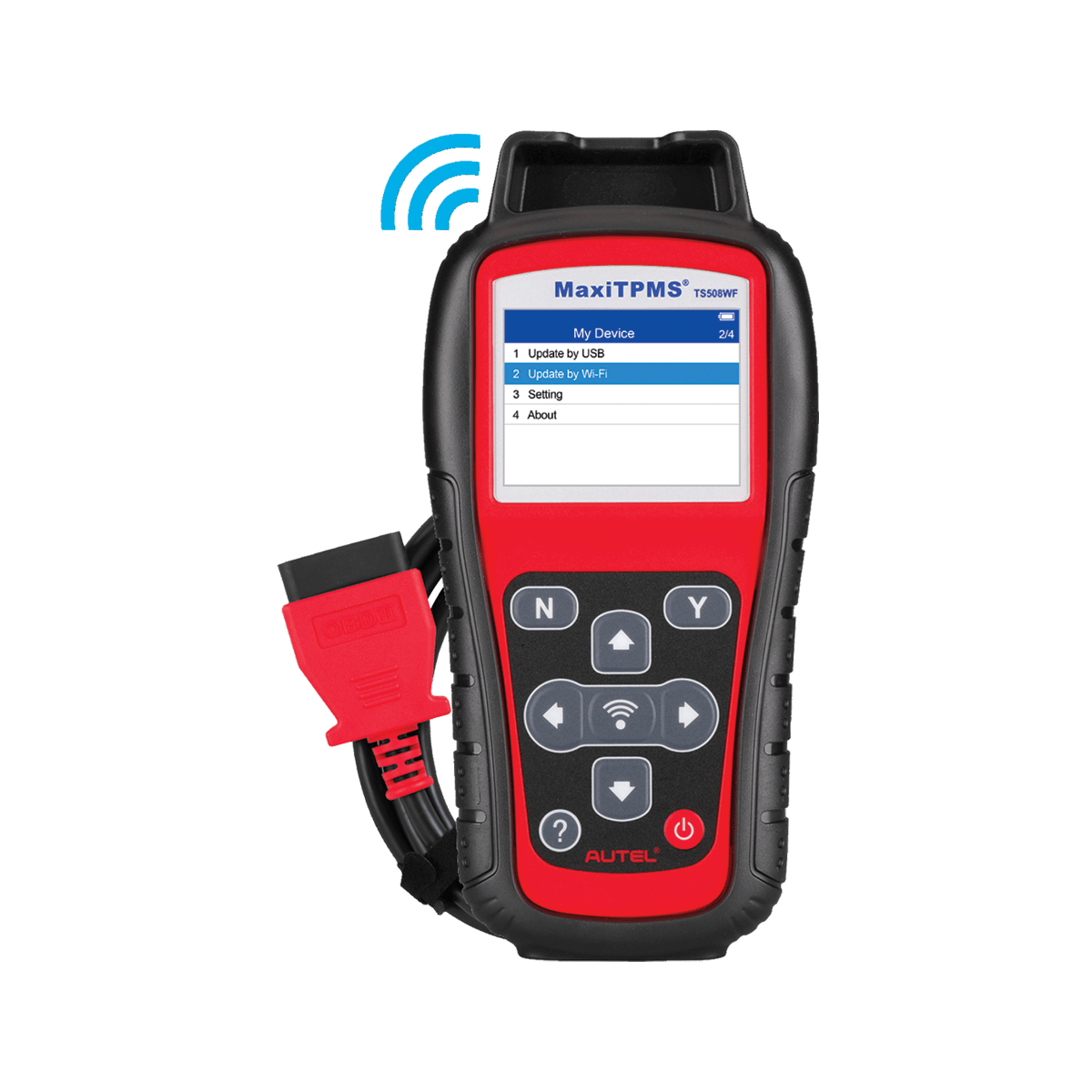

- Wi-Fi update: Connect to shop Wi-Fi, update directly on the tool — no computer required
- USB update: Update via PC using Autel Maxi PC Suite (Windows)
Autel recommends updating every 2-3 weeks to stay current on vehicle coverage and firmware. The Wi-Fi update option makes this easier to stay disciplined about.
Specifications
- Display: 2.3-inch TFT color display, 320×240 resolution
- Battery: 3.7V lithium-polymer, 3,200 mAh
- Dimensions: 215mm × 105mm × 37mm (8.46" × 4.13" × 1.46")
- Weight: 0.39 kg (0.86 lb)
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Connectivity: Wi-Fi (updates), USB
- Warranty: 1-year limited
What Is Included
- TS508WF handheld TPMS tool
- OBDII cable (included)

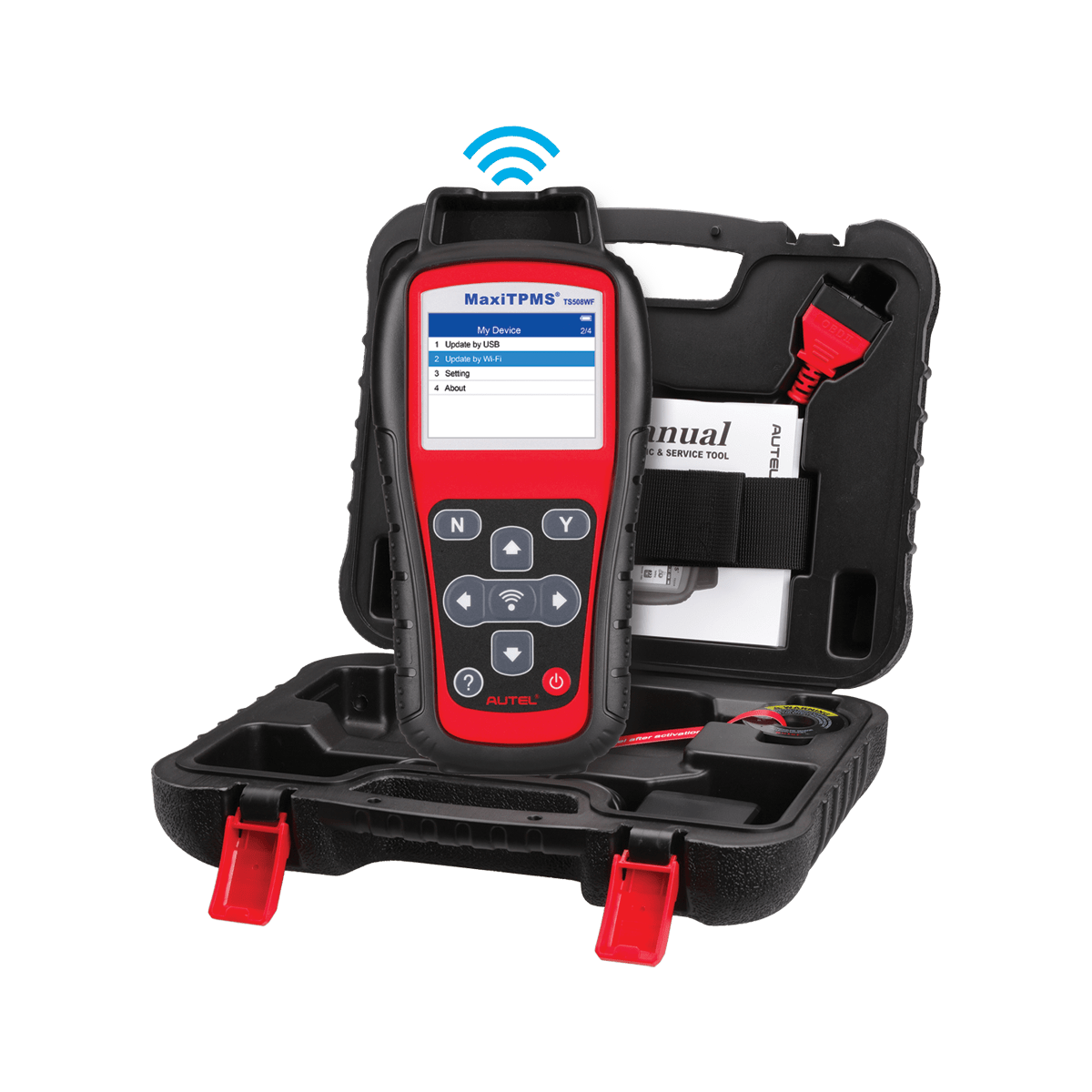

- Blow mold protective case
TS508WF vs. Stepping Up to the ITS600 or TS900
The TS508WF is the right tool for a shop that needs solid TPMS service capability at a reasonable price point. Here is when you might consider stepping up:
- ITS600 ($515): Android touchscreen tablet, same TPMS coverage, Bluetooth VCI — better workflow for high-volume TPMS operations and easier reporting/printing.
- TS900 ($849+ in kits): Adds full all-systems diagnostics, 40+ service functions, 8-inch screen, and the ability to read/clear codes across all modules. The right choice if you want TPMS and diagnostics in a single tool.
If TPMS is the primary need and budget matters, the TS508WF covers the job. If the shop also wants to use the tool for diagnostics beyond TPMS, the TS900 is worth the upgrade conversation.
