Autel Standard and IA800 Sliding Target Panel

Autel IA800STP Standard and IA800 Sliding Target Panel (CSC9000-01)

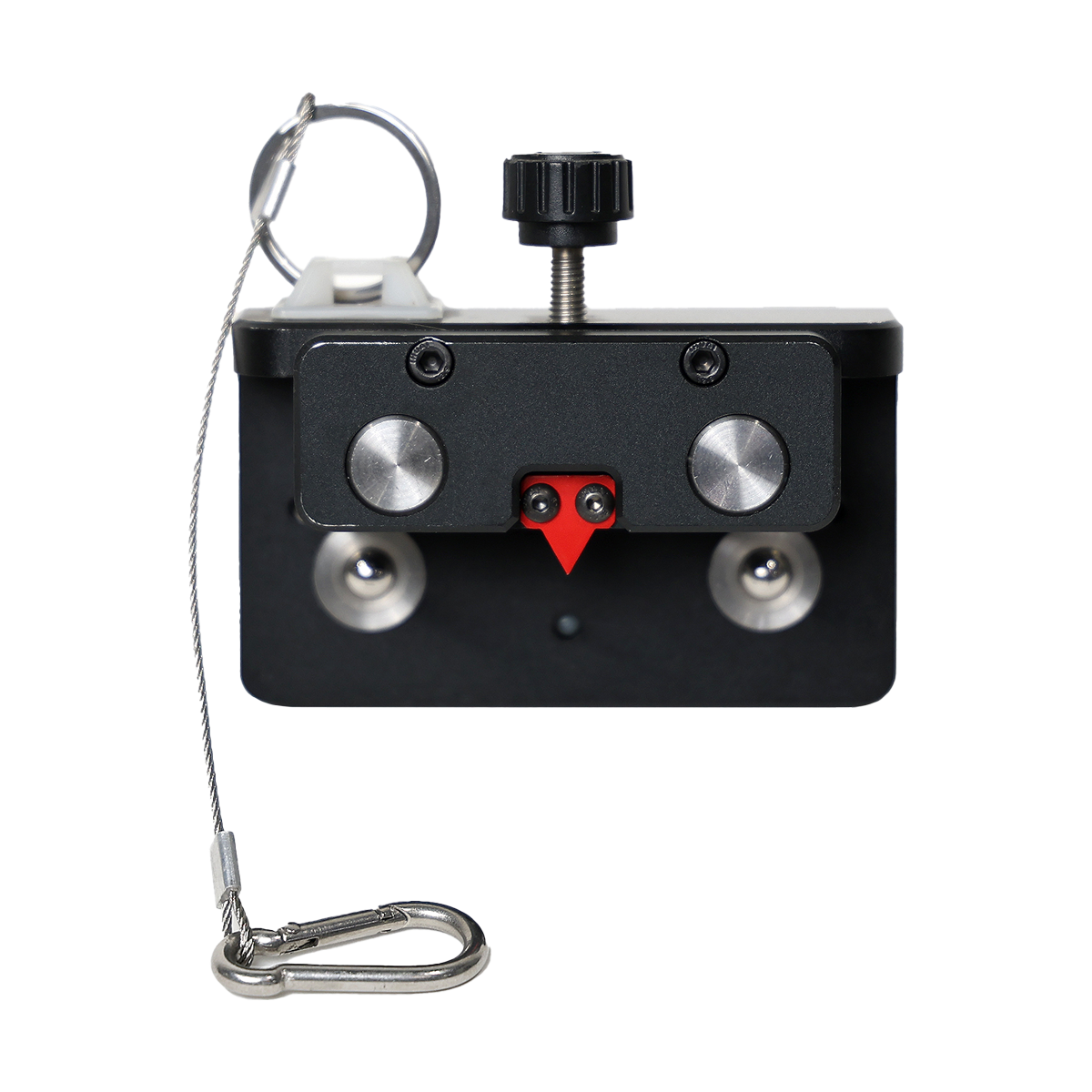

The IA800STP is a replacement sliding target panel designed for use with the Autel Standard and IA800 ADAS calibration frames. It is a targeted accessory — not a standalone calibration system — that adds critical capability for camera calibrations requiring three simultaneous targets.

What This Panel Does

Most ADAS camera calibrations use a single target or pattern positioned in front of the vehicle. Some vehicles, however, require three targets simultaneously — the Subaru wide-angle mono camera is the primary example. Without this sliding panel, your Standard or IA800 frame cannot perform these calibrations. The IA800STP adds a second sliding target position to the frame, enabling three-target setups.

Key Specifications

• Part Number: IA800STP (also referenced as CSC9000-01)
• Compatible Frames: Autel Standard Frame and Autel IA800 Calibration Frame
• Function: Adds sliding target plate for three-target camera calibration setups
• Required For: Subaru wide-angle mono camera calibration and other three-target procedures
• Warranty: One-year limited warranty on the slide plate

Who Needs This

If you own an Autel Standard Frame or IA800 frame and work on Subaru vehicles with the wide-angle mono camera, this panel is required to complete the calibration properly. It is also the right add-on for any shop that encounters calibration procedures specifying three simultaneous targets. Without it, you either skip the calibration (not an option for a safe repair) or send the car somewhere else.

This is not a universal upgrade — it is specifically for the Standard and IA800 frames. If you have an IA900WA system, check Autel's accessory list for that frame instead.

What Is Included

• One sliding target panel assembly (CSC9000-01)
• One-year limited warranty

Note: The IA900STP (part no. IA900STP / CSC9000-01) is the equivalent sliding target panel for the IA900WA frame. These are different parts — confirm your frame model before ordering.
