Autel OE-Sized Corner Reflector Set CSC0800

Autel OE-Sized Corner Reflector Stand Set (CSC0800)

The CSC0800 is the Autel OE-Sized Corner Reflector Stand Set — the mounting hardware and stand system for positioning an OE-sized corner reflector during radar ADAS calibration. This is the stand kit only: the OE corner reflector itself and the laser are not included and must be purchased separately. If you have the Autel corner reflector (or a manufacturer-supplied OE reflector) and need the proper positioning stand, this is the component.

What Is Included

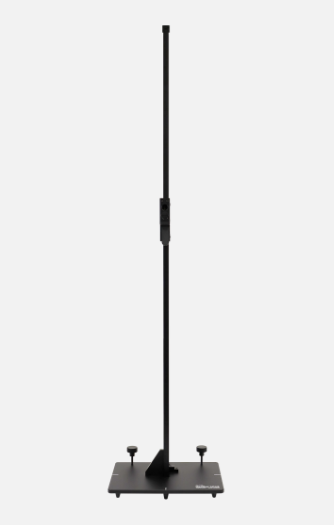

• Stand — vertical support for positioning the corner reflector at the correct height
• Stand Base — weighted base for stability during calibration
• Attachment Handle — handle for positioning and adjusting the reflector on the stand
• 1-year limited warranty

Not included: OE corner reflector, laser

What This Stand Is Used For

Corner reflectors are used in radar ADAS calibration to create a precise radar reflection point in front of the vehicle. The vehicle's radar sensor uses this reflection during the static calibration procedure to establish its reference calibration. The stand positions the reflector at the manufacturer-specified height and distance from the vehicle as directed by the Autel ADAS software.

This stand is designed for use with an OE-sized corner reflector — the size and geometry specified by OEM calibration procedures. Using an undersized or incorrectly positioned reflector will produce an invalid calibration.

How This Relates to the CSC802-01

Autel also sells the CSC802-01 (SKU 802-01, $860) which is the complete Corner Reflector with Stand — including the actual corner reflector mounted on the stand. If you need the full ready-to-use radar calibration setup, SKU 802-01 is the complete unit. The CSC0800 (this product, $425) is the stand hardware only — for shops that already have an OE reflector or are replacing stand hardware separately.

ADAS Frame Compatibility

The CSC0800 stand system works with both Autel ADAS frame systems for radar calibration:

• Compatible with Autel ADAS Standard Frame setups
• Compatible with MA600 Mobile Frame setups

Radar calibration with this stand requires a compatible MaxiSYS ADAS tablet or a MaxiSYS 908 Series tablet with the ADAS Software Upgrade.

Who Needs This

This stand set is for shops that:

• Already have an OE corner reflector and need the proper positioning hardware
• Are replacing worn or damaged stand components from an existing radar calibration setup
• Need the stand as a separate purchase from the reflector for budget or procurement reasons

If you need the complete radar calibration setup including the reflector, order SKU 802-01 (Corner Reflector with Stand) instead.
