Autel MX-Sensor 1-Sensor - Single Pack w/box - Press-in Rubber Valve Stem

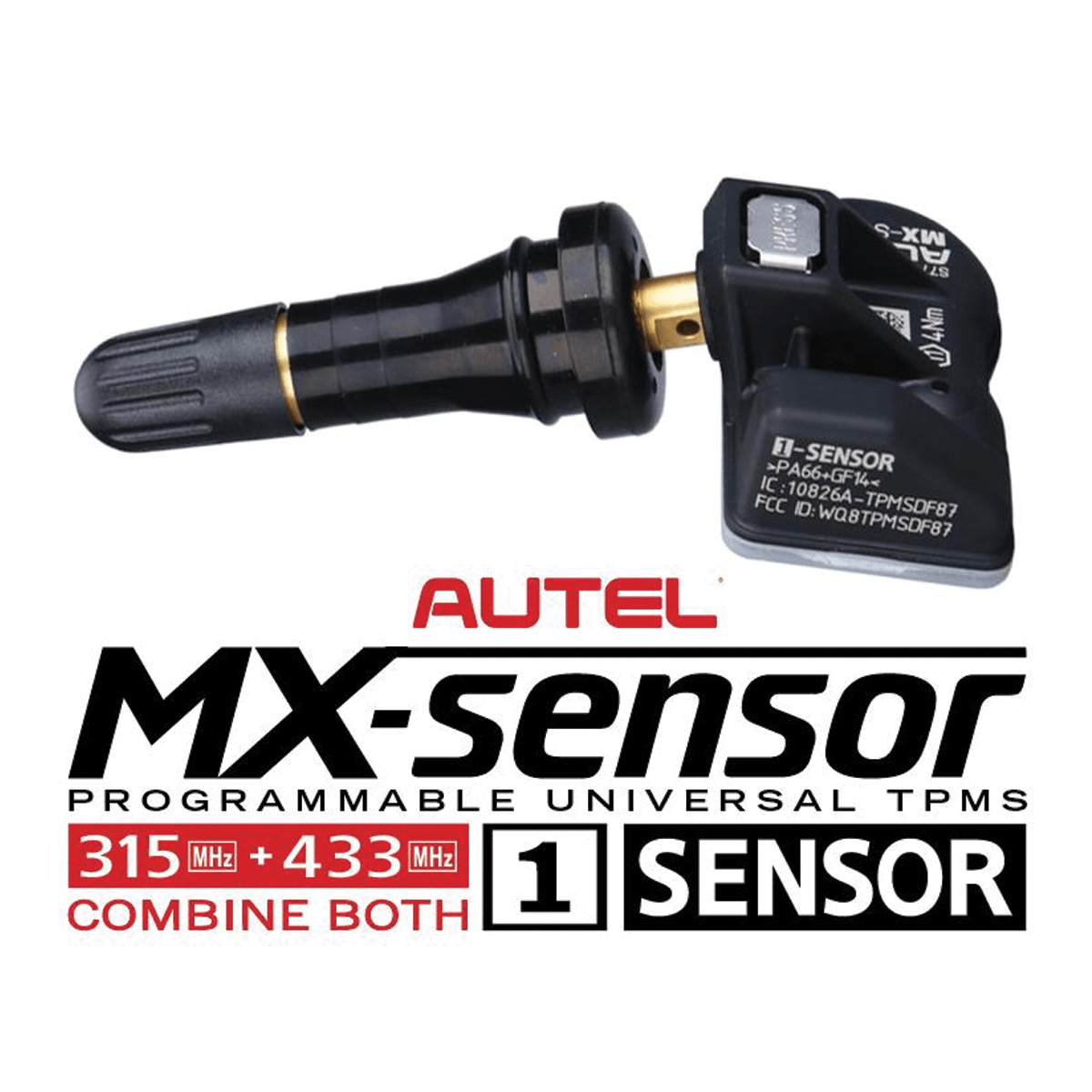

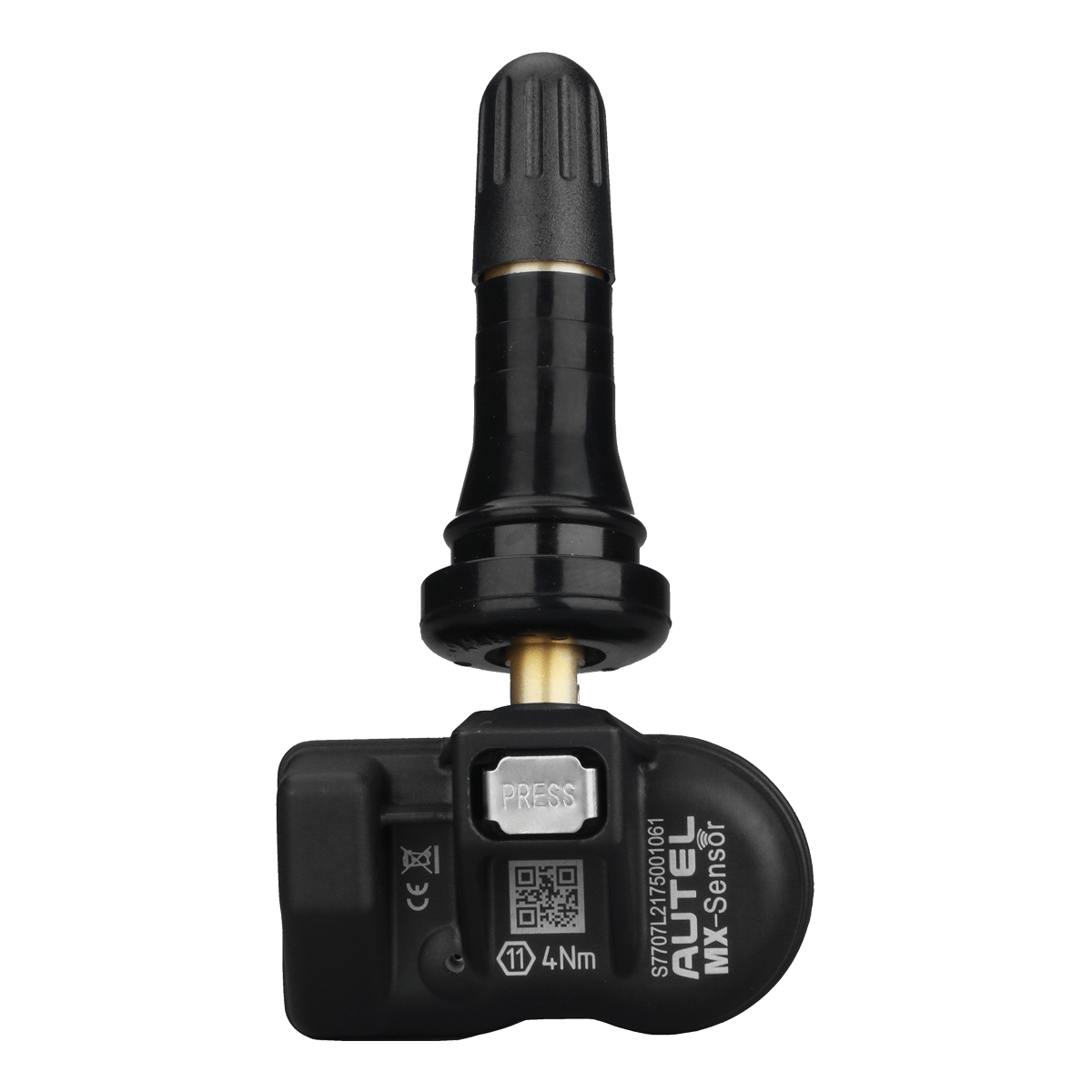

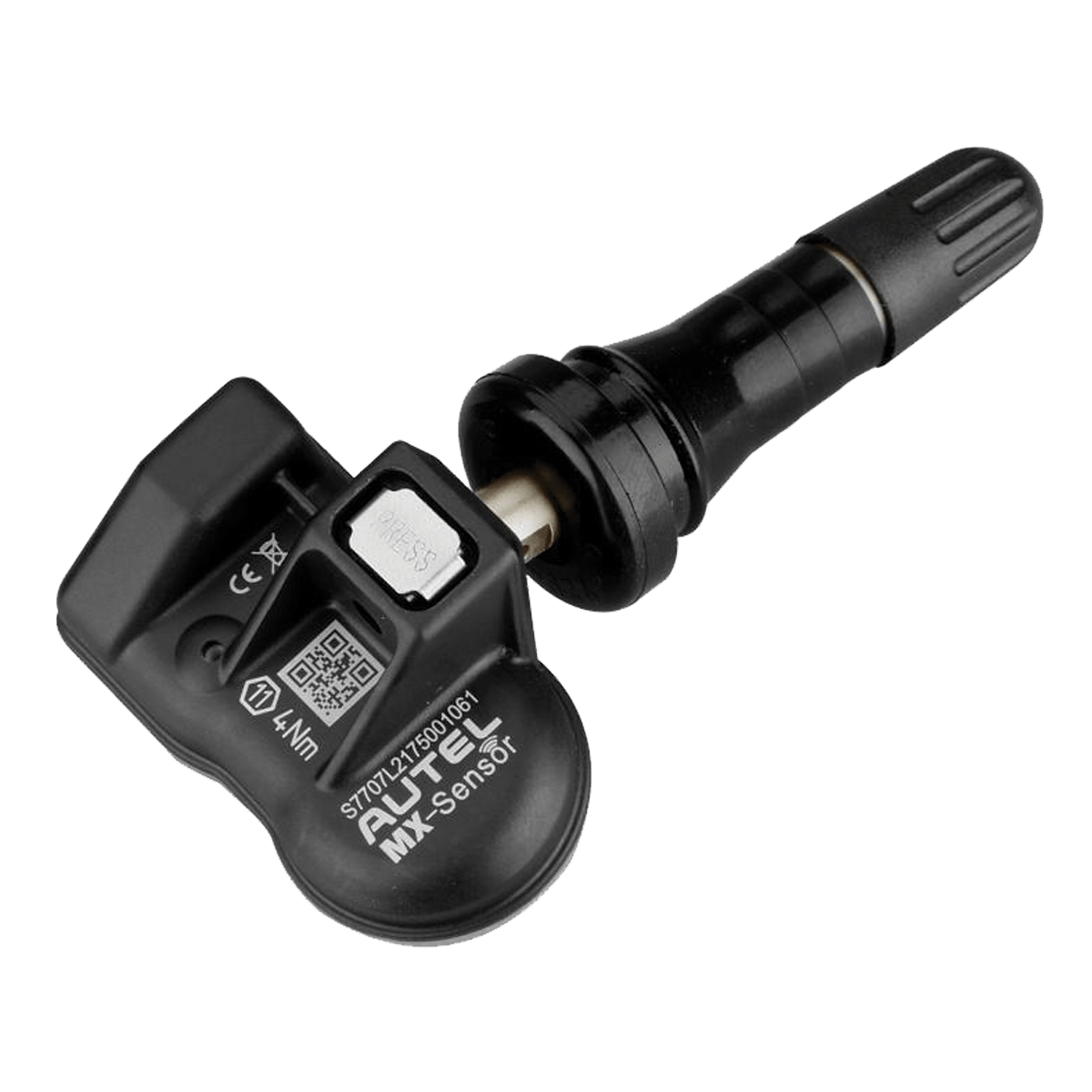

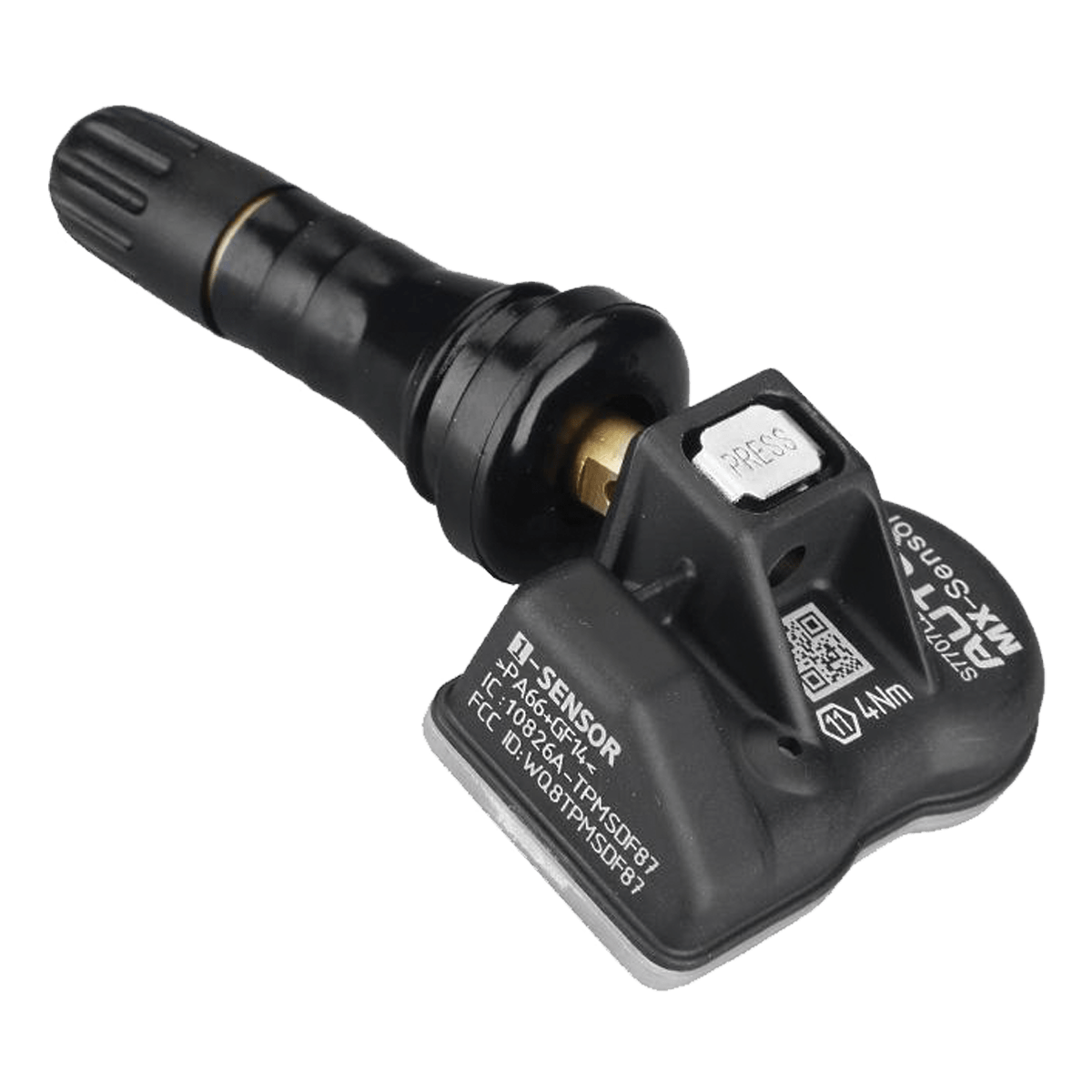

Autel MX-Sensor 1-Sensor — Universal TPMS Sensor with Press-in Rubber Valve Stem

The Autel MX-Sensor 1-Sensor is a programmable universal TPMS sensor sold as a single unit in retail box with a press-in rubber valve stem. It operates on dual frequencies — 315MHz and 433MHz — which covers the full range of factory TPMS systems used by North American, European, and Asian vehicles. With 98% vehicle coverage from a single SKU, this sensor is the inventory management answer every shop has been looking for.

Who Needs the 1-Sensor

Any shop doing TPMS repairs or tire rotations on late-model vehicles needs a programmable universal sensor in stock. The alternative is carrying dozens of OE-specific sensors or ordering part numbers vehicle by vehicle. The 1-Sensor eliminates that. One part number, stocked on the shelf, programs to replace 99% of OE sensors on the vehicles rolling through your bays. It works with any Autel TPMS tool — from the entry-level TS508 up to the ITS600 tablet.

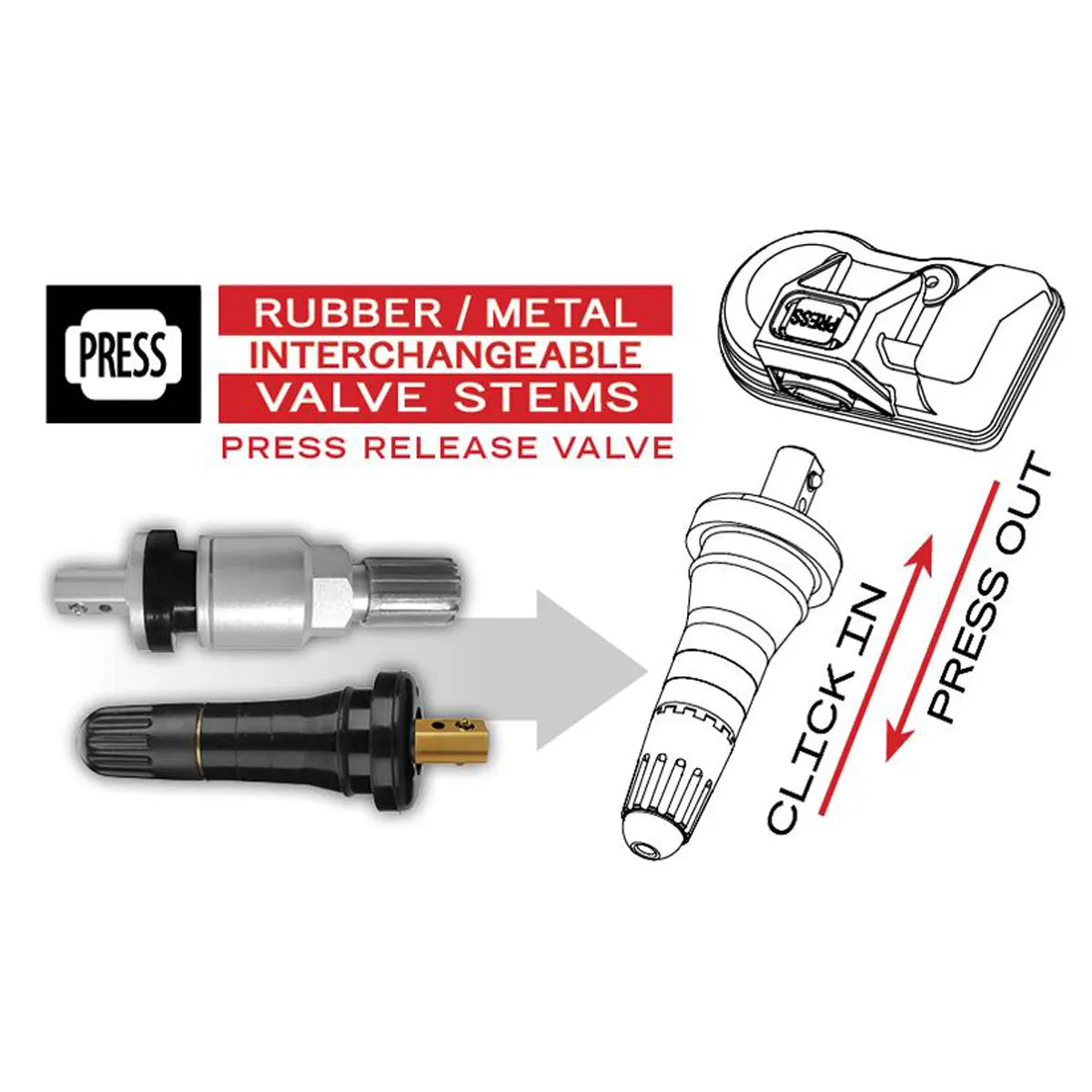

Press Release Interchangeable Valve System

The biggest time-waster in TPMS sensor installation is the valve stem swap. Autel solved this with a patented press release button that lets you swap between rubber and metal valve stems by hand — no valve fitting tool required. Click in, press out. You can keep rubber valves on most jobs and switch to metal valves when the application calls for it, all using the same sensor head. Replacement valve stems (rubber, aluminum, and color metal) are available separately.

Programming Flexibility

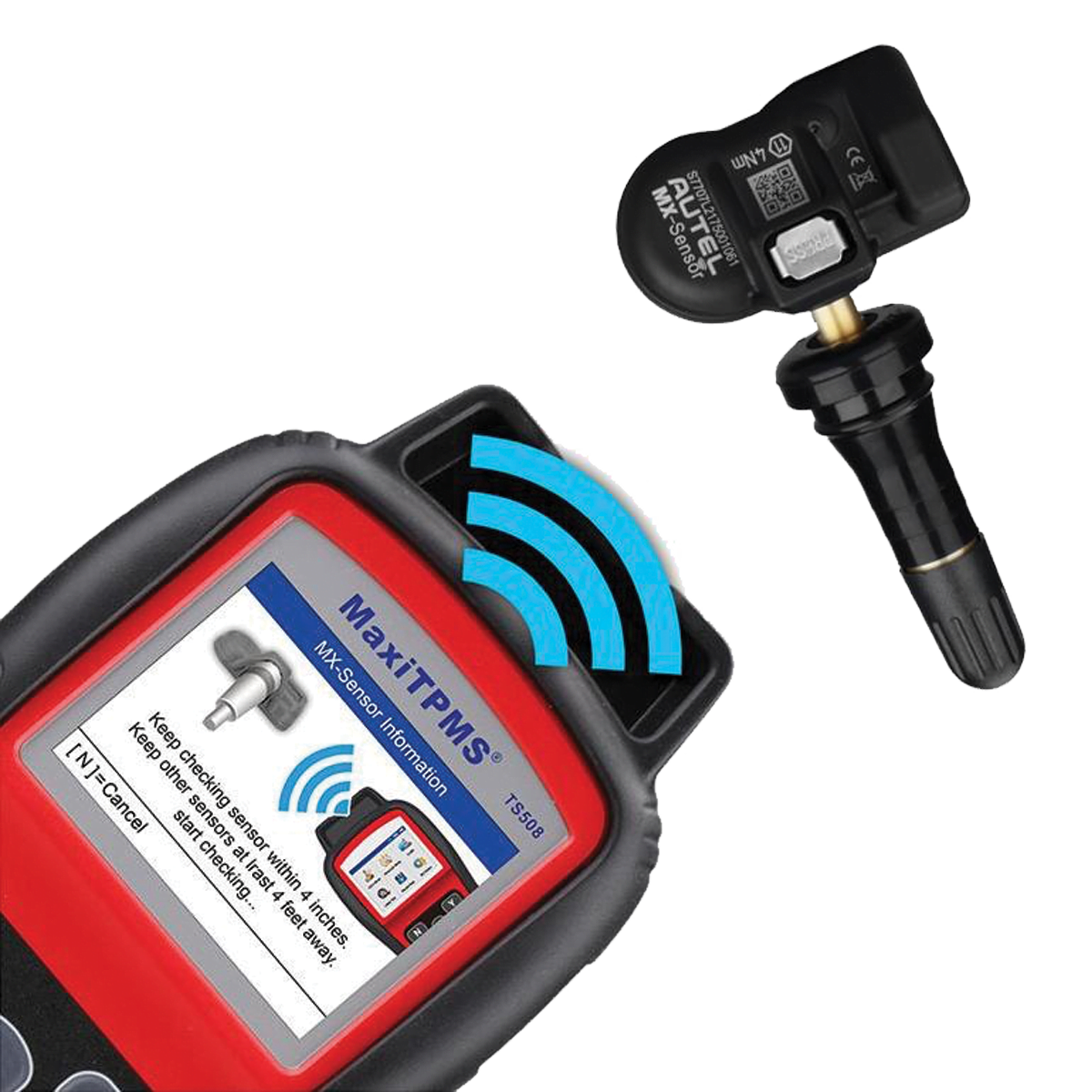

The 1-Sensor programs wirelessly even after it has been mounted to the wheel — no need to dismount for programming. Using Autel TPMS tools, you can program up to 16 sensors in a single session. The sensor is also 100% cloneable: copy the original sensor ID, install the 1-Sensor in the same wheel position, and no relearn procedure is required. That is a meaningful time savings on vehicles where the relearn process is a multi-step OBDII procedure.

Programming Requirements

• Compatible with all Autel TPMS service tools (TS508, TS508WF, ITS600, and others)
• Wireless programming — works mounted or unmounted
• Up to 16 sensors programmable per session with latest Autel tools
• Clone mode copies OE sensor ID — eliminates relearn on cloned installations

Technical Specifications

• Operating Frequency: 315 MHz / 433 MHz (dual frequency, combined)
• Pressure Monitoring Range: 0 to 800 kPa
• Pressure Reading Accuracy: ±10 kPa
• Temperature Reading Range: -40°C to +125°C
• Temperature Reading Accuracy: ±5°C
• G Sensor Reading Accuracy: ±15%
• Transmission Power: 5–8 dBm
• Battery: 3.0 V
• Battery Life: 4–6 years
• Weight (without valve): 12g
• Dimensions (W x H x D): 42.2 mm x 27.9 mm x 17.4 mm
• Operating Temperature: -40°C to +125°C
• Storage Temperature: -40°C to +35°C
• Operating Humidity: ≤90%

Quality and Warranty

The 1-Sensor is SAE certified to J1205 and J1206 standards. Autel warrants each sensor free from manufacturing defects for 24 months or 24,000 miles, whichever comes first. Every unit carries a series number — imprinted on the sensor body or readable via Autel TPMS tools — that Autel uses to track quality through the manufacturing process. At 12g body weight, the 1-Sensor is significantly lighter than most competitors, which contributes to better wheel balance stability over time.

Valve Stem Options

This listing is the rubber press-in valve stem version. The same sensor head is available with an aluminum press-in valve stem (SKU: 1-SensorM). Because the valve swap is tool-free, a shop can stock the rubber version and upgrade to metal valves on the fly using the separately available valve packs.
