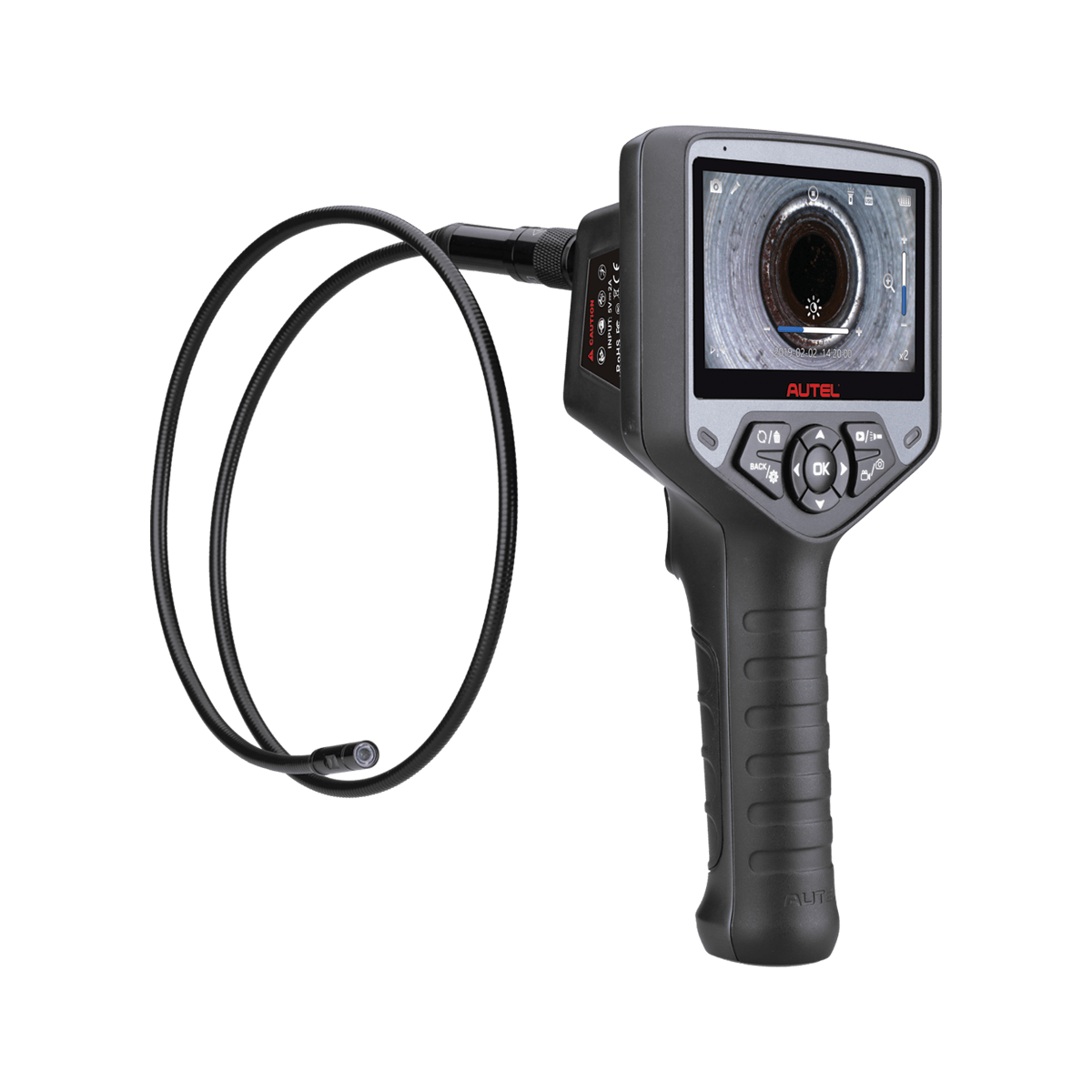

Autel MaxiVIDEO MV480

Autel MaxiVIDEO MV480 Dual-Camera Digital Inspection Videoscope

The Autel MaxiVIDEO MV480 is Autel's top-of-line standalone inspection videoscope. It builds on everything the MV460 does and adds two significant upgrades: a dual-camera probe with both forward-facing and side-facing cameras, and an audio annotation function that lets techs narrate findings while recording. If you are running a collision center, ADAS shop, or premium general repair operation where documentation quality matters, the MV480 delivers inspection and reporting capability the MV460 cannot match.

Who This Is For

The MV480 targets shops where visual inspection is part of a billable workflow — collision estimating, pre-purchase inspections, documentation for insurance claims, and any situation where a tech needs to record findings with voice notes. The dual-camera probe eliminates the need to reposition the scope to see around corners; the side camera shows what is happening at 90 degrees while the front camera maintains forward view. At $355, it is $100 more than the MV460 and worth it for shops where documentation and viewing angle flexibility are daily needs.

Dual-Camera System

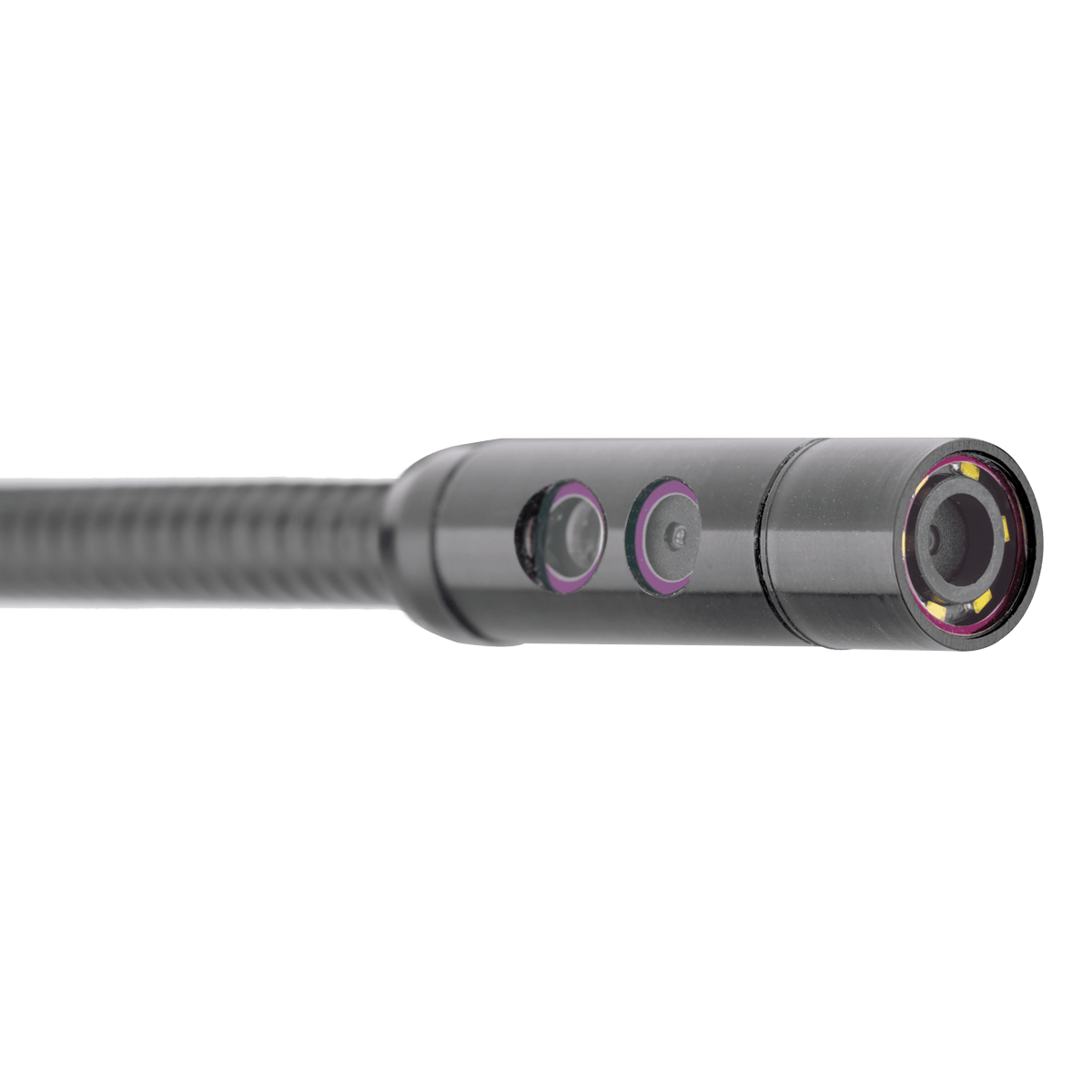

The MV480's most significant differentiator is the dual-camera 8.5mm probe. Instead of a single forward-facing lens, the probe has:

• Front camera: Forward-facing view straight down the bore
• Side camera: 90-degree lateral view for checking walls, threads, and side-facing surfaces
• Cameras can be viewed independently or simultaneously on the 4.1-inch display
• 70-degree field of view on both cameras

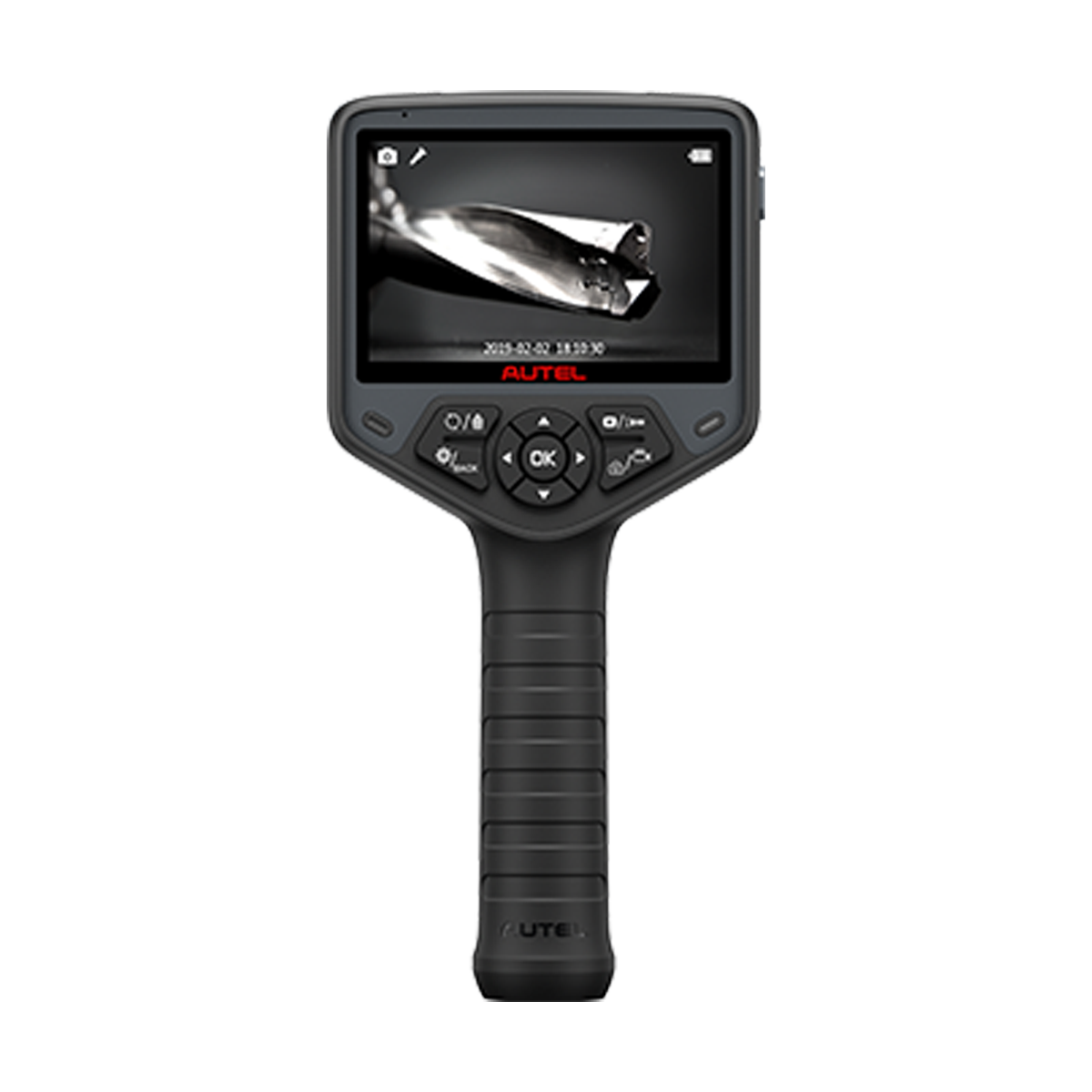

Display

• 4.1-inch TFT LCD display with 1200x720 resolution — sharper and larger than the MV460's 3.5" screen
• 1-button quick image capture and video recording
• 7x digital zoom
• On-screen horizontal/vertical reverse and 90-degree clockwise rotation
• Freeze-frame capability
• Micro HDMI output for streaming to shop monitors

Audio Annotation

The MV480 adds audio annotation — a feature not available on the MV400 or MV460. While recording video, the technician can speak observations directly into the recording. This is valuable for:

• Collision repair documentation explaining damage findings
• Pre-purchase inspections with customer-ready narrated video
• Shop training and tech review processes
• Insurance claim documentation where verbal explanation adds context

Handle and Illumination

• 10-level adjustable LED illumination on the probe, over 10,000 lux
• LED flashlight on the back of the handle — an additional work light for the surrounding area, not available on other MV models

Cable

• 39.4-inch semi-rigid, flexible cable — holds a set position when bent
• IP67 waterproof on imager head and cable — rated to 1m depth
• Compatible with 5.5mm camera head (sold separately) for tighter access

Battery and Storage

• Built-in 2,600 mAh rechargeable lithium-ion battery — approximately 4 hours continuous use
• 8GB microSD card included — supports up to 128GB
• Mini-USB cable included for file transfer

Included Accessories

• Magnet attachment
• Hook attachment
• 8GB microSD card
• Mini-USB cable
• 1-year warranty on materials and workmanship

Full Technical Specifications

• Display: 4.1" TFT LCD, 1200x720
• Image capture: JPG 1920x1080, MP4 1920x1080
• Camera: 2MP, 8.5mm probe, dual front and side
• Optimal viewing distance: 2cm to 5cm
• Cable reach: 1m
• Waterproof: IP67 to 1m depth
• Battery: 3.7V, 2600 mAh — approx. 4 hours
• Storage: microSD, 8GB standard, 128GB max
• Ports: TF slot, Mini USB, Micro HDMI
• Lighting: Adjustable LED + handle flashlight
• Weight: 0.422kg
• Dimensions: 243 x 116 x 122mm
• Operating temperature (main unit): -10C to 50C
• Operating temperature (cable): -10C to 60C
• Storage temperature: -20C to 70C
• Operating humidity: 5% to 95% non-condensing

MV480 vs MV460 — Should You Step Up?

The MV460 at $255 handles 95% of general inspection work. The MV480 at $355 adds three things the MV460 does not have: dual cameras for simultaneous front and side view, audio annotation for narrated recordings, and a handle-mounted flashlight. If your shop does collision repair, pre-purchase inspections with customer video deliverables, or any work where documentation quality is tied to billing, the $100 upgrade to the MV480 pays for itself quickly. General R&R shops that just need to see inside an engine or verify component condition can save the $100 and use the MV460.
