Autel MaxiVIDEO MV460

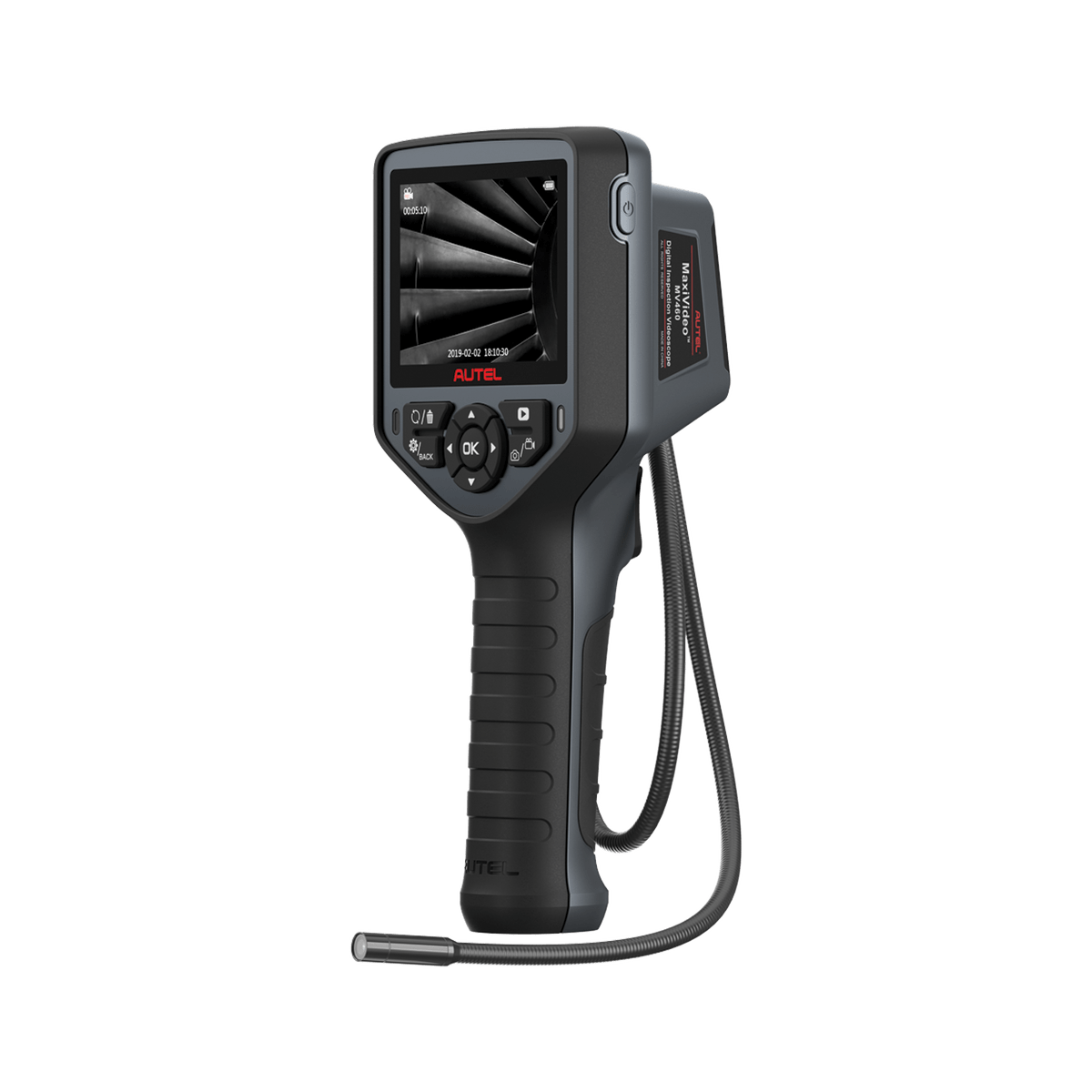

Autel MaxiVIDEO MV460 Digital Inspection Videoscope

The Autel MaxiVIDEO MV460 is a standalone handheld digital videoscope designed for professional automotive inspection work. Unlike the USB camera heads that require an Autel tablet, the MV460 is a complete self-contained unit — it has its own 3.5-inch color LCD display, built-in rechargeable battery, and 8GB microSD card. Plug the probe into the area you need to see, and the MV460 is ready to work without any companion device.

Who This Is For

The MV460 is the right tool for shops that want a dedicated inspection scope that travels independently of any diagnostic tablet. Technicians who want a camera for pre-purchase inspections, pre-repair visual assessment, or documentation can grab the MV460 and use it anywhere without needing their diagnostic tablet. At $255, it sits between the USB add-on camera heads and the premium MV480 dual-camera model, making it the workhorse inspection camera for most general repair shops.

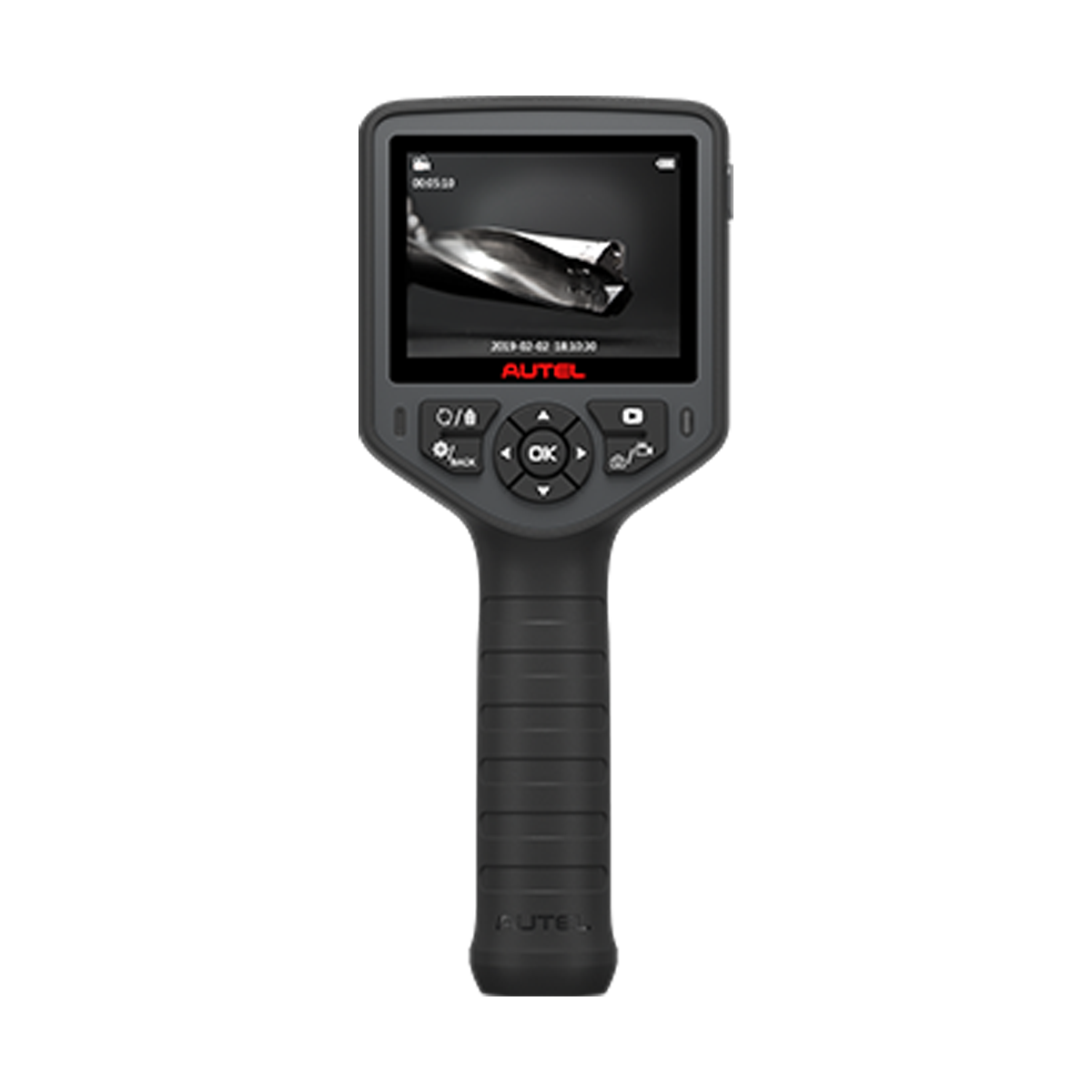

Display and Controls

• 3.5-inch TFT LCD display: 640x480 resolution — full color, readable in typical shop lighting
• 1-button quick capture: Single button records a still image or starts video recording without navigating menus
• 7x digital zoom: Enlarges fine details like cylinder wall scoring, injector tip deposits, or thread condition
• 70-degree field of view: Wide viewing angle for broader area coverage
• On-screen horizontal/vertical reverse: Reorients the image when the probe is at awkward angles
• 90-degree clockwise rotation: Additional orientation control for tight spaces
• Freeze frame: Locks the image for detailed review or capture
• Micro HDMI output: Streams live video to a larger shop monitor for customer presentations or training

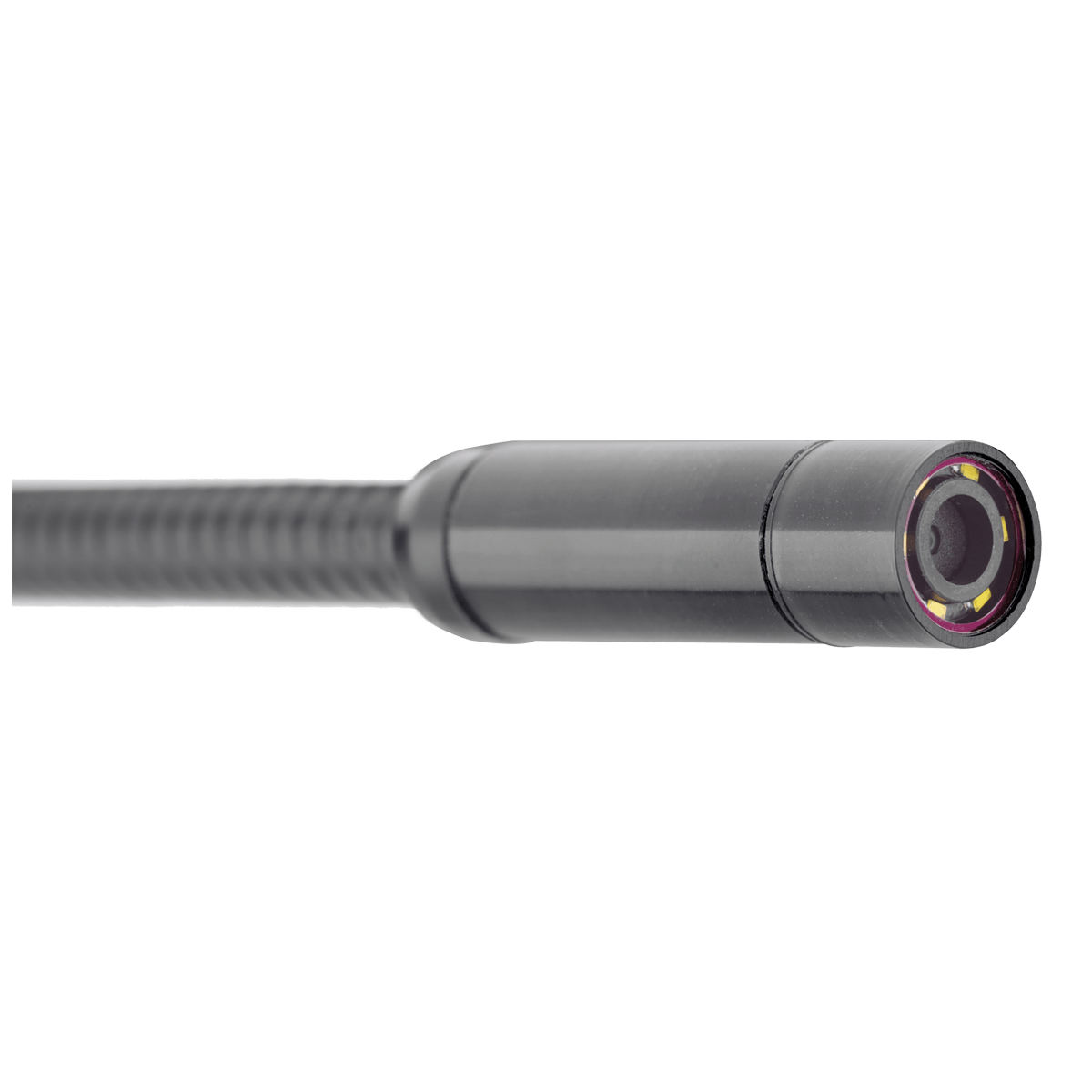

Camera and Probe

• 8.5mm probe diameter — fits most spark plug holes
• 2-megapixel camera with 1920x1080 resolution
• Image capture: JPG stills at 1920x1080 and MP4 video at 1920x1080
• Optimal viewing distance: 2cm to 5cm from the subject
• Compatible with 5.5mm camera head — sold separately for access to tighter spaces

Illumination

• 10-level adjustable LED illumination — dial the light up or down based on the cavity
• More than 10,000 lux output — bright enough for deep, dark inspection areas

Cable

• 39.4-inch semi-rigid, flexible cable — holds a set position when bent, making it easier to navigate around obstacles
• IP67 waterproof on the imager head and cable — rated to 1m depth
• Oil and scratch-resistant tempered glass lens

Battery and Storage

• Built-in 2,600 mAh rechargeable lithium-ion battery — approximately 4 hours of continuous use
• 8GB microSD card included — supports up to 128GB for extended recording sessions
• Mini-USB cable included for uploading images and videos to a computer

Included Accessories

• Magnet attachment
• Hook attachment
• Mirror attachment
• 8GB microSD card
• Mini-USB cable
• 1-year warranty on materials and workmanship

Full Technical Specifications

• Display: 3.5" TFT LCD, 640x480
• Image capture: JPG 1920x1080, MP4 1920x1080
• Camera: 2MP, 8.5mm probe
• Optimal viewing distance: 2cm to 5cm
• Cable reach: 1m
• Waterproof: IP67 to 1m depth
• Battery: 3.7V, 2600 mAh — approx. 4 hours
• Storage: microSD, 8GB standard, 128GB max
• Ports: TF slot, Mini USB, Micro HDMI
• Weight: 0.393kg
• Dimensions: 235 x 97 x 125mm
• Operating temperature (main unit): -10C to 50C
• Operating temperature (cable): -10C to 60C
• Storage temperature: -20C to 70C
• Operating humidity: 5% to 95% non-condensing

MV460 vs MV400 vs MV480 Comparison

Autel makes three standalone videoscopes in this line. Here is how the MV460 compares:

• MV400: Entry-level, 3.5" screen at 320x240, 640x480 video, 5x zoom — basic inspection work
• MV460: Mid-tier, 3.5" screen at 640x480, 1920x1080 video, 7x zoom, HDMI out, single-button capture — best value for most shops
• MV480: Top of line, 4.1" screen at 1200x720, dual front and side cameras, audio annotation, LED flashlight on handle — for collision shops or premium inspection workflows

Most general repair shops get everything they need from the MV460. Step up to the MV480 if dual-camera viewing or audio annotation are requirements.
