Autel MaxiVIDEO MV108S

$59.00 USD
$59.00 USD
Sale Sold out
Shipping calculated at checkout.

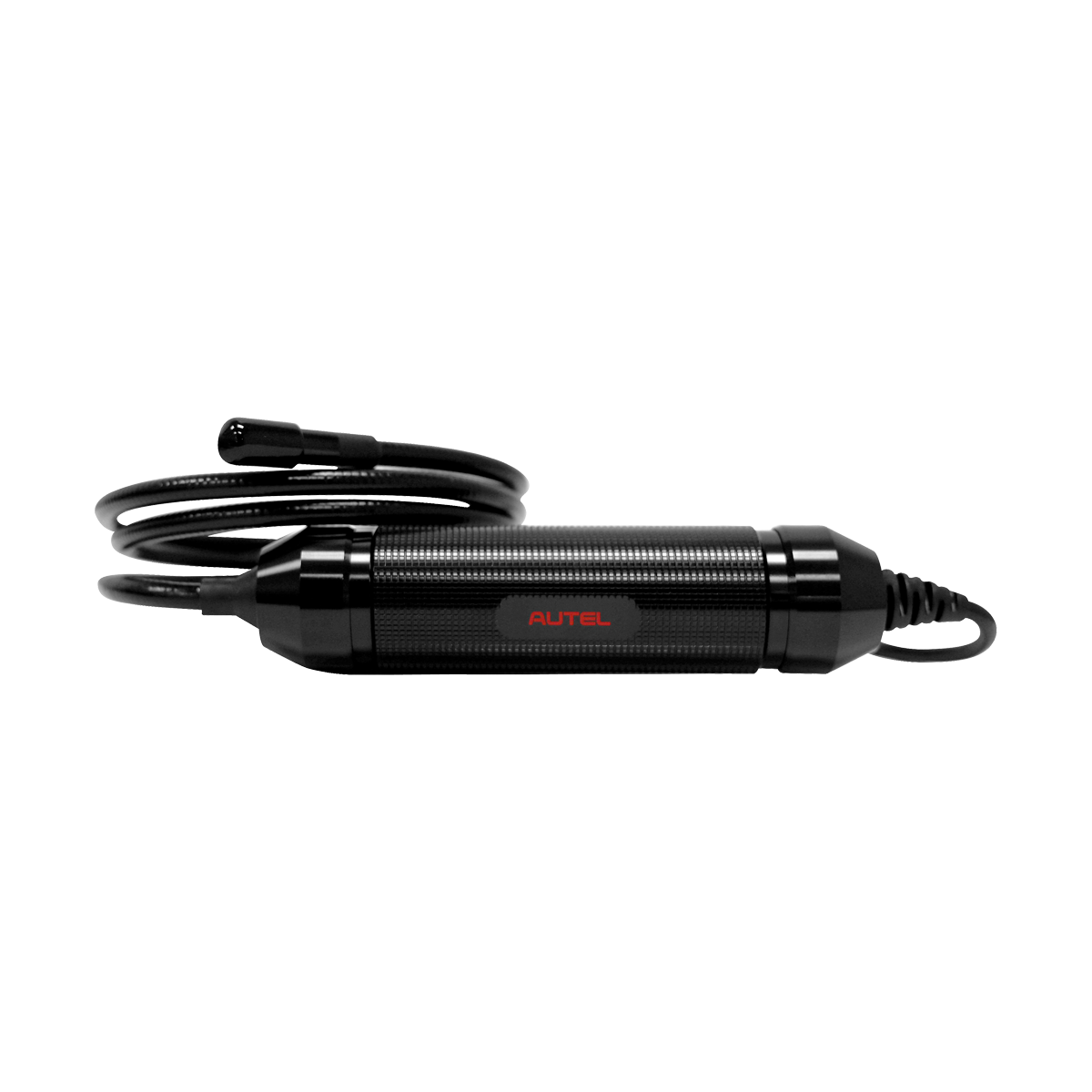

Autel MaxiVIDEO MV108S Digital Inspection Camera

The Autel MaxiVIDEO MV108S is a USB-connected digital inspection camera built to work with Autel diagnostic tablets. It is the current production model in Autel's USB camera head line. Connect it to any compatible Autel tablet via USB 2.0, open the MaxiVideo app, and you have a 1920x1080 video borescope that can record stills and video directly on the tablet. The 8.5mm probe slips into spark plug holes, coolant passages, intake runners, wheel wells, and most other inspection access points found in typical shop work.

Who This Is For

Shops running Autel MaxiSYS, MaxiCOM, or similar platforms who want to add visual inspection without buying a dedicated standalone borescope. The MV108S extends the capability of a tablet you already own. It is also a good spec for shops buying into the Autel ecosystem for the first time who want both diagnostic and inspection capabilities from a single hardware investment.

If you do not already own an Autel tablet, consider the standalone MV460 or MV480 instead — those have their own built-in screens and batteries and do not require a host device.

Camera Performance

  • Imager head: 8.5mm diameter
  • Resolution: 2MP, 1920x1080 full HD
  • Angle of view: 81 degrees
  • Depth of field: 3cm to 8cm — optimal range for component and surface inspection
  • Illumination: 8 LED beads, super-bright for dark spaces

Cable and Connection

  • Cable length: 1 meter (39.37 inches)
  • Waterproof rating: IP67 on the imager head — submersible, handles coolant and fluid exposure
  • Connection: USB 2.0 — plugs directly into compatible Autel tablets

What the MaxiVideo App Delivers

Once connected to a compatible Autel tablet, the MaxiVideo app gives you:

  • Live video feed on the tablet display
  • One-touch still image capture
  • Video recording with playback
  • Image storage on the tablet for customer documentation

What Is Included

  • MV108S camera head with 1-meter USB cable
  • Mirror attachment
  • Hook attachment
  • Magnet attachment
  • One-year limited warranty

MV108S vs MV105S Comparison

Autel makes two USB camera heads for tablets. Here is how they compare:

  • MV108S: 8.5mm head, 2MP, 1920x1080, 81-degree FOV, depth of field 3–8cm
  • MV105S: 5.5mm head, 1MP, smaller diameter for tighter passages, 90-degree FOV, depth of field 2–10cm

The MV108S delivers higher resolution and fits most spark plug holes. The MV105S is narrower and suits applications where a smaller probe is needed. Both use USB 2.0 and both are IP67 rated.

Technical Specifications

  • Imager head distance: 8.5mm
  • Camera: 2MP
  • Resolution: 1920x1080
  • Depth of field: 3 to 8cm
  • Angle of view: 81 degrees
  • LED beads: 8 pcs
  • Imager head cable length: 1m
  • Connection: USB 2.0
  • Waterproof level (imager head): IP67
  • Operating temperature: -10C to 70C
  • Storage temperature: -10C to 70C
  • Includes reflector, magnet, hook: Yes

Why Buy the Autel MaxiVIDEO MV108S From Autel Diagnostic Tools?

Autel Diagnostic Tools has specialized in professional automotive diagnostic equipment since 2016. We stock the full Autel MaxiVIDEO line and can help you choose between the USB camera heads and standalone videoscopes based on how your shop is equipped. Free shipping, free tech support at 866-217-0063, full warranty, and straightforward advice on which camera works with your existing Autel tablet.
