Autel MaxiVIDEO MV105S

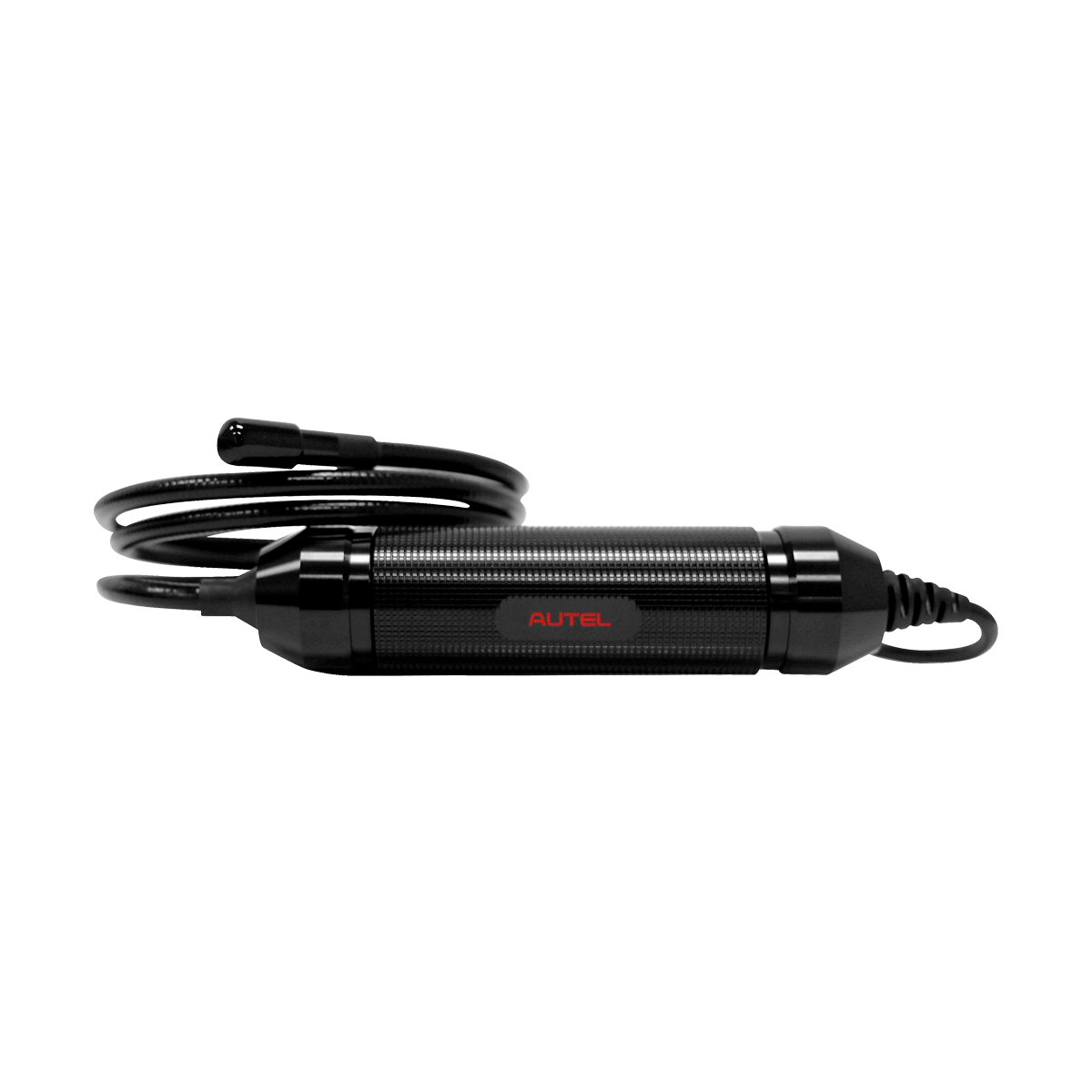

Autel MaxiVIDEO MV105S — Digital Inspection Camera

The Autel MaxiVIDEO MV105S is a digital video borescope camera designed to work directly with Autel diagnostic tablets. It plugs into your tablet's USB port and runs through the MaxiVideo app, turning the tablet into a full video inspection scope for getting eyes into tight spaces that cannot be examined by other means. The 5.5mm imager head fits through spark plug holes, oil filler openings, and most engine access points that larger scopes cannot reach.

Technical Specifications

• Imager head diameter: 5.5 mm
• Camera: 1 megapixel
• Resolution: 1280 x 720
• Depth of field: 2 cm to 10 cm (0.79" to 3.94")
• Angle of view: 90°
• Illumination: 8 LED beads built into the imager head
• Cable length: 1 meter (39.37") — fully waterproof
• Waterproof rating: IP67 (imager head)
• Connection: USB 2.0
• Operating temperature: -10°C to 70°C (14°F to 158°F)

What You Get in the Box

• MV105S digital inspection camera with 1-meter USB cable
• Mirror attachment — for side-viewing around corners
• Magnet attachment — retrieve dropped metal parts
• Hook attachment — fish wires and cables
• One-year limited warranty

How It Works

Connect the MV105S to your Autel tablet's USB port. Open the MaxiVideo app on the tablet. The camera feeds live video directly to the tablet screen. You can record video clips or capture still images, which are stored on the tablet and can be included in inspection reports or sent to customers. The 8 built-in LEDs provide bright illumination even in completely dark cavities.

Where Shops Use It

• Engine cylinder inspection — check piston crown condition, cylinder wall scoring, valve carbon deposits through the spark plug hole
• Intake valve inspection — critical for GDI engines prone to carbon buildup on intake valves
• Timing chain inspection — check for slack, wear, or debris through access openings
• Exhaust and catalytic converter inspection
• HVAC and cabin inspection — check for blockages, debris, or damage behind dashboards
• Body and frame inspection — hidden corrosion, structural damage behind panels

MV105S vs. MV108S

The MV105S and MV108S are companion models — choose based on head size vs. image quality tradeoff:

• MV105S — 5.5mm head / 1MP camera / 90° view / 2–10cm depth of field. Choose this when head diameter is the constraint (spark plug holes, tight passages).
• MV108S — 8.5mm head / 2MP camera / 81° view / 3–8cm depth of field. Choose this when image quality matters more and the larger head fits the access point.

Both include reflector, magnet, and hook attachments, and both are IP67 rated.

Tablet Compatibility

Works with Autel MaxiSYS, MaxiCOM, MaxiCheck, and other Autel tablets that support the MaxiVideo app and have a USB host port. Check your tablet's USB connectivity before ordering — contact us to confirm compatibility with your specific tablet model.
