Autel MaxiTPMS TBE200

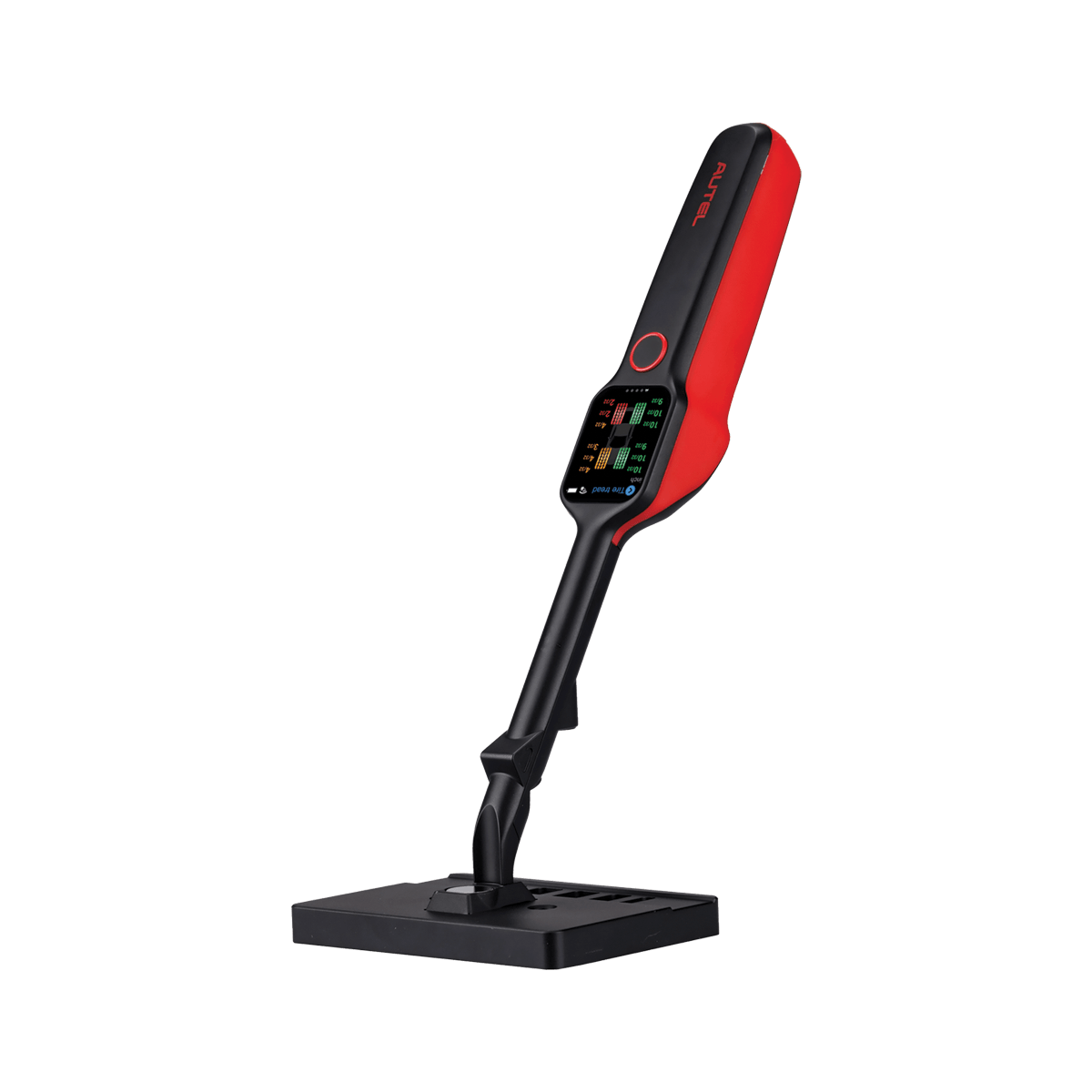

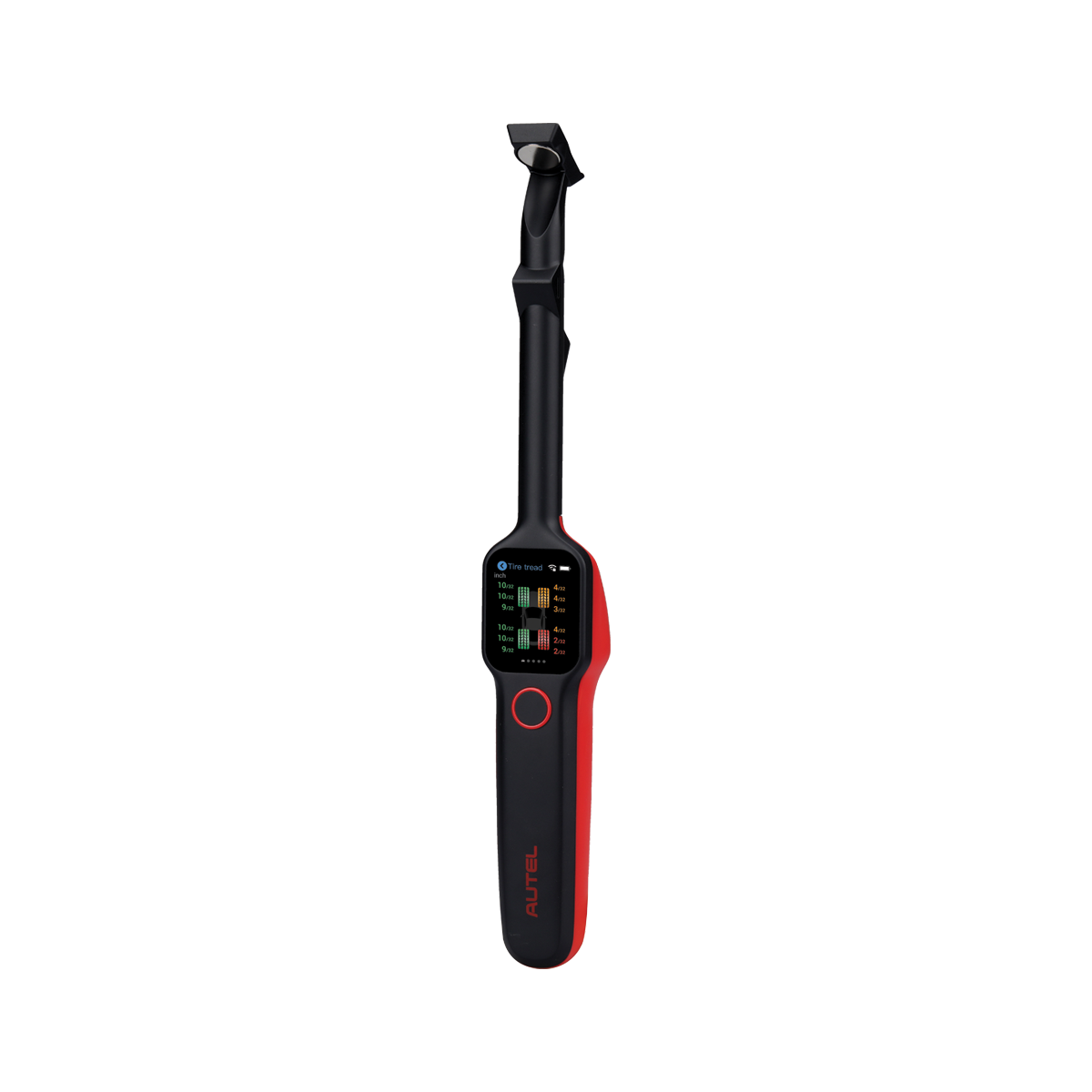

Autel MaxiTPMS TBE200 — Laser Tire Tread Depth & Brake Disc Wear Examiner

The Autel MaxiTPMS TBE200 is a purpose-built laser measurement tool that checks tire tread depth and brake disc wear simultaneously — without removing the wheel. If your shop handles tire work, brake jobs, or pre-sale inspections, this is the tool that turns a quick visual check into a documented measurement with a timestamp and a shareable report.

At 188 grams (0.41 lb.) and 11.14 inches long, it fits in a tech's chest pocket. The 1.65-inch AMOLED Super Retina touchscreen delivers sharp, readable wear data in real time, even in a dim bay. Battery life is rated at approximately 8 hours of continuous use from a 3,000 mAh cell — enough for a full shift without hunting for a charger.

What the TBE200 Does

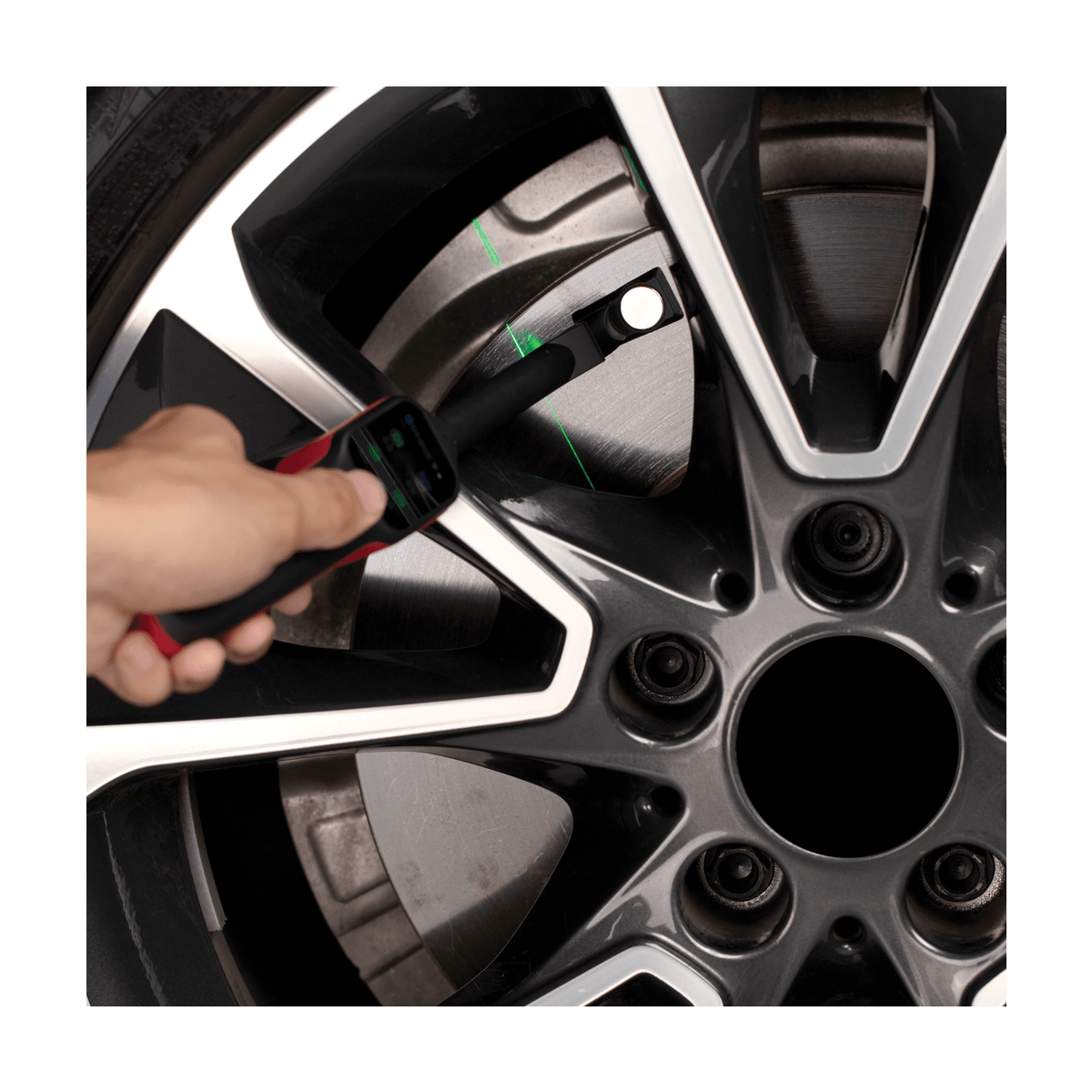

The TBE200 uses laser measurement technology to deliver 0.1mm accuracy on tire tread depth and brake disc wear — both from outside the wheel well, no tire removal required. This matters in a flat-rate shop: pulling four tires to measure rotors takes time. The TBE200 covers both tread and disc in one pass.

• Laser measurement — 0.1mm accuracy on both tire tread depth and brake disc wear
• No wheel removal needed — measure brake disc thickness directly

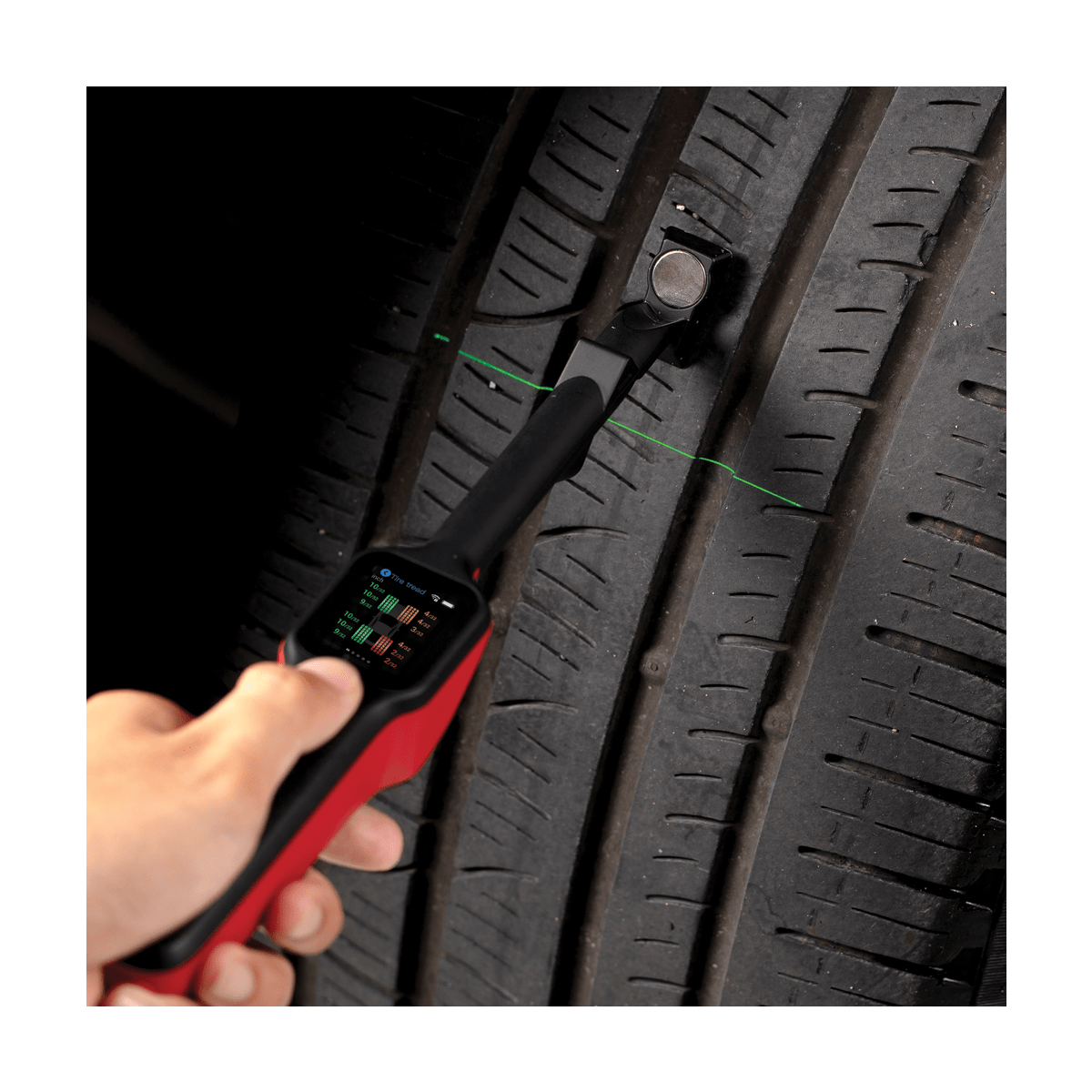

• Full tread measurement across the entire tread width, not just center depth
• Quick Check mode for fast pass/fail on both tread depth and brake disc simultaneously
• Real-time data on touchscreen with measurement curve display showing wear profile
• Uneven wear analysis — identifies irregular wear patterns that point toward alignment or suspension problems
• Scan DOT / TIN for documentation and recall lookup
• Tire expiration notice — flags tires approaching end of safe service life based on DOT date code
• Tire recall lookup — cross-references scanned TIN against known recall databases
• Photo documentation via dual cameras: 1MP 4cm macro camera and 8MP 10cm zoomable camera to capture tire damage, sidewall conditions, and wear evidence

Replacement and Service Recommendations

The TBE200 does not just measure — it interprets. The full-color graphical display presents wear data in a curve format and then issues specific recommendations based on the results:

• Tire replacement when tread depth falls below threshold
• Brake disc replacement when disc wear exceeds limits
• Tire rotation based on uneven wear patterns
• 4-wheel alignment recommendation when wear pattern indicates misalignment

These recommendations display on-screen and can be shared with the customer as part of a documented inspection.

QR Code Report Sharing

After measuring, the TBE200 generates a QR code for the tire tread depth and brake disc measurement data. Customers or service advisors can scan the QR code with any smartphone and immediately download the full report — no app required, no printing, no emailing a PDF manually. This is particularly useful for presenting findings at the service counter or texting a report link to a customer waiting in the lobby.

Compatible Vehicles

The TBE200 is compatible with passenger cars, off-road vehicles, and commercial vehicles. The laser measurement design works on any wheel regardless of rim size or tire profile.

Standalone vs. Paired with Autel ITS600

The TBE200 works as a standalone tool for tire and brake inspection. When paired with the Autel MaxiTPMS ITS600 tablet, it generates a Comprehensive Test Report combining TPMS sensor health with tread depth and brake disc wear data in a single printable document. For shops already running the ITS600, the TBE200 is a natural add-on that upgrades every tire rotation to a full documented inspection.

Note: the Comprehensive Test Report requires the ITS600. The TBE200 handles all tread and brake measurements independently.

TBE200 vs. TBE100 — Which One Do You Need?

Autel makes two versions of this tool. Key differences:

• Both have laser measurement at 0.1mm accuracy, no wheel removal, full tread measurement, uneven wear analysis
• TBE100 camera: 1MP macro only
• TBE200 cameras: 1MP 4cm macro + 8MP 10cm zoom
• TBE200 only: DOT/TIN scan, tire expiration notice, tire recall lookup, photo documentation of damage

If your shop does pre-purchase inspections, fleet maintenance, or any service where documentation matters for liability or customer communication, the TBE200 is the right choice. The DOT scan, expiration notice, and recall lookup alone justify the step up for any shop with significant volume. The TBE100 makes sense for in-house wear monitoring where you just need the measurement numbers.

Technical Specifications

• Processor: 4x ARM Cortex-A35 at 1.5 GHz
• Memory: 1GB RAM LPDDR3 / 4GB ROM
• Display: 1.65-inch AMOLED capacitive touchscreen, 348x442 resolution
• Cameras: 1MP CMOS macro at 4cm focus + 8MP zoomable at 10cm focus, 30fps
• Connectivity: Wi-Fi, USB 2.0 Type-C
• Battery: 3.7V / 3,000 mAh 18650 lithium-ion
• Charging: 5V / 1.5A via USB-C
• Battery life: ~8 hours continuous use
• Power consumption: 300mA at 3.7V with AMOLED on at default brightness
• Operating temperature: -10 to 45 degrees C / 14 to 113 degrees F
• Storage temperature: -20 to 60 degrees C / -4 to 140 degrees F
• Dimensions: 283.0mm x 39.0mm x 33.5mm
• Weight: 188g / 0.41 lb.
• Audio: Beep output
• Warranty: 1 year limited
