Autel MaxiSYS MS909CV — Commercial Vehicle Diagnostic Tablet

The Autel MaxiSYS MS909CV is a professional-grade diagnostic tablet built specifically for commercial vehicle fleets. It handles dynamic ADAS calibration on Class 3–8 trucks and vans alongside standard full-system diagnostics — a combination that most general diagnostic tablets cannot deliver. If your shop services medium and heavy-duty commercial vehicles including Mercedes-Benz Sprinter vans, RAM ProMaster vans, and trucks equipped with the Bendix Wingman system, the MS909CV is the purpose-built tool for that work.

Who This Tool Is For

The MS909CV targets:

• Fleet maintenance shops servicing Class 3–8 commercial trucks
• Dealerships and independent shops working on Mercedes-Benz Sprinter and RAM ProMaster vans
• Shops working on trucks equipped with the Bendix Wingman forward collision mitigation system
• Any operation that needs both heavy-duty diagnostics and ADAS calibration in a single tablet

For light-duty passenger vehicle ADAS work, see the standard MS909 or MS909ADAS instead. The MS909CV is the right tool when you need commercial vehicle ADAS coverage.

ADAS Calibration Coverage

The MS909CV supports both dynamic and static ADAS calibration on commercial vehicles:

• Dynamic calibration: Supported on Class 3–5 and Class 6–8 vehicles — performed while driving at specified speeds on roads meeting lane marking requirements
• Static calibration: Supported for Mercedes-Benz Sprinter vans, RAM ProMaster vans, and heavy-duty vehicles with the Bendix Wingman system
• Lane Departure Warning (LDW) calibration: LDW 2.0 patterns for Mercedes-Benz Sprinter, RAM ProMaster, and Bendix Wingman-equipped trucks (CV pattern CSC0611-06)
• ACC calibration: Includes ACC reflector for radar-equipped Bendix Wingman systems

When purchased as part of the CVMALDWT package (CV ADAS LDW MA600 with MS909CV), the system also includes the MA600 mobile frame with 5-line and 2-line laser positioning tools, LDW target storage case, and all patterns for Mercedes-Benz, Toyota, Lexus, Nissan, Infiniti, Honda, Hyundai, and Kia light and medium-duty vehicles.

Commercial Vehicle Diagnostic Capabilities

• Heavy-duty protocol support — SAE-J1939, PLC J2497, ISO-14229 UDS, SAE J1708, DoIP, and all standard OBD protocols
• Full system diagnostics — engine, transmission, ABS, brake systems, electrical, body, and all available modules across supported commercial vehicles
• Bi-directional controls — actuator tests and component activation
• Coding and adaptations — supported where OEM allows
• All 10 OBDII test modes on supported vehicles
• Service resets — DPF regeneration, oil service, and commercial-specific reset functions
• AutoVIN — automatic vehicle identification
• Cloud data manager — customer and vehicle records, scan history, tech notes

Hardware Specifications

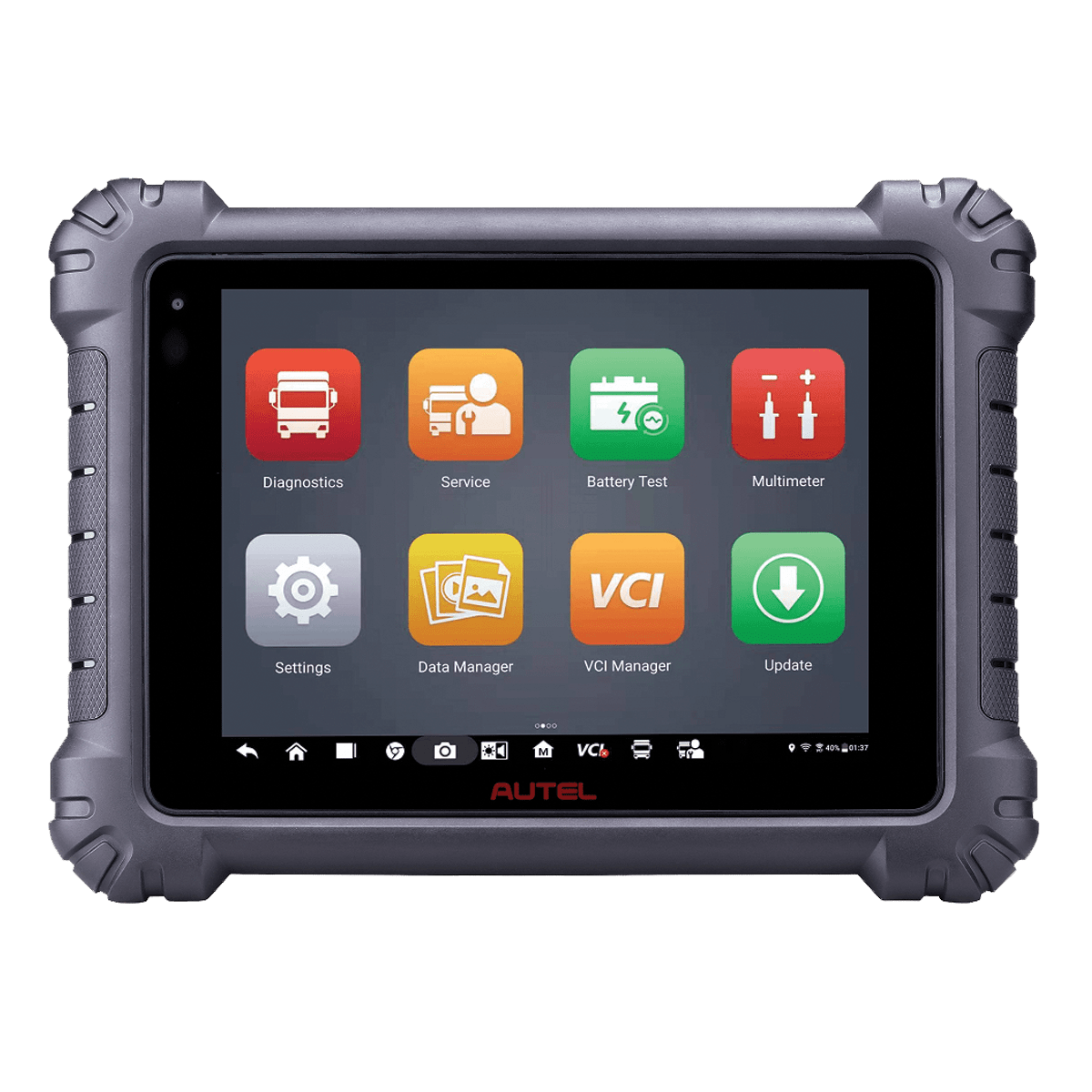

• Display: 9.7-inch TFT-LCD touchscreen, 1536 x 2048 resolution (Asahi Glass)
• Processor: Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
• Memory: 4GB RAM / 128GB onboard storage
• Battery: 15,000mAh lithium-polymer
• Weight: 1.66 kg (3.66 lbs)
• Dimensions: 304.4 mm x 227.8 mm x 42.5 mm
• Connectivity: Dual Wi-Fi 802.11 a/b/g/n/ac 2x2 MIMO, Bluetooth 5.0, GPS, 2x USB-A, Mini USB, HDMI 2.0, SD card up to 256GB
• Camera: 16MP rear autofocus with flashlight, 16MP front

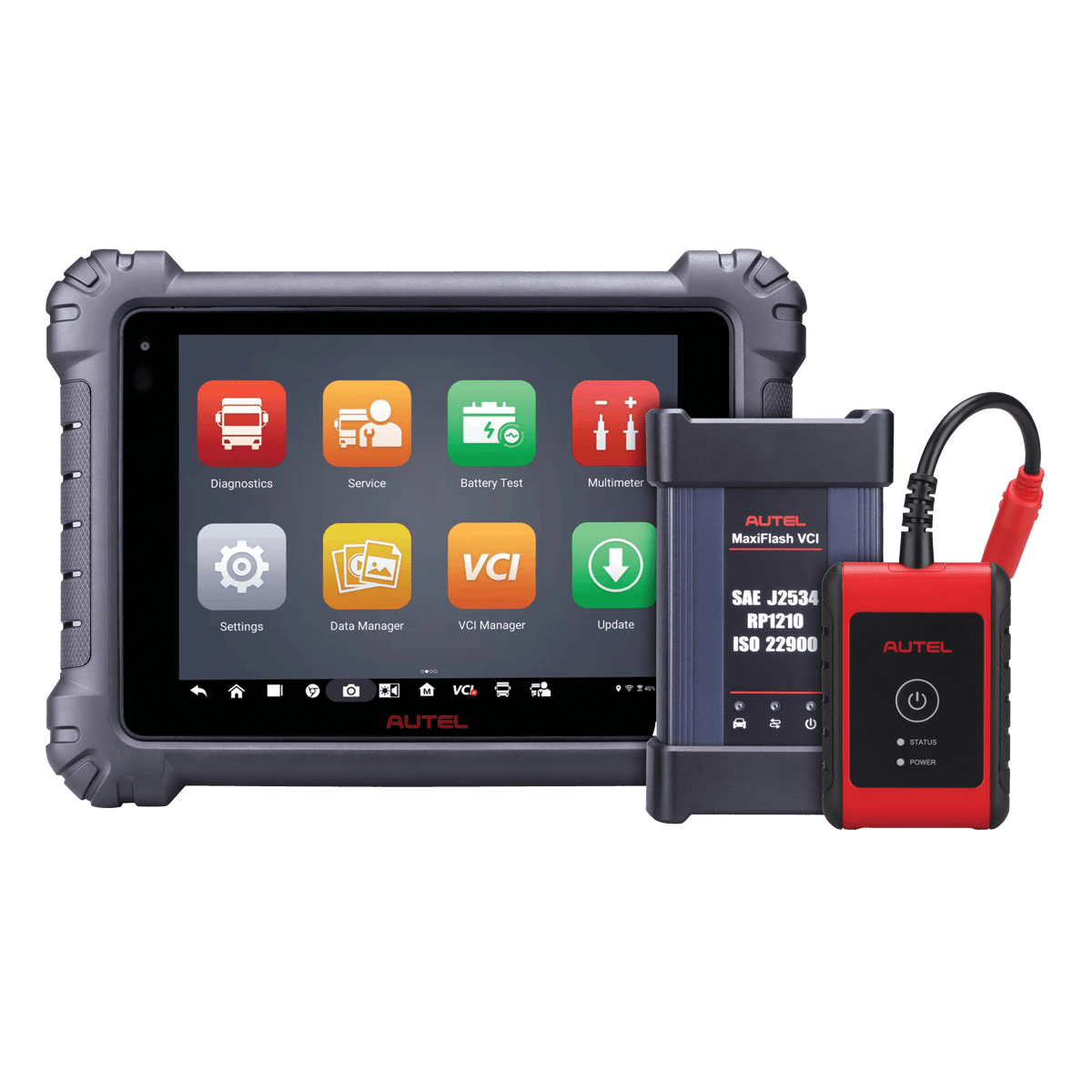

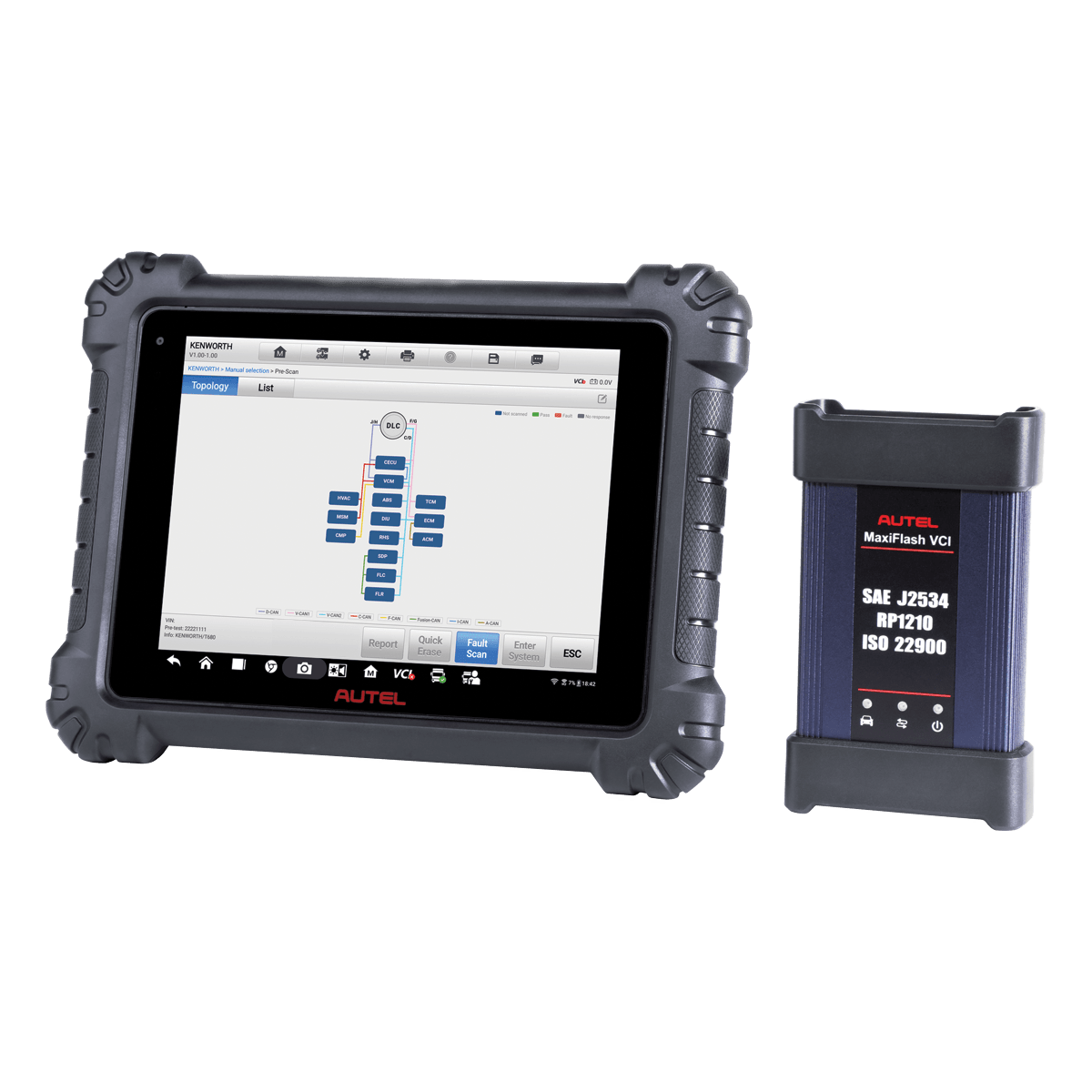

• VCI: MaxiFlash VCI (Bluetooth), J2534 pass-through programming

Protocol Support

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART, BMW DS2, BMW DS1, SAE J2819 (VAG KW81/KW82), SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Package Options

The MS909CV is available as a standalone tablet (SKU: MS909CV) or as part of the CVMALDWT complete package that includes the MA600 mobile ADAS frame with positioning lasers and all required LDW targets. Contact us to discuss which configuration fits your bay size and vehicle mix.
