Autel MaxiSYS MS909 Tablet with ADAS Calibration Software

Autel MaxiSYS MS909 Tablet with ADAS Calibration Software

The Autel MaxiSYS MS909ADAS is the MS909 diagnostic tablet paired with Autel ADAS calibration software — giving shops a single device that handles full-system diagnostics on gas, diesel, and hybrid vehicles while also running guided ADAS recalibration workflows required after windshield replacements, bumper repairs, and suspension work.

This listing is specifically for the MS909 tablet with ADAS software enabled. To perform physical calibrations you still need an ADAS target frame system (Autel IA700, IA900, or MA600 mobile frame) — the software unlocks calibration procedures on the tablet, but the frame hardware is a separate purchase or bundled package. If you need a complete kit with frame hardware, see our bundled ADAS packages.

Who Needs This Configuration

The MS909ADAS makes sense for shops that already own or plan to purchase an Autel ADAS frame system separately, or for shops upgrading an existing MS909 with calibration capability. It also fits collision centers that need one tablet to handle both post-repair scanning and ADAS recalibration on the same device. If you want everything in one purchase including the frame, look at a complete system bundle instead.

MS909 Diagnostic Capabilities

• Full system access — reads and clears codes in every module: engine, transmission, ABS, SRS, TPMS, body, chassis, and all secondary systems
• Bi-directional control — actuator tests, component activation, output commands to verify repairs
• Coding and adaptations — module programming, variant coding, throttle relearn, injector coding, and similar OE-level functions
• 36+ service reset functions — oil reset, EPB, SAS, BMS, DPF, IMMO, TPMS relearn, and more with one-tap access
• All 10 OBDII test modes — live data, freeze frame, O2 sensor tests, enhanced Mode 6
• Pre- and post-scan reporting — generates documented scan reports for insurance and customer records; critical for collision work
• Security gateway access — authorized for FCA/Stellantis secure gateway (AutoAuth account required)
• AutoVIN / Auto-Scan — automatic vehicle identification and full-system scan with one tap
• Cloud-based Data Manager — stores customer records, vehicle histories, scanner data, and tech notes

ADAS Calibration Software

With the ADAS software activated on the MS909, the tablet guides technicians through static and dynamic calibration procedures for camera-based and radar-based ADAS systems. Supported calibrations include:

• Forward-facing camera (lane departure warning, forward collision warning, automatic emergency braking)
• Radar-based adaptive cruise control (ACC) systems
• Blind spot monitoring sensors
• Rear camera systems
• 360-degree surround view systems (where applicable)

The software provides step-by-step on-screen guidance for target placement, vehicle positioning, and calibration execution. Coverage spans domestic, Asian, and European passenger vehicles and light-duty trucks.

Frame compatibility note: The MS909ADAS tablet works with Autel IA700, IA900, IA900WA, and MA600 ADAS target frame systems. Frame and target kits are sold separately unless specified in a bundle.

Hardware Specifications

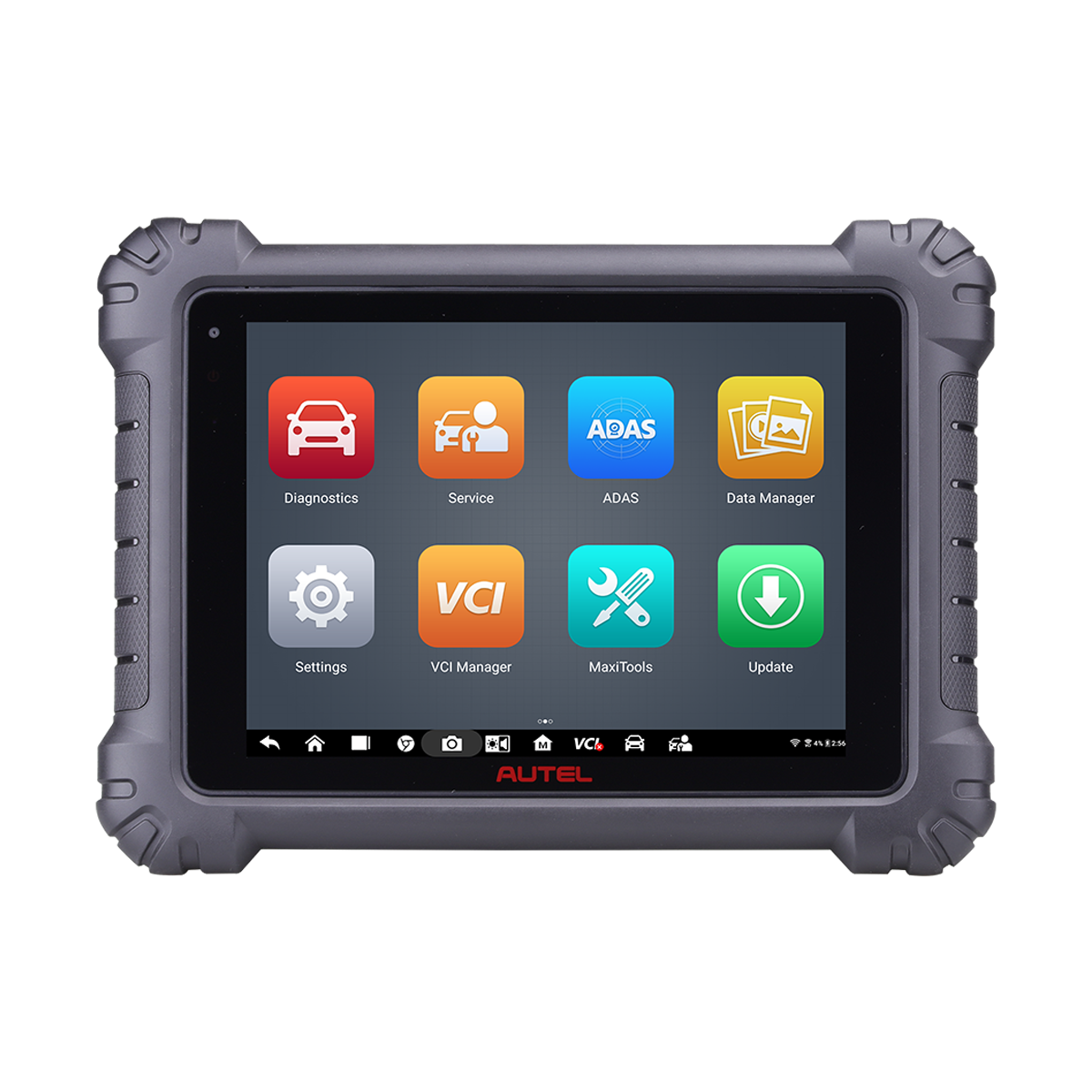

• Display: 9.7-inch TFT-LCD touchscreen, 1536 x 2048 resolution
• Processor: Qualcomm 660 Octa-core (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
• Memory: 4GB RAM / 128GB onboard storage
• Battery: 15,000mAh lithium-polymer
• Weight: 1.66 kg (3.66 lbs)
• Dimensions: 304.4 mm x 227.8 mm x 42.5 mm (11.98" x 8.97" x 1.67")
• Connectivity: Dual Wi-Fi 802.11 a/b/g/n/ac 2x2 MIMO, Bluetooth 5.0, GPS, 2x USB-A, Mini USB, HDMI 2.0, SD card up to 256GB
• Camera: 16MP rear autofocus with flashlight, 16MP front

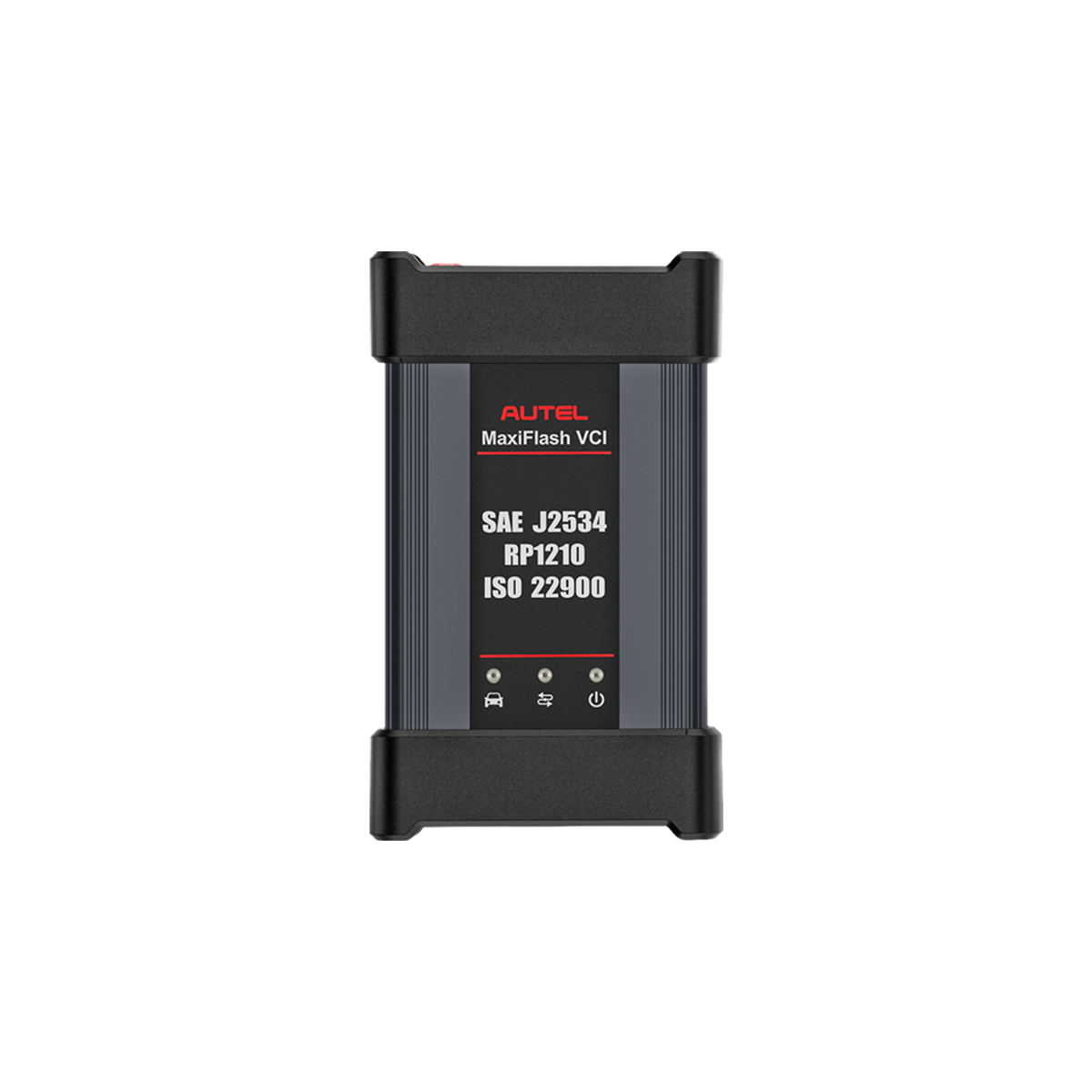

• VCI: MaxiFlash VCI (Bluetooth), J2534 pass-through programming
• Operating Temperature: 0 to 50°C (32 to 122°F)

Protocol Support

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART, BMW DS2, BMW DS1, SAE J2819 (VAG KW81/KW82), SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

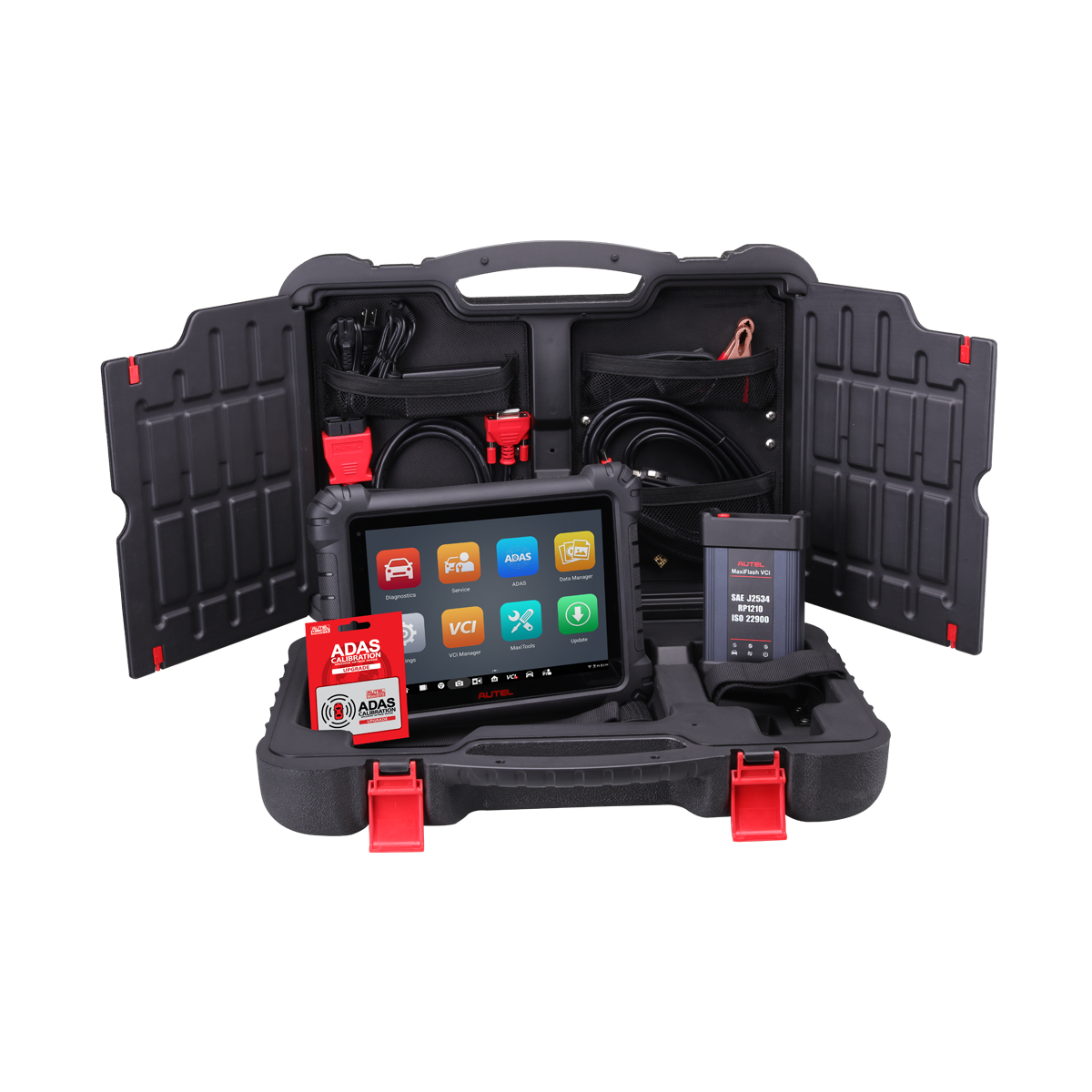

What Is Included

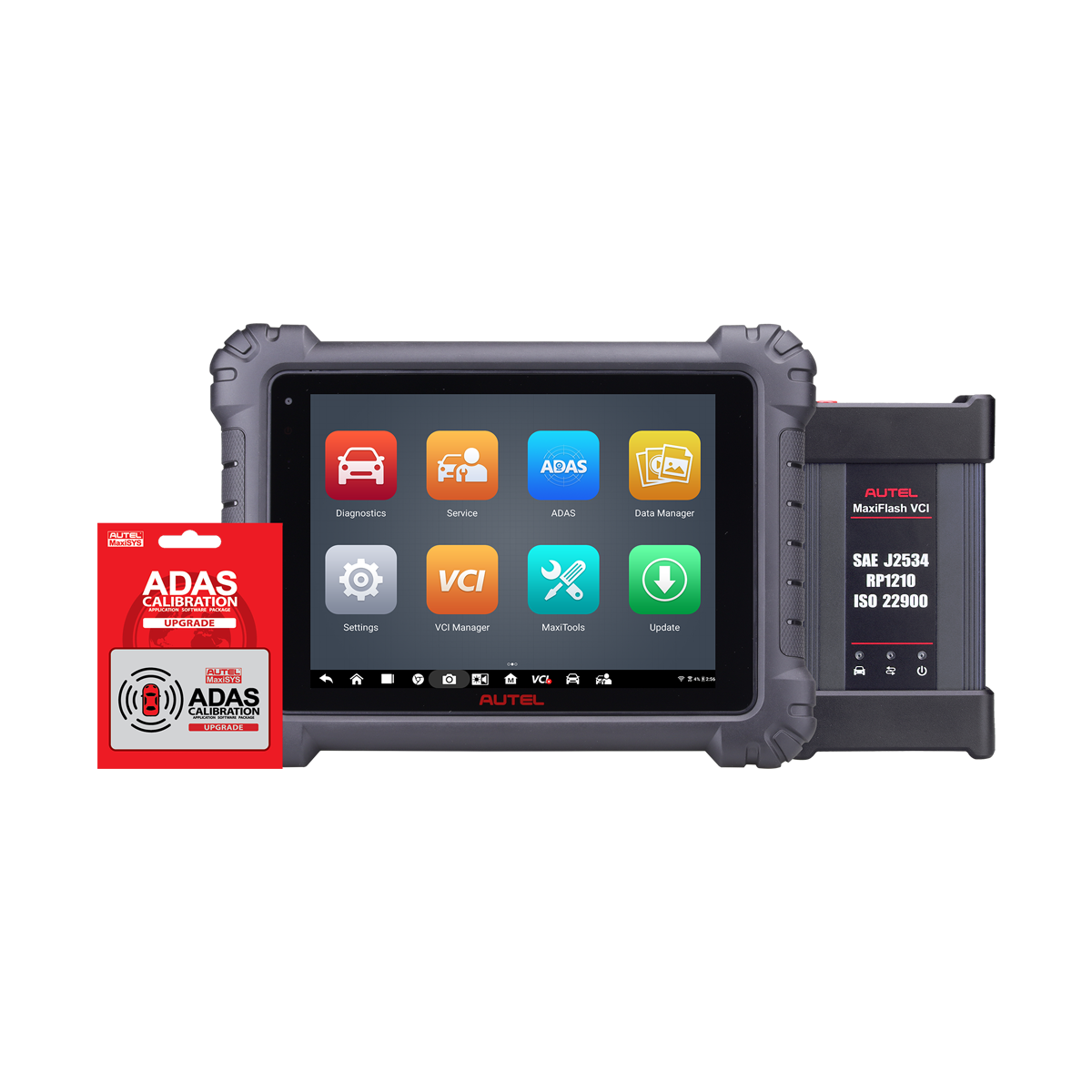

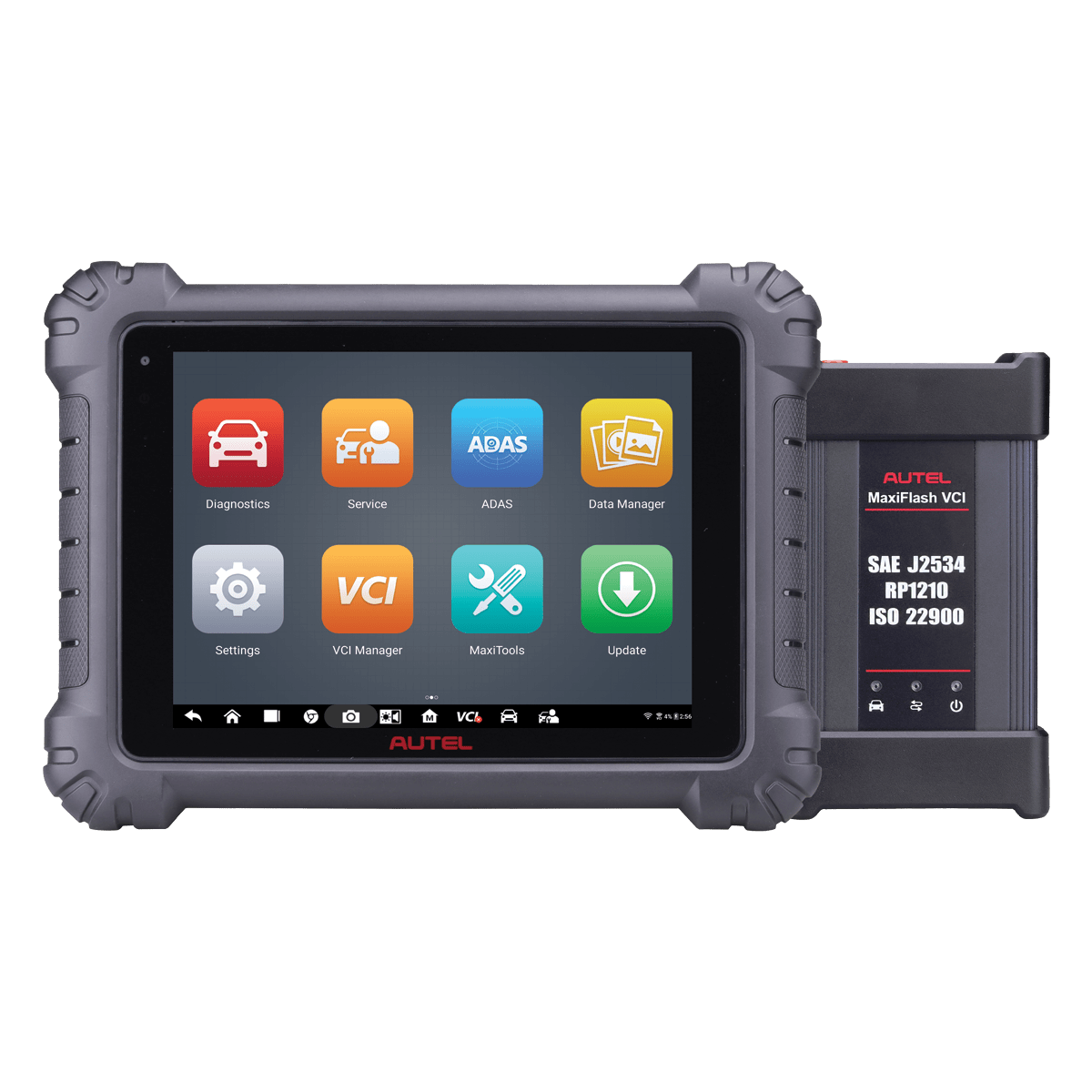

• Autel MaxiSYS MS909 tablet with ADAS calibration software activated
• MaxiFlash VCI (Bluetooth/USB)
• OBD2 cable, AC/DC power adapter, carrying case
• One-year limited warranty
• One year of free software updates

ADAS frame, targets, and calibration patterns are sold separately. Contact us for bundled package pricing.
