Autel MaxiSYS MS909 — Professional Diagnostic Tablet with Oscilloscope and Advanced ADAS Support

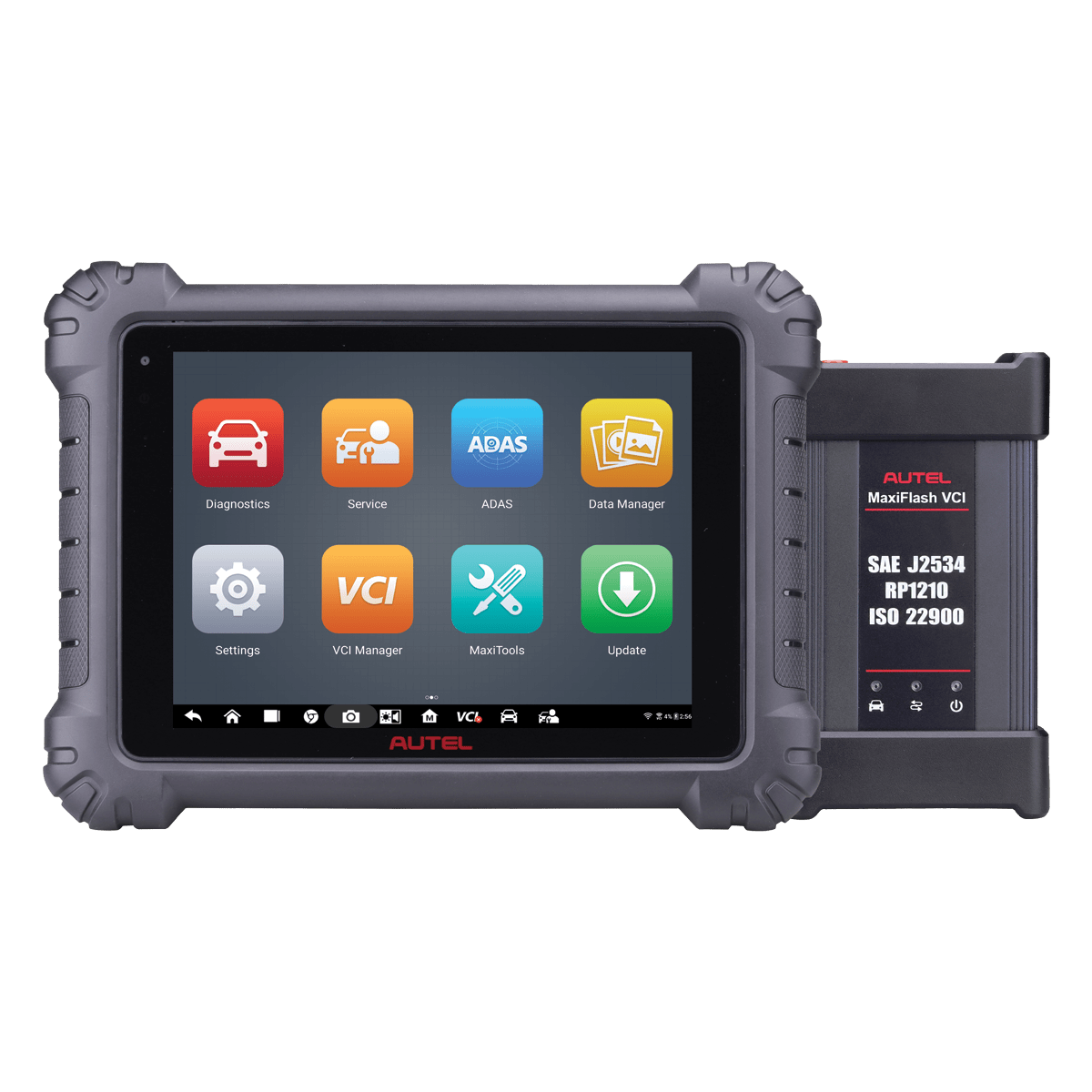

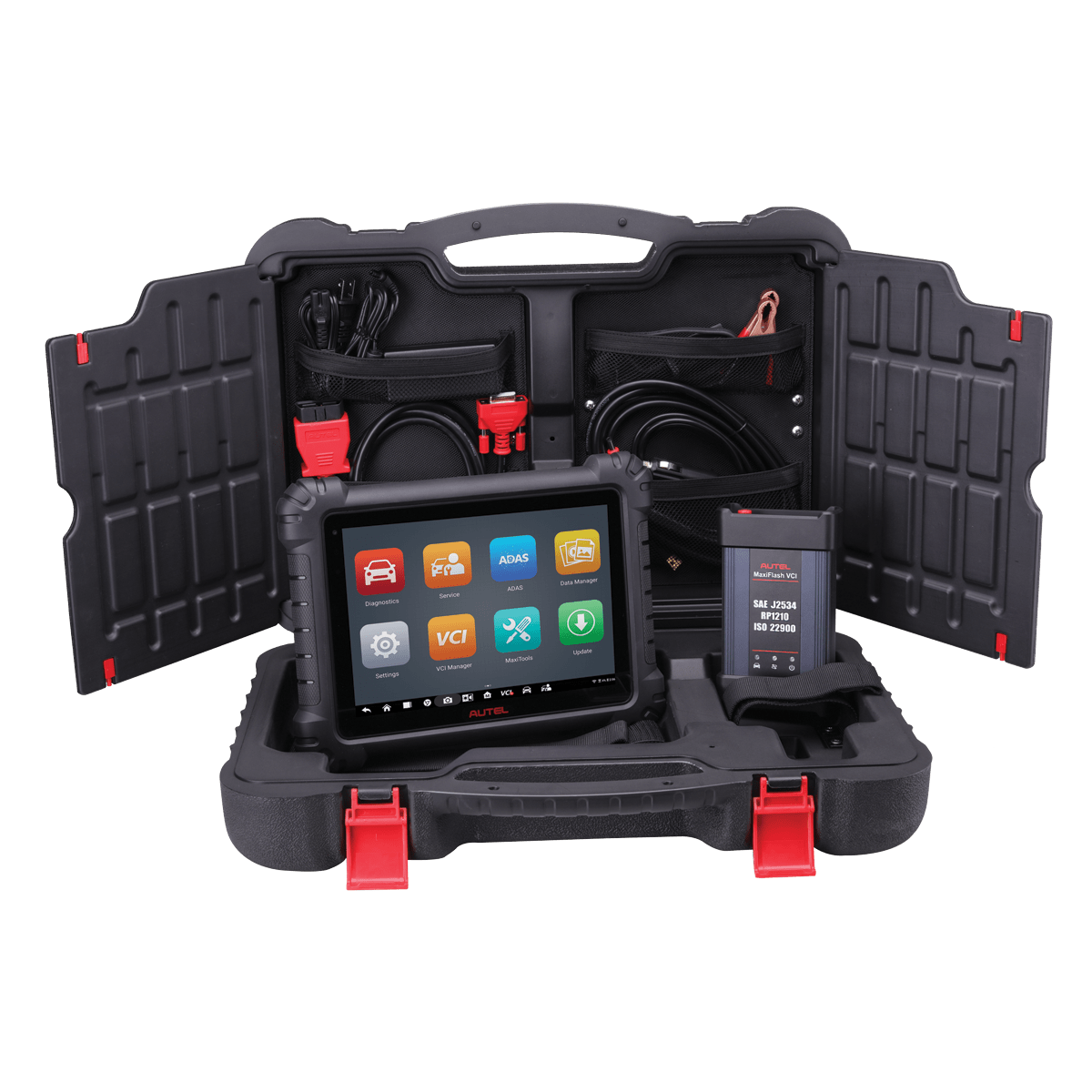

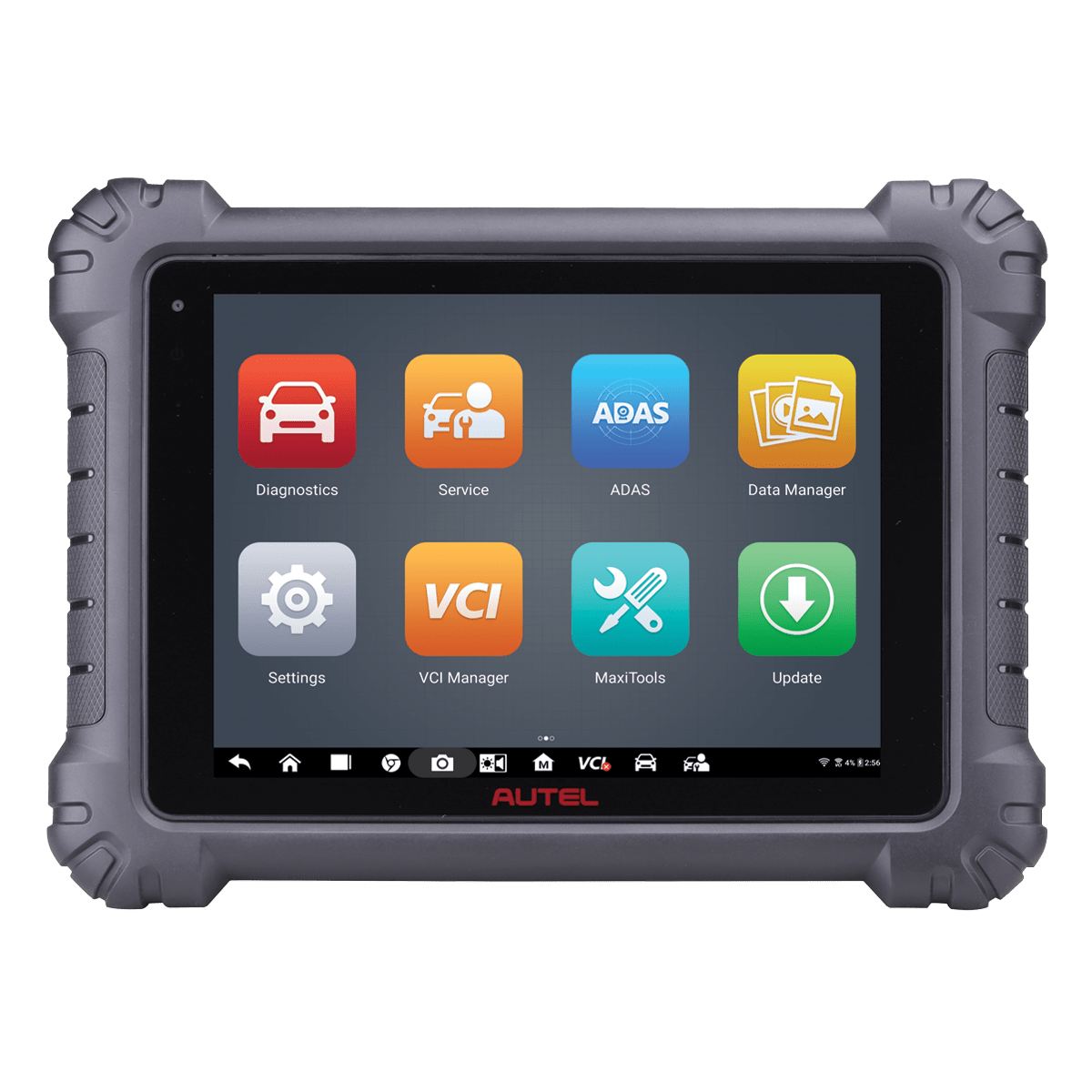

The MaxiSYS MS909 is Autel's professional-tier diagnostic tablet for light and medium-duty vehicles — the tool that sits above the MS908-series in capability and below the Ultra in the Autel lineup. It pairs comprehensive all-systems diagnostics with oscilloscope capability (via the MaxiScope MP408), advanced ADAS calibration software, and the MaxiFlash VCI for J2534 pass-through programming.

Note: The manufacturer page returned for the MS909 SKU matched the CV ADAS LDW MA600 bundle with the MS909CV tablet — a different, commercial-vehicle-specific product. The MS909 (light/medium duty version) does not have a dedicated current manufacturer page in the scraped data. The information below is based on Autel's published MS909 specifications from available sources. Call 866-217-0063 to confirm current configuration and availability.

What Diagnostic Functions Does the Autel MS909 Perform?

Full-System Diagnostics — All Makes and Models

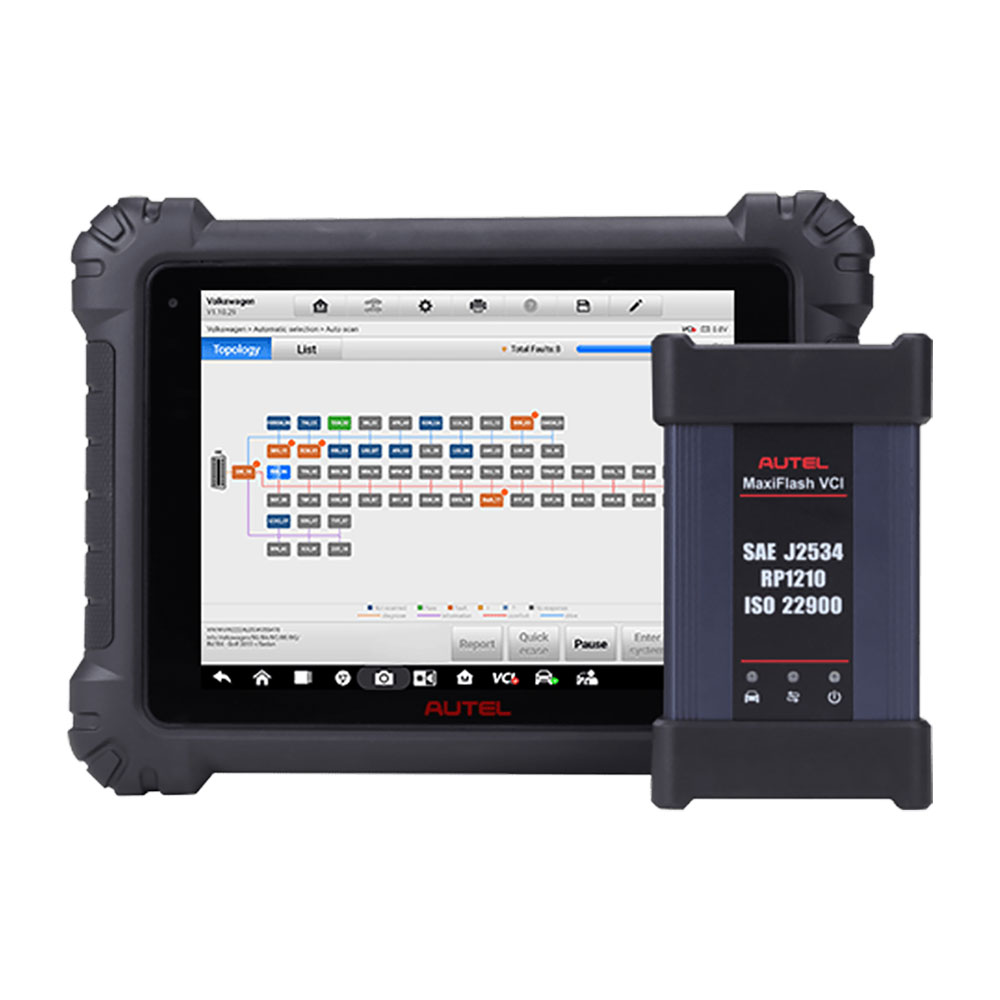

The MS909 covers all major passenger car and light truck makes — domestic, Asian, and European — with all-systems fault detection via AutoScan. Read and clear DTCs, view and graph live data, access freeze frame data, and run bi-directional active tests across every available control module. Auto-VIN and Scan-VIN enable fast vehicle identification. FCA Secure Gateway access is supported with an Autoauth account for Chrysler/Dodge/Jeep/Ram vehicles.

Bi-Directional Active Tests

The MS909 performs bi-directional component activation — commanding systems to operate so technicians can verify function and isolate failures without guesswork. This covers actuator tests, component resets, module coding, adaptation resets, and more across a wide range of vehicle systems. The bi-directional library expands with each software update.

Oscilloscope Capability

The MS909 is compatible with the Autel MaxiScope MP408 oscilloscope module. This adds four-channel waveform capture directly through the MaxiSYS interface — allowing technicians to diagnose sensor signals, injector patterns, communication bus waveforms, and electrical faults at the signal level. This is a capability that separates the MS909 from entry and mid-tier scan tools where waveform diagnosis requires a separate standalone scope.

ADAS Calibration

The MS909 includes ADAS calibration software. Combined with Autel's compatible ADAS calibration targets (sold separately, matched to vehicle make and system type), the MS909 can perform static ADAS calibrations on supported light and medium-duty vehicles — covering forward-facing cameras, radar sensors, and other safety system components that require recalibration after windshield replacement, collision repair, or suspension alignment work.

J2534 Pass-Through Programming

The MaxiFlash VCI included with the MS909 is a J2534-compliant pass-through device. This means the MS909 can interface with OEM factory programming software (where supported) to perform ECU reflashing and software updates at the factory level — the same capability used by dealerships for TSB-driven reprogramming. For shops that do a lot of European brands or need to perform OEM reflashing on domestic vehicles, J2534 capability is a meaningful differentiator.

Service and Maintenance Functions

The MS909 includes an extensive service reset menu covering the full range of common and advanced reset procedures:

• Oil Reset / Oil Life Monitor Reset
• EPB (Electronic Parking Brake) service
• Throttle Body Adaptation / TPS Reset
• SAS (Steering Angle Sensor) Calibration
• DPF Regeneration and Reset
• Battery Registration / BMS Reset
• ABS Brake Bleed
• TPMS Relearn
• Injector Coding
• Gearbox Adaptation
• Suspension Calibration
• And many additional functions across supported vehicles
