Autel MaxiSYS MS906PRO-TS
Couldn't load pickup availability

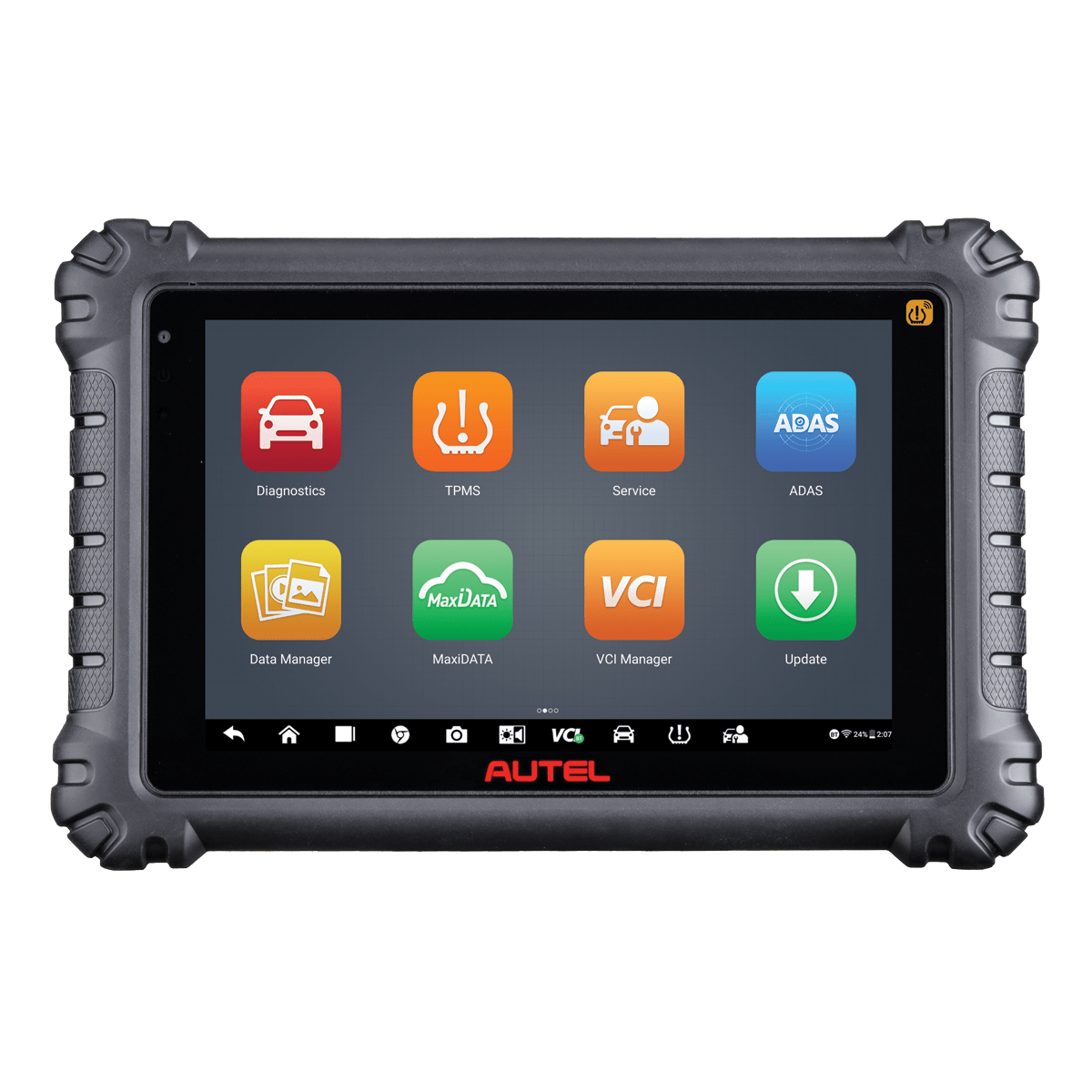

Autel MaxiSYS MS906PRO-TS: First-Generation Diagnostic Tablet with Integrated TPMS

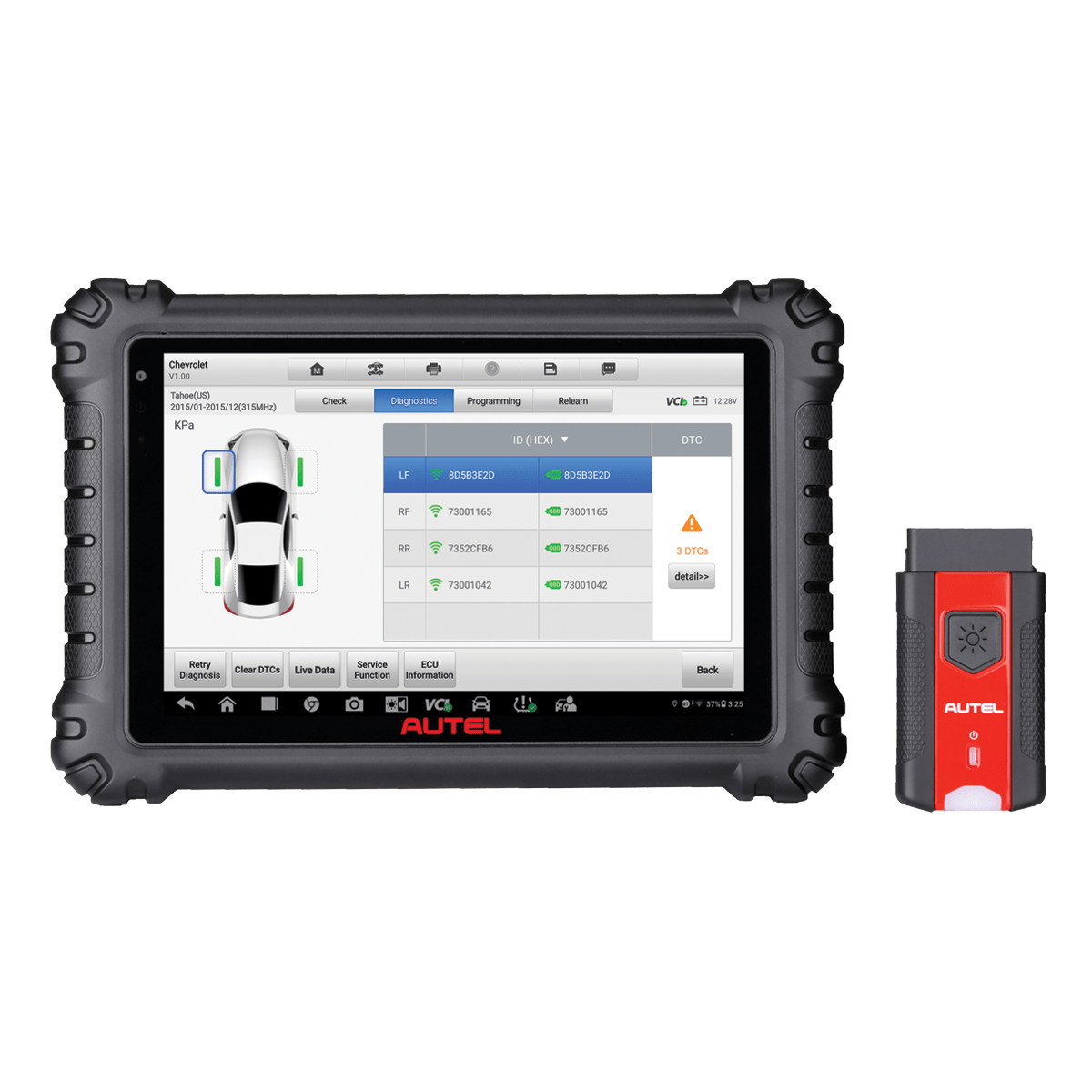

The Autel MaxiSYS MS906PRO-TS is the first-generation version of Autel's MS906 Pro-TS line. It shares the same core diagnostic and TPMS architecture as the current MS906PRO2-TS — same 8-inch screen, same octa-core processor, same 128 GB storage, same MaxiVCI V200, same integrated TPMS antenna — but runs Android 7.0 instead of the Android 10 found on the second-generation PRO2-TS.
At ,995, this unit is priced below the PRO2-TS (,499). The core diagnostic and TPMS capabilities are the same. The meaningful differences are the older Android version and earlier software platform.
Important Generation Note
The MS906PRO-TS (this unit) is the first generation. The MS906PRO2-TS is the current generation with Android 10. If long-term software update support is a priority, the PRO2-TS is the better investment. If the price difference matters and integrated TPMS is your primary need, this unit delivers that core workflow.
Hardware Specifications
- Display: 8.0-inch TFT-LED capacitive touchscreen, 1920 x 1200 resolution
- Processor: Octa-core (2.2 GHz + 1.8 GHz)
- RAM: 4 GB
- Storage: 128 GB internal
- Operating System: Android 7.0
- Battery: 11,600 mAh lithium-polymer
- Cameras: 16MP rear with flashlight, 16MP front
- Dimensions: 260mm x 170mm x 30mm
- Weight: 0.962 kg (2.12 lb)
- Connectivity: Wi-Fi 802.11 b/g/n, Bluetooth V2.1+EDR Class 1, USB 2.0, USB-C, HDMI, SD card slot
Diagnostic Capabilities
Coverage: US, Asian, European vehicles 1996+. All 10 OBDII test modes.
- All-Systems Diagnostics: Read/erase codes, live data, freeze frame across all modules
- Bi-Directional Active Tests: Actuator commands, output tests
- Special and Hidden Functions: OEM-level access
- Coding and Adaptations: Module coding, variant coding, adaptations
- AutoScan 2.0: Full-vehicle scan with ADAS component identification
- Pre/Post Scan Reporting: Email, print, or cloud
40+ Service Resets
- Oil service reset
- DPF regeneration
- Steering angle sensor (SAS) calibration
- Airbag (SRS) reset
- Occupancy seat sensor reset
- Electronic parking brake / brake bleed
- Battery registration / BMS reset
- Throttle relearn, transmission adaptations, and more
Authorized SGW Access
AutoAuth account covers: Mercedes-Benz, Nissan, Audi/VW, Stellantis (Dodge, Chrysler, Ram, Jeep, Fiat, Maserati, Alfa Romeo).

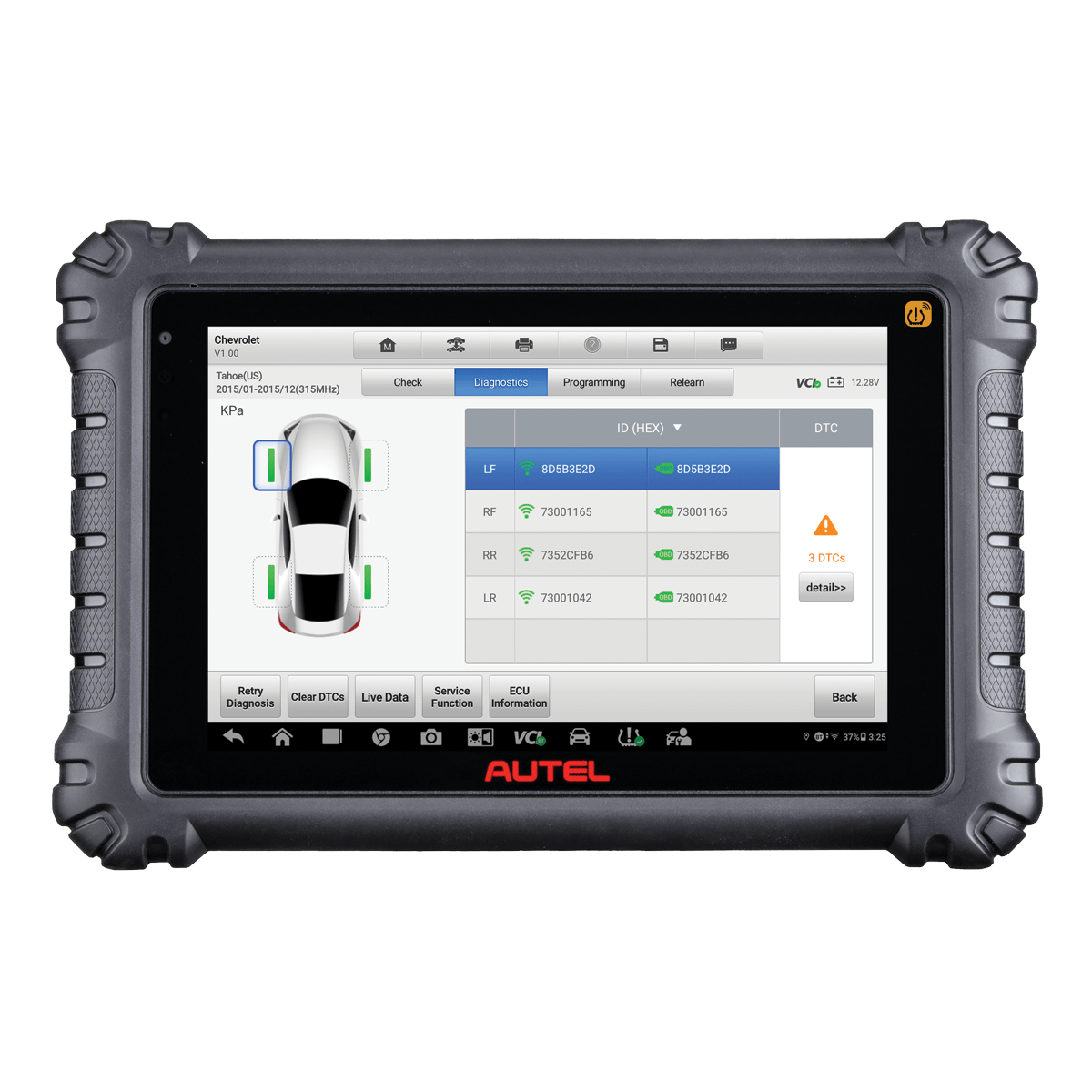

Integrated TPMS
Embedded antenna: 315/433 MHz + 2.4 GHz BLE (Tesla support). Full TPMS workflow: sensor activation, relearn, 1-Sensor programming (99.7% coverage), TPMS fault diagnostics.
PRO-TS vs PRO2-TS
- MS906PRO-TS (this unit): Android 7.0, first-generation platform, ,995
- MS906PRO2-TS (current): Android 10, updated software, ,499
Call us and we will tell you honestly which makes more sense for your situation.
Software and Warranty
- 1 year free software updates via Wi-Fi
- 1 year limited warranty
Why Buy From OEM Diagnostic Tools?
Specialist in professional diagnostic equipment since 2016. We know Autel product generations and won't steer you into the wrong unit.
- Free shipping on all orders
- Free technical support at 866-217-0063
- Full warranty on every unit
- Honest guidance on PRO-TS vs PRO2-TS for your shop
Call 866-217-0063 for quick answers and help\!
Specifications
Specifications
Detailed specifications are included in the product description above. For complete technical specs, vehicle coverage lists, or comparison help, call our team at 866-217-0063.
We can look up specific vehicle coverage for any Autel tool in seconds.
Shipping & Returns
Shipping & Returns
Free standard shipping on every order within the continental United States. Most orders ship within 1-2 business days via UPS or FedEx.
Returns: 30-day return policy on unused items in original packaging. Contact us at 866-217-0063 or email to start a return. Restocking fees may apply to opened items.
See our full Shipping & Returns Policy for details.
Warranty
Warranty
All Autel tools come with the manufacturer's standard warranty, typically 1 year from date of purchase. Warranty covers defects in materials and workmanship.
Total Care Program (TCP): Autel offers an annual software update subscription. Your first year of updates is included with purchase. After Year 1, renew through Autel's TCP program to keep receiving the latest vehicle coverage and features.
Questions about warranty or TCP? Call us at 866-217-0063.
Software Updates
Software Updates
First year of software updates included with every Autel diagnostic tool purchase.
Autel releases regular updates that add new vehicle coverage, fix bugs, and unlock new diagnostic functions. Updates are downloaded via Wi-Fi directly on your tool or through the Autel MaxiPC Suite software.
After Year 1: Renew your subscription through Autel's Total Care Program (TCP). Pricing varies by model. We can help you find the right TCP card for your tool.
Browse TCP Cards & Software Updates or call 866-217-0063 for help.
