Autel MaxiSYS IA900WA 3-in-1 Wheel Alignment and ADAS Calibration Frame

The Autel MaxiSYS IA900WA is Autel's flagship stationary in-shop solution that combines four-wheel alignment, ADAS component calibration, and advanced diagnostics in a single frame. It is built for shops that want to handle alignment and ADAS work from the same machine without switching equipment or workflows mid-job.

This listing is for the IA900WA frame package — the base configuration that includes the frame, 24-inch touchscreen display, wheel clamps, targets, and alignment hardware, without an MSULTRAADAS tablet. If you need the tablet included, look at IA900WAT. If you need full ADAS calibration target packages for cameras, radar, and LiDAR, look at IA900LDW, IA900AS, or the tablet-included versions.

What Makes the IA900WA Different from Other ADAS Frames

Most ADAS calibration frames do one thing: hold targets. The IA900WA does three things in one workflow:

• Four-wheel alignment — Six high-resolution cameras embedded in the frame track wheel target height automatically on a lift. Alignment reading accuracy is 0.02 degrees. Coverage includes U.S., Asian, and European vehicles 1996 and newer.
• ADAS calibration — Optical target positioning using the frame's built-in HD cameras is 6X faster than mechanical measurement. The system calculates angle, distance, and offset from vehicle to frame automatically.
• Advanced diagnostics — Network topology, ADAS filter, service info access, relearn procedures, and full pre/post-scan documentation via MaxiSYS tablet integration.

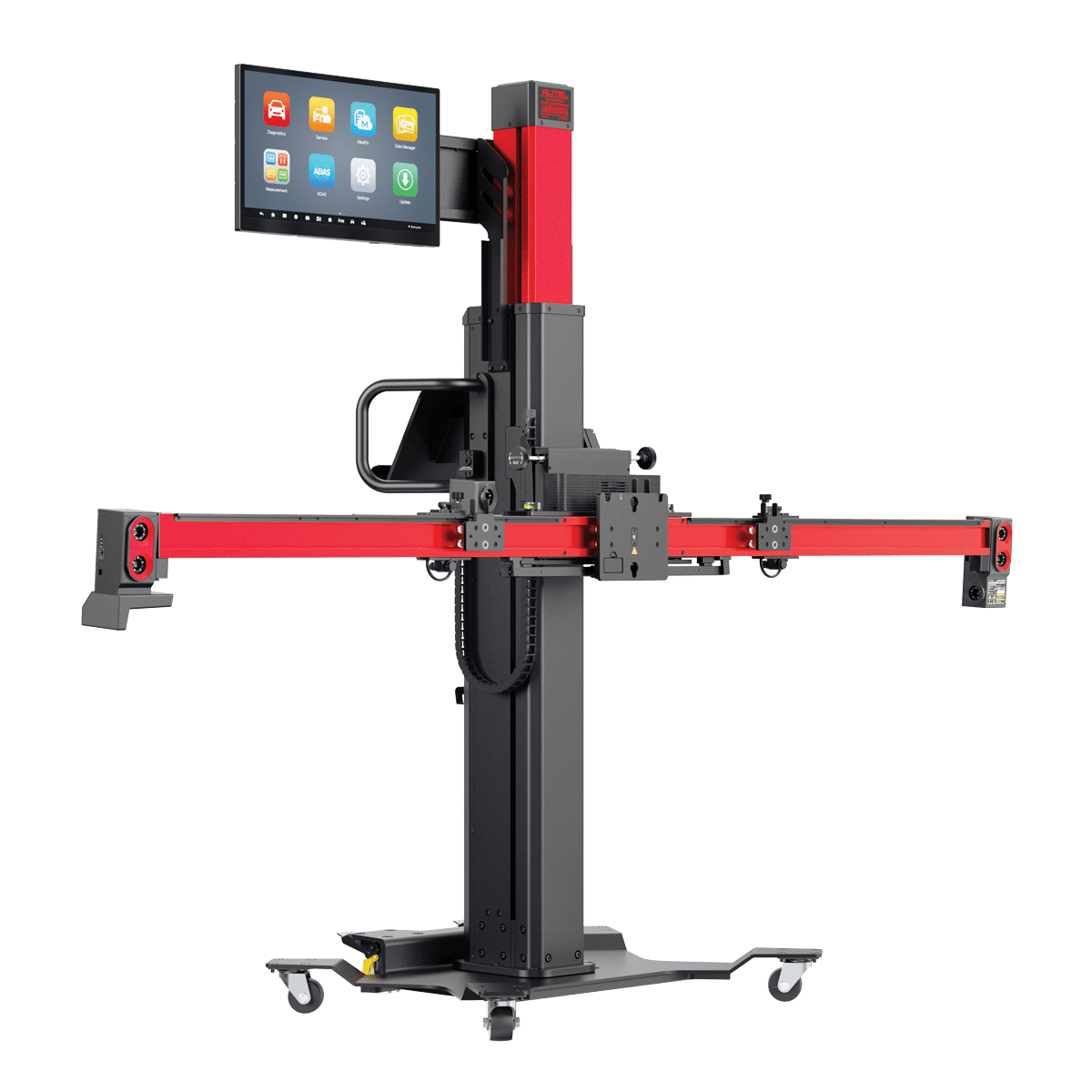

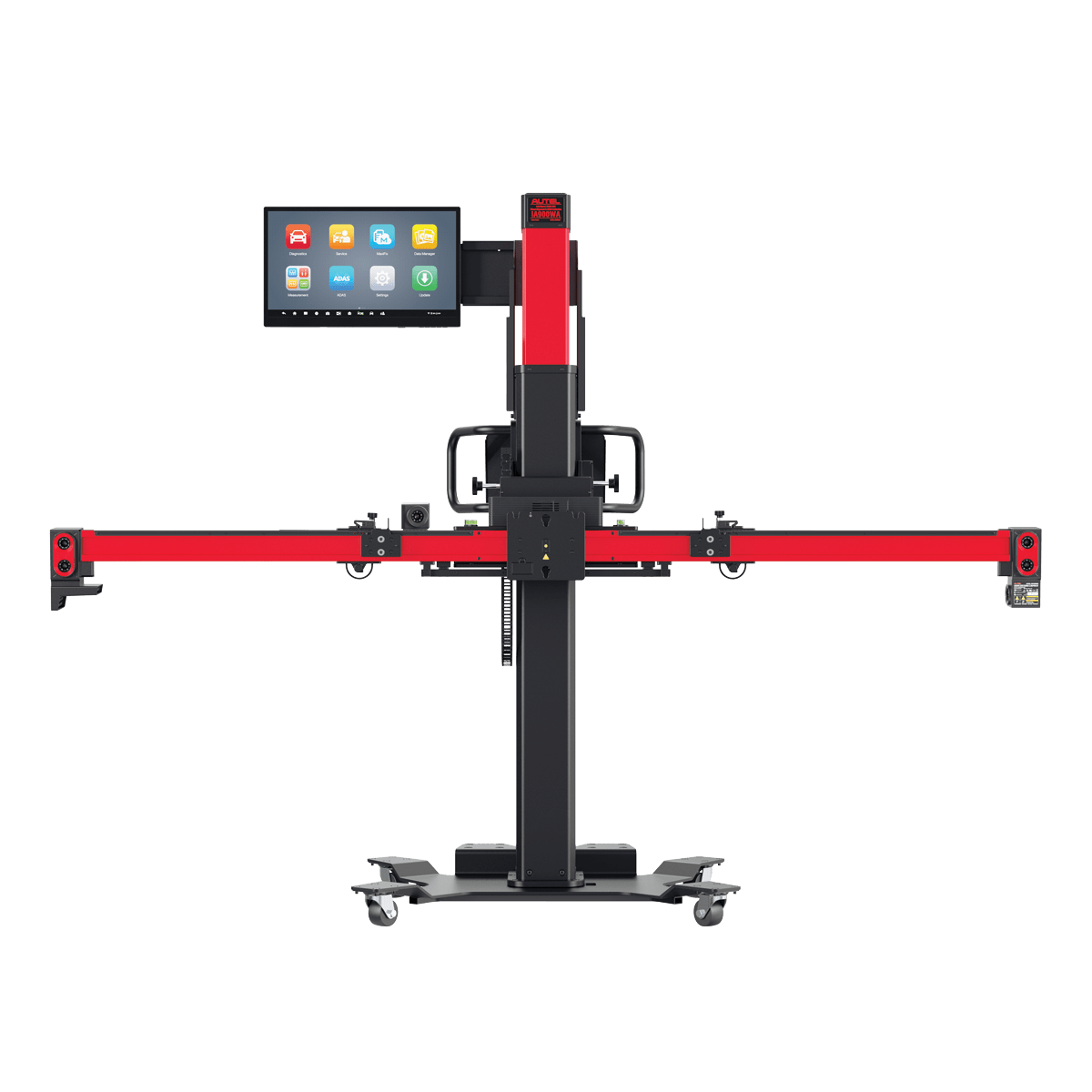

Frame Hardware Features

• Six high-resolution positioning and tracking cameras built into the frame
• Robotic crossbar movement — frame placement in as little as one minute
• Automatic height adjustment: crossbar sets to correct ADAS calibration height at button press
• Tracks vehicle height changes on lift — from full alignment lift height down to 6 inches minimum
• Folding crossbar with locking mechanism; 6-inch minimum to 7-foot maximum crossbar height
• Self-calibrating cameras — no manual recalibration needed
• Unlevel floor compensation — works on level floor, unlevel floor, or rack without calibration failure
• Built-in cable management and consolidated power supply
• 24-inch touchscreen display attaches to frame; dual-screen operation when used with MSULTRAADAS tablet

Alignment Capabilities

The IA900WA goes well beyond basic toe-and-go alignment. Technicians get:

• All standard measurements: camber, caster, toe, thrust angle, SAI, toe-out on turns
• Frame alignment diagnosis and engine cradle alignment diagnosis
• Bent/loose parts identification
• Tire diameter measurement for diagnosing pull conditions
• Tread depth and tire pressure
• Wheel-off adjustment capability (for vehicles where wheel must be removed for alignment access)
• Raised vehicle adjustment for vehicles too long for the lift
• Bump steer diagnosis
• Steering angle relearn
• Illustrated alignment instructions, live readings, required tools, and adjustment locations — all on one screen

ADAS Calibration Capabilities

The IA900WA base frame supports static ADAS calibration with the appropriate target packages. Coverage includes:

• Lane Departure Warning (LDW) cameras for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo
• Around View Monitoring (AVM) mats for Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, and Mitsubishi
• Rear Collision Warning (RCW) patterns
• Blind Spot Detection (BSD) components
• Radar, LiDAR, and Night Vision calibrators (available in upgrade packages)

Step-by-step illustrated full-color on-screen instructions guide technicians through every calibration. The workflow includes pre-scan, environmental conditioning, frame positioning with visual green-check confirmation, calibration execution, and post-scan documentation.

Documentation and Reporting

Pre-scan identifies existing faults and all ADAS systems on the vehicle. Post-scan generates a detailed report confirming faults were repaired and all OE-required calibrations were performed to OE specifications — suitable for insurance reimbursement and sublet documentation.

IA900WA Package Comparison

The IA900WA is the entry-level configuration of the IA900 series — you get the full frame and alignment capability, and you can add ADAS target packages (LDW or All Systems) and the tablet separately or as upgrades.

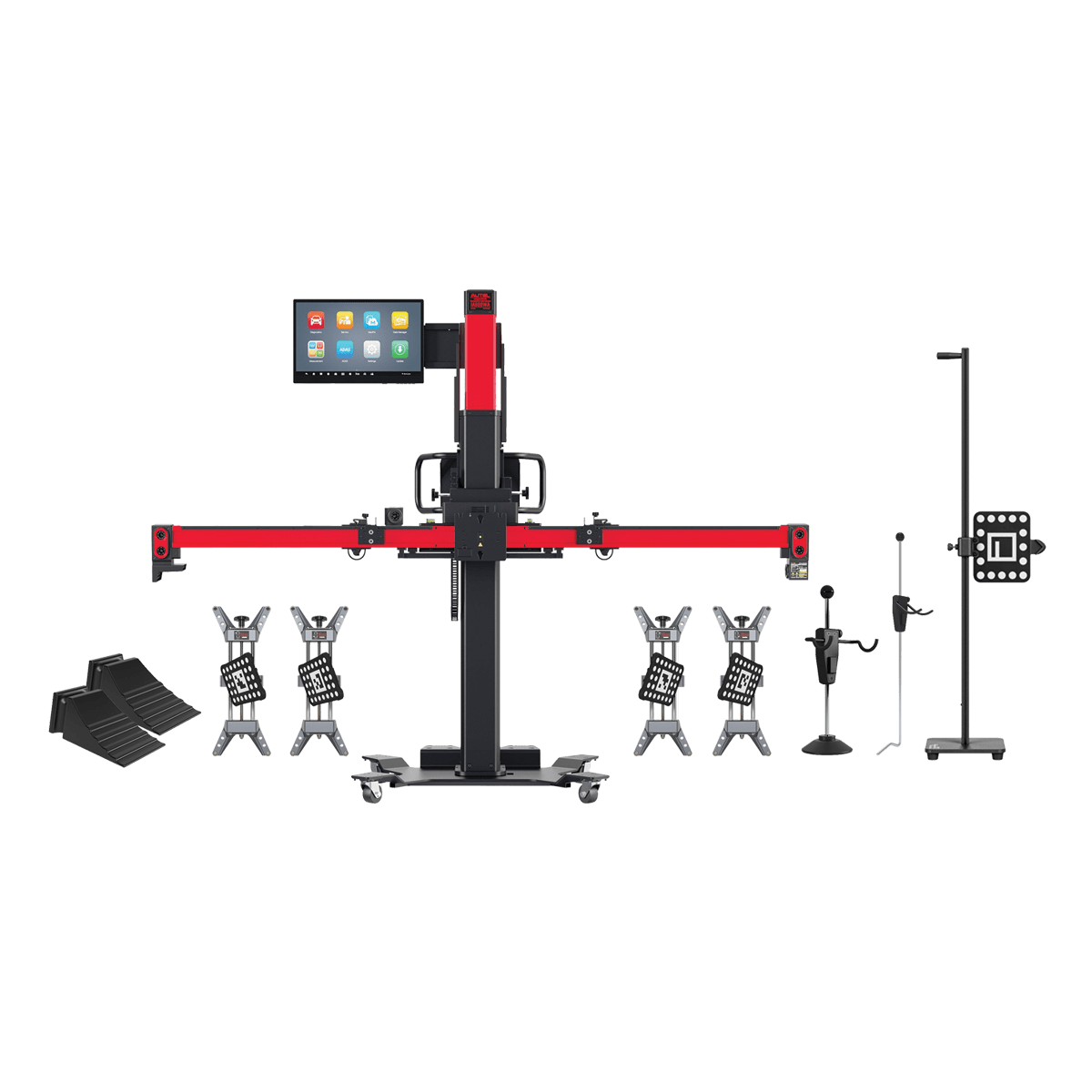

What Is Included

• IA900WA calibration frame with 24-inch touchscreen display
• Wheel Clamps (4x)
• Wheel Targets (4x)
• Distance Target (1x)
• Steering Wheel Lock (1x)
• Wheel Chocks (2x)
• Brake Lock (1x)
• One-year limited warranty

Available Accessories

• 500-20 Ride Height Target
• 500-21 Wide-Angle Target
• IA900STP Sliding Target Panel (for three-target calibrations including Subaru)
• IA900DOCK Ultra Docking Station
• 500-17 Tire Clamps, Set of Four (tire-mounted instead of rim-mounted)

Space Requirements

The IA900WA is a stationary frame that requires dedicated floor space. Autel publishes workspace requirement specs; contact us for the workspace requirements document or download it from Autel's site. Tagged use cases include repair bay (30ft x 16ft minimum), medium bay (30ft x 45ft), and large bay (40ft x 60ft) configurations.
