Autel MaxiIM IKEY IKEYAT6PRS

Autel MaxiIM IKEY IKEYAT6PRS — 6-Button Universal Key with Dual Power Sliding Doors

The IKEYAT6PRS is the Autel MaxiIM IKEY built for minivans and passenger vans equipped with dual power sliding doors — one on each side. Where most vehicles get away with a single sliding door button or none at all, these platforms give each door its own dedicated button on the original key fob. The IKEYAT6PRS matches that layout exactly: one button for the left sliding door, one for the right, plus Lock, Unlock, Remote Start, and Panic.

If you are replacing a key on a Chrysler Pacifica, a Honda Odyssey, a Toyota Sienna, or any similar dual-sliding-door platform, this is the IKEY variant that covers the button count correctly. Program the wrong layout and you either lose functionality or end up with phantom buttons — neither is acceptable when handing a key back to a customer. The IKEYAT6PRS gives you the right six functions in the right configuration.

Like all Autel IKEYs, this is a standard pre-cut universal key that programs directly with the Autel KM100. No dealer trip required, no sending the vehicle out to a locksmith with expensive blanks. Your shop programs it, your shop collects the labor.

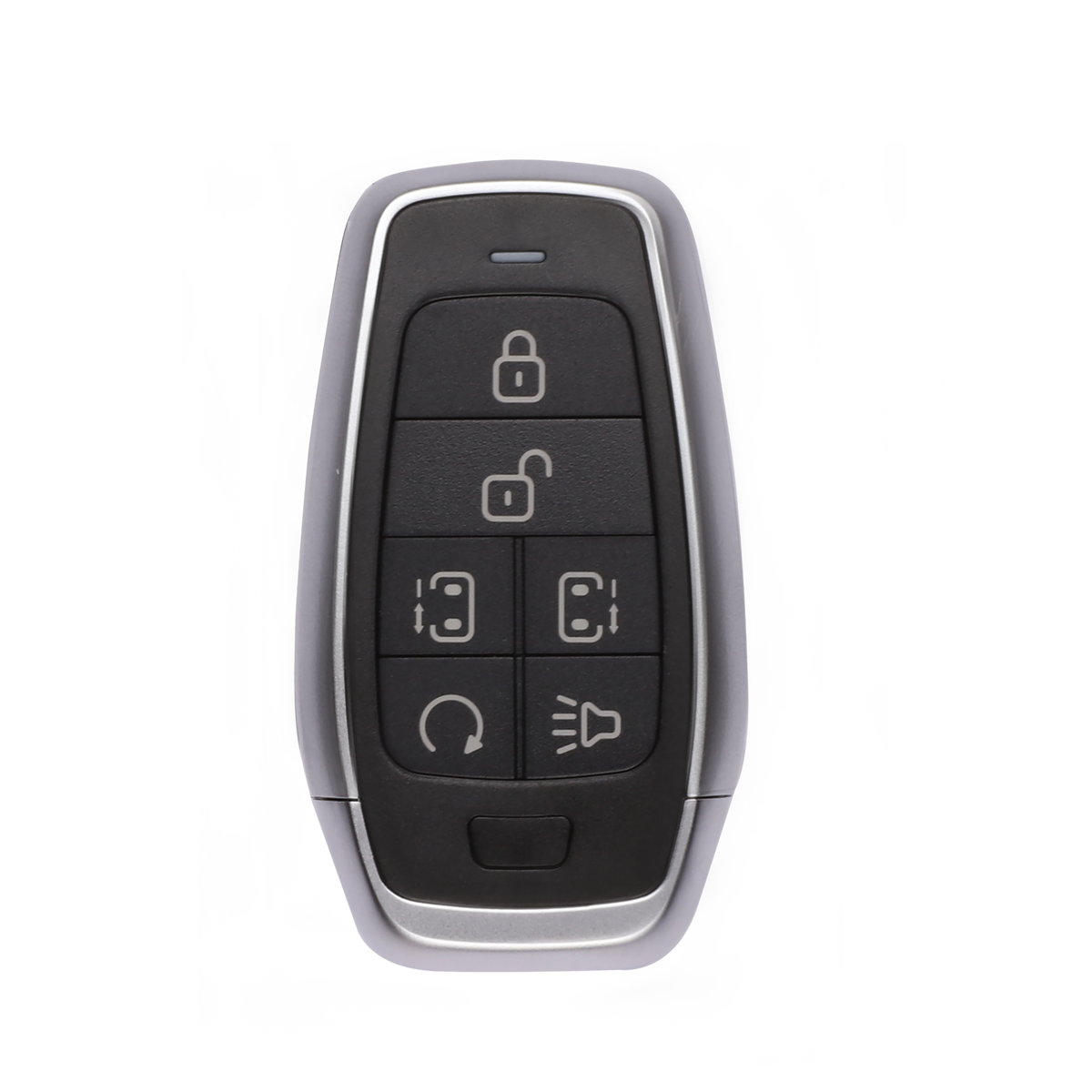

Button Layout

• Lock — Standard door lock
• Unlock — Standard door unlock
• Left Sliding Door — Opens/closes the left power sliding door
• Right Sliding Door — Opens/closes the right power sliding door
• Remote Start — Remote engine start
• Panic — Audible alarm trigger

What Makes This Configuration Unique

The dual sliding door button layout is a minivan-specific feature. Most crossovers and SUVs in the Autel IKEY compatibility list do not have power sliding doors at all, and those that have one sliding door typically use a different button arrangement. The IKEYAT6PRS was designed specifically for the platforms that need independent left and right sliding door control.

Compare this to the IKEYAT6PRHG, which targets SUVs/crossovers with hatch and hatch glass buttons, or the IKEYAT6TPRA for air suspension vehicles. Each 6-button IKEY in the lineup has a distinct purpose — the IKEYAT6PRS is the minivan and dual-sliding-door van key. Ordering the right variant from the start saves you a return and a second programming session.

Technical Specifications

• Buttons: 6 (Lock, Unlock, Left Sliding Door, Right Sliding Door, Remote Start, Panic)
• Frequency: 315 MHz / 415 MHz
• Range: Up to 40 meters / 130 feet
• Programmer Required: Autel KM100
• Battery: CR2032 (not included)
• Emergency Blade: Not included

Vehicle Compatibility

The IKEYAT6PRS supports Autel's broad universal IKEY platform, which covers:

• Hyundai
• Nissan
• Chrysler (including Dodge and Jeep platforms with sliding doors)
• Honda
• General Motors (GM)
• Select BMW, Audi, Volkswagen, and Volvo models

Dual power sliding door systems are most common on Chrysler and Honda minivan platforms, but confirm your specific year, make, model, and trim in Autel's compatibility list before ordering. Not every trim level on a compatible platform will have dual power sliding doors — some will have one or none.

Programming Requirements

This key programs with the Autel KM100 key programmer. The KM100 handles key learning, transponder programming, and remote function assignment in a single workflow. It is the required companion tool for the full Autel IKEY line. If your shop does not have a KM100, that is your starting point — the IKEYs are designed around it and do not require a dealer tool or EEPROM programmer to complete.

What Is Not Included

A CR2032 battery is not included — source one locally before delivering the key to the customer. No emergency mechanical blade is included with this configuration. If the vehicle application requires a blade for manual entry, source the correct blade for that vehicle separately.

How It Fits in the IKEY Lineup

Autel builds IKEYs across 3-, 4-, 5-, and 6-button variants because OEM fobs are not one-size-fits-all. The 6-button tier covers the more specialized vehicle configurations — dual sliding doors (IKEYAT6PRS), split hatch/hatch glass (IKEYAT6PRHG), EV charge plus trunk (IKEYAT6TPCE), and air suspension plus trunk (IKEYAT6TPRA). The IKEYAT6PRS stands alone as the sliding door variant because minivans represent a high-volume replacement market where shops need reliable inventory, not custom orders.
