Autel MaxiIM IKEY IKEYAT5PCE

Autel MaxiIM IKEY IKEYAT5PCE — 5-Button Universal Key with EV Charge Button

The IKEYAT5PCE is the EV-charge variant of Autel's MaxiIM IKEY line — a programmable aftermarket remote head key designed for shops that service electric and plug-in hybrid vehicles. If a customer drives a Nissan Leaf, Chevy Bolt, or other EV and needs a replacement remote, this is the key that has the dedicated EV Charge button. That single difference makes this SKU the right pick for a range of popular EV models that other IKEYs cannot replicate.

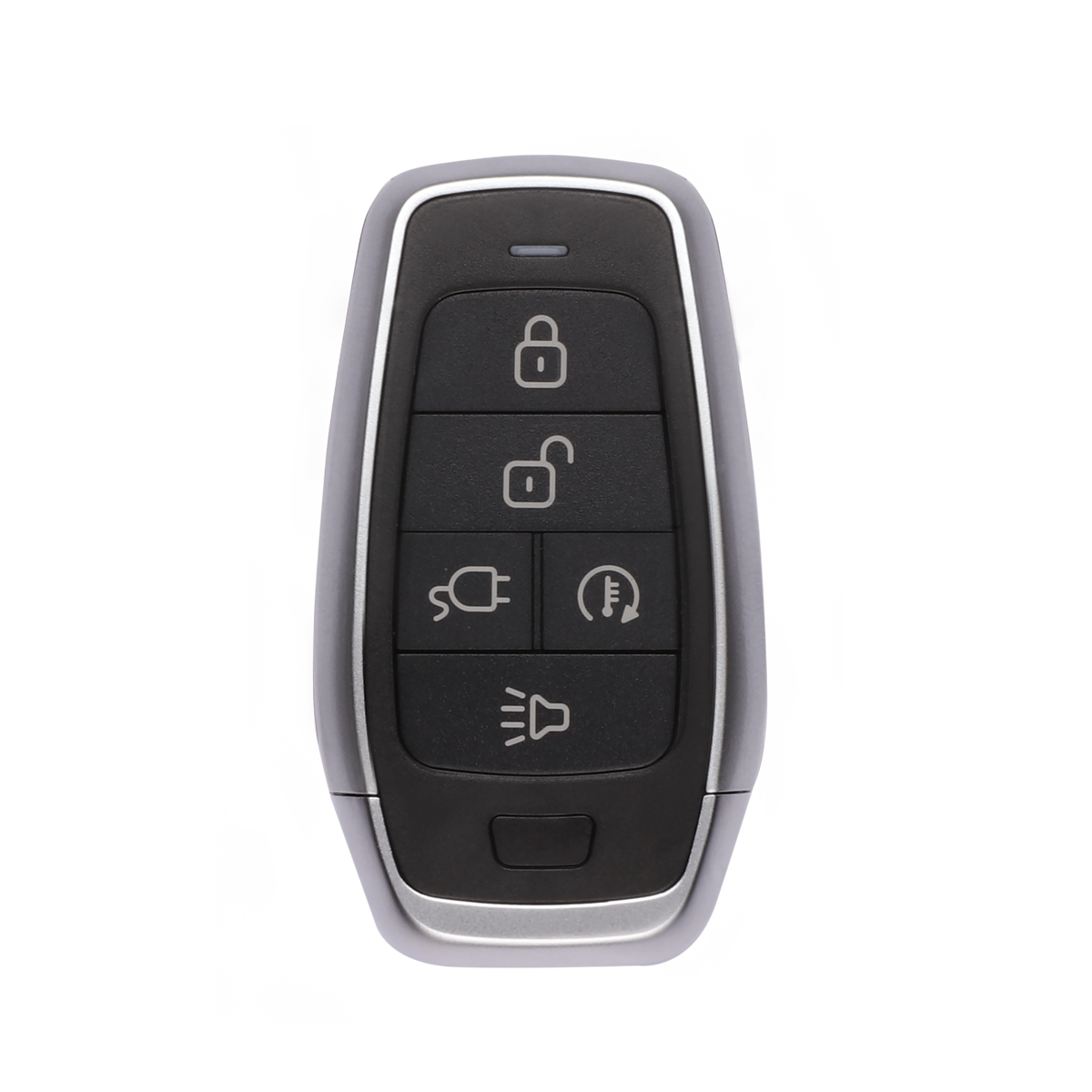

Button Layout

• Lock — Arms the vehicle and flashes the lights
• Unlock — Disarms the system and opens doors per factory setting
• EV Charge — Initiates or schedules charging on compatible electric and plug-in hybrid vehicles; this is the defining button for this SKU
• Remote Start — Pre-conditions the cabin for heat or cooling before the driver gets in
• Panic — Triggers the horn and lights for emergency or security use

Who Needs This Specific Key?

If a customer comes in with a lost or damaged remote for a Nissan Leaf, Chevy Bolt EUV, or a select GM plug-in hybrid, a generic 4-button IKEY will leave that EV Charge button missing. The owner cannot remotely start the charge cycle from outside the vehicle. The IKEYAT5PCE solves that. Order this SKU when the original remote has an EV Charge or charge-initiation button on it — not the standard Lock/Unlock/Start version.

Technical Specifications

• Frequency: 315 MHz / 415 MHz (dual-frequency, auto-detected during programming)
• Range: Up to 40 meters / 130 feet line-of-sight
• Required Programmer: Autel KM100 (sold separately)
• Battery: CR2032 coin cell — not included, available at any hardware or drug store
• Emergency Mechanical Blade: Not included — order the appropriate blade for the vehicle make separately if needed

Compatible Vehicle Makes

The IKEY platform is designed as a universal aftermarket solution. The IKEYAT5PCE has been validated for use with vehicles from:

• Hyundai
• Nissan
• Chrysler (FCA group)
• Honda
• GM (Chevrolet, Buick, GMC, Cadillac)
• Select BMW, Audi, Volkswagen, and Volvo models

Always verify the specific year/make/model against the Autel IKEY compatibility list before ordering. The KM100 programmer will confirm a match during the programming session.

Programming Overview

The IKEYAT5PCE programs using the Autel KM100. The KM100 communicates with the vehicle OBD-II port, reads the immobilizer data, and writes the key credentials to the new IKEY. No dealer trip required. Most experienced technicians complete the process in under 15 minutes. If you are new to IKEY programming, Autel provides setup documentation, and our tech support team at 866-217-0063 can walk you through the first job.

What Is Not Included

Two items worth noting before you place the order:

• CR2032 Battery: Not included. Pick one up locally — it installs in seconds.
• Emergency Blade: Not included. If the customer needs a mechanical override blade for manual door unlock when the battery is dead, order the correct blade for the vehicle separately.

IKEYAT5PCE vs. Other IKEYs — Make the Right Call

Autel produces several 5-button IKEY variants that look nearly identical in photos. The EV Charge button on this SKU is what separates it:

• IKEYAT5PCE — Lock, Unlock, EV Charge, Remote Start, Panic (this key)
• IKEYAT5PRA — Lock, Unlock, Air Suspension, Remote Start, Panic
• IKEYAT5PS — Lock, Unlock, Air Suspension, Panic (no Remote Start)
• IKEYAT5TPR — Lock, Unlock, Remote Start, Left Sliding Door, Right Sliding Door, Panic

Ordering the wrong SKU means a button that does nothing, or a missing function the customer paid for. Match the button layout to the original remote before purchasing.
