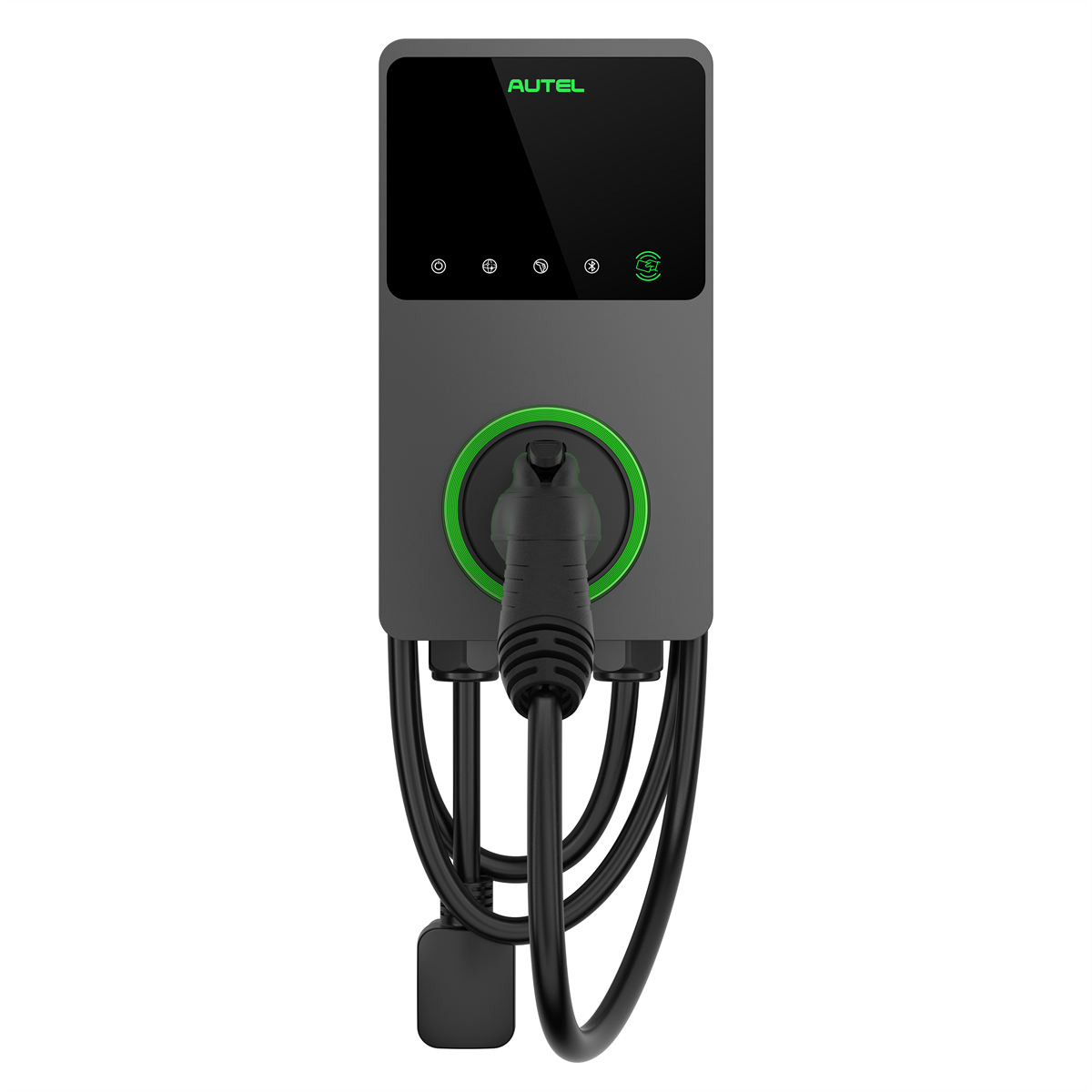

Autel MaxiCharger Home 40A EV Charger With In-Body Holster — NEMA 6-50 (MC40AP6I)
The MC40AP6I is the Autel MaxiCharger Home Level 2 EV charger in the 40-amp configuration with in-body cable holster, wired for a NEMA 6-50 outlet, priced at $559.
The NEMA 6-50 is a 240V, 50-amp outlet that carries two hot legs without a neutral wire — common in some shop and garage installations where a welder or other 240V equipment was previously installed. If your existing 240V outlet is a NEMA 6-50 (two flat blades in a diagonal orientation, no neutral prong), this is the correct charger plug type.
In-Body vs. Side Holster
The in-body holster wraps the cable around the charger unit when not in use, keeping it compact and neat. This design works well in tighter installation spaces where a side-extending holster might interfere with nearby items. The alternative side holster version (MC40AP6S) extends the cable holder to the side of the unit — slightly faster to deploy but requires more clearance.
40A Level 2 Performance
A 40-amp charger delivers up to 9.6 kW — enough to add 25–35 miles of range per hour for most passenger EVs. Overnight charging covers virtually any daily driving need. To use this charger, your vehicle's onboard charger must accept 40A input; many EVs accept 32A–48A, so confirm your vehicle's maximum input current before purchasing a 40A unit.
NEMA 6-50 vs. NEMA 14-50
- NEMA 6-50 — 240V, 50A, no neutral. Two hot legs only. Common in shops and some garage installations.
- NEMA 14-50 — 240V, 50A, with neutral. More common in residential installations for ranges and EV chargers.
If you're not sure which outlet you have, check the prong configuration: NEMA 14-50 has 4 prongs (two flat diagonal + a round ground + a vertical neutral), while NEMA 6-50 has 3 prongs (two flat diagonal + a round ground).
Note: No manufacturer page was found for this specific SKU during research. Specs are based on the product name and Autel's MaxiCharger Home product line. Call us at 866-217-0063 to confirm current specifications before ordering.
Why Buy the Autel MaxiCharger Home 40A EV Charger With In-Body Holster - NEMA 6-50 From Autel Diagnostic Tools?
Autel Diagnostic Tools has been an Autel dealer since 2016. Free shipping, full warranty, free support at 866-217-0063. Call us if you're unsure which outlet type you have or which charger configuration fits your installation.
