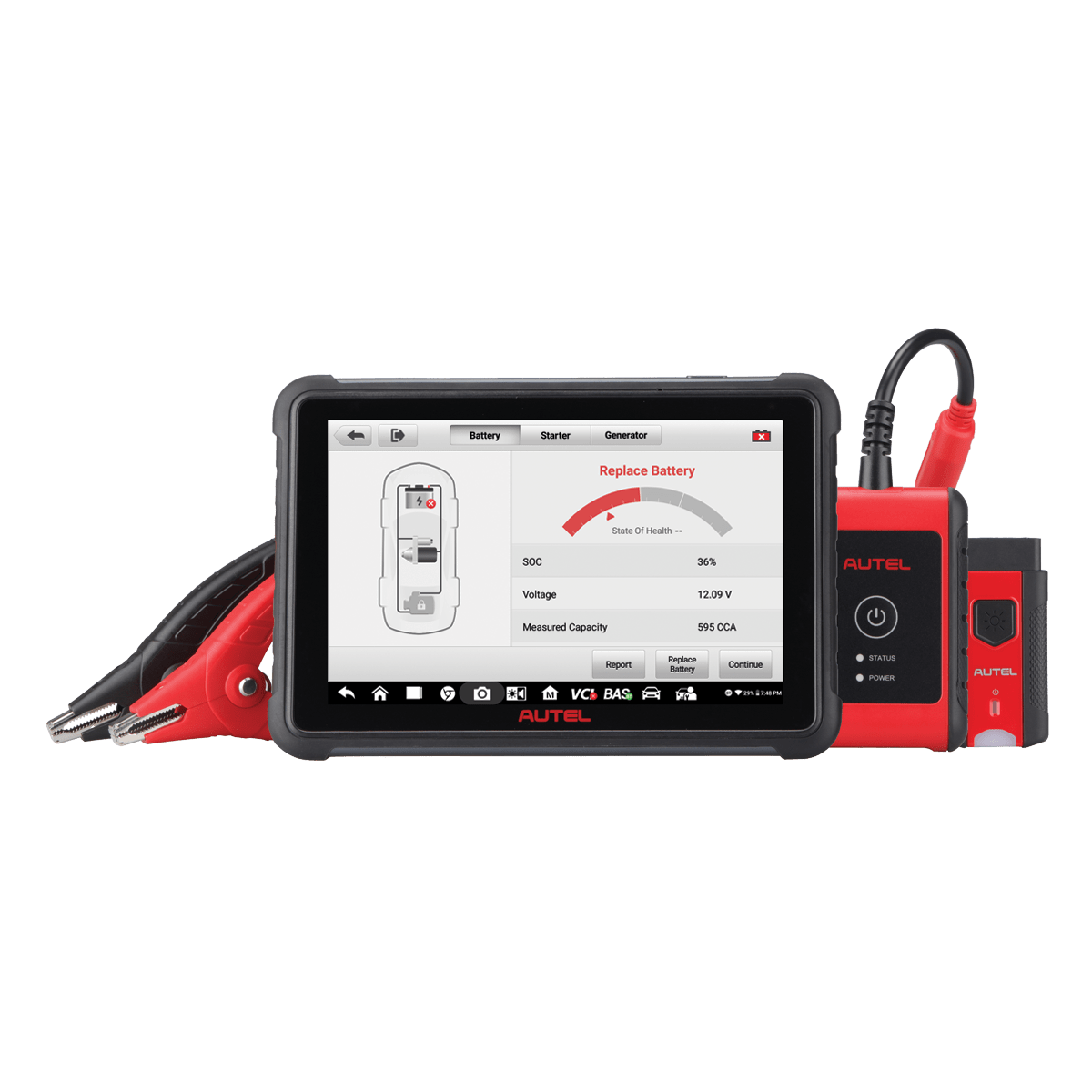

Autel MaxiBAS BT609 Battery Tester

Autel MaxiBAS BT609 Battery and Electrical System Analysis Tablet

The Autel MaxiBAS BT609 is the top of Autel's dedicated battery tester line — a 7-inch Android tablet that combines comprehensive battery and electrical system testing with full all-system diagnostics, service menu functions, and AutoVIN vehicle identification. It is the tool for shops that want a single device handling battery service, code reading, basic maintenance resets, and test reporting without connecting to a separate scan tablet.

What Separates the BT609

The BT609 is the only model in the MaxiBAS lineup that includes full maintenance service functions alongside battery testing. Where the BT608 does all-system code reading, the BT609 adds a service menu — oil reset, EPB, TPMS, and other common maintenance resets. The 7-inch screen (vs. 5.5-inch on the BT608) makes the interface more comfortable for extended use, and the 5800 mAh battery provides a full day of shop use on a single charge.

Battery Testing Capabilities

• Tests 6-volt and 12-volt batteries: 100–3000 CCA range
• Tests 12-volt and 24-volt cranking and charging systems
• Battery types: Flooded, AGM, AGM Spiral, EFB, GEL
• Rating standards: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
• Adaptive Conductance technology for accurate battery health assessment
• Temperature compensation included
• In-vehicle and out-of-vehicle testing

Vehicle Identification and Registration

• AutoVIN and VINscan: Rapid vehicle identification and automatic battery specification lookup
• Plate Scan: Identify vehicle by license plate
• Battery Registration: Supports 53 vehicle makes
• Electrical Reset: Included
• Graphic battery location diagrams

Diagnostics and Service

• All-systems code reading and clearing (autoscan)
• Full service menu: maintenance service resets and functions
• Battery health reports — shareable via Wi-Fi or email
• One year of free software updates included; subsequent updates available for purchase

Hardware Specifications

• Screen: 7.0-inch TFT-LCD, 1280x800 resolution, capacitive touchscreen
• Processor: 1.5 GHz Cortex-A35 Quad-Core
• Memory: 64GB on-board / 2GB RAM
• Camera: 8 megapixel
• Battery: 5800 mAh 3.85V lithium-polymer (approximately 6-hour life)
• Connectivity: Wi-Fi (IEEE 802.11 a/b/g/n/ac), Bluetooth 5.0+EDR+BLE, USB 2.0 (1 HOST + 1 OTG), Micro SD (up to 128GB)
• Operating System: Android 9.0
• Input Voltage: 5V / 2A adapter
• CCA Range: 100–3000 A
• Voltage Range: 1.5–36V
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Dimensions: 197mm x 135mm x 14mm (7.75" x 5.31" x 0.55")
• Weight: 445g (0.98 lb.)

Optional Accessories

• Autel Battery Tester Accessory Kit (BTAK) — adds multimeter, current clamp, and probes (sold separately)

MaxiBAS Lineup Comparison

• BT506 (~$195): Compact app-dependent tester, 100–2000 CCA, battery testing only
• BT508 (~$295): Adds VCI, battery registration, all-system code reading, app-dependent
• BT608 (~$595): Standalone 5.5" tablet, built-in printer, AutoVIN, all-system autoscan, no annual update fee
• BT609 (~$795): This tool — 7" tablet, 64GB, full service menu, 5800 mAh battery, one year free updates

The BT609 is right for shops that want to do real diagnostic and service work beyond battery testing on the same device. If you only need battery testing and printed reports, the BT608 at $595 is the more efficient choice. If you want maintenance service functions alongside battery service, the BT609 earns the premium.
