Autel MaxiBAS BT608 Battery Tester

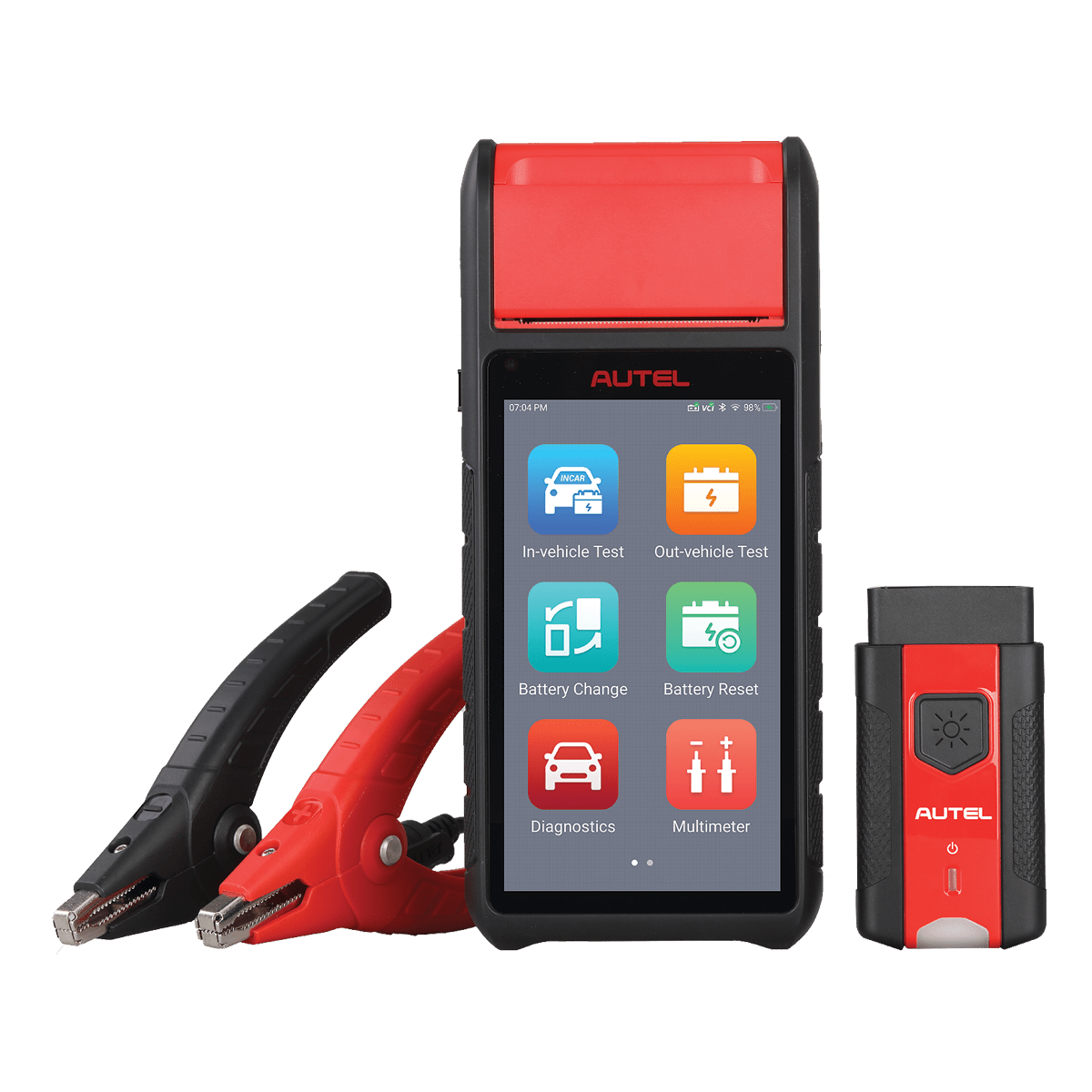

Autel MaxiBAS BT608 Battery and Electrical System Diagnostic Tablet

The Autel MaxiBAS BT608 is a standalone 5.5-inch Android touchscreen tablet designed specifically for battery and electrical system diagnostics. It goes well beyond basic battery testing — AutoVIN for instant vehicle identification, full-system code reading, battery registration across 53 vehicle makes, a built-in thermal printer for customer-facing reports, and Adaptive Conductance technology that reduces battery misdiagnosis. At $595, the BT608 is the right tool for shops doing serious volume battery service and wanting a dedicated device for it.

What Makes the BT608 Different

Most battery testers require you to either read results on a small LCD or pair with a phone app. The BT608 is a fully self-contained Android tablet — no phone needed, no app to manage. It handles everything onboard: vehicle ID via AutoVIN or ScanVIN, battery selection, testing, registration, code reading, and result printing via the built-in thermal printer.

Battery Testing Capabilities

• Tests 6-volt and 12-volt batteries: 100–3000 CCA range
• Tests 12-volt and 24-volt cranking and charging systems
• Battery types: Flooded, AGM, AGM Spiral, EFB, GEL
• Rating standards: CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
• Temperature compensation included
• Adaptive Conductance technology — accurately identifies low-capacity batteries, reducing misdiagnosis

Vehicle Identification and Registration

• AutoVIN: Automatic vehicle identification for quick battery spec lookup
• ScanVIN / Plate Scan: Alternative vehicle ID methods
• Battery Registration: Supports 53 vehicle makes — registers new battery in vehicle ECU after replacement
• Electrical Reset: Included
• Battery location diagrams with illustration guides

Diagnostics

• All-system autoscan with code reading and erasing

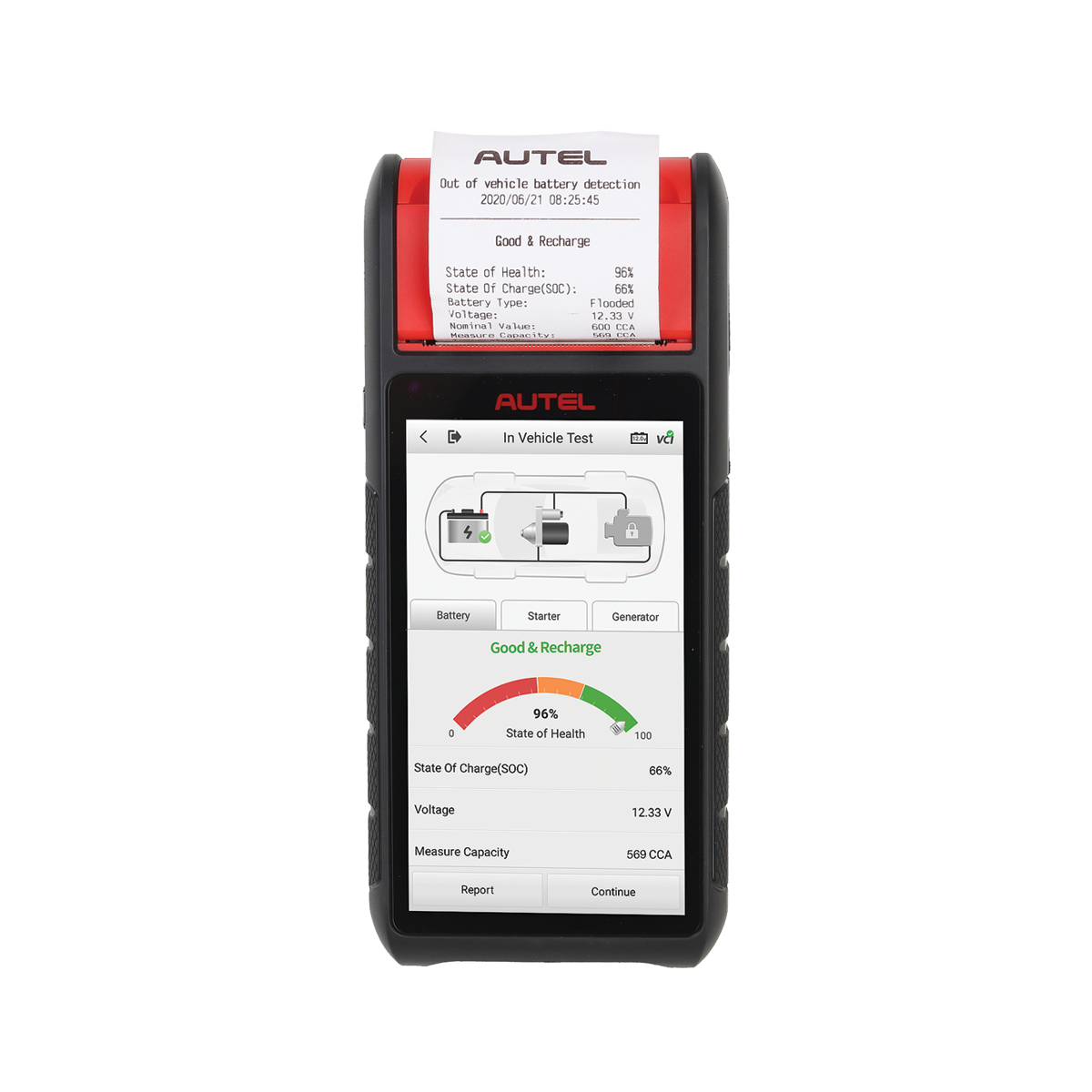

• Battery health reports (shareable via email)
• No annual update fee for diagnostic software

Hardware Specifications

• Screen: 5.5-inch LCD touchscreen, 720x1280 resolution
• Processor: 1.5 GHz Cortex-A35 Quad-Core
• Memory: 32GB SSD / 2GB RAM
• Camera: 8 megapixel
• Battery: 7.7V, 3000 mAh (approximately 6-hour life)
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0+EDR, USB 2.0 Type-C
• Operating System: Android 9.0
• CCA Range: 100–3000 A
• Voltage Range: 1.5–36V
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Dimensions: 204mm x 90mm x 32mm (8.03" x 3.54" x 1.25")
• Weight: 510g (1.12 lb.)

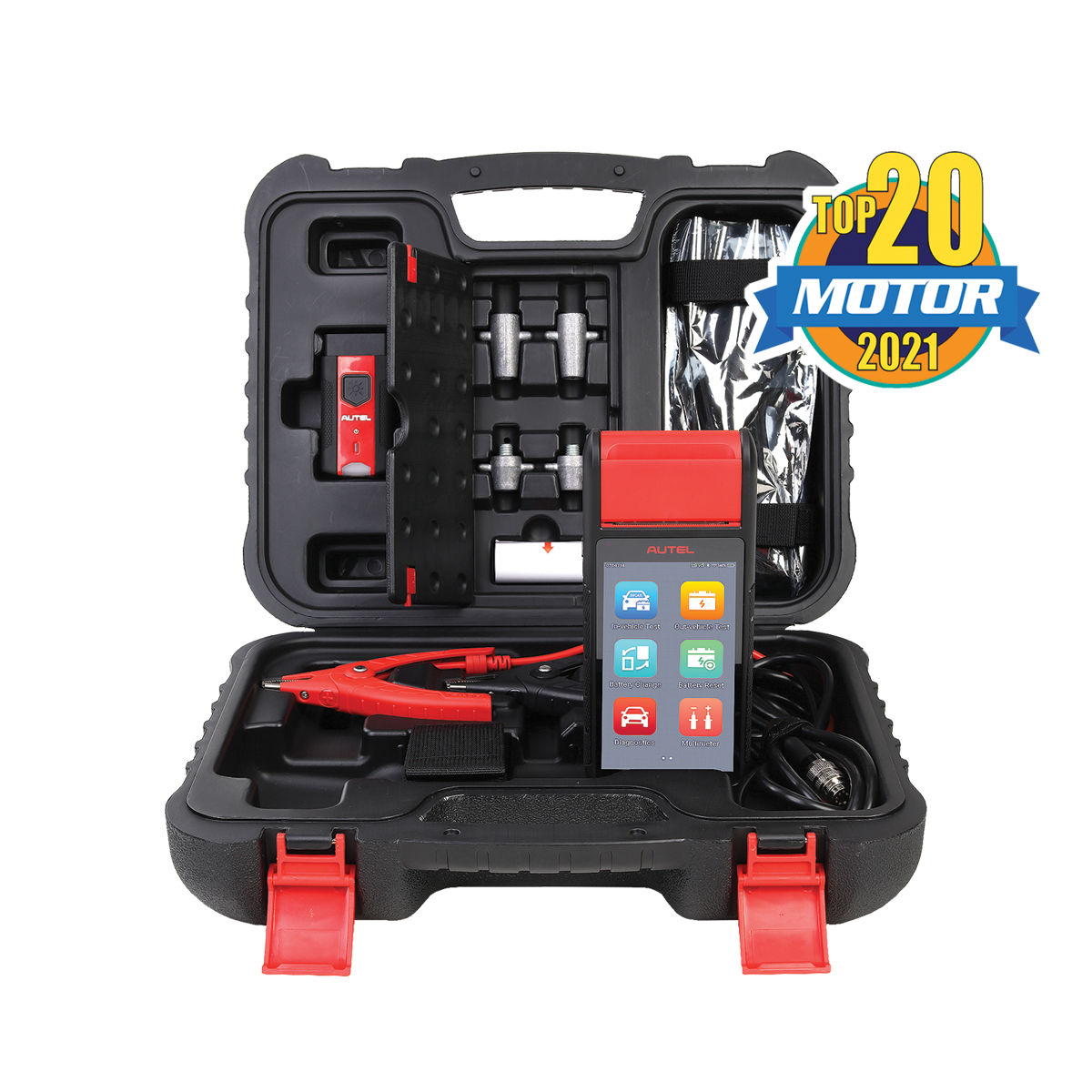

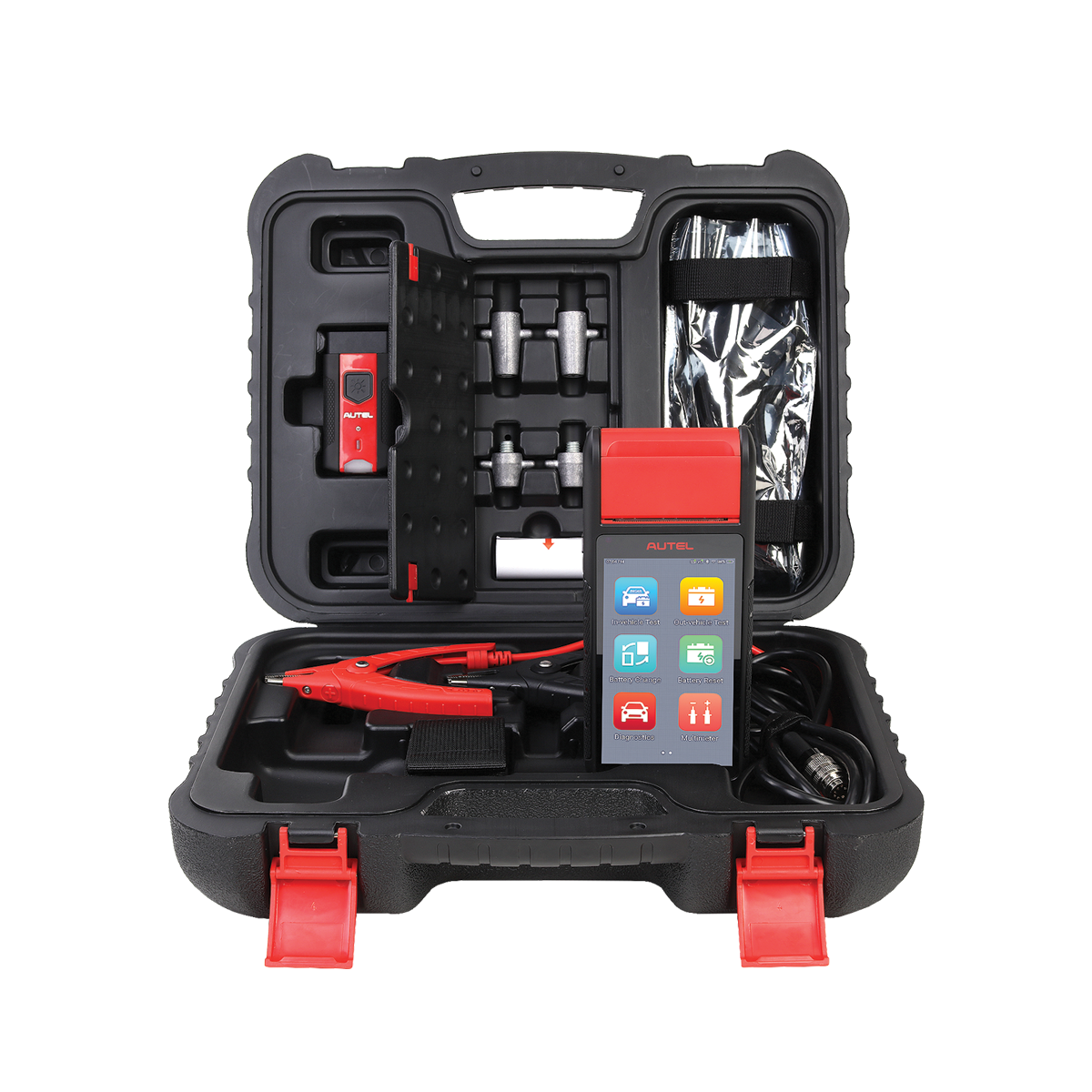

What Is Included

• BT608 Android tablet
• Bluetooth VCI
• Clamp cables
• Four battery side post terminals (Types S & T)
• Thermal paper roll

Optional Accessories

• Autel Battery Tester Accessory Kit (BTAK) — adds multimeter, current clamp, and test probes

BT608 vs. the MaxiBAS Lineup

• BT506 (~$195): App-dependent compact tester, 100–2000 CCA, no registration, no code reading
• BT508 (~$295): App-dependent, adds VCI and battery registration, code reading
• BT608 (~$595): This tool — standalone tablet, built-in printer, AutoVIN, all-system autoscan, no annual update fee
• BT609 (~$795): Larger 7-inch tablet, 64GB storage, adds full maintenance service functions

The BT608 is the right pick for shops doing consistent battery service volume who want a dedicated standalone device with a printer. The BT609 adds the larger screen, more storage, and maintenance service functions — worth the step up if you want to use the same device for broader service work beyond battery testing.
