Autel
Autel MA600 Mounting Plate
Couldn't load pickup availability

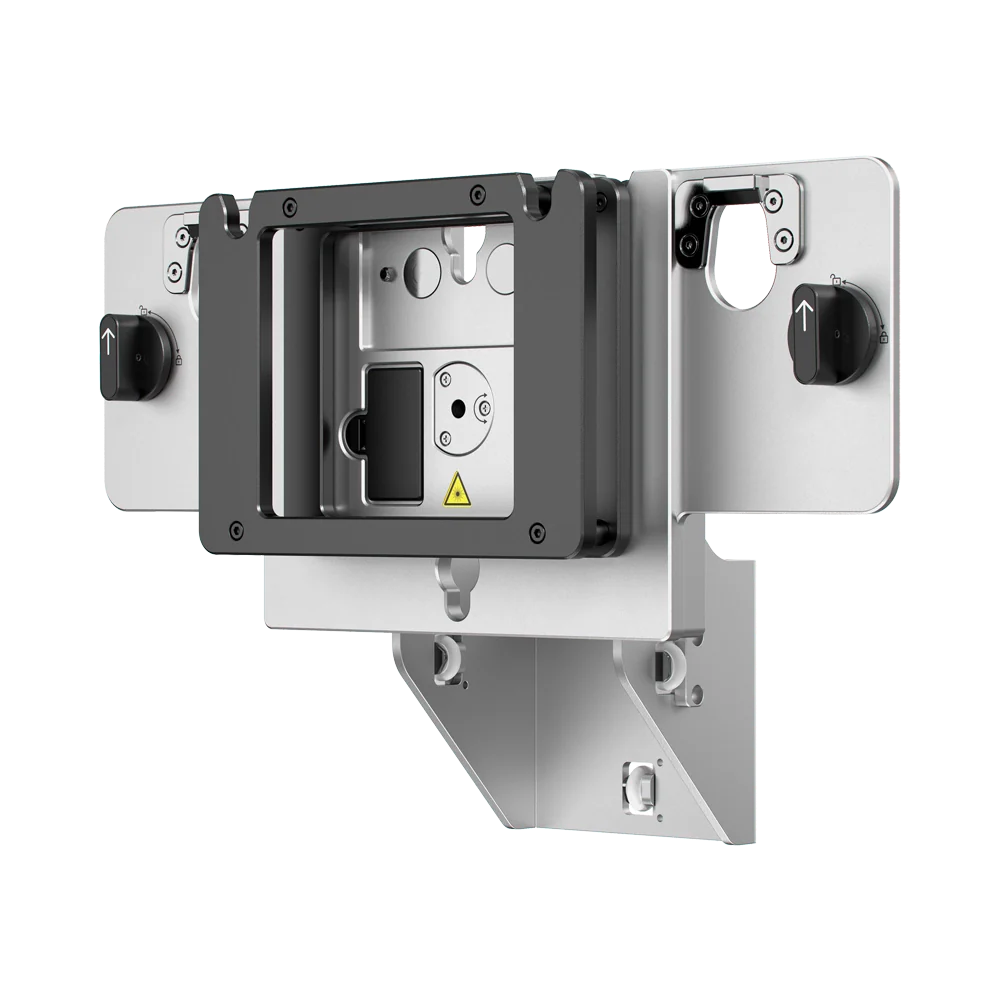

Autel MA600 Mounting Plate (MA600RAP) — Radar and ACC Reflector Mount for the MA600 ADAS Frame
The MA600RAP is the Mounting Plate for the Autel MaxiSYS MA600 portable ADAS calibration system, priced at $715. This plate is the hardware interface that allows radar calibration accessories — including ACC reflectors and radar calibration plates — to attach to the MA600 frame for Adaptive Cruise Control (ACC) and forward radar sensor calibration.
Without the mounting plate, the MA600 frame can only perform camera-based ADAS calibrations (LDW, AVM). Adding the MA600RAP opens up radar calibration work — the service that's required any time a front bumper, grille, or front radar sensor is disturbed during a repair.
What the Mounting Plate Enables
The Autel MA600 radar accessories that mount to the MA600RAP include:
- ACC Reflector: Calibrates front radar systems on VW, Porsche, BMW, Nissan, Infiniti, Hyundai, and KIA vehicles
- Continental Radar Calibration Plate: Calibrates Continental-supplied radar for Nissan and Infiniti vehicles
- VW Radar Calibration Plate: Calibrates radar for Volkswagen vehicles
These accessories are typically purchased as part of the MA600RAD1 Radar Calibration Expansion Package ($4,783). The MA600RAP mounting plate may be purchased separately if you already have the radar calibration accessories from a different configuration or need a replacement plate.
How It Fits Into the MA600 System

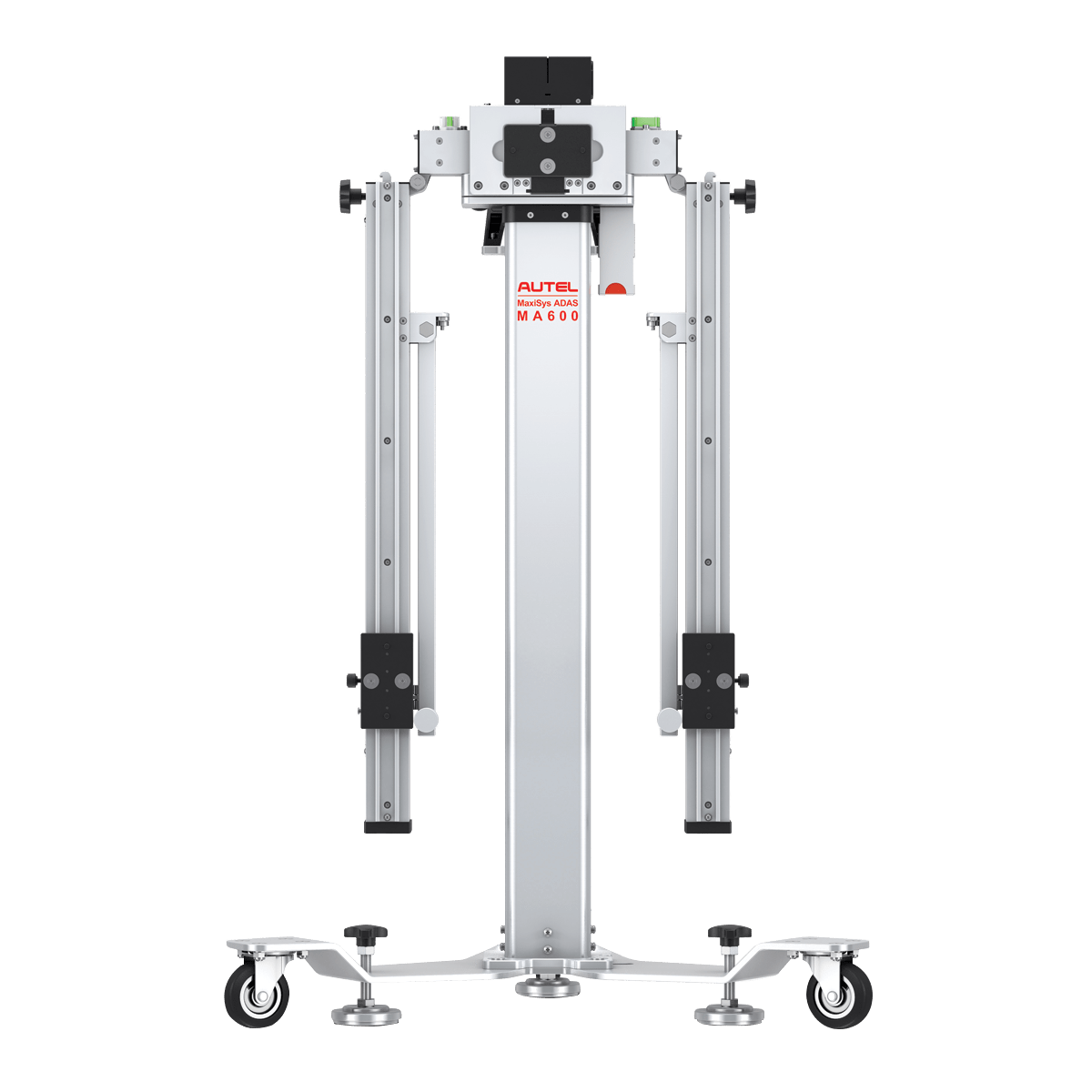

The MA600 frame's crossbar is designed to accept multiple types of calibration hardware. For camera calibrations, the pattern board hangs from the crossbar. For radar calibrations, reflectors and calibration plates need a rigid, precisely positioned mounting point — that's what the mounting plate provides. It attaches to the MA600 frame and creates a stable, repeatable mounting location for the radar calibration accessories.
Proper radar calibration requires the reflector to be positioned at a specific distance and angle from the radar sensor face. The mounting plate, combined with the MA600 frame's laser positioning system, gives you the reference geometry to achieve that positioning accurately and repeatably.
When You Need the MA600RAP
- You are adding the MA600RAD1 Radar Calibration package to an existing MA600 frame and the mounting plate is not included
- Your existing mounting plate is damaged and needs replacement
- You are building out radar calibration capability incrementally and need the plate before purchasing the radar accessories
Related MA600 Accessories
- MA600RAD1 — Radar Calibration Expansion Package ($4,783) — includes the reflectors and plates that attach to this mounting plate
- MA600CRANK — Replacement hand crank ($450)
- MA600CASE — Travel case ($475)

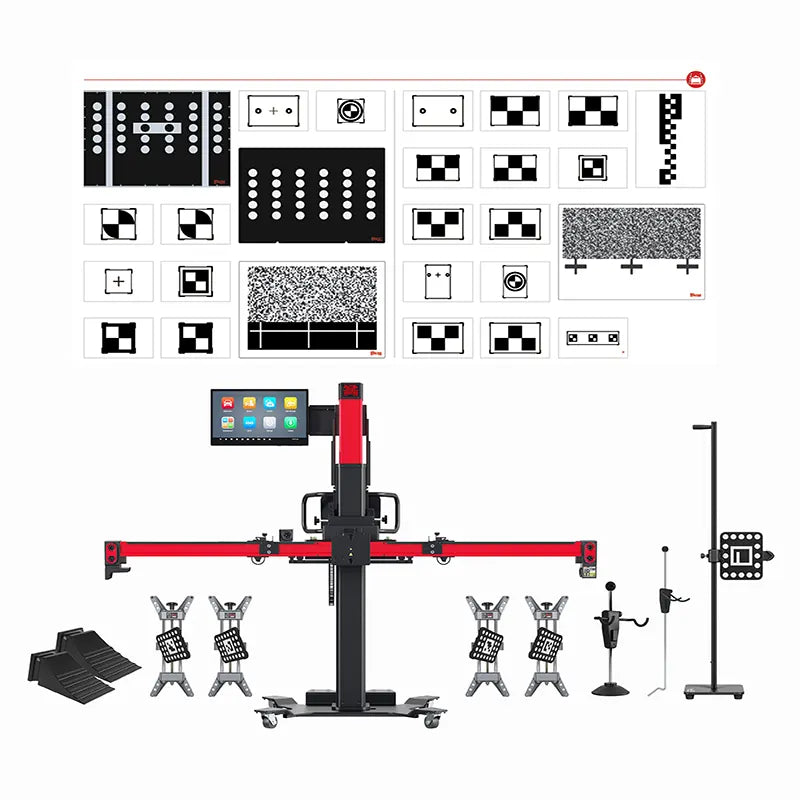

- MAS20 — All Systems 2.0 complete package ($23,485) — includes radar capability
Why Buy the Autel MA600 Mounting Plate From Autel Diagnostic Tools?
Autel Diagnostic Tools stocks the full MA600 parts and accessories lineup and can help you confirm whether the MA600RAP is needed for your specific radar calibration configuration. We've been an Autel ADAS specialist since 2016. Free shipping, full manufacturer warranty, free tech support at 866-217-0063. Call before ordering if you're not certain whether the mounting plate is already included in your radar package.
