Autel MA600 LDW 2.0

Autel MA600 LDW 2.0 — Expanded Lane Departure Warning Package (No Tablet)

The Autel MA600 LDW 2.0 (part number MA60020) is the expanded Lane Departure Warning ADAS calibration package built on the MA600 portable frame. This configuration delivers a broader manufacturer-specific LDW target set than the base MA600 kit, combined with the ADAS software upgrade — without including a tablet. If you already own a compatible MaxiSYS tablet, this is the configuration to add LDW calibration capability for the major import and domestic brands.

This is one of Autel's standard configuration part numbers sold through established resellers, including Autel Diagnostic Tools. The Autel website lists this under the MA600 frame family with part number MA60020.

Vehicle Coverage

This package includes LDW calibration targets and patterns for:

• Alfa Romeo
• Honda
• Volkswagen
• Mercedes-Benz
• Hyundai / Kia
• Nissan / Infiniti
• Mazda
• Mitsubishi
• Subaru
• Toyota / Lexus (includes Toyota LDA target)

What Is Included

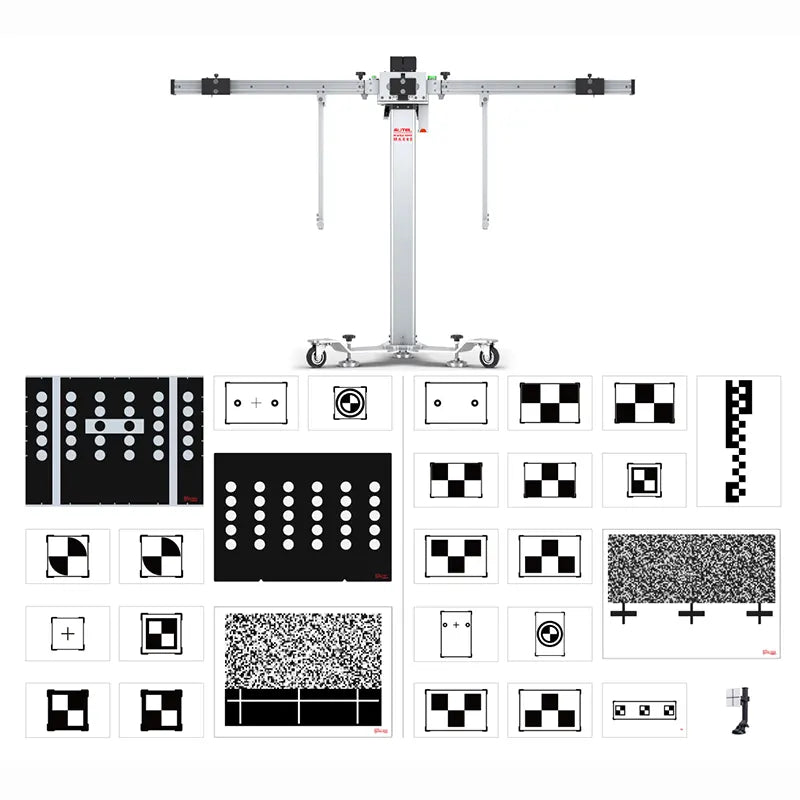

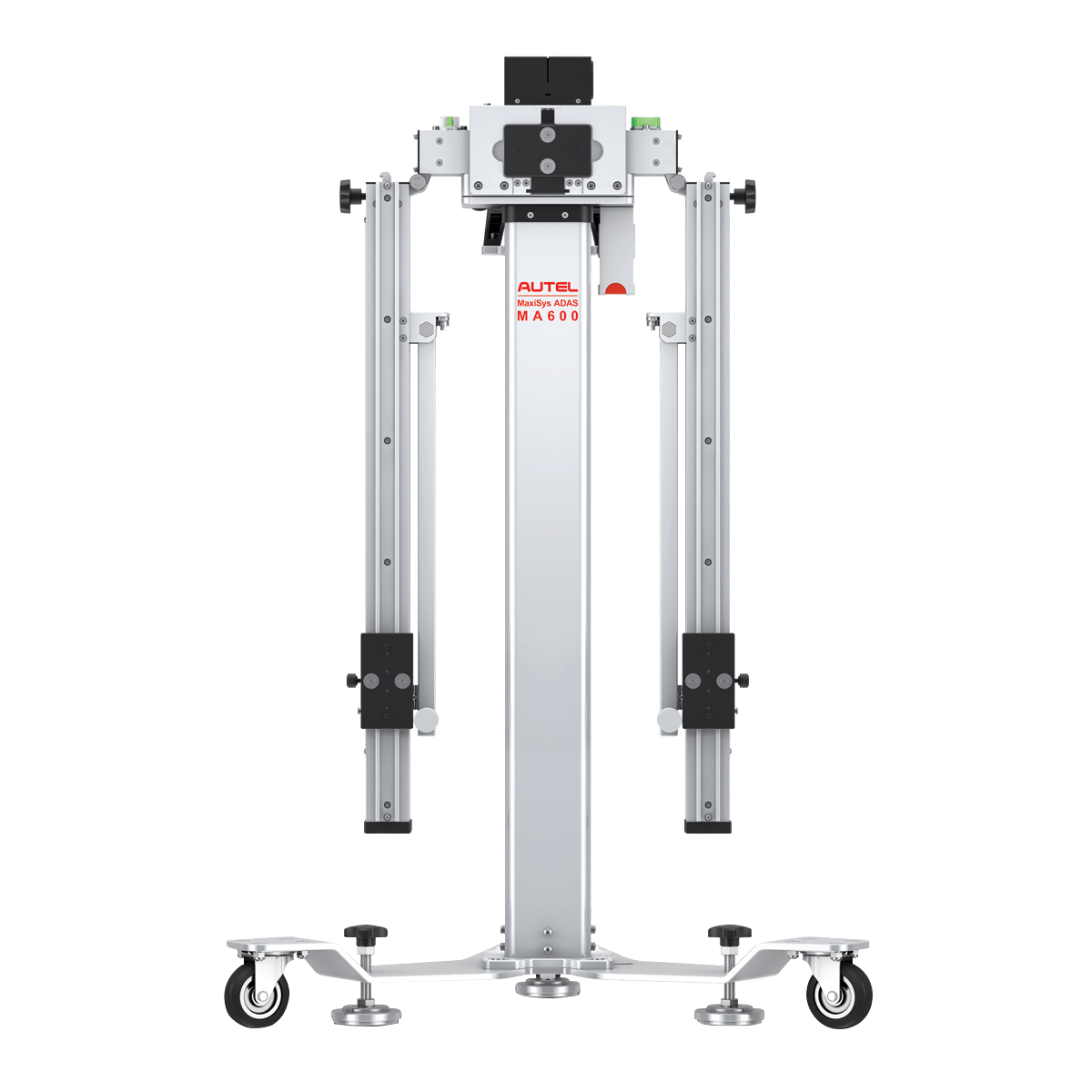

• Autel MA600 Mobile Calibration Frame (collapsible aluminum, with travel case)
• LDW calibration targets and patterns for all listed manufacturers
• Toyota LDA calibration target
• ADAS Software Upgrade license for compatible MaxiSYS tablet (tablet not included)
• 2-line centering laser and 5-line alignment laser
• Laser-assisted reflectors
• One-year limited warranty

Frame Specifications

• Assembled width: 2,510mm (98.82 in)
• Pattern board height range: 1,000-1,600mm
• Net weight: 100.8 lbs total (ships in two sections)
• Laser class: Class 2 | Certified CE, FCC, RoHS
• Minimum bay clearance: 10 feet in front of vehicle

Tablet Compatibility

The included ADAS software upgrade is compatible with: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, MSADAS, and MS909 series tablets. All non-MSADAS tablets require the one-time software upgrade included with this package. Tablets with an existing conflicting ADAS license are not compatible — verify before ordering.

MA60020 vs. MA60020T

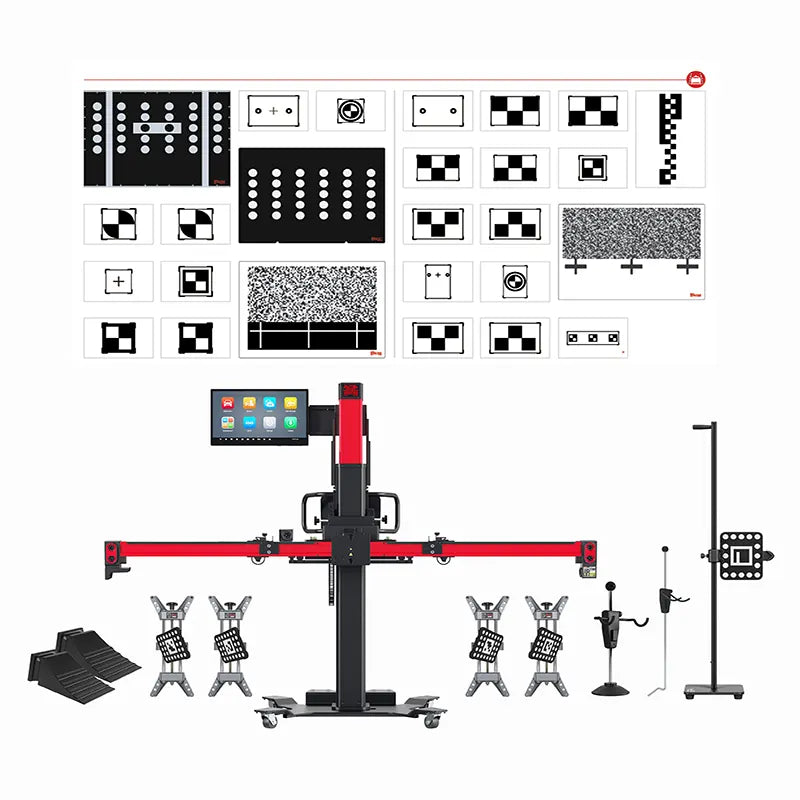

The MA60020T adds the MaxiSYS MS909 S2 tablet and VCI to this same package. If you need the tablet, the MA60020T is the simpler purchase. If you already own a compatible tablet, the MA60020 saves the tablet cost.

Expandability

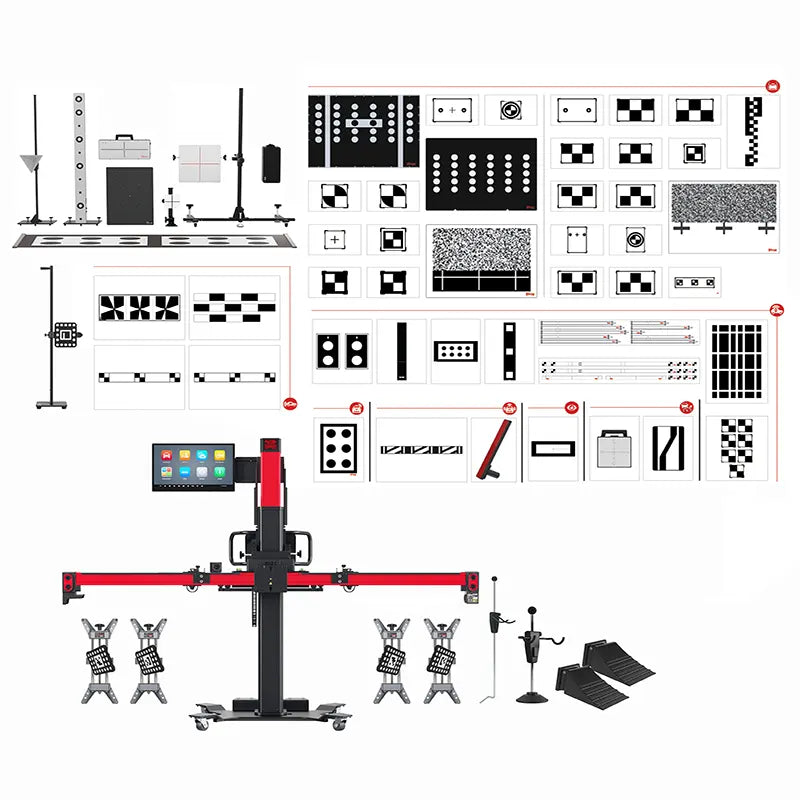

Optional expansion packs add BSM, ACC, AVM, and Night Vision coverage to the MA600 frame. Starting with LDW 2.0 and expanding as your customer base demands is a practical approach for shops new to ADAS calibration.

Why Buy the Autel MA600 LDW 2.0 From Autel Diagnostic Tools?

We have specialized in Autel ADAS equipment since 2016. Before ordering, confirm your tablet's compatibility status with us — the software license situation on the MA600 platform is specific, and we want to make sure your order is right the first time. Free shipping, free technical support at 866-217-0063, full manufacturer warranty.
