Autel MA600 Lane Departure Package 3 (MA600LDW3) — Expanded LDW Target Coverage for the MA600 Frame

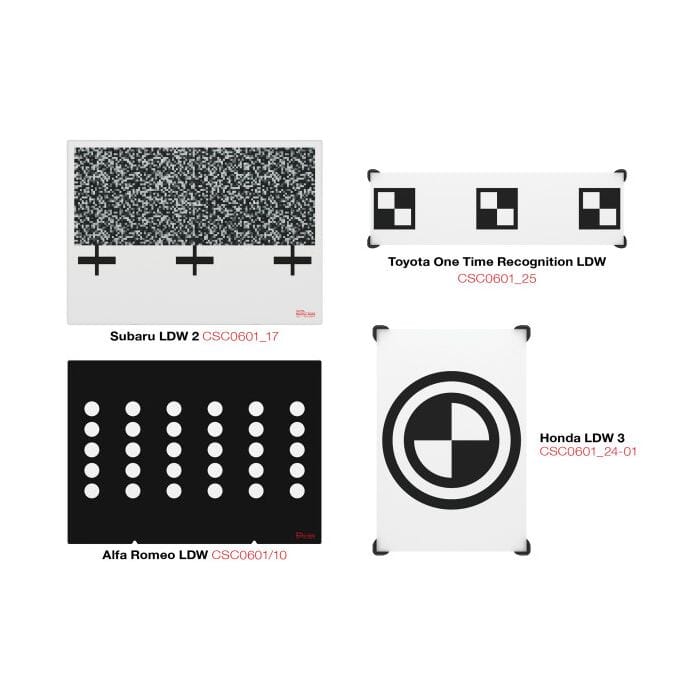

The MA600LDW3 is a Lane Departure Warning (LDW) expansion package for the Autel MaxiSYS MA600 portable ADAS calibration system, priced at $1,540. This package adds additional LDW calibration targets to shops that already have the MA600 frame, expanding the range of vehicle makes and models they can perform forward-facing camera calibrations on.

Lane Departure Warning calibration is one of the highest-volume ADAS services in most shops today. Nearly every vehicle produced since 2018 has some form of forward-facing camera that requires calibration after a windshield replacement, front-end collision repair, suspension alignment, or any procedure that changes ride height or camera mounting angle.

What LDW Calibration Involves

LDW systems use a camera mounted near the rearview mirror to monitor lane markings on the road. When the system detects unintended lane departure, it alerts the driver. The camera must be precisely calibrated to a known reference target so the software can accurately interpret what it sees. An incorrectly calibrated LDW camera can generate false warnings (annoying the driver) or fail to warn when it should (a safety issue).

The MA600 frame positions the LDW calibration target at the exact distance, height, and lateral position specified by each vehicle manufacturer. The laser centering system ensures the target is square to the vehicle's centerline — the most critical variable in camera calibration accuracy.

MA600 LDW Package Lineup — Where LDW3 Fits

Autel offers multiple LDW-focused packages for the MA600:

• MA600 base + LDW targets — Included in the MA60020 (LDW 2.0) complete package
• MA600LDW3 — Lane Departure expansion package 3 (this item, $1,540) — adds coverage beyond LDW 2.0
• MAS20 — All Systems 2.0: full LDW + AVM + BSD + ACC + NV coverage ($23,485)

The LDW3 package name indicates it is the third LDW expansion configuration in Autel's lineup. For the specific vehicle makes and target types included, download the MA600LDW3 Expansion Package PDF from Autel's documentation page. The research data confirms this is a documented Autel expansion package with its own product PDF.

MA600 Frame Specifications

• Crossbar Length: 2510mm (98.82 inches)
• Pattern Board Size: 1360mm x 960mm (53.54" x 37.80")
• Pattern Board Height Range: 1000mm–1600mm
• Laser System: 2-line centering + 5-line alignment, Class 2
• Operating Temperature: 0°C to 50°C
• Certifications: CE, FCC, RoHS

Compatible Tablets

Requires MA600 frame + MaxiSYS tablet with active ADAS software. Compatible tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, MSADAS.
