Autel MA600 Crossbar Extensions CSC1500-16

Autel MA600 Crossbar Extensions CSC1500-16 (MA600EXT) — Extend Your MA600 ADAS Frame Width

The MA600EXT (Autel part number CSC1500-16) is a set of crossbar extensions for the MaxiSYS MA600 portable ADAS calibration frame, priced at $230. These extensions allow you to increase the effective working width of the MA600 crossbar beyond the standard 2510mm (98.82 inch) span.

The standard MA600 crossbar handles the majority of passenger car ADAS calibrations. However, certain vehicles — particularly wider trucks, SUVs, and some Euro vehicles with wide camera placements — may require targets positioned further out from center than the standard crossbar allows. The CSC1500-16 extensions give you that additional reach without replacing the entire frame.

Why Frame Width Matters in ADAS Calibration

ADAS camera calibration procedures specify not only the height of the calibration target but also its lateral position relative to the vehicle centerline. For blind spot monitoring (BSD) and some wide-field lane departure warning systems, the targets need to be positioned well outside the vehicle's body width. The MA600's standard crossbar is sized for most applications, but the extensions cover the edge cases where you need more span.

For shops that regularly work on full-size trucks, large SUVs, or European vehicles with wide ADAS configurations, having the crossbar extensions on hand prevents having to reschedule calibrations when a vehicle's spec exceeds the base frame capability.

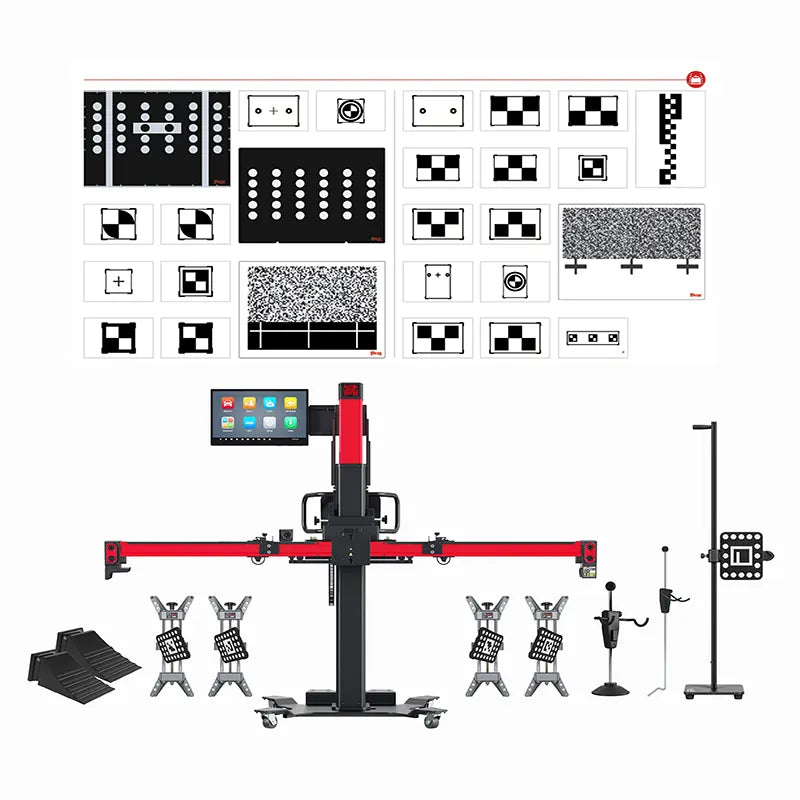

MA600 Frame Base Specifications

• Standard Crossbar Length: 2510mm (98.82 inches)
• Crossbar Height Range: 350mm–950mm (13.78"–37.40")
• Pattern Board Size: 1360mm x 960mm
• Pattern Board Height Range: 1000mm–1600mm
• Frame Operating Temperature: 0°C to 50°C

Compatibility

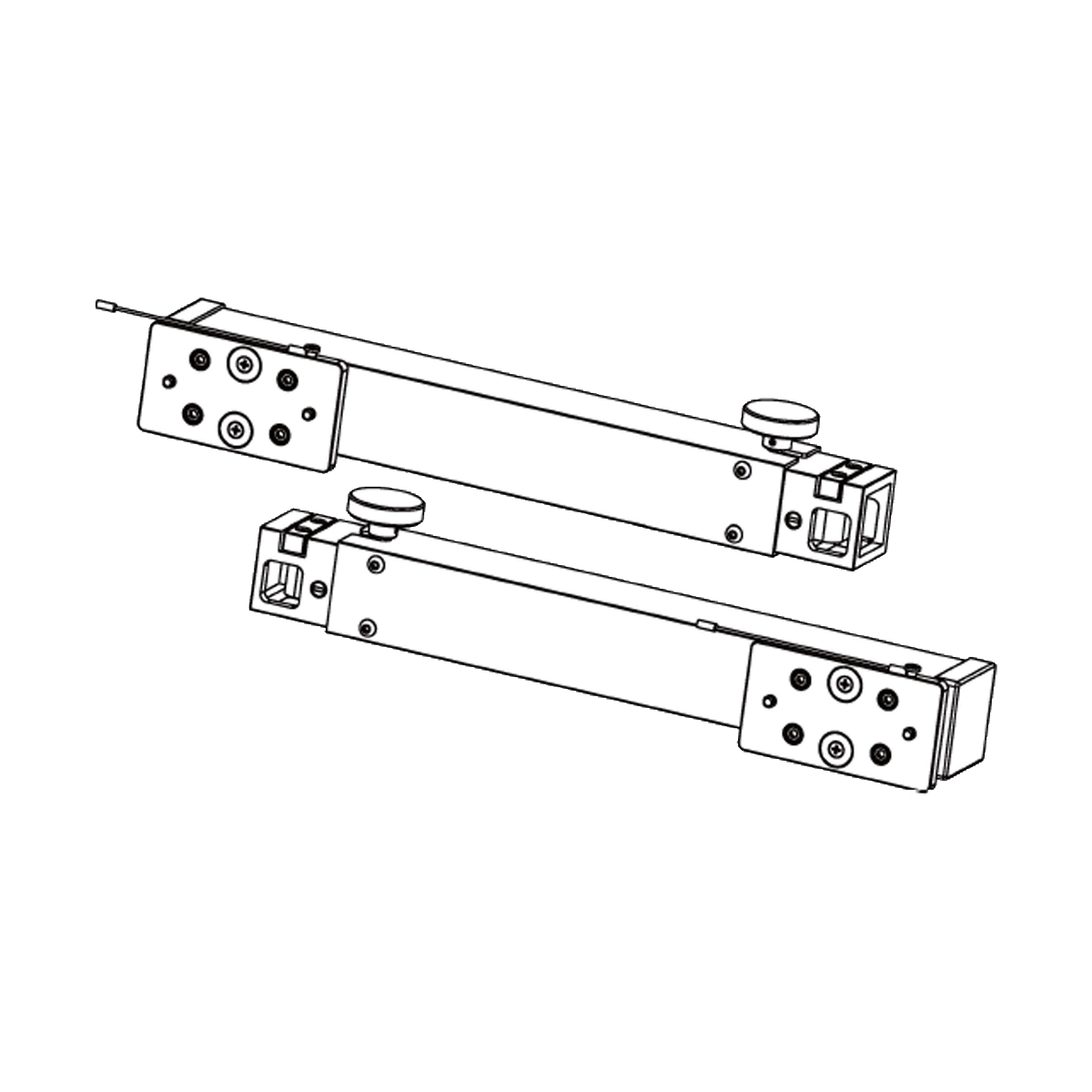

The CSC1500-16 crossbar extensions are designed specifically for the Autel MaxiSYS MA600 portable ADAS calibration frame. They attach to the ends of the standard MA600 crossbar. Not compatible with the stationary ADAS Standard Frame or IA900WA systems.

Note on Research Data

The MA600EXT product was researched against the MA600 main product page, which does not list crossbar extension specifications in detail. The part number CSC1500-16 is the Autel component designation for these extensions. For detailed installation instructions and compatibility confirmation, reference the MA600 Calibration Toolset User Manual available from Autel's product page.

Why Buy the Autel MA600 Crossbar Extensions CSC1500-16 From Autel Diagnostic Tools?

Autel Diagnostic Tools specializes in Autel ADAS equipment and stocks the full MA600 accessories lineup. If you need to confirm whether these extensions will work for a specific vehicle calibration procedure you're trying to complete, call us before ordering. Free shipping, full warranty, free tech support at 866-217-0063. We've been doing this since 2016 and know the MA600 system well.
