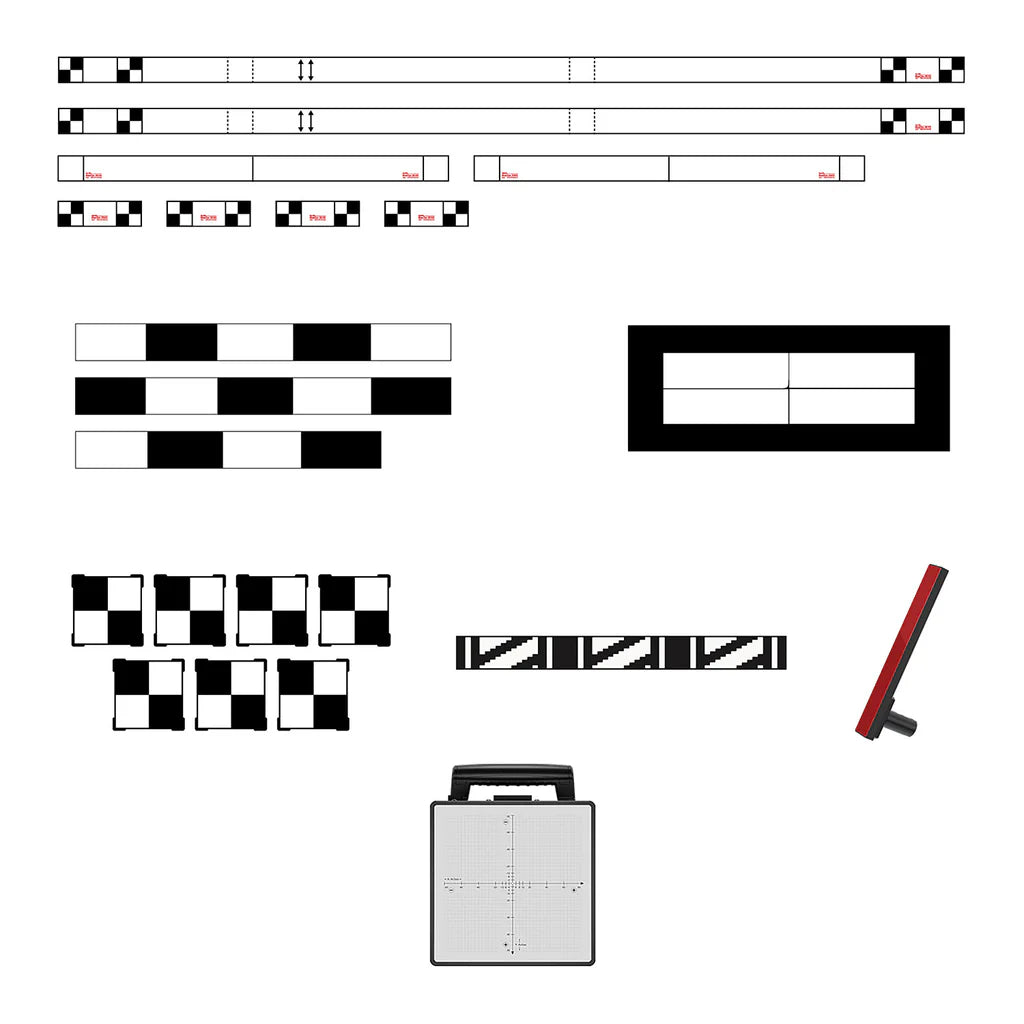

Autel MA600 Calibration Package 4 (MA600CAL4) — Additional ADAS Target Coverage for the MA600 Frame

The MA600CAL4 is an expansion calibration package for shops that already own the Autel MaxiSYS MA600 Portable ADAS Calibration System. At $3,610, it is one of the lower-cost expansion packages in the MA600 lineup, positioned to add specific calibration target coverage beyond your initial MA600 purchase.

This is not a standalone system. It requires an existing MA600 frame and a compatible MaxiSYS tablet with active ADAS software. If you are starting fresh, consider the MA60020 (LDW 2.0 complete package) or MAS20 (All Systems 2.0).

The MA600 Platform

Autel's MA600 is a portable, collapsible aluminum ADAS calibration frame designed for shops that need flexibility — roll it between bays, load it in a van for mobile work, or park it permanently in a dedicated ADAS calibration area. The frame weighs 100.8 lbs net (shipping weight 190.2 lbs in two cases) and sets up with a 2-line centering laser and 5-line alignment laser for accurate vehicle positioning.

Compatible MaxiSYS tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, MSADAS. Non-MSADAS tablets require a one-time ADAS software upgrade. Tablets with previously expired ADAS activations are not compatible and require a new software upgrade purchase.

Frame Specifications

• Frame Dimensions (WxDxH): 2510mm x 714mm x 1480–2105mm
• Pattern Board: 1360mm x 960mm
• Crossbar Length: 2510mm (98.82 inches)
• Crossbar Height Range: 350mm–950mm (13.78–37.40 inches)
• Pattern Board Height Range: 1000mm–1600mm (39.37–62.99 inches)
• Total Net Weight: 100.8 lbs
• Laser Class: Class 2
• Operating Temperature: 0°C to 50°C
• Certifications: CE, FCC, RoHS

MA600 Package Hierarchy — Where CAL4 Fits

Autel designed the MA600 ecosystem to be modular. Start with what your shop needs today and expand as your customer base grows:

• MA600 — Frame hardware only
• MA60020 — Frame + LDW targets for major makes + software (entry-level complete package)
• MA600CAL3 — Calibration expansion ($4,940)
• MA600CAL4 — Calibration expansion, this package ($3,610)
• MA600LDW3 — LDW expansion package 3 ($1,540)
• MAS20 — All Systems 2.0: comprehensive coverage, no tablet ($23,485)
• MAS20T — All Systems 2.0 with MS909 tablet ($26,985)

For the specific calibration targets and vehicle makes included in MA600CAL4, download the MA600CAL4 Expansion Package PDF from Autel's product page for the complete target list.
