Autel MA600 All Systems 2.0 T

Autel MA600 All Systems 2.0 T (MAS20T) — Complete Portable ADAS System With MS909 Tablet

The MAS20T (MA600 All Systems 2.0 T) is the complete MA600 portable ADAS calibration system bundled with the Autel MS909 tablet, priced at $26,985. It is the same full-coverage ADAS package as the MAS20 ($23,485), but with the MS909 diagnostic tablet included — making it the all-in-one purchase for a shop that doesn't already have a compatible MaxiSYS tablet.

The $3,500 price delta between MAS20T and MAS20 reflects the MS909 tablet. If you already own a compatible MaxiSYS tablet (MS906BT, MS906TS, MS908, or similar), the MAS20 without the tablet is the better value. If you're starting fresh, the MAS20T saves you from sourcing the tablet separately and guarantees you have the right hardware from day one.

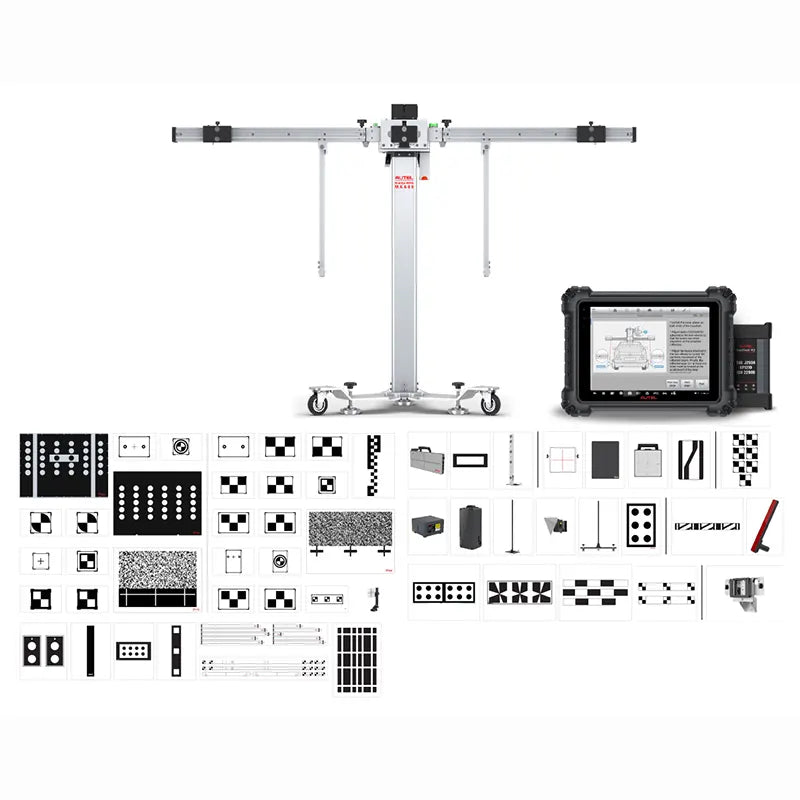

What's Included in the MAS20T

• MA600 Portable Calibration Frame — collapsible aluminum construction with travel case

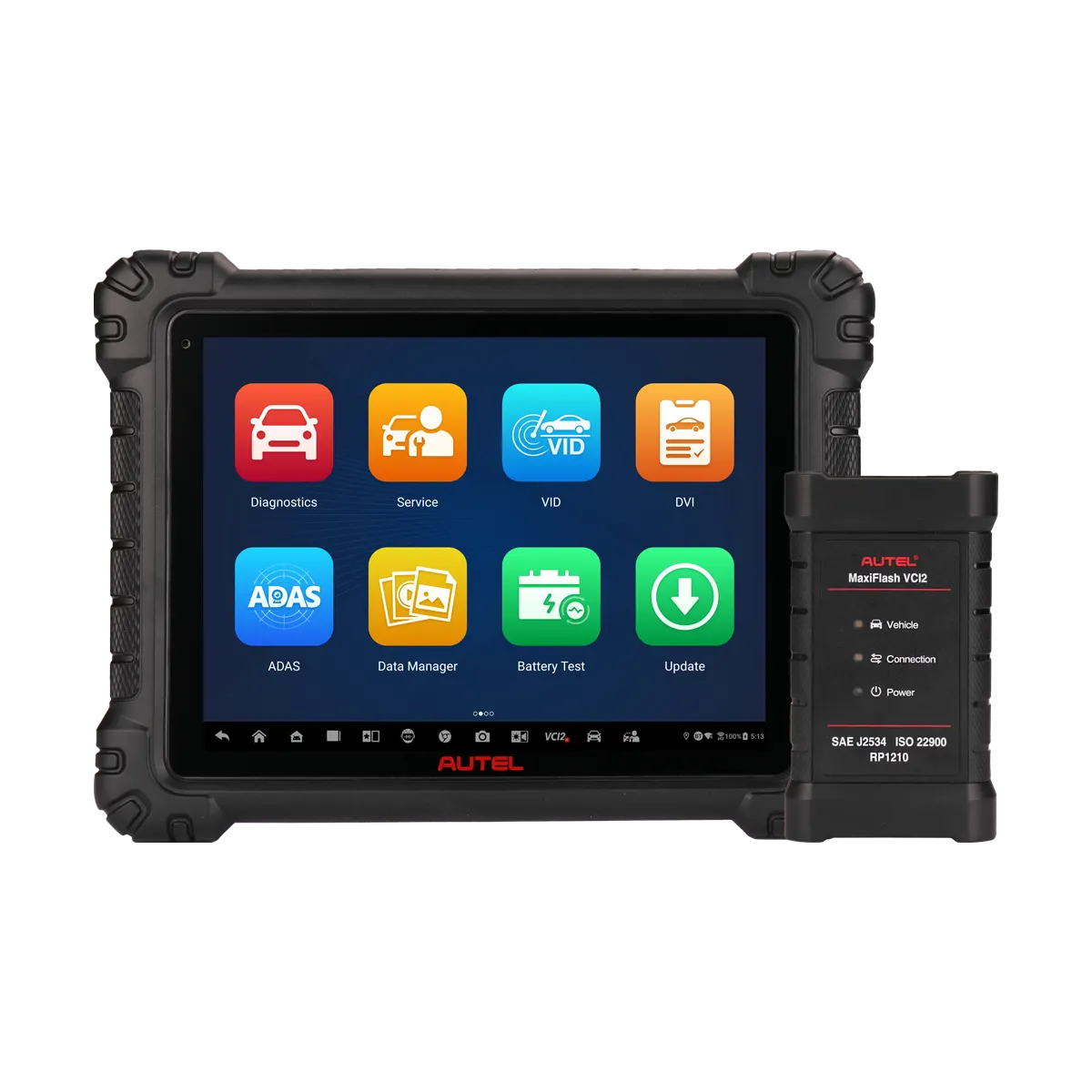

• Autel MS909 MaxiSYS Tablet — with ADAS software pre-configured
• MaxiFLASH VCI — vehicle communication interface for the MS909 tablet
• ADAS Software — full ADAS calibration application
• LDW Targets and Patterns — for Alfa Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus. Includes Toyota LDA target.
• Full ADAS Coverage: LDW, AVM, BSD, ACC, LIDAR, NVS, RCW
• One-Year Limited Warranty

The MA600 Frame

The MA600 is Autel's portable ADAS calibration frame — designed for shops that need to calibrate in multiple bays or take the system to customer locations. The frame uses a precision 2-line centering laser and 5-line alignment laser to achieve millimeter-level positioning accuracy when centering the vehicle to the calibration target.

Frame Specifications

• Frame Dimensions (WxDxH): 2510mm x 714mm x 1480–2105mm
• Pattern Board: 1360mm x 960mm
• Crossbar Length: 2510mm (98.82")
• Crossbar Height Range: 350–950mm
• Pattern Board Height Range: 1000–1600mm
• Net Weight: 100.8 lbs
• Laser Class: Class 2
• Rated Power: 24V, 3A
• Operating Temperature: 0°C to 50°C
• Certifications: CE, FCC, RoHS
• Minimum Bay Size: 24ft x 34ft (per Autel)

LDW Vehicle Coverage

LDW calibration is covered for: Alfa Romeo, Honda, Volkswagen, Mercedes-Benz, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota, and Lexus. The Toyota LDA target is included. Expandable with additional packages for broader coverage.

Complete ADAS System Capabilities

• LDW (Lane Departure Warning) — forward-facing camera calibration for lane-keeping systems
• AVM (Around View Monitor) — 360-degree camera system calibration
• BSD (Blind Spot Detection) — rear/corner sensor calibration
• ACC (Adaptive Cruise Control) — forward radar sensor calibration
• LIDAR — lidar sensor calibration
• NVS (Night Vision System) — infrared camera calibration
• RCW (Rear Collision Warning) — rear radar/sensor calibration

MAS20T vs. MAS20 vs. IA900 Systems — Choosing the Right Configuration

The MA600 portable vs. IA900 stationary decision comes down to your shop's physical setup:

• MAS20T ($26,985) — Portable frame + MS909 tablet. Best for shops without a dedicated ADAS bay, mobile operations, or those who are just getting into ADAS calibration.
• MAS20 ($23,485) — Same portable frame, no tablet. Best when you already have a compatible MaxiSYS tablet.
• IA900LDW ($25,515) — Stationary frame, LDW only. For dedicated bays needing LDW volume.
• IA900AS ($39,334) — Stationary frame, all systems. High-volume dedicated ADAS shops.

Why Buy the Autel MA600 All Systems 2.0 T From Autel Diagnostic Tools?

The MAS20T is one of the larger tool investments a shop makes. Autel Diagnostic Tools has been an Autel ADAS specialist since 2016, and we understand how these systems fit into different shop workflows. We'll walk you through tablet compatibility, space requirements, and which configuration makes sense for your vehicle mix before you commit. Free shipping, full manufacturer warranty, and free tech support at 866-217-0063.
