Autel IA900WA Wheel Alignment and All Systems ADAS Calibration with MSULTRAADAS Tablet Package

Autel MaxiSYS IA900AST — IA900WA Frame with All Systems ADAS Targets and MSULTRAADAS Tablet

The IA900AST is Autel's most complete IA900 package: the IA900WA 3-in-1 calibration frame, the full All Systems ADAS target set covering cameras, radar, LiDAR, and Night Vision, and the 12.7-inch MSULTRAADAS wireless tablet with preloaded alignment and ADAS software — all in one purchase. This is the configuration collision centers and dealerships order when they want a turnkey solution with no additional items to source.

What Is Included vs. Other Packages

All Systems ADAS Target Coverage

• LDW (Lane Departure Warning) — Forward camera calibration: Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, Alfa Romeo
• AVM (Around View Monitoring) — 360° surround cameras: Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, Mitsubishi
• BSD (Blind Spot Detection) — Side and rear radar/camera calibration
• ACC (Adaptive Cruise Control) — Front radar calibration
• LIDAR — LiDAR sensor calibration
• NVS (Night Vision) — Night vision camera calibration
• RCW (Rear Collision Warning) — Rear-facing calibration: Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, Mitsubishi

MSULTRAADAS Tablet

• 12.7-inch wireless touchscreen tablet (12.7" MaxiSYS MSUltra ADAS)
• Preloaded with Alignment and ADAS Calibration software
• Dual-screen operation — casts to and from the 24-inch frame display
• Controls crossbar pitch, roll, yaw, and center adjustment
• Illustrated alignment instructions, live readings, required tools, and adjustment locations displayed on a single screen

Frame Capabilities

• Four-wheel alignment and comprehensive ADAS calibration — one frame
• Six high-resolution cameras for wheel target positioning and tracking on lift
• Alignment reading accuracy: 0.02 degrees
• Robotic crossbar movement — frame positioning in under a minute
• Automatic crossbar height: 6-inch minimum to 7-foot maximum
• Self-calibrating cameras — no manual recalibration
• Unlevel floor compensation — works on any surface condition
• Fully optical target placement — 6X faster than mechanical methods
• Alignment coverage: U.S., Asian, and European vehicles, 1996 and newer

Alignment Capabilities

• Camber, caster, toe, thrust angle, SAI, toe-out on turns
• Frame alignment and engine cradle alignment diagnosis
• Bent and loose parts identification
• Tire diameter, tread depth, and pressure
• Wheel-off and raised vehicle adjustment
• Bump steer diagnosis, steering angle relearn
• Vehicle inspection with photos and service recommendations

Documentation and Reporting

Pre-scan identifies all existing faults and active safety systems. Post-scan generates a detailed insurer-ready report confirming all OE-required calibrations were performed to OE specifications. Essential for collision repair billing and insurance company documentation.

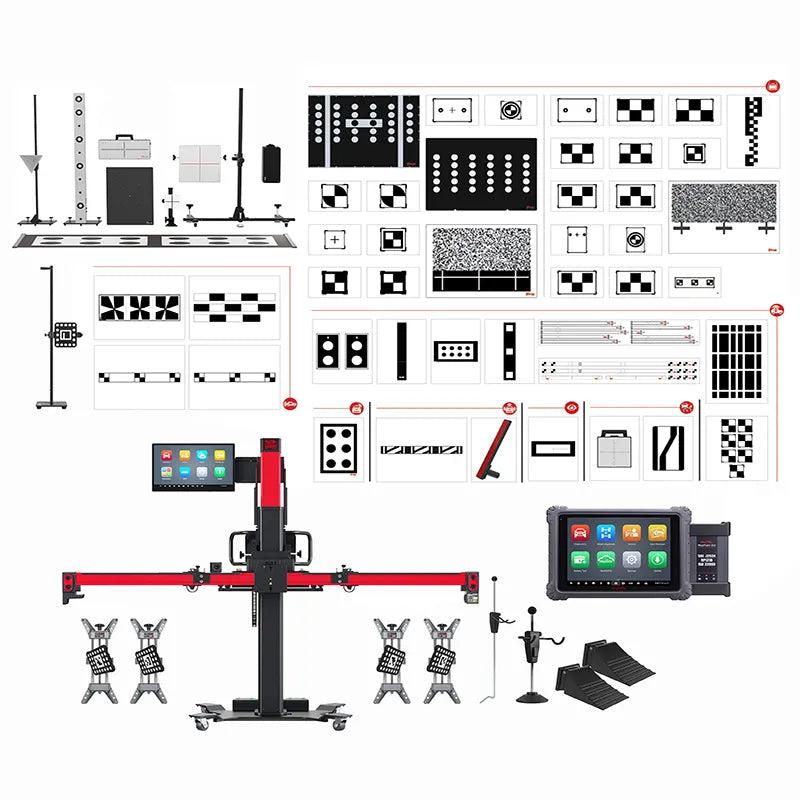

What Is Included

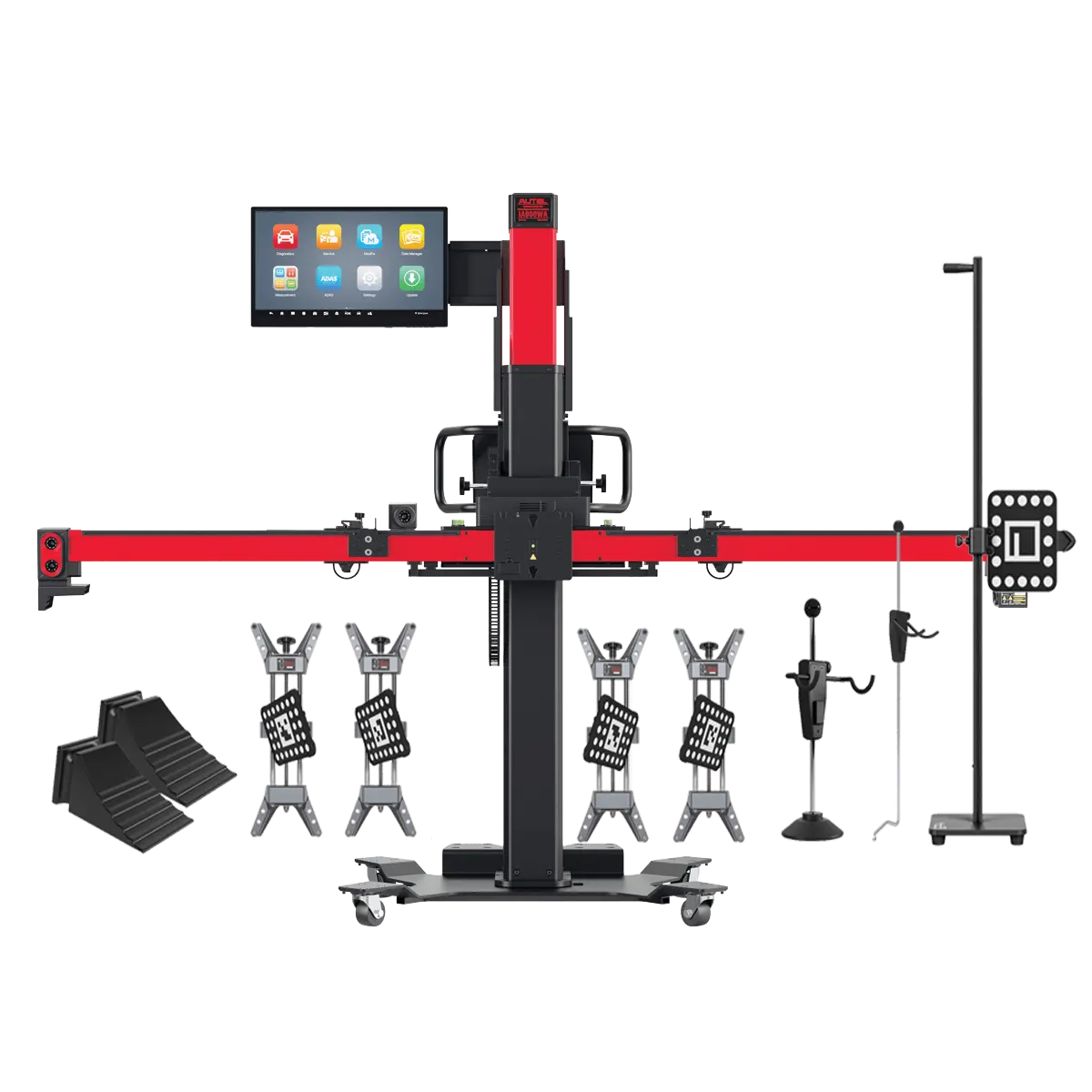

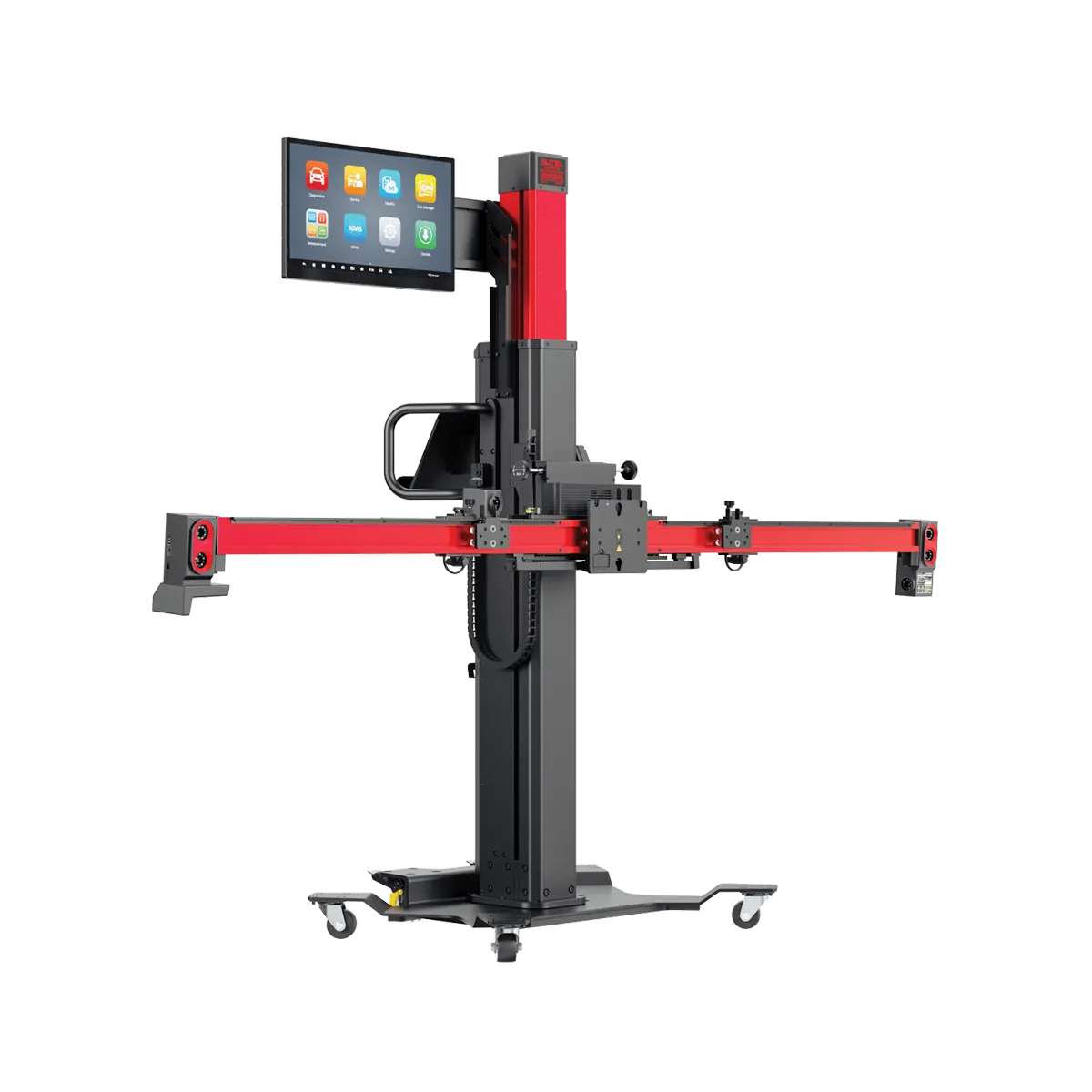

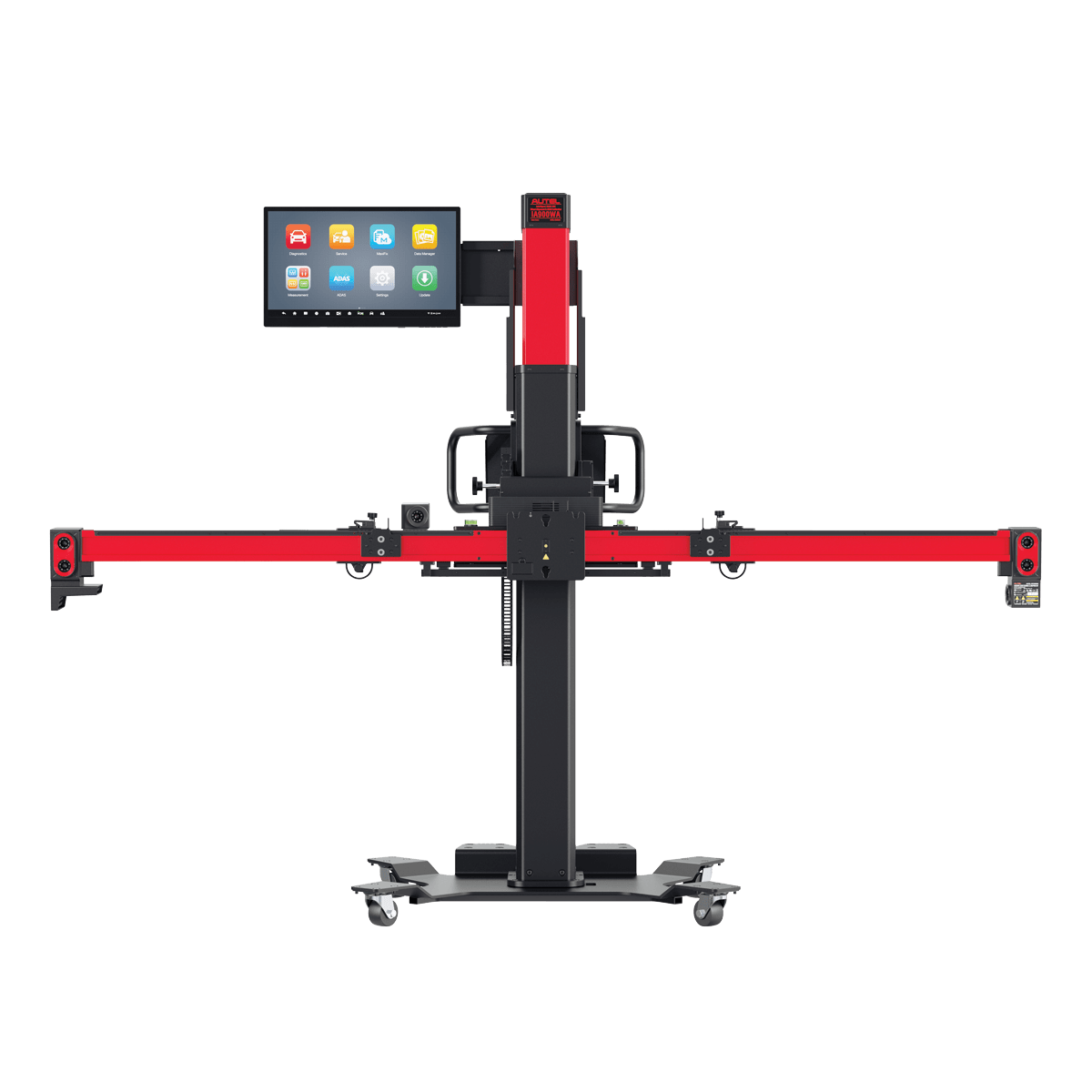

• IA900WA calibration frame with 24-inch touchscreen display
• 12.7-inch MaxiSYS MSULTRAADAS wireless tablet with preloaded software
• All Systems calibration components: LDW, AVM, BSD, ACC, LIDAR, NVS, RCW targets and patterns
• Wheel Clamps (4x)
• Wheel Targets (4x)
• Distance Target (1x)
• Steering Wheel Lock (1x)
• Wheel Chocks (2x)
• Brake Lock (1x)
• One-year limited warranty

Who Buys the IA900AST

The IA900AST is the right choice for:

• Collision repair centers — need radar, LiDAR, and multi-system ADAS calibration on post-repair vehicles
• Automotive dealerships — handling the full range of ADAS systems across their own brand and off-brand vehicles
• Dedicated ADAS calibration shops — want one system that handles every calibration job without missing targets
• High-volume general repair — shops doing enough ADAS work to justify the All Systems investment
