Autel IA700 ADAS LDW System with MS909 Tablet

Autel MaxiSYS IA700LDWT — Alignment Pre-Check + LDW ADAS with MS909 Tablet

The IA700LDWT includes the IA700 frame, MaxiSYS 909 S2 tablet, ADAS calibration software upgrade card, and LDW (Lane Departure Warning) targets. This is a complete, ready-to-calibrate LDW package — no additional equipment required. It is the right configuration for shops entering ADAS calibration that need a full setup for LDW camera work without the cost of the all-systems target set.

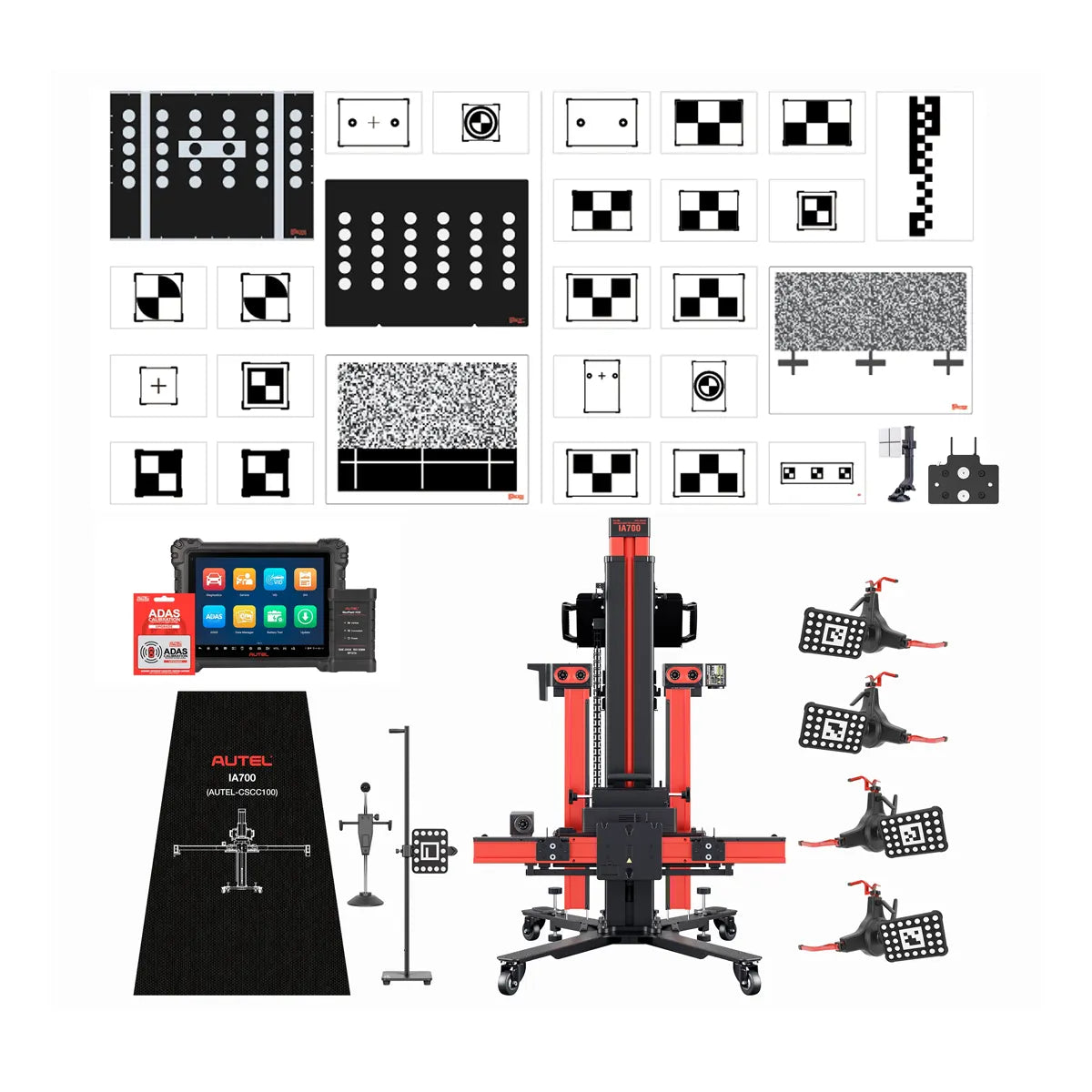

What's Included

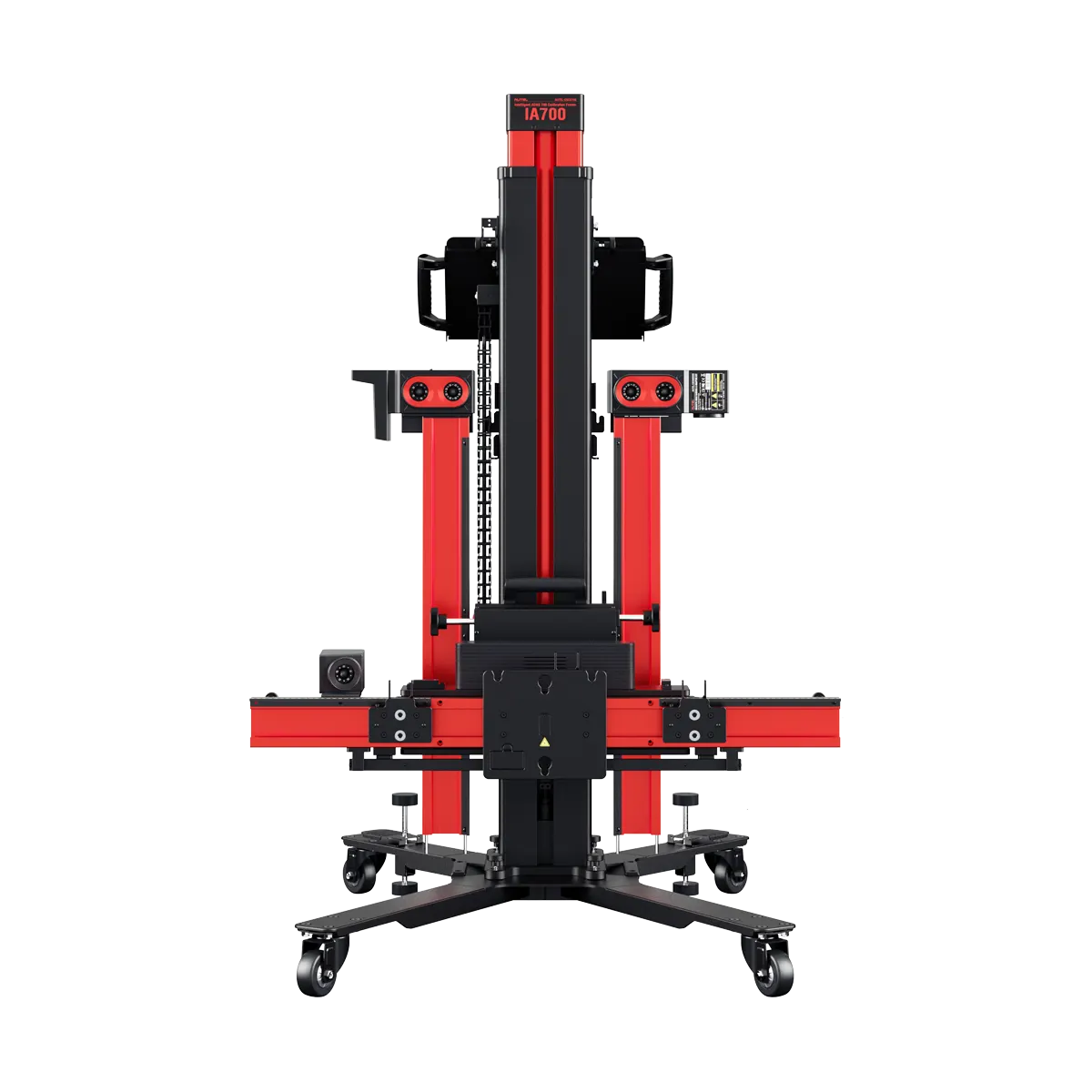

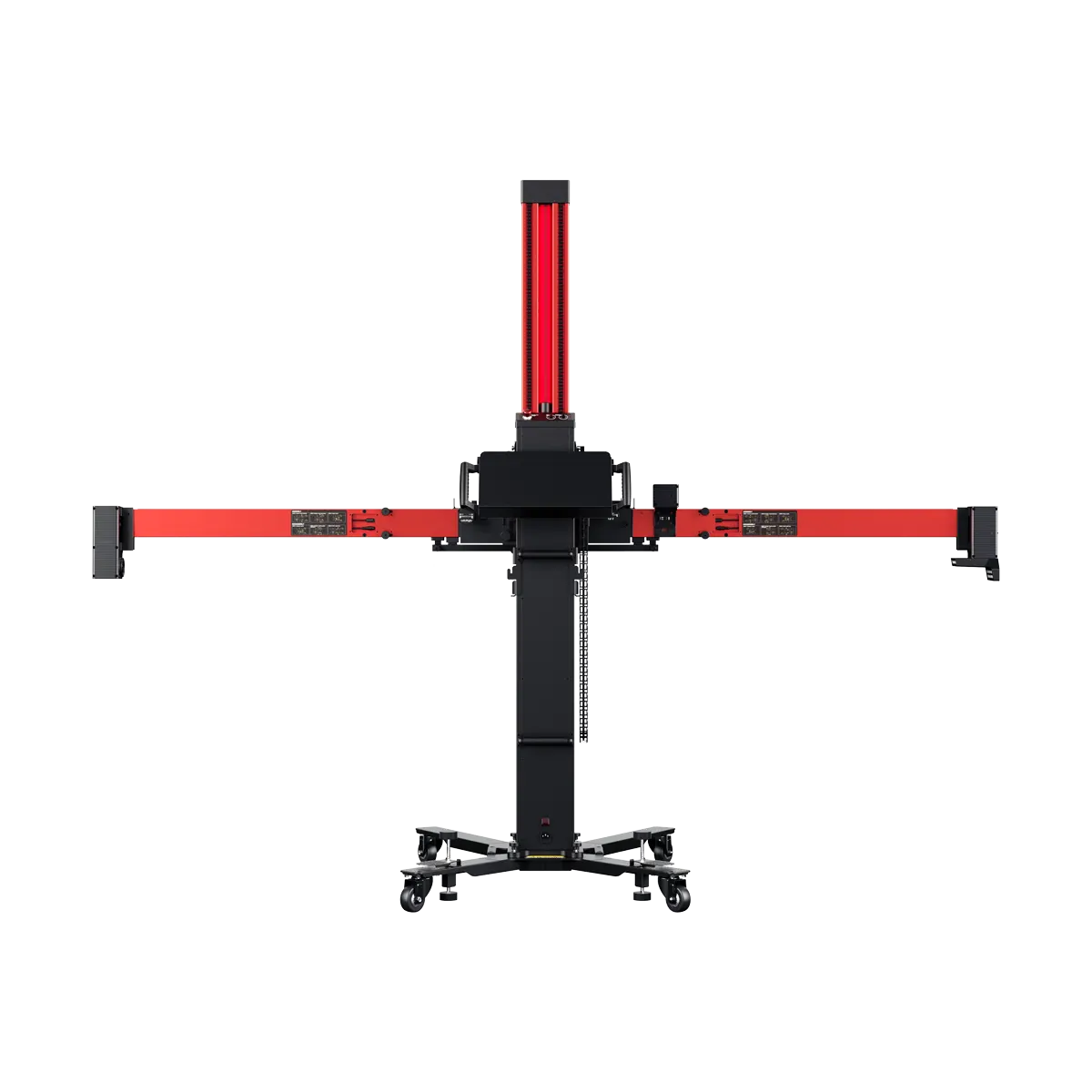

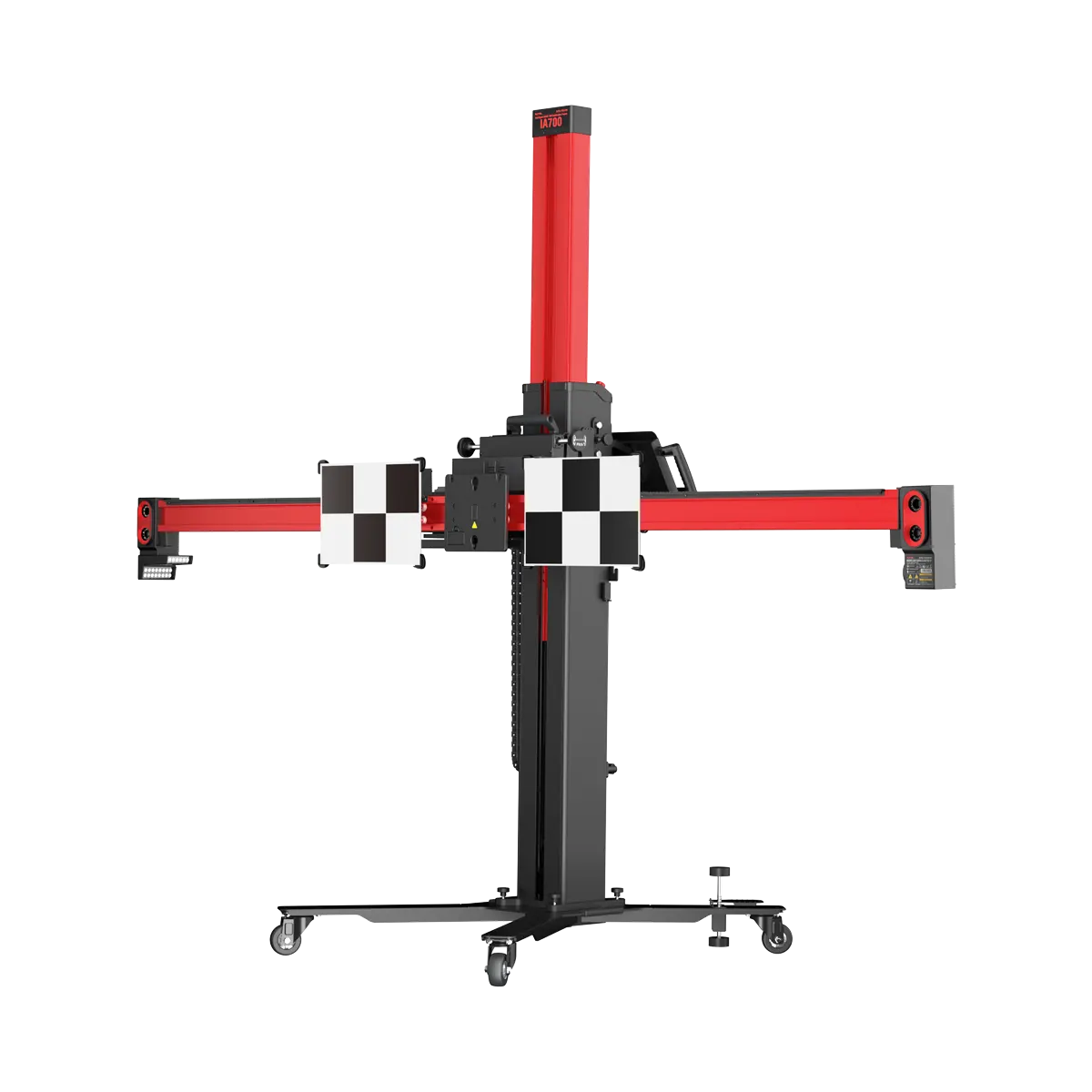

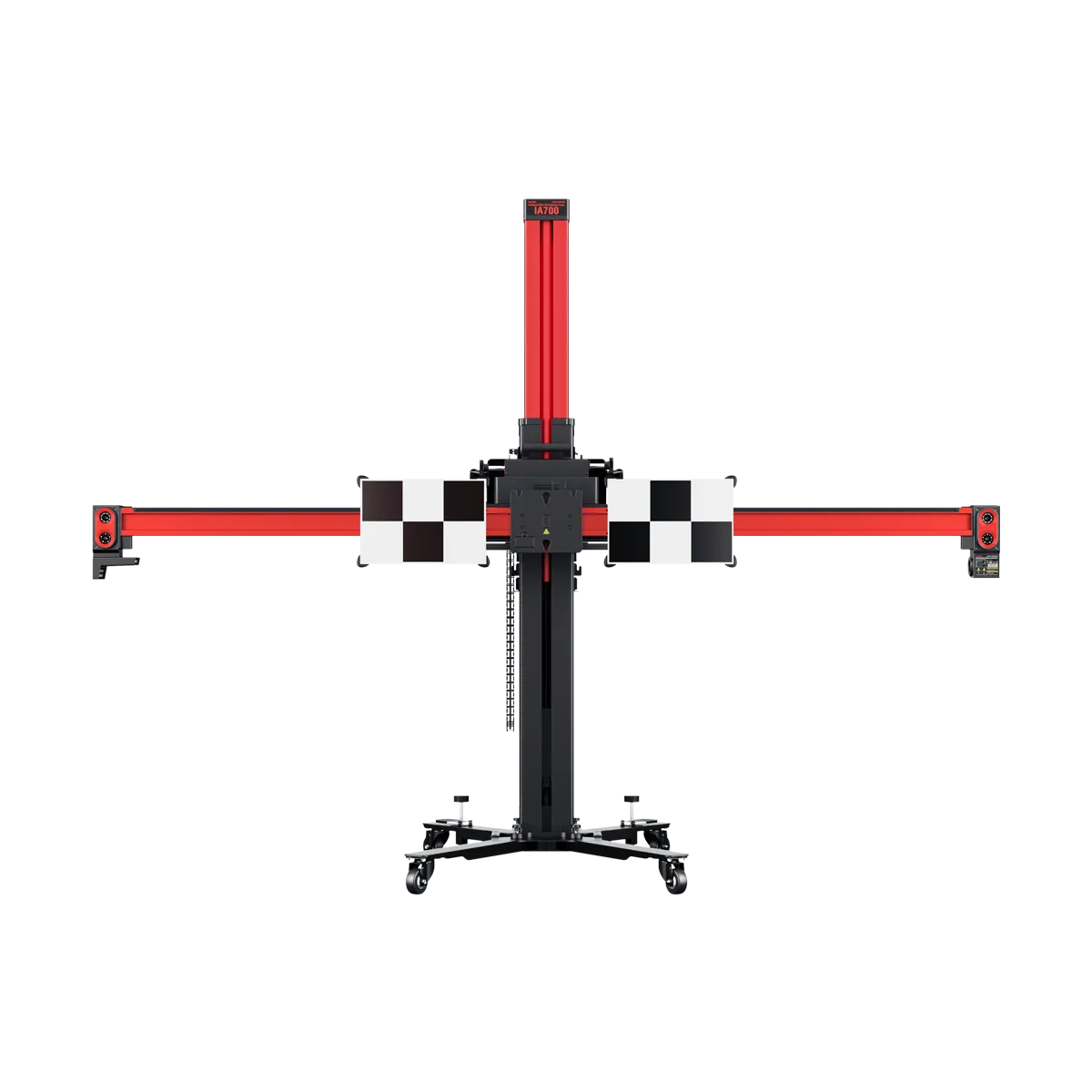

• IA700 Calibration Frame with robotic crossbar and 6 HD cameras
• MaxiSYS 909 S2 tablet — wireless VCI and J2534 pass-thru device
• ADAS calibration software upgrade card for static and dynamic calibration coverage
• LDW targets and patterns for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo
• Target case
• Four tire clamps with camera targets, steering wheel lock, brake chocks, power supply, alignment aid, frame cover
• One-year Limited Warranty

LDW Coverage Details

LDW (Lane Departure Warning) camera calibration is the most frequently needed ADAS calibration in most shops — required after any windshield replacement, front-end collision repair, or suspension work on vehicles with forward-facing cameras. The IA700LDWT covers LDW calibrations for the 13 brands listed above, covering the vast majority of vehicles a general repair or glass shop encounters.

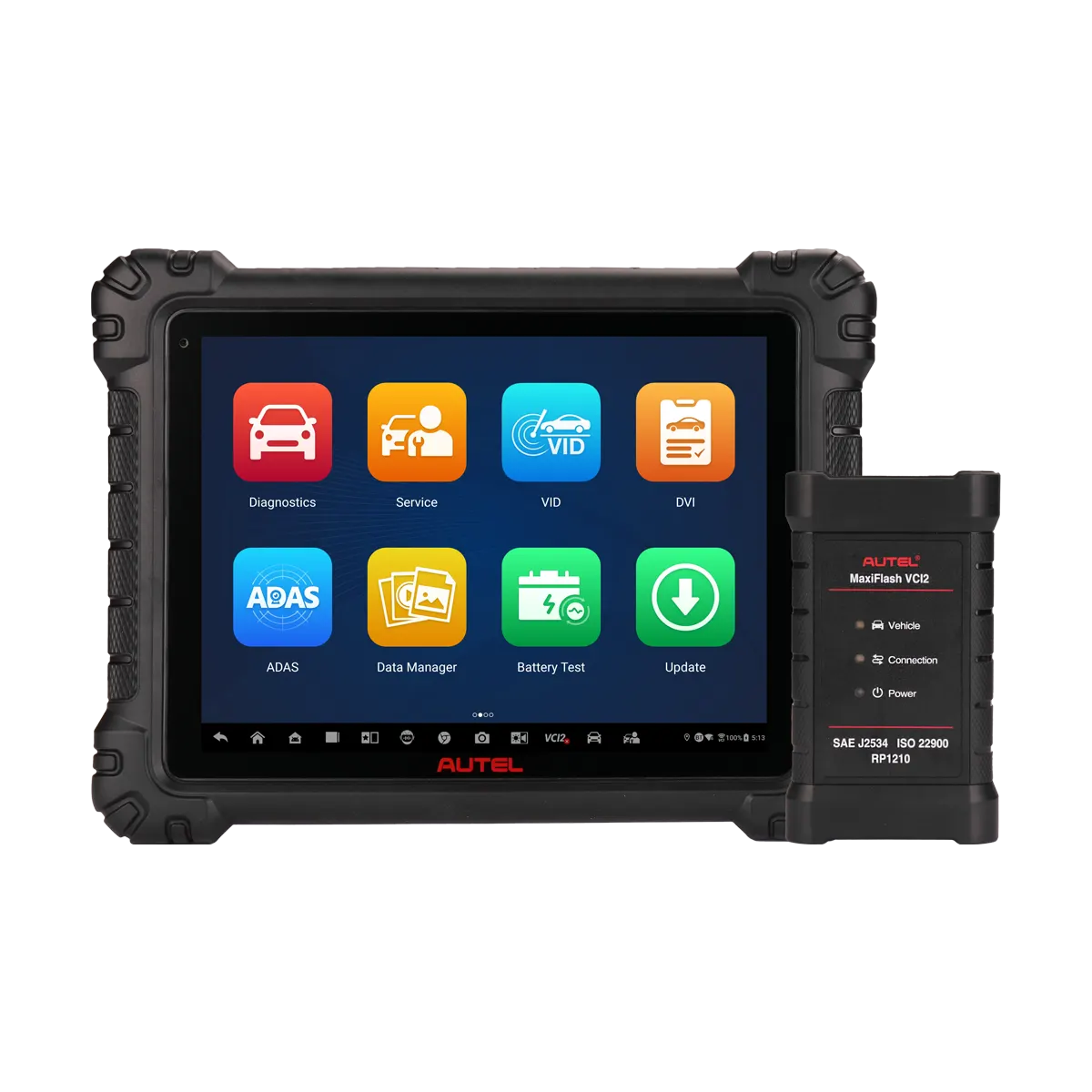

The MaxiSYS 909 S2 Tablet

Beyond ADAS calibration, the included MS909 S2 handles full-system diagnostics: read/erase codes across all modules, live data, bi-directional active tests, 40+ service functions, coding and adaptations, and topology module mapping. The pre-calibration scan and post-calibration scan are performed on the same tablet that runs the calibration — no switching between tools.

IA700LDWT vs IA700LDWT (Step-Up Comparison)

For shops that frequently calibrate radar, lidar, or AVM systems in addition to LDW cameras, the IA700AST adds all-systems calibration equipment with the same tablet. If your current work is primarily LDW, start here — you can add calibration components later as your ADAS workload expands.

IA700 Platform Core Features

Fully Optical Target Placement — 6x Faster Than Mechanical

The IA700 uses six high-definition cameras embedded in the frame's crossbar, combined with camera-equipped tire clamps, to optically determine the exact position of targets and patterns relative to the vehicle. The MaxiSYS tablet calculates current angle, distance, and offset, and displays easy-to-follow instructions for frame adjustments. Green checkmarks confirm each parameter when correct position is reached. This eliminates the tape measure and manual measurement approach entirely — Autel states the optical system reduces setup time by 6x versus mechanical measurements.

Robotic Crossbar with Automatic Height Adjustment

Six HD tracking cameras in the removable crossbar monitor tire clamp target positions. The robotic frame movement sets the vertical calibration position automatically to 0.02° accuracy — the same spec as the IA1000. No manual cranking to estimate heights.

Integrated Wheel Alignment Pre-Check

Every IA700 package includes wheel alignment pre-check. Before performing any ADAS calibration, the system optically measures the vehicle's current alignment specifications and compares them against OEM tolerances. If the vehicle is within spec, the technician can proceed to calibration with confidence. If not, the system flags it. This is a critical step — misaligned vehicles produce inaccurate and potentially unsafe ADAS calibrations, and the alignment pre-check generates a documented report showing the vehicle was within OEM tolerances before calibration began.

Unlevel Floor Compensation

Not every shop floor is perfectly level, and mobile calibration adds additional surface variability. The IA700 compensates for unlevel floors — you select the surface type (level, unlevel, or on a rack) and the system accounts for it. This eliminates failed calibrations due to floor conditions, which is a real problem with systems that require a perfectly level surface.

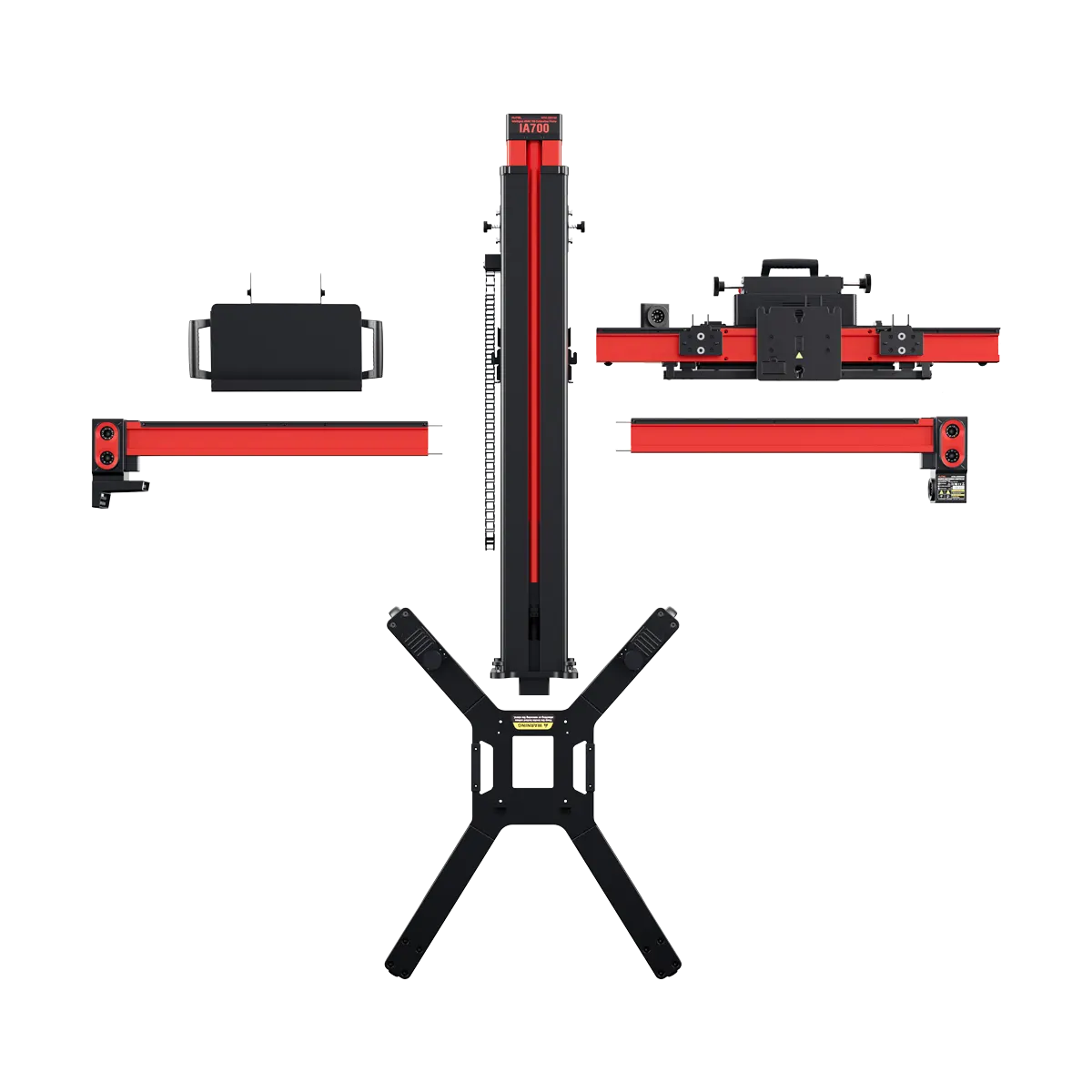

Quick Disassembly for Mobile Use

The IA700 breaks down into 5 primary parts in under 90 seconds for transport between bays or between shops. The included dust cover protects the system when stored. For shops that do mobile ADAS calibration at dealerships, body shops, or fleet locations, the IA700's portability is a genuine operational advantage.

Target and System Compatibility

The IA700 uses the same targets, patterns, and calibration components as Autel's MA600 and IA900 systems. If your shop already operates an MA600 or IA900, an IA700 adds a second calibration bay without purchasing a second complete set of targets — existing targets work on both systems. For MA600 users, the IA700 adds optical positioning and alignment pre-check, a meaningful upgrade in speed and accuracy.

Tablet Compatibility

The IA700 requires a MaxiSYS 909, MS919, or MS Ultra tablet plus an ADAS calibration software upgrade card for static and dynamic calibration coverage. Packages with a "T" suffix include the MaxiSYS 909 S2 tablet; packages without "T" require you to supply a compatible tablet separately.

IA700 Package Lineup

• IA700 — Frame only, alignment pre-check only (no tablet, no calibration targets)
• IA700T — Frame + MaxiSYS 909 S2 Tablet (alignment pre-check + tablet, no ADAS targets)
• IA700LDW — Frame + LDW targets (no tablet)
• IA700LDWT — Frame + MaxiSYS 909 S2 + LDW targets
• IA700AS — Frame + all-systems targets (no tablet)
• IA700AST — Frame + MaxiSYS 909 S2 + all-systems targets

Why Buy the Autel IA700 ADAS LDW System with MS909 Tablet From Autel Diagnostic Tools?

Autel Diagnostic Tools has specialized in Autel ADAS calibration systems since 2016. We carry the full IA700 package lineup and can help you match the right configuration to your shop's space, volume, and existing equipment. If you have an MA600 or IA900 and are evaluating the IA700 as a complement or upgrade, we can walk you through exactly what carries over and what changes. Free shipping, free tech support at 866-217-0063, one-year manufacturer warranty, and straightforward guidance on the right package.

Call 866-217-0063 for quick answers and help!
