Autel IA700 ADAS All-Systems Calibration System

Autel MaxiSYS IA700AS — Alignment Pre-Check + All-Systems ADAS (No Tablet)

The IA700AS includes the IA700 frame and all-systems calibration targets — everything needed to calibrate camera, radar, lidar, and night vision ADAS systems. A compatible MaxiSYS 909, MS919, or MS Ultra tablet and ADAS calibration software upgrade card are required separately. This is the right package for shops that already own a compatible Autel tablet and need the full suite of calibration hardware.

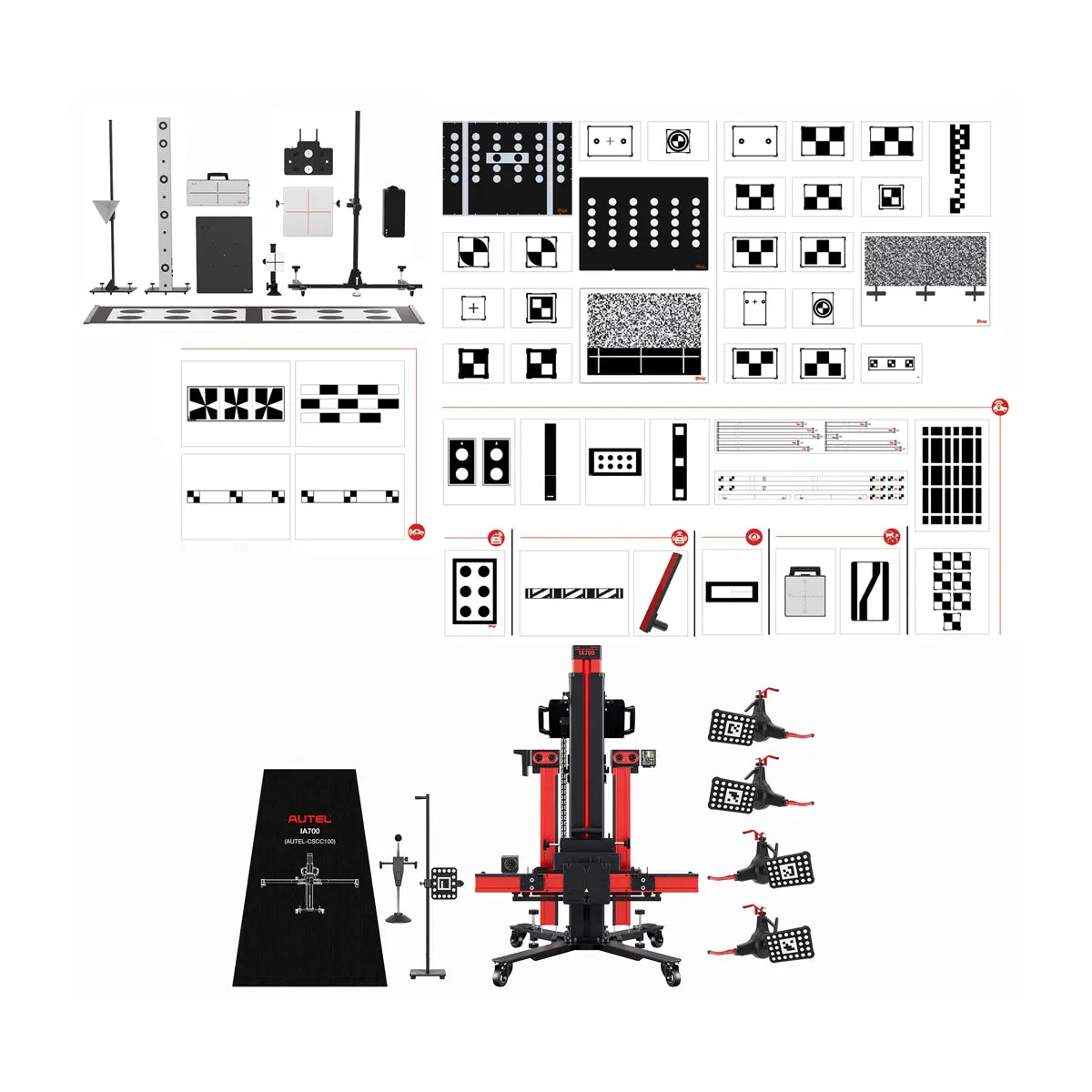

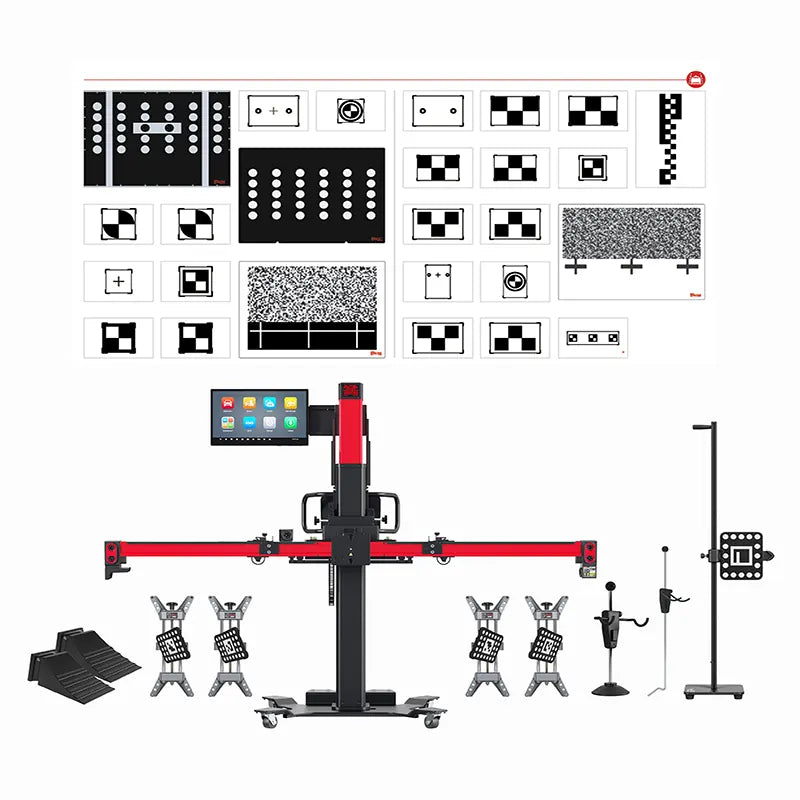

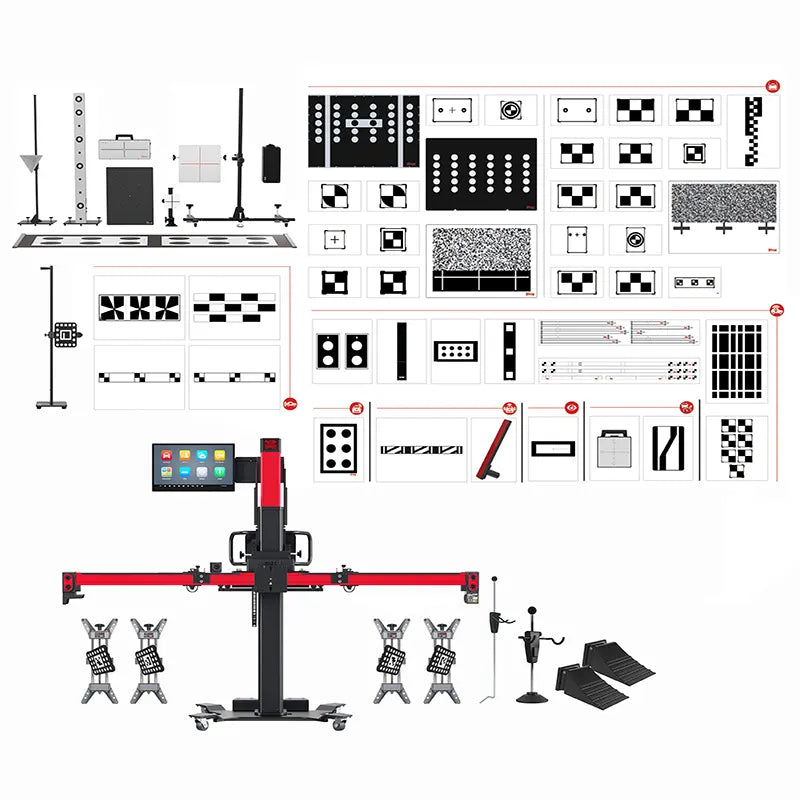

What's Included

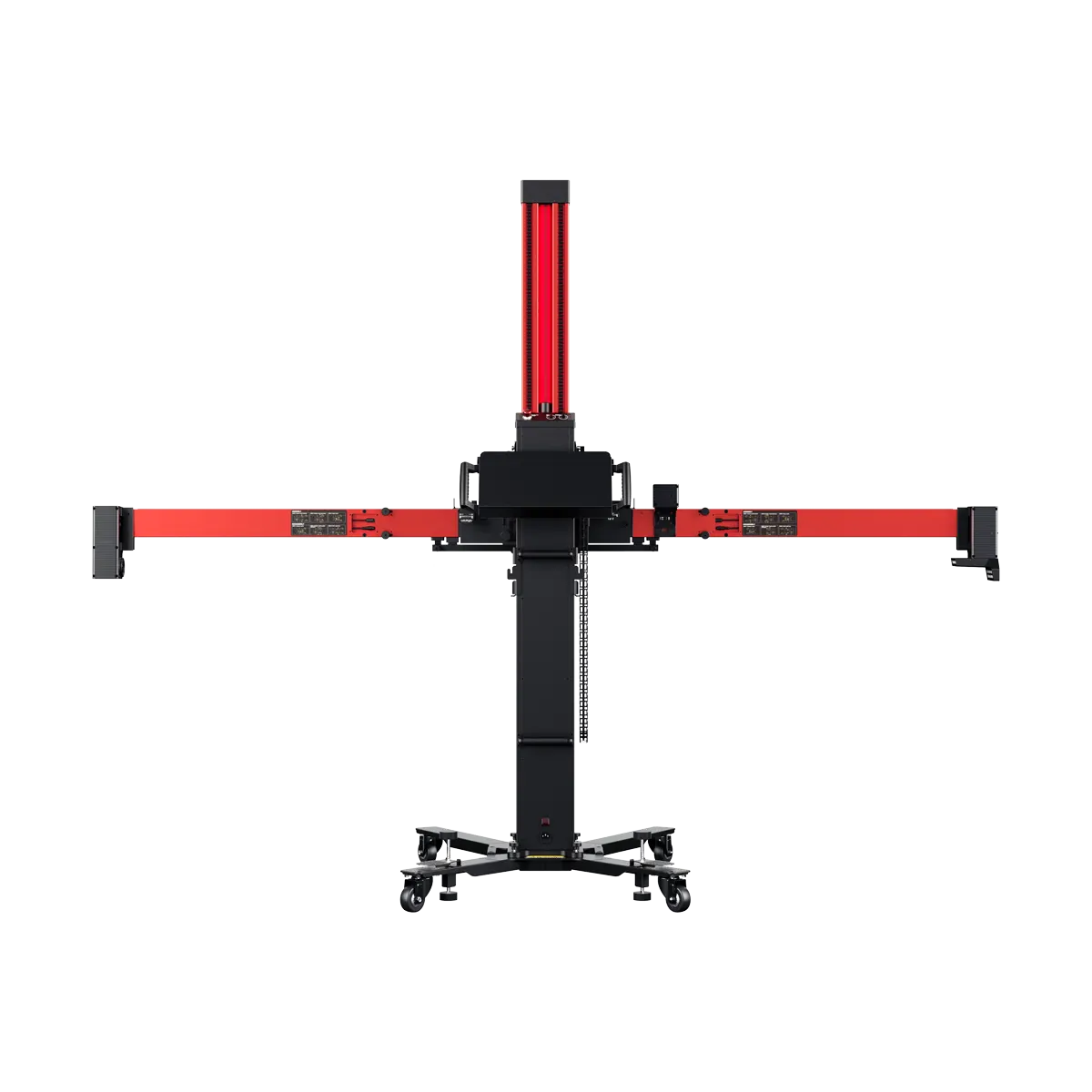

• IA700 Calibration Frame with robotic crossbar and 6 HD cameras
• LDW targets and patterns for Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, and Alfa Romeo
• Target case
• Radar, lidar, and night vision calibrators (all-systems equipment)
• AVM (Around-View Monitoring) calibration mats for applicable vehicles
• Four tire clamps with camera targets, steering wheel lock, brake chocks, power supply, alignment aid, frame cover
• One-year Limited Warranty

What You Need to Supply

• MaxiSYS 909, MS919, or MS Ultra tablet
• ADAS calibration software upgrade card

All-Systems Coverage

This package covers every major ADAS system type in current production vehicles — LDW camera systems for 13 brands, radar-based ACC and collision warning, AVM systems, lidar, and night vision. If your shop needs to handle any ADAS calibration without turning away work, this is the target set to have.

IA700 Platform Core Features

Fully Optical Target Placement — 6x Faster Than Mechanical

The IA700 uses six high-definition cameras embedded in the frame's crossbar, combined with camera-equipped tire clamps, to optically determine the exact position of targets and patterns relative to the vehicle. The MaxiSYS tablet calculates current angle, distance, and offset, and displays easy-to-follow instructions for frame adjustments. Green checkmarks confirm each parameter when correct position is reached. This eliminates the tape measure and manual measurement approach entirely — Autel states the optical system reduces setup time by 6x versus mechanical measurements.

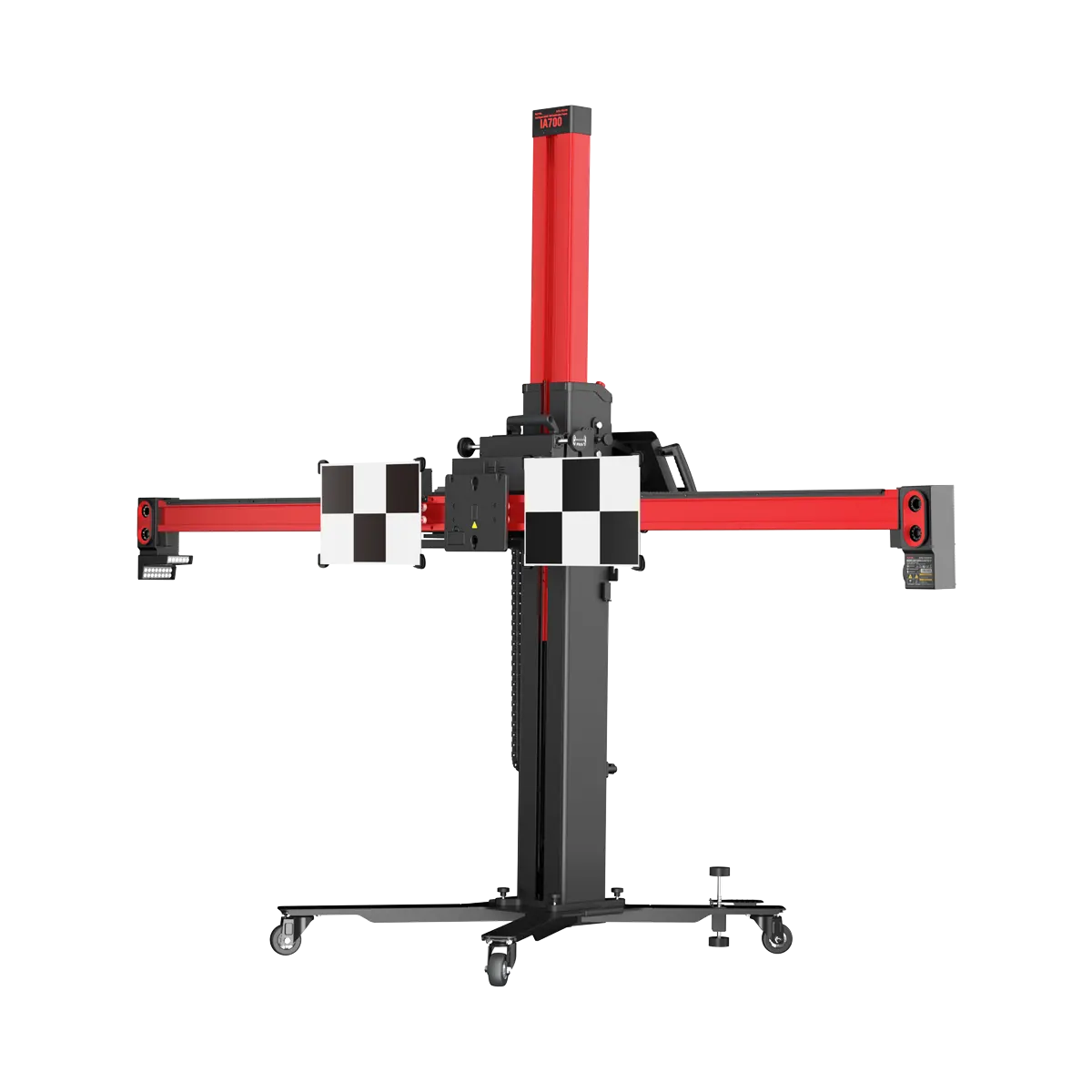

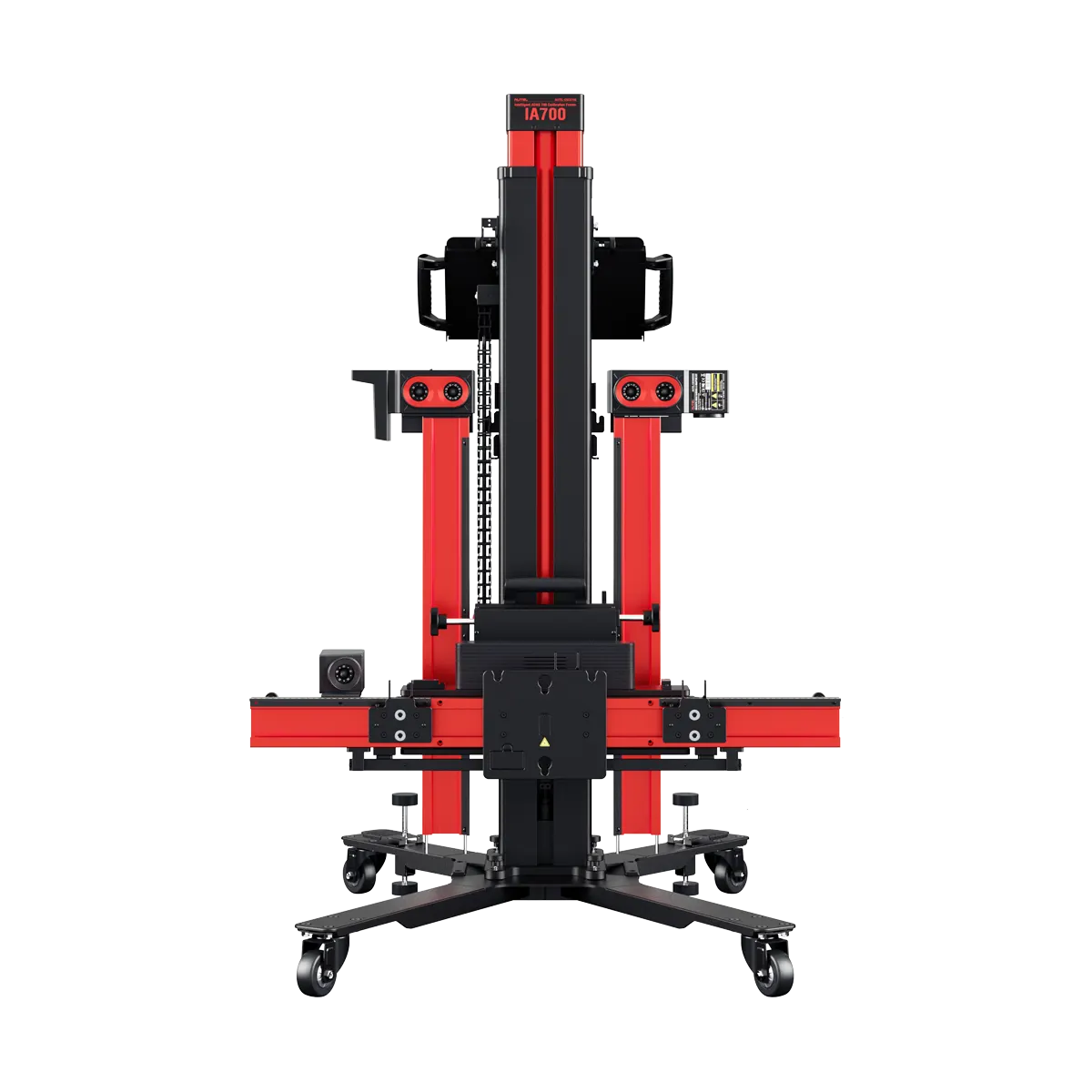

Robotic Crossbar with Automatic Height Adjustment

Six HD tracking cameras in the removable crossbar monitor tire clamp target positions. The robotic frame movement sets the vertical calibration position automatically to 0.02° accuracy — the same spec as the IA1000. No manual cranking to estimate heights.

Integrated Wheel Alignment Pre-Check

Every IA700 package includes wheel alignment pre-check. Before performing any ADAS calibration, the system optically measures the vehicle's current alignment specifications and compares them against OEM tolerances. If the vehicle is within spec, the technician can proceed to calibration with confidence. If not, the system flags it. This is a critical step — misaligned vehicles produce inaccurate and potentially unsafe ADAS calibrations, and the alignment pre-check generates a documented report showing the vehicle was within OEM tolerances before calibration began.

Unlevel Floor Compensation

Not every shop floor is perfectly level, and mobile calibration adds additional surface variability. The IA700 compensates for unlevel floors — you select the surface type (level, unlevel, or on a rack) and the system accounts for it. This eliminates failed calibrations due to floor conditions, which is a real problem with systems that require a perfectly level surface.

Quick Disassembly for Mobile Use

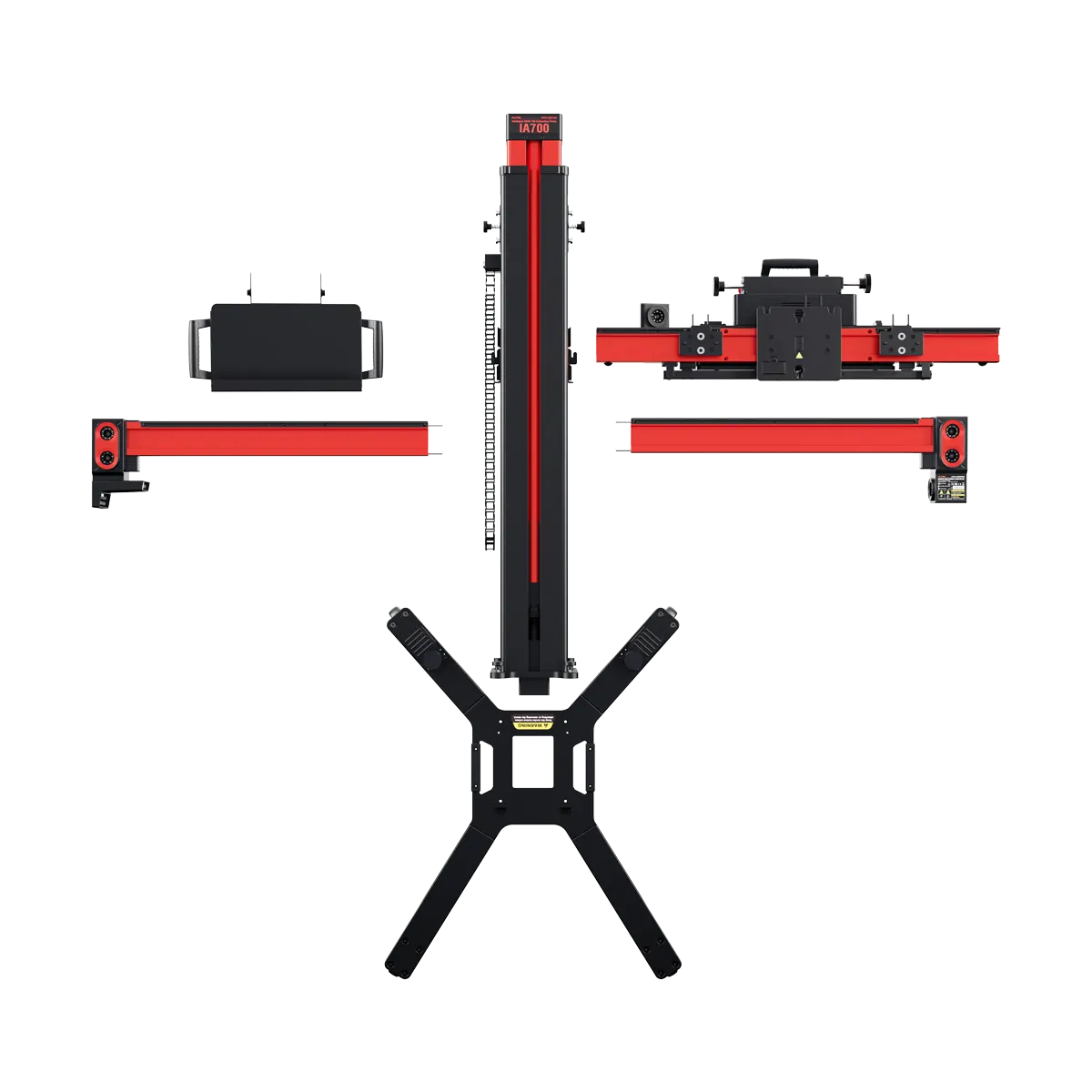

The IA700 breaks down into 5 primary parts in under 90 seconds for transport between bays or between shops. The included dust cover protects the system when stored. For shops that do mobile ADAS calibration at dealerships, body shops, or fleet locations, the IA700's portability is a genuine operational advantage.

Target and System Compatibility

The IA700 uses the same targets, patterns, and calibration components as Autel's MA600 and IA900 systems. If your shop already operates an MA600 or IA900, an IA700 adds a second calibration bay without purchasing a second complete set of targets — existing targets work on both systems. For MA600 users, the IA700 adds optical positioning and alignment pre-check, a meaningful upgrade in speed and accuracy.

Tablet Compatibility

The IA700 requires a MaxiSYS 909, MS919, or MS Ultra tablet plus an ADAS calibration software upgrade card for static and dynamic calibration coverage. Packages with a "T" suffix include the MaxiSYS 909 S2 tablet; packages without "T" require you to supply a compatible tablet separately.

IA700 Package Lineup

• IA700 — Frame only, alignment pre-check only (no tablet, no calibration targets)
• IA700T — Frame + MaxiSYS 909 S2 Tablet (alignment pre-check + tablet, no ADAS targets)
• IA700LDW — Frame + LDW targets (no tablet)
• IA700LDWT — Frame + MaxiSYS 909 S2 + LDW targets
• IA700AS — Frame + all-systems targets (no tablet)
• IA700AST — Frame + MaxiSYS 909 S2 + all-systems targets
