Autel Ford AVM Pattern Package (CSC1004-05)

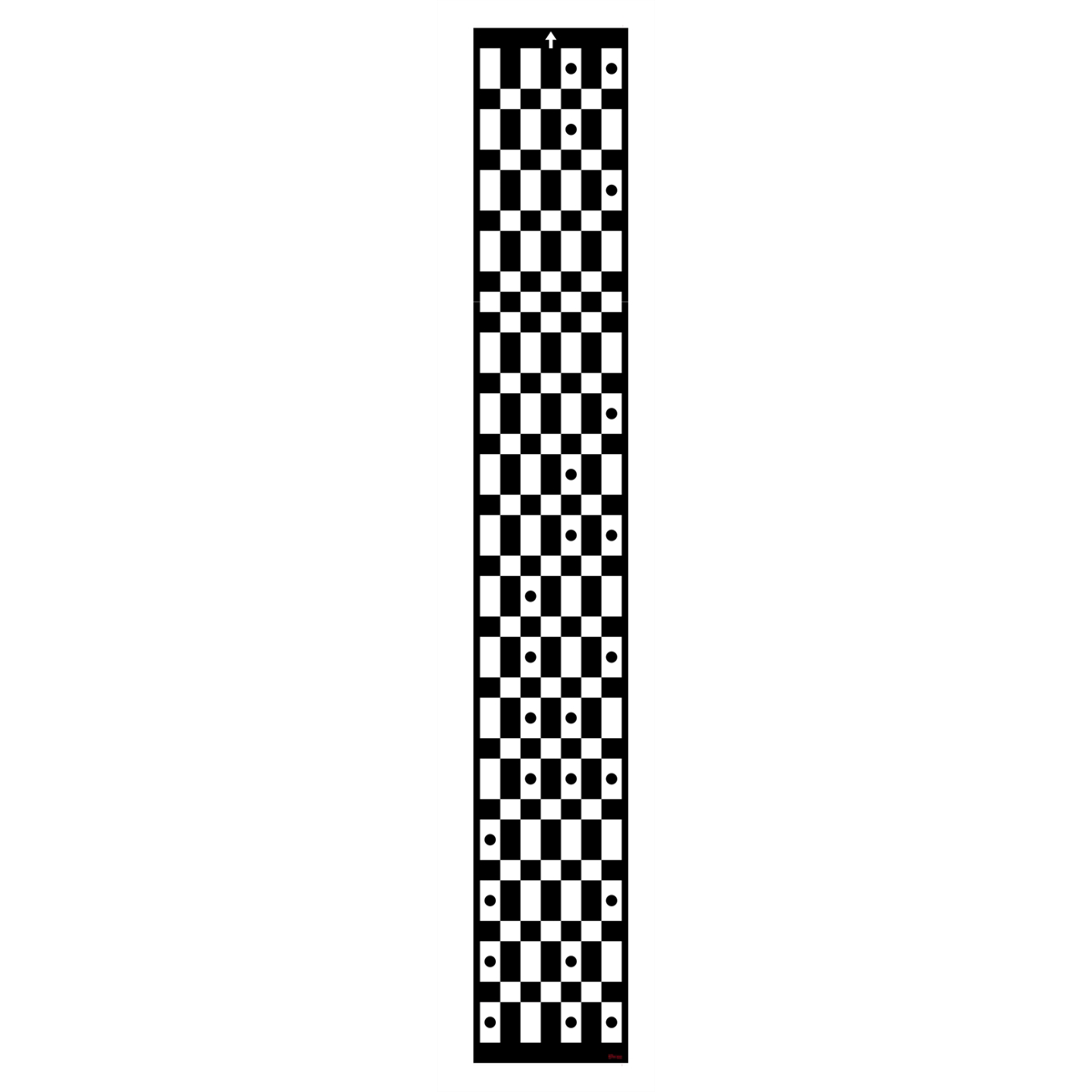

The Autel CSC1004-05 is an Around View Monitor (AVM) calibration pattern package for Ford vehicles. This package provides the manufacturer-specified target patterns needed to perform static calibration of Ford 360-degree surround view camera systems after any service that disturbs camera alignment — including glass replacement, front-end collision repair, and camera-related service.
What AVM Calibration Requires
Ford's surround view systems use multiple cameras whose images are stitched together to form a seamless overhead view. Once any camera is moved, replaced, or the mounting structure is disturbed, the stitching breaks down. Static AVM calibration with the correct target patterns re-establishes the relationship between cameras and restores system function. Without proper calibration, the surround view system will display distorted or misaligned images and may store DTCs.
Application
- Vehicle make: Ford
- System: 360-degree Around View Monitor (AVM) surround view cameras
- Calibration type: Static (in-bay pattern calibration)
- Compatible with: Autel ADAS calibration systems (verify with your frame/tablet configuration)
- Price: $1,795
Who Needs This Package
Collision shops and glass shops performing work on late-model Ford trucks and SUVs equipped with surround view — including popular F-150, Explorer, and Expedition models — need this pattern package to complete ADAS recalibration. At $1,795, it is a necessary add-on for shops billing AVM calibration work on Ford vehicles.
Note: Complete vehicle compatibility list and detailed specs were not available from the manufacturer page at time of writing. Call us to confirm before ordering.
