Autel CV ADAS LDW Standard with MS909CV

Autel CV ADAS LDW Standard with MS909CV (CVALDW20T)

The Autel CVALDW20T is a complete Commercial Vehicle ADAS Lane Departure Warning calibration system bundled with the MaxiSYS MS909CV commercial vehicle diagnostic tablet. At $18,233, this is the all-in-one purchase for a shop setting up CV ADAS calibration from scratch on the standard (fixed bay) Autel ADAS frame — calibration hardware plus diagnostic tablet in one transaction.

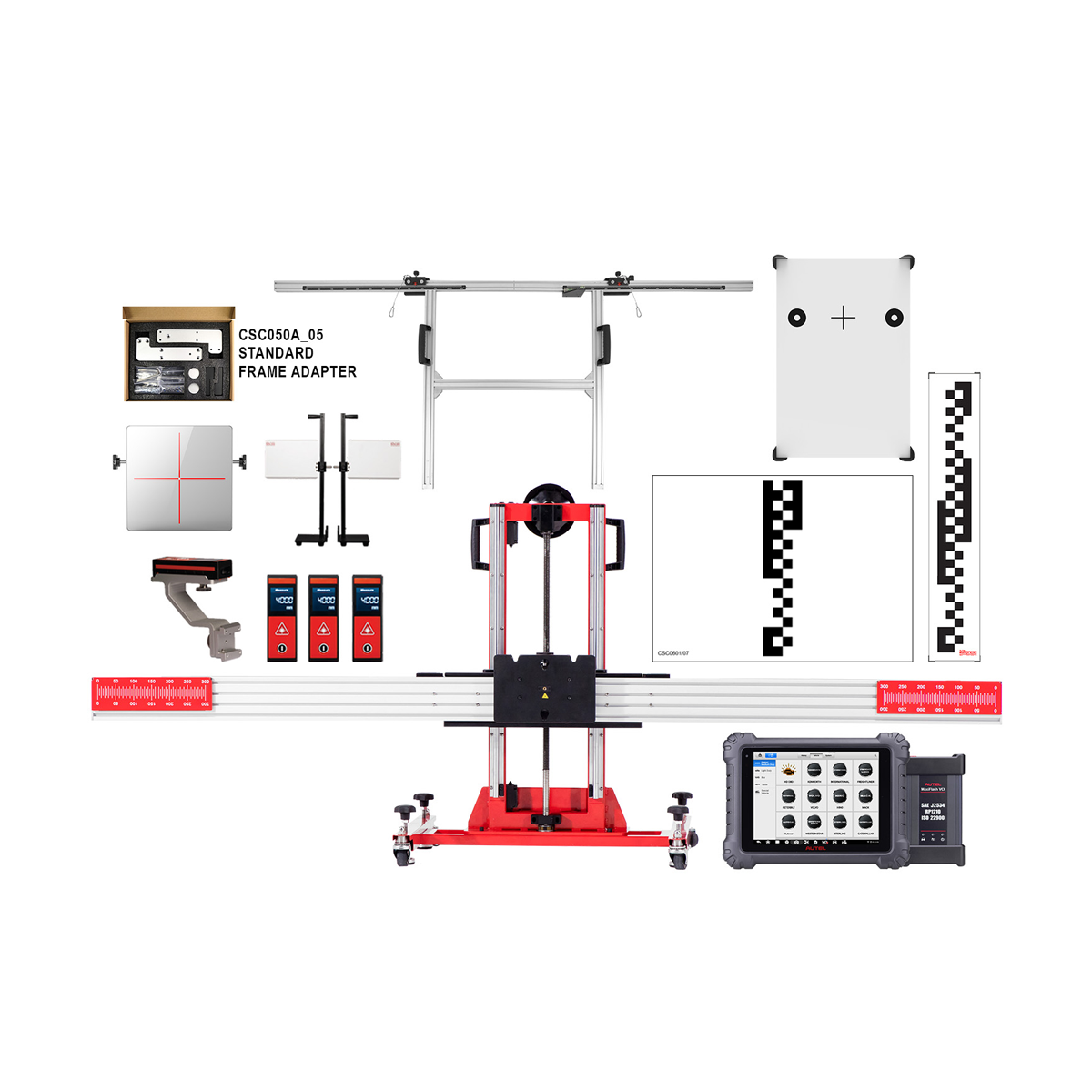

What's Included

Based on the manufacturer's CV ADAS LDW system documentation:

• Standard Autel ADAS frame with positioning tools (5-line and 2-line lasers)
• MaxiSYS MS909CV commercial vehicle diagnostic tablet — 9.7" touchscreen with Bluetooth MFVCI/J2534/RP1210 device
• LDW calibration software for static and dynamic ADAS calibration
• Static calibration support for Mercedes-Benz Sprinter vans, RAM ProMaster vans
• Static calibration for heavy-duty vehicles equipped with Bendix Wingman forward-facing systems
• LDW patterns for Mercedes-Benz Sprinter, RAM ProMaster, and LDW/forward collision warning targets for Bendix Wingman-equipped heavy-duty trucks
• CV Pattern Bracket
• ACC reflector for radar-equipped Bendix Wingman system calibration
• LDW target storage case
• One-year limited warranty

What This System Calibrates

The CVALDW20T performs static LDW (Lane Departure Warning) calibrations on light, medium, and heavy-duty commercial vehicles. The MS909CV also supports dynamic calibration on Class 3-5 and Class 6-8 vehicles. Key coverage includes:

• Mercedes-Benz Sprinter vans (static LDW calibration)
• RAM ProMaster vans (static LDW calibration)
• Class 3-5 and 6-8 commercial vehicles (dynamic calibration via MS909CV)
• Heavy-duty trucks with Bendix Wingman forward-facing ADAS systems (static LDW and forward collision warning)

CVALDW20T vs. CVALDW20 — Which Do You Need?

The difference is simple:

• CVALDW20T ($18,233): Includes MaxiSYS MS909CV tablet — buy this if you need both the calibration system and a CV diagnostic tablet
• CVALDW20 ($12,874): No tablet included — buy this if you already own an MS909CV and just need the calibration hardware

The $5,359 difference between the two is essentially the price of the MS909CV standalone. If you already own that tablet, the T-version is a duplicate purchase.

Standard Frame vs. MA600 Mobile

The CVALDW20T uses a standard (fixed bay) ADAS frame. If your shop needs portability — servicing fleet vehicles at their location, or moving the system between bays — look at the CVMALDWT which uses the MA600 mobile frame at $17,230. The standard frame is better suited for a dedicated high-volume ADAS calibration bay.

Space Requirements

• Minimum bay size: 24ft x 34ft (small bay)
• Alignment bay minimum depth: 10ft
