Autel CV ADAS LDW MA600 with MS909CV

Autel CV ADAS LDW MA600 with MS909CV (CVMALDWT) — Complete Commercial Vehicle ADAS System

The Autel CVMALDWT is the most complete entry point into Autel's commercial vehicle ADAS calibration ecosystem — the MA600 mobile calibration frame bundled with the MaxiSYS MS909CV commercial vehicle diagnostic tablet. At $17,230, this is the all-in-one purchase for a shop that needs both the CV LDW calibration hardware and the CV diagnostic tablet from a single order.

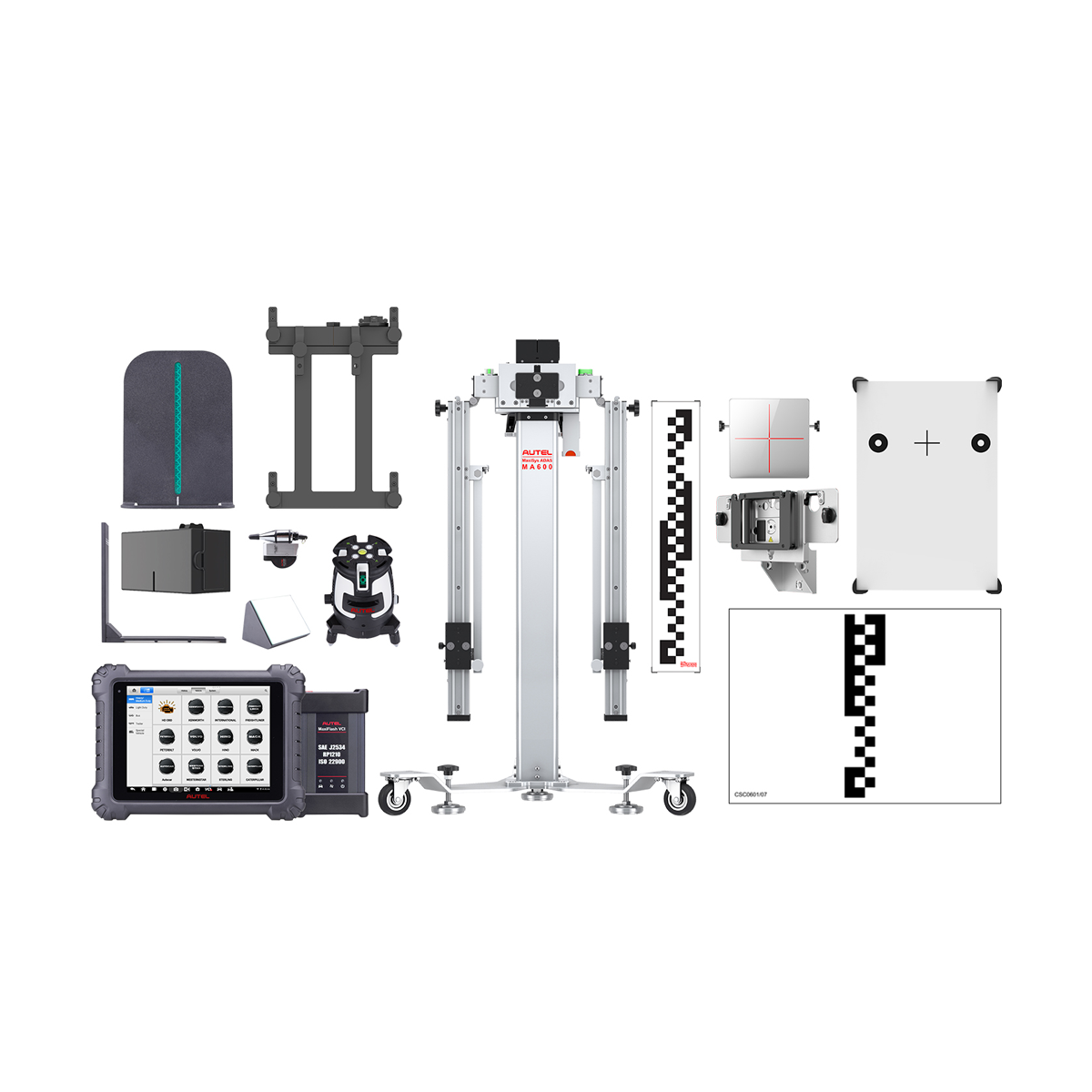

What's Included

• MA600 Mobile Calibration Frame with positioning tools including 5-line and 2-line lasers
• MaxiSYS MS909CV commercial vehicle diagnostic tablet — 9.7" touchscreen with Bluetooth MFVCI/J2534/RP1210 device
• Static and dynamic ADAS calibration software
• Static LDW calibration for Mercedes-Benz Sprinter vans and RAM ProMaster vans
• Static calibration for heavy-duty vehicles equipped with Bendix Wingman forward-facing ADAS system
• LDW patterns with bracket for Bendix Wingman-equipped heavy-duty trucks
• Front collision warning and LDW pattern (CV pattern CSC0611-06) for Bendix Wingman heavy-duty trucks
• ACC reflector for radar-equipped Bendix Wingman system calibration
• LDW target storage case
• One-year limited warranty

What This System Covers

Static LDW Calibration

• Mercedes-Benz Sprinter vans
• RAM ProMaster vans
• Heavy-duty trucks equipped with Bendix Wingman system

Dynamic Calibration (via MS909CV tablet)

• Class 3-5 commercial vehicles
• Class 6-8 commercial vehicles

Additional MS909CV Capabilities

The included MS909CV tablet is a full commercial vehicle diagnostic platform, not just a calibration controller. It provides:

• Comprehensive heavy-duty diagnostics for Class 3-8 trucks
• Off-road construction and agricultural vehicle coverage (with appropriate adapters)
• Network module topology mapping
• Battery, starting, and charging systems analysis
• J2534/RP1210 pass-through programming

CVMALDWT vs. CVMALDW — Do You Need the Tablet?

• CVMALDWT (this item, $17,230): Complete system with MS909CV tablet — for shops starting fresh
• CVMALDW ($11,780): Same calibration hardware, no tablet — for shops that already own the MS909CV

The $5,450 difference equals the standalone MS909CV price. If you already own that tablet, buy the CVMALDW instead and save the money.

MA600 Mobile Frame Advantages

The MA600 is portable and can be repositioned between bays. No fixed installation required. Minimum bay requirement is 24ft x 34ft with 10ft alignment depth. Ideal for shops that cannot dedicate a permanent bay to ADAS calibration or that need to service vehicles in multiple locations.

Upgrade Path

The MA600 system is expandable. Once your base CVMALDWT is deployed, you can add expansion packs for:

• Blind Spot Monitoring (BSM) calibration
• Adaptive Cruise Control (ACC) calibration
• Around View Monitor (AVM) calibration
• Night Vision (NV) calibration

These optional packs are sold separately and snap into the same MA600 framework.

Why Buy From OEM Diagnostic Tools?

OEM Diagnostic Tools has specialized in ADAS calibration equipment since 2016. A $17,000 purchase requires a thorough conversation — our technical team at 866-217-0063 will walk through your specific fleet, bay configuration, and workflow to confirm this is the right system before you buy. Free shipping on every order. Honest upgrade guidance — if a lower-cost configuration covers your needs, we will tell you. Full warranty on all equipment.
