Autel Corner Reflector with Stand CSC802-01 and CSC800
Couldn't load pickup availability

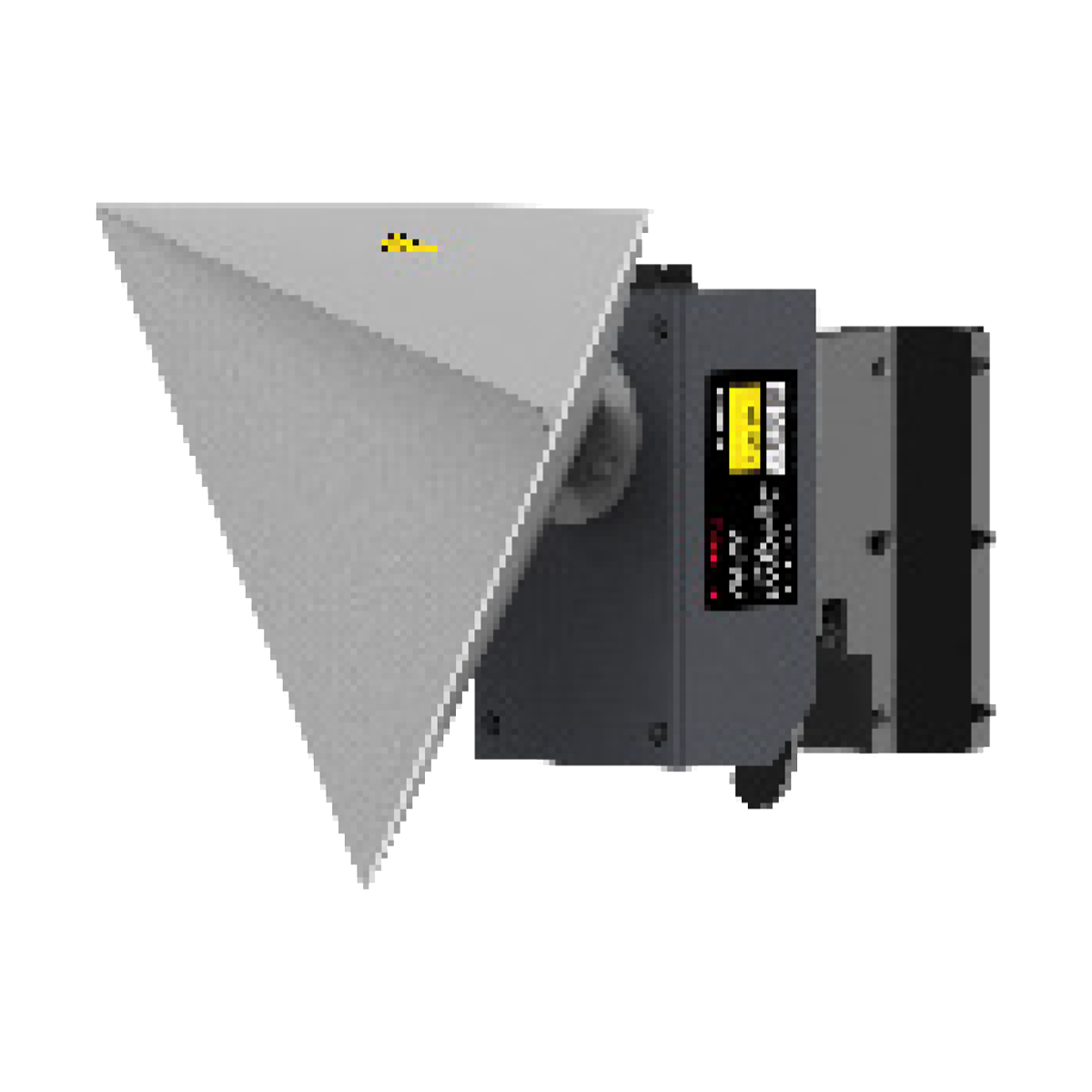

Autel Radar Corner Reflector with Stand (CSC802-01 and CSC800)
The CSC802-01 with CSC800 stand is the complete Autel radar corner reflector assembly for static ADAS calibration of radar-based safety systems. At $860, this is the ready-to-use radar calibration solution — the reflector and stand together, not a stand-only or reflector-only purchase. If you are setting up radar ADAS calibration capability and want the complete hardware in one purchase, this is it.
What This Does
Modern vehicles with adaptive cruise control, forward collision warning, automatic emergency braking, and similar radar-dependent systems require radar sensor recalibration after any service that disturbs the sensor's position — including front-end collision repairs, bumper removal, or sensor mounting service. The corner reflector creates a precise radar reflection point in front of the vehicle that the Autel calibration software uses to guide the sensor back to its calibrated baseline.
What Is Included
- Corner reflector (CSC802-01) — the OE-sized reflective element for radar calibration
- Stand with base (CSC800) — vertical stand and weighted base for stable positioning
- Attachment handle for reflector positioning
- 1-year limited warranty
Frame System Compatibility
This reflector and stand assembly is compatible with both Autel ADAS frame systems:
- Autel ADAS Standard Frame — for fixed bay installations
- Autel MA600 Mobile Frame — for portable/mobile ADAS setups
Required Tablet and Software
The corner reflector alone does not perform a calibration. To complete radar calibration using this hardware, you need:
- MaxiSYS ADAS tablet (such as MS909, MS919, or other ADAS-capable MaxiSYS) with ADAS software — OR —
- MaxiSYS 908 Series tablet with the ADAS Software Upgrade purchased and installed
The Autel ADAS software provides vehicle-specific instructions for reflector positioning distance and height, then guides the calibration procedure step by step. Without the ADAS-capable tablet and current software, this hardware cannot perform a complete calibration.
CSC802-01 vs. CSC0800 — Which Do You Need?
- CSC802-01 with CSC800 (this product, SKU 802-01, $860): Complete set — corner reflector plus stand. Buy this if you are setting up radar calibration from scratch or need a complete replacement assembly.
- CSC0800 stand only (SKU 800, $425): Stand hardware only — no reflector included. Buy this if you already have an OE corner reflector and only need the positioning hardware, or are replacing a damaged stand.
Most shops need the complete CSC802-01 set. The CSC0800 stand-only is for specific situations where the reflector is already on hand.
Radar Calibration vs. LDW Camera Calibration
It is worth understanding the distinction: radar calibration (this tool) is separate from LDW camera calibration. Many modern vehicles require both types of ADAS calibration — radar for ACC/FCW/AEB functions, and camera calibration for LDW/lane-keeping functions. If you are setting up a complete ADAS capability, you need both radar calibration hardware (this product) and camera calibration targets for the makes you service.
Who Needs This
Any shop performing post-collision ADAS recalibration on vehicles with radar-based safety systems. This is increasingly mandatory work at any shop doing front-end collision repairs. Glass shops also need this when sensor replacement accompanies windshield work on radar-equipped vehicles.
Why Buy the Autel Corner Reflector with Stand CSC802-01 and CSC800 From Autel Diagnostic Tools?
Autel Diagnostic Tools has specialized in professional automotive diagnostic equipment since 2016. We carry the complete Autel ADAS hardware lineup and can advise on what you need to build a complete radar and camera calibration capability for your shop's vehicle mix.
- Free shipping on qualifying orders
- Free tech support — call 866-217-0063
- Full manufacturer warranty honored
- Honest upgrade guidance — we will tell you what tablet, software, and frame system you need to actually put this reflector to work
