Autel CAT9 Adapter

Autel CAT9 Adapter — 9-Pin Caterpillar On-Highway Truck Adapter

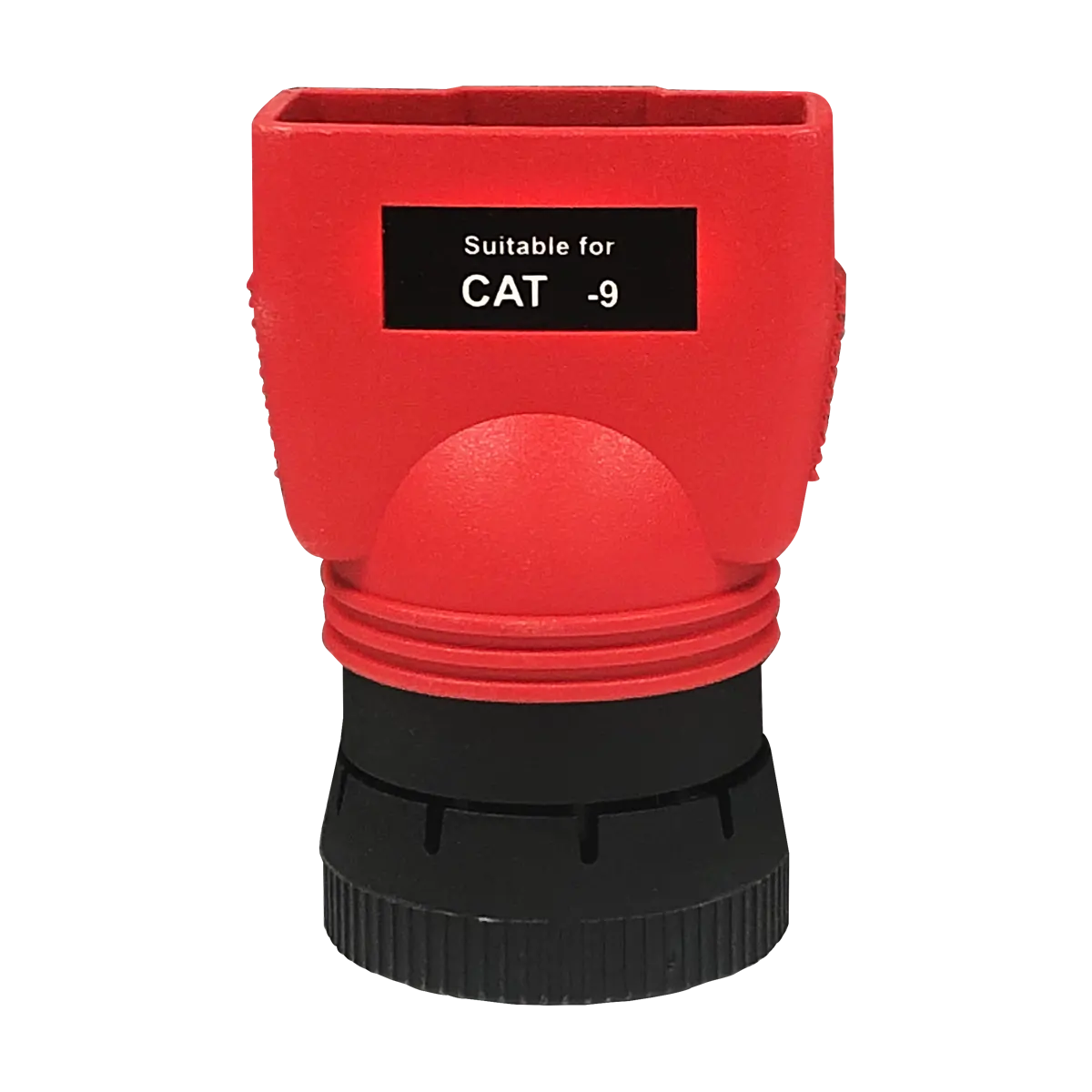

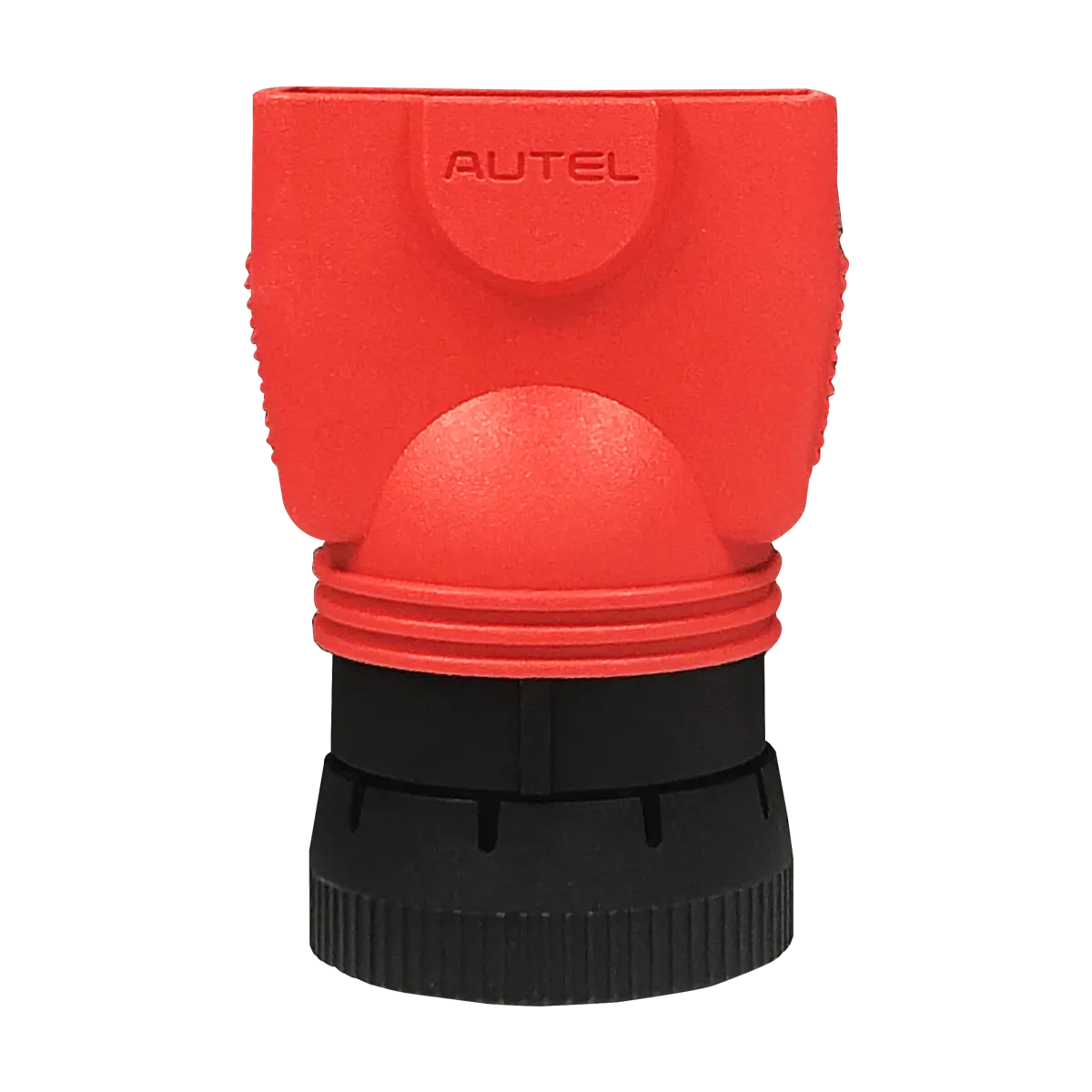

The Autel CAT9 adapter is a 9-pin Deutsch connector adapter for diagnosing Caterpillar engines on commercial on-highway trucks and vehicles. If your shop services Class 6-8 trucks running CAT powerplants, this adapter connects your Autel MaxiSYS MS909CV to those engines through the standard 9-pin heavy-duty diagnostic port.

What the CAT9 Does

On-highway commercial trucks with Caterpillar engines use the standard 9-pin Deutsch diagnostic connector common across Class 3-8 trucks. The CAT9 adapter provides the proper interface for Caterpillar-specific protocols through that port, working with the Autel MaxiSYS MS909CV commercial vehicle diagnostic tablet and VCI to enable engine diagnostics on CAT-powered on-highway applications.

CAT9 vs. CAT14 — Which Do You Need?

Autel offers two Caterpillar adapters depending on where the machine runs:

• CAT9 (this adapter, $50): 9-pin Deutsch connector — for on-highway trucks and Class 3-8 commercial vehicles with Caterpillar engines
• CAT14 ($50): 14-pin proprietary connector — for off-highway construction and agriculture equipment (excavators, dozers, ag tractors) with Caterpillar engines

Shops servicing both on-highway fleets and job-site equipment will want both adapters. The MS909CV platform handles both use cases with the appropriate adapter installed.

Compatibility

• Required tablet: Autel MaxiSYS MS909CV with Bluetooth MFVCI/J2534/RP1210 device
• Vehicle type: On-highway commercial trucks and vehicles with Caterpillar engines

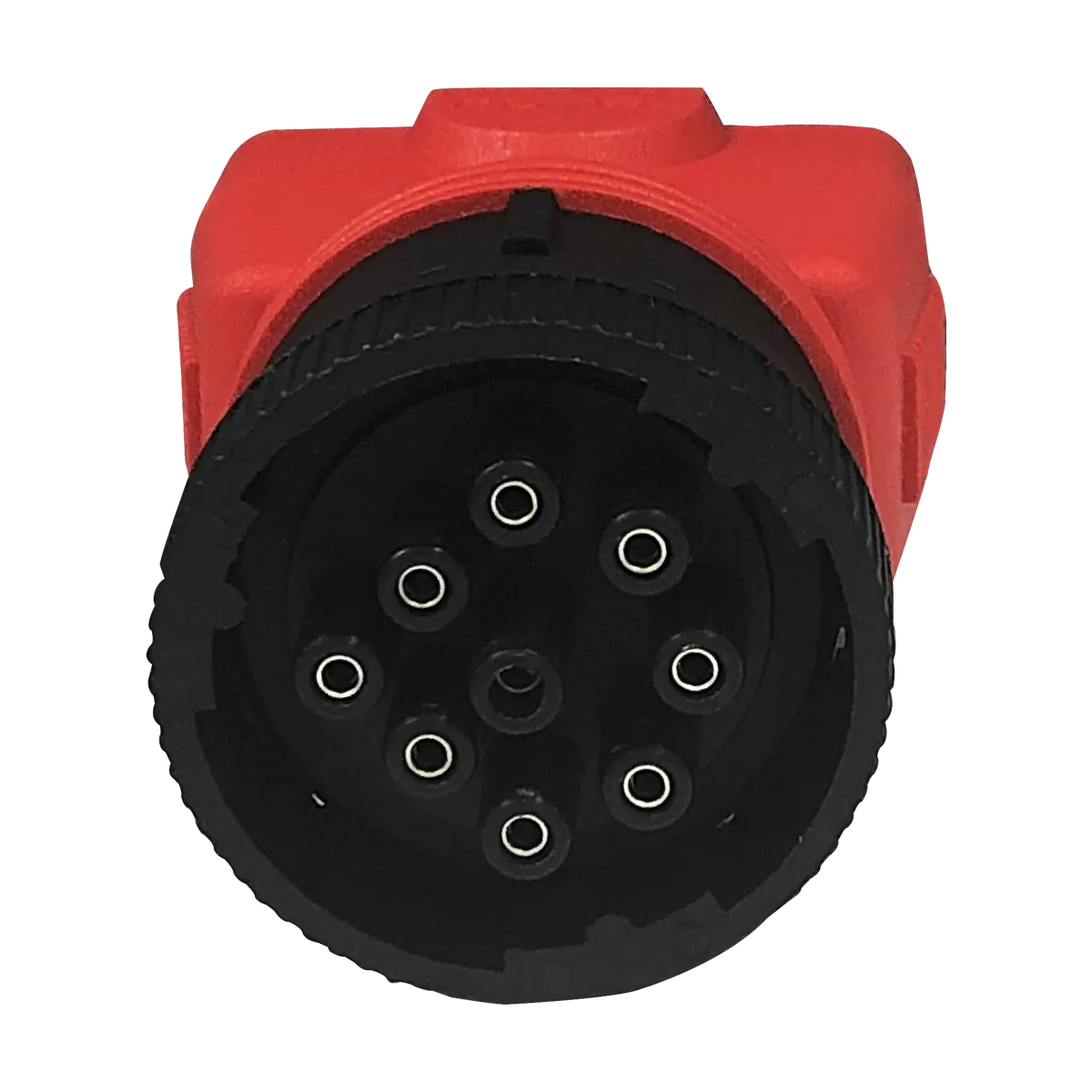

• Connection type: 9-pin Deutsch (standard heavy-duty diagnostic port)
• Software requirement: Ensure MS909CV tablet and VCI have latest software updates before use

Who Needs This Adapter

This is a targeted add-on for shops already invested in the MS909CV commercial vehicle platform that need to add Caterpillar on-highway coverage. At $50, it is a low-cost way to extend the diagnostic reach of a $5,995 system. Trucking fleets, commercial repair shops, and dealers servicing CAT-powered Class 6-8 vehicles are the primary buyers.

What's in the Box

• CAT9 9-pin Caterpillar on-highway adapter

Note: The MS909CV tablet and VCI are sold separately and required to use this adapter.
