Autel Calibration Bar R and T Mounts CSC0500-12
Couldn't load pickup availability
Autel Calibration Bar R and T Mounts — CSC0500-12

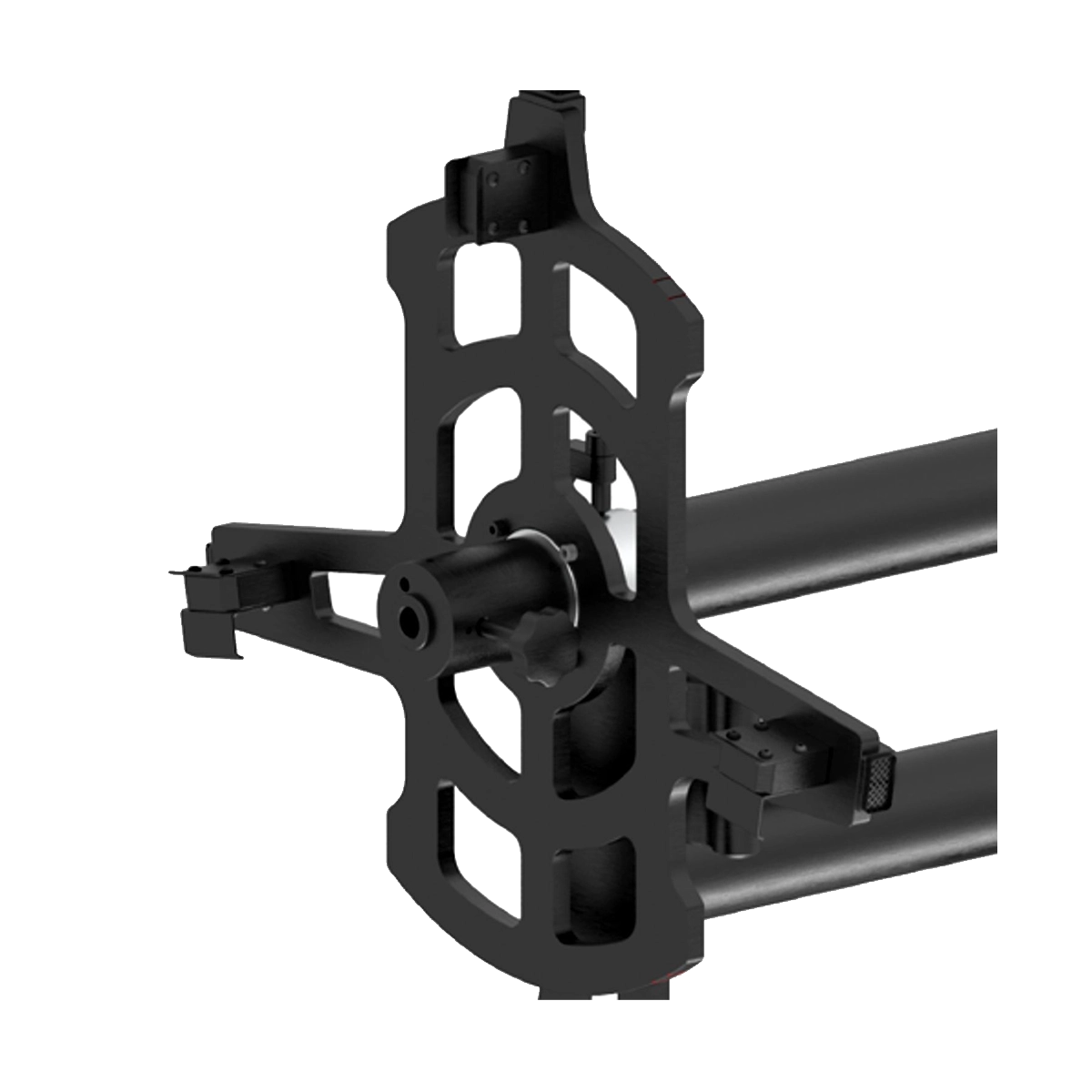

The Autel CSC0500-12 is a set of calibration bar mounts for the Autel IA900 wheel alignment and ADAS calibration system's tire clamps. These mounts attach to the camera system calibration bar (sold separately) and are used for tire clamp target calibration — the process of calibrating the IA900's frame camera system to the tire clamp positions to ensure accurate wheel position measurements.
What These Mounts Do
The IA900 system uses targeting cameras to measure wheel toe, camber, and other alignment angles, and also supports ADAS calibrations. The accuracy of those measurements depends on the camera system being calibrated to the tire clamp positions. The CSC0500-12 mounts attach to the calibration bar and establish the precise reference points the camera system uses for that calibration procedure.
Key Details
- Mounts for IA900 tire clamp calibration procedure
- Compatible with Autel IA900 tire clamps
- Attach to calibration bar — calibration bar is sold separately
- Camera system calibration is recommended every six months or when a targeting camera is replaced
- Covered by one-year limited warranty
When to Perform Camera Calibration
Autel recommends recalibrating the IA900 frame camera system every six months in regular shop use, or any time a targeting camera is replaced. Having the correct mounts on hand means your shop can perform this maintenance calibration on schedule without delays. If your IA900 frame calibration procedure is coming up and your mount kit has been lost or damaged, this is the replacement part.
Who Needs This
Shops running the Autel IA900 wheel alignment and ADAS system that need replacement calibration bar mounts, or shops setting up for their scheduled six-month frame calibration. This is a maintenance part for an existing IA900 installation — not a standalone tool.
