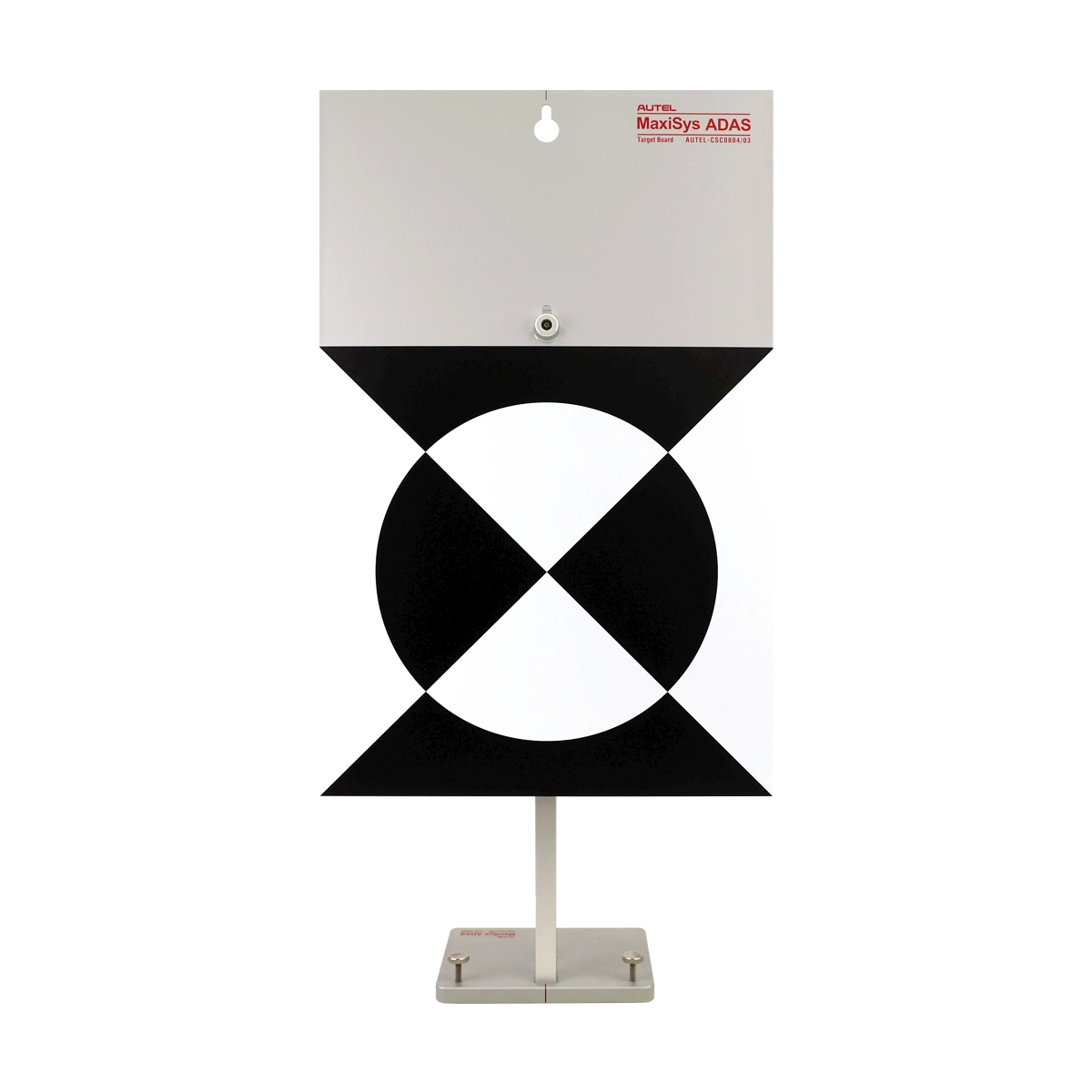

Autel AVM Target and Bracket for Toyota CSC0804-03

Autel AVM Target and Bracket for Toyota — CSC0804-03

The Autel CSC0804-03 is an Around View Monitoring (AVM) calibration target and standing bracket for late model Toyota and Lexus vehicles. AVM systems use multiple wide-angle cameras — typically front, rear, and both sides — to create a bird's-eye view around the vehicle. When any of those cameras is replaced, repositioned, or disturbed, the AVM system needs to be recalibrated against physical ground-level targets placed around the vehicle.

This kit gives you one target and one standing bracket per package. The targets are placed at specific positions around the Toyota or Lexus during the calibration routine, which is executed through the Autel diagnostic system paired with your ADAS frame.

Vehicle Coverage

• Late model Toyota vehicles with Around View Monitoring systems
• Late model Lexus vehicles with Around View Monitoring systems

Supported Calibration

• Around View Monitoring (AVM) camera system calibration

How Many Targets Do You Need?

This is the key buying decision with AVM targets. Each CSC0804-03 package includes one target and one bracket. Here is what Autel specifies for Toyota/Lexus AVM calibration:

• Minimum configuration: 3 bracketed targets required to run the calibration procedure
• Expedited configuration: 8 bracketed targets allow faster calibration with fewer repositioning steps

If you are setting up AVM calibration capability for Toyota and Lexus from scratch, plan to purchase at least 3 units. High-volume shops that want to minimize calibration time often run with 6–8 targets to reduce the number of times targets need to be moved during the procedure.

What's in Each Package

• 1x AVM Target (CSC0804-03)
• 1x Standing Bracket

Technical Details

• SKU: 804-03
• Part Number: CSC0804-03
• Warranty: One-year Limited Warranty from Autel
• Compatible with late model Toyota and Lexus vehicles

Note: Autel ADAS frame and compatible scanner are required for AVM calibration and are sold separately. The number of targets needed depends on your workflow — minimum 3, up to 8 for expedited procedures.
