Autel ADAS LDW 2.0T — Lane Departure Warning Calibration Package with MS909 S2 Tablet

The Autel ADAS LDW 2.0T (part number MA60020T) is a portable Lane Departure Warning camera calibration package built on the Autel MA600 mobile calibration frame. This configuration includes the MA600 frame, LDW calibration targets and patterns, ADAS software upgrade, and the MaxiSYS MS909 S2 tablet — everything you need to start calibrating LDW camera systems on the vehicle makes covered by this package, without purchasing a tablet separately.

The "T" suffix designates the tablet-included configuration. If you already own a compatible MaxiSYS tablet, the LDW 2.0 (part number MA60020, no tablet) is the lower-cost option.

Vehicle Coverage

The LDW 2.0T package includes LDW calibration targets and patterns for the following manufacturers:

• Alfa Romeo
• Honda
• Volkswagen
• Mercedes-Benz
• Hyundai / Kia
• Nissan / Infiniti
• Mazda
• Mitsubishi
• Subaru
• Toyota / Lexus (includes Toyota LDA target)

Coverage is for Lane Departure Warning camera calibration only. This package does not include Blind Spot Monitoring (BSM), Adaptive Cruise Control (ACC), Around View Monitor (AVM), or Night Vision calibration capability. Those functions require additional expansion packs purchased separately.

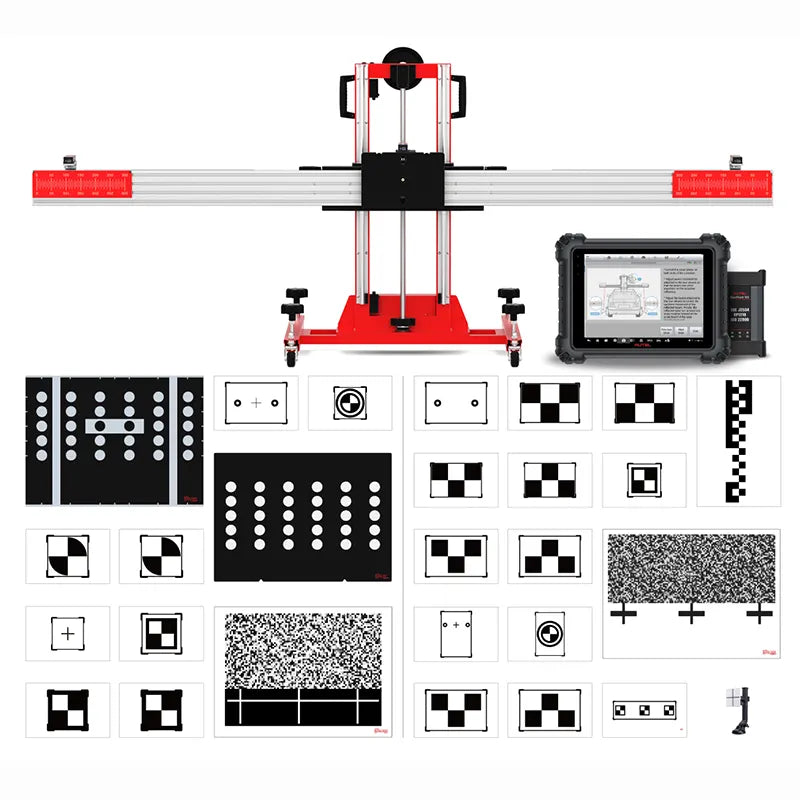

What Is Included

• Autel MA600 Mobile Calibration Frame (collapsible aluminum, with travel case)
• LDW calibration targets and patterns for all listed manufacturers
• Toyota LDA target
• ADAS Software Upgrade license (compatible with MaxiSYS tablets)
• MaxiSYS MS909 S2 tablet with Bluetooth MaxiVCI V200
• 2-line centering laser and 5-line alignment laser
• Laser-assisted reflectors
• One-year limited warranty

The MA600 Frame

The MA600 is a collapsible aluminum calibration frame that folds down for transport and storage. The crossbar spans 2,510mm (98.82 inches) and the pattern board adjusts from 1,000mm to 1,600mm in height. The frame uses a 5-line laser for precise vehicle centering and squaring to the calibration target — the setup process is guided through the ADAS software step by step.

Frame dimensions assembled: 2,510mm W x 714mm D x 1,480-2,105mm H. Total net weight: 100.8 lbs (frame ships in two sections — base at 53.6 lbs and main column/crossbar at 47.2 lbs). The frame includes a travel case for transport.

Expandability

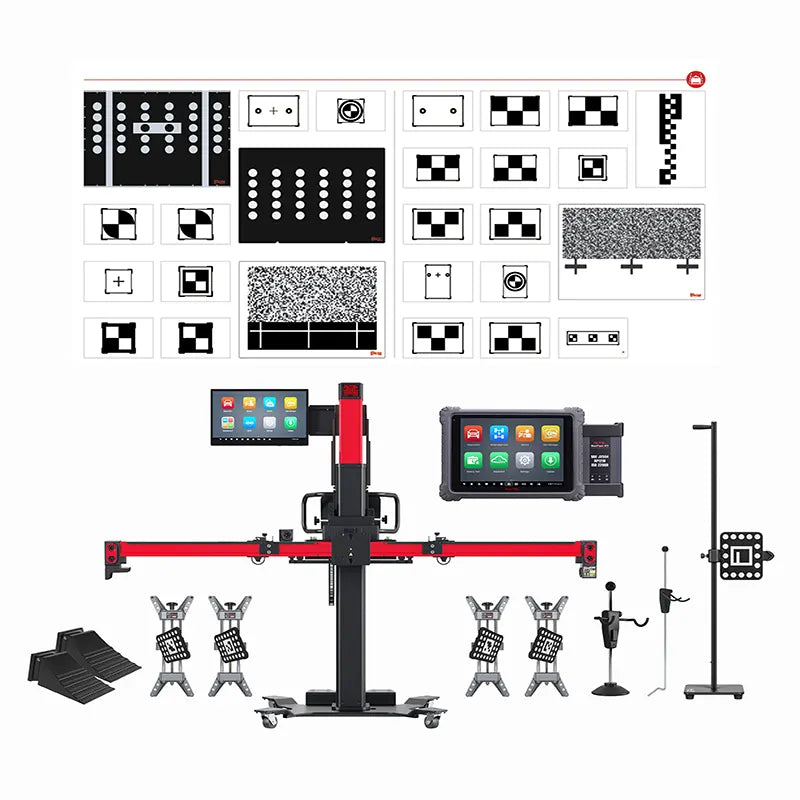

The MA600 platform is designed to grow with your ADAS capability needs. Optional expansion packs add coverage for:

• BSM (Blind Spot Monitoring) — additional targets for side radar/camera systems
• ACC (Adaptive Cruise Control) — reflectors and radar calibration plates for front-facing radar systems
• AVM (Around View Monitor) — large-format patterns for 360-degree camera calibration
• NV (Night Vision) — targets for infrared camera systems

Starting with the LDW 2.0T and adding expansion packs as your customer base demands is a sensible approach for shops entering the ADAS calibration business without a large upfront commitment.

Minimum Space Requirements

LDW camera calibration requires a dedicated alignment bay with a minimum of 10 feet of clearance in front of the vehicle. The calibration process requires the vehicle to be centered and squared to the frame per the on-screen guided procedure.

LDW 2.0 vs. LDW 2.0T — Which Configuration?

The difference is whether the MS909 S2 tablet is included:

• MA60020 (LDW 2.0, ~$9,585) — Frame, targets, and ADAS software upgrade. Requires a compatible MaxiSYS tablet you already own.
• MA60020T (LDW 2.0T, ~$11,585) — Same as above, plus the MaxiSYS MS909 S2 tablet and VCI.

If you have an existing MaxiSYS MS906BT, MS908, MS908P, MS908S, MS908SP, MSELITE, or MS909 with an active ADAS software license, go with the LDW 2.0 frame-only package. Note: tablets with a previously active ADAS software license from a prior installation are not compatible with the MA600 frame upgrade — call us to verify your tablet's status before ordering.
