Autel 8mm MaxiSys Borescope Add On for Scan Tool

Autel MV108 Digital Inspection Camera for Autel Tablets

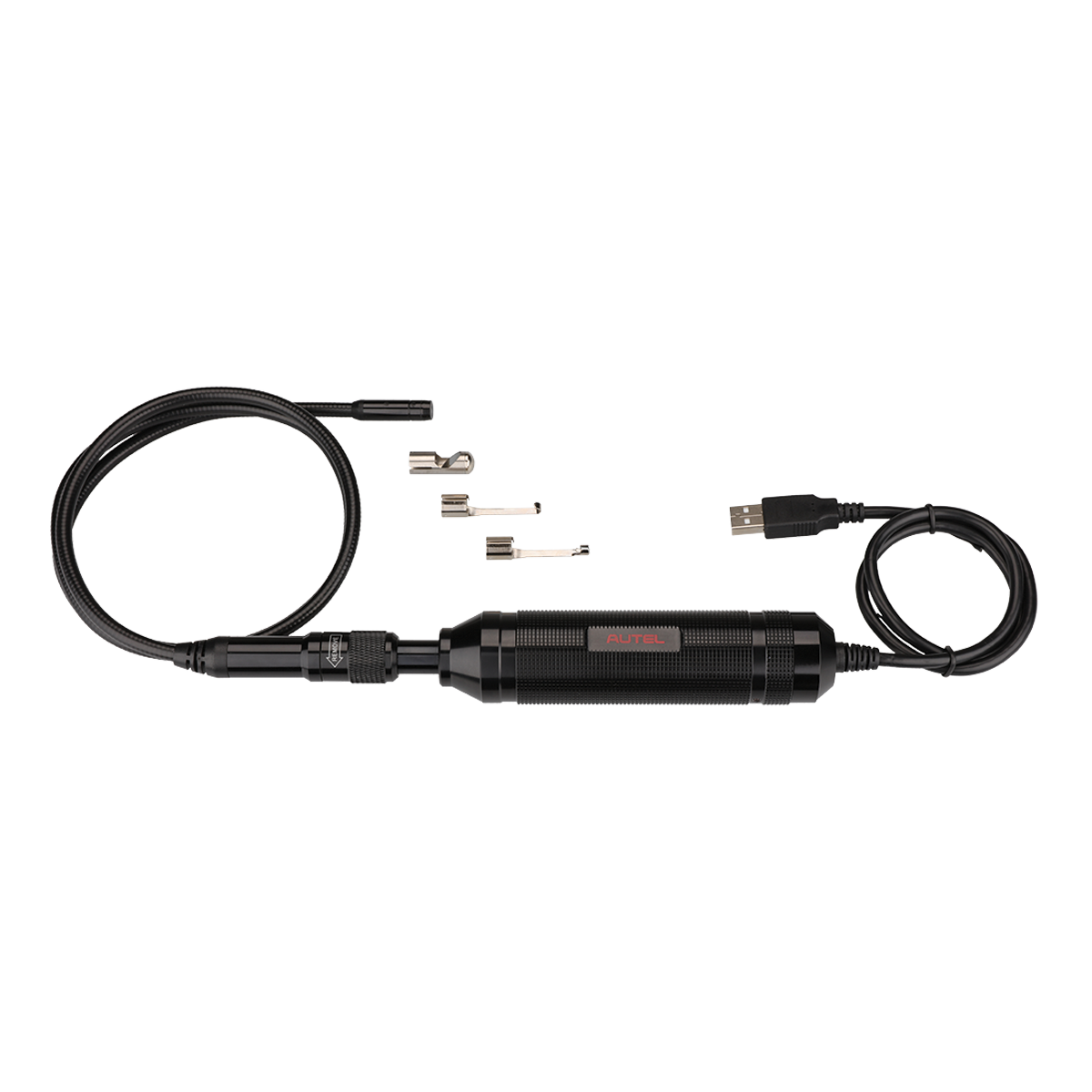

The Autel MV108 is a USB-connected digital inspection camera designed to work with Autel diagnostic tablets running the MaxiVideo app. If your shop already has an Autel MaxiSYS, MaxiCOM, or similar tablet, the MV108 turns it into a full video inspection scope — no separate screen or battery needed. Plug in the 1-meter waterproof USB cable, launch MaxiVideo, and you can see inside cylinders, behind dashboards, into tight suspension corners, and anywhere else a wrench cannot follow.

Who Needs This Tool

This is the right buy for a tech who already carries an Autel tablet and wants visual inspection capability without purchasing a separate handheld borescope. Instead of buying a dedicated unit with its own screen and battery, the MV108 leverages the tablet you already have. It makes sense for general repair shops and dealerships running Autel platforms who want to add inspection camera capability at the accessory price point rather than the standalone tool price.

Camera and Optics

• 8.5mm imager head — fits most spark plug holes and standard inspection access points
• 2-megapixel camera with 1920x1080 full HD resolution
• 81-degree angle of view for broad coverage in tight spaces
• Depth of field: 3cm to 8cm — optimal for close inspection work
• 8 LED beads for bright illumination in dark cavities

Cable and Durability

• 1-meter cable — enough reach for most underhood and underbody inspection tasks
• IP67 waterproof rating on the imager head — handles fluids, coolant splatter, and wet engine bays
• USB 2.0 connection plugs directly into compatible Autel tablets

What You Can Do With It

With the MaxiVideo app running on your Autel tablet, the MV108 lets you:

• Record video and capture still images directly to the tablet
• Review inspection footage with your customer on the tablet screen
• Document engine, cylinder, and component condition for work orders
• Inspect exhaust components, catalytic converters, and tight suspension areas

Included Accessories

• Mirror attachment — for right-angle viewing around corners
• Hook attachment — for retrieving dropped fasteners and debris
• Magnet attachment — for picking up metal parts in hard-to-reach cavities

Technical Specifications

• Imager head diameter: 8.5mm
• Camera resolution: 2MP, 1920x1080
• Angle of view: 81 degrees
• Depth of field: 3 to 8cm
• LED count: 8 pcs
• Cable length: 1m
• Connection: USB 2.0
• Waterproof level (imager head): IP67
• Operating temperature: -10C to 70C
• Storage temperature: -10C to 70C

MV108 vs MV108S

Autel offers two USB tablet camera heads in this family. The MV108 uses an 8.5mm head with 2MP resolution and 81-degree viewing angle. The MV108S is the current production model with the same core spec. If you are equipping a shop from scratch, the MV108S is the current model. If you need a replacement or secondary head for an existing setup, confirm compatibility with your tablet model before ordering.
