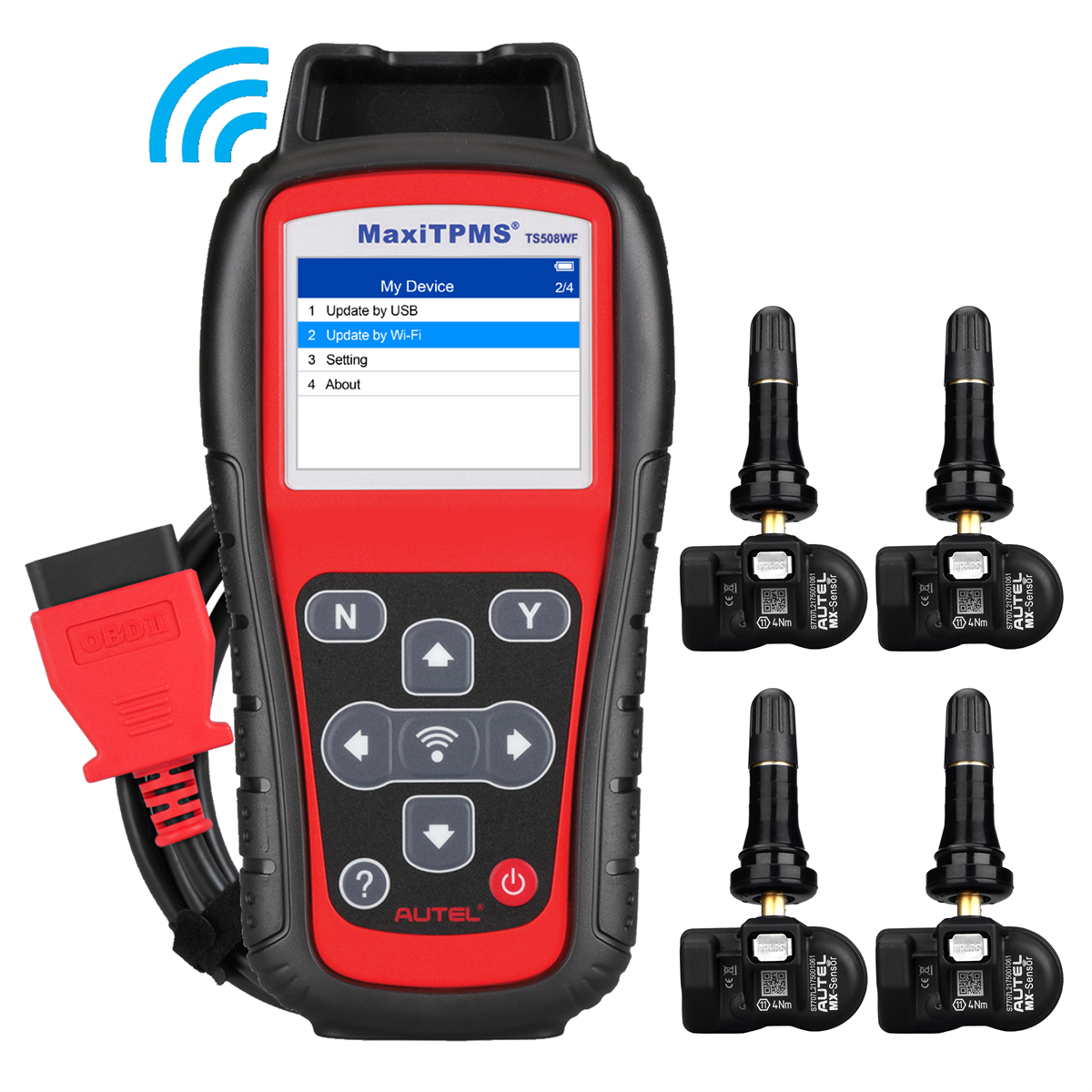

Autel TS508WFK-4 Kit = WF and 4 sensors

Autel TS508WFK-4 Kit -- TS508WF TPMS Tool with Four Universal 1-Sensors and Metal Valve Stem Kit

The Autel TS508WFK-4 (part number 700180) is the MaxiTPMS TS508WF TPMS service tool bundled with four dual-frequency 1-Sensors and the MVK metal press-in valve stem kit. This is the right entry-level bundle for shops wanting to start TPMS sensor replacement service with the TS508WF tool -- four sensors cover the first day of service right out of the box. The MVK valve stem kit means you can install metal stems from the start for customers who want them, without a separate hardware order.

The TS508WF handles complete TPMS service: sensor activation, diagnostics, MX-Sensor programming four ways, relearn procedures, and Wi-Fi software updates. All updates are free for the life of the tool after registration.

TS508WF Tool -- Complete TPMS Workflow in a Handheld

The TS508WF is a handheld TPMS service tool with Quick Mode for fast routine jobs and Advanced Mode for full diagnostic and programming control. It activates all known sensor types, reads sensor data, programs replacement sensors, displays relearn procedures on-screen, and updates wirelessly over Wi-Fi. The OBDII cable handles OBD-required relearn procedures.

• Sensor Activation: Activates magnetic-trigger, frequency-trigger, and tire deflation-triggered sensors. Receives 315MHz and 433MHz signals for domestic and European coverage.
• Sensor Data: Displays sensor ID, pressure, temperature, battery condition, OEM part number, and relearn procedure type per wheel position.
• TPMS Status Screen: Enhanced color-coded status view of all wheel positions. Identifies the faulted sensor and fault type before you pull a wheel.
• Quick Mode / Advanced Mode: Quick Mode for fast routine activation and reads. Advanced Mode for full diagnostic and programming control on problem jobs.
• OBD Relearn: Executes OBD relearn via included OBDII cable for vehicles requiring it (most 2014+ GM trucks and SUVs, select Ford/Chrysler/Dodge/Jeep/RAM).
• Onscreen Relearn Procedures: On-tool step-by-step instructions for every TPMS-equipped U.S., Asian, and European vehicle. No external chart needed.
• Key FOB Test: Tests RKE transmitter signal alongside TPMS diagnostics.
• Placard Value Reset: Resets placard pressure on supported vehicles after tire size changes.
• Wi-Fi Updates: Updates wirelessly over shop network. USB also supported. Free for life after registration.

1-Sensor Programming -- Four Methods

• Copy by Activation: Clone original sensor ID to replacement 1-Sensor. Fastest method; eliminates relearn on many platforms.
• Copy by Manual Input: Enter original sensor ID manually when original won't activate.
• Auto Create: Generate vehicle-compatible sensor ID automatically by make/model/year.
• Copy by OBD: Pull stored sensor IDs from TPMS ECU via OBDII cable.

Four 1-Sensors and Metal Valve Stem Kit

The four Autel 1-Sensors support both 315MHz and 433MHz frequencies in a single sensor. The press-release button design allows the included rubber valve stems to be swapped for metal press-in stems from the MVK kit without replacing the sensor unit itself. Sensors are reprogrammable and meet SAE J1205 and J1206 standards.

• 1-Sensor Frequencies: 315MHz + 433MHz dual frequency
• Valve Stems Included: Rubber press-in valve stems (4)
• Metal Valve Stem Kit (MVK): Metal press-in valve stems for 1-Sensors (included)
• Vehicle Compatibility: 99% of TPMS-equipped vehicles
• SAE Standards: J1205 and J1206 compliant
• Sensor Warranty: 2-year limited warranty per sensor

Technical Specifications

• Display: 2.8-inch TFT color display, 320 x 240 dpi
• Battery: 3.7V Li-polymer, 3200 mAh
• Frequencies: 315MHz and 433MHz
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Dimensions (tool): 215mm x 105mm x 37mm (8.46" x 4.13" x 1.46")
• Weight (tool): 0.38 kg (0.84 lb.)
• Languages: English, Spanish, French
• Sensor Memory: Saves up to 5 TPMS sensor records

What's in the Box

• MaxiTPMS TS508WF handheld unit (1)
• Autel 1-Sensors with rubber valve stems, dual frequency 315MHz/433MHz (4)
• MVK metal press-in valve stem kit (1)
• OBDII cable (1)
• USB cable (1)
• AC adapter / charger (1)
• Magnet (1)
• Carry case (1)
• User manual
• 1-year limited warranty (tool) / 2-year limited warranty (sensors)

Vehicle Coverage

Covers TPMS-equipped U.S., Asian, and European vehicles from approximately 2002 through current model year. Supports both 315MHz and 433MHz sensor frequencies. Coverage includes Ford, GM (Chevrolet, GMC, Buick, Cadillac), Chrysler, Dodge, Jeep, RAM, Toyota, Honda, Nissan, Hyundai, Kia, Subaru, Mazda, Volkswagen, BMW, Mercedes-Benz, Audi, Volvo, Land Rover, Jaguar, and others.

TS508WFK-4 vs. TS508WFK-1 (8 Sensors) -- Which Kit?

If you want to stock more sensors upfront and get a lower per-sensor price, the TS508WFK-1 bundle with 8 sensors is the better value. The TS508WFK-4 with four sensors and the MVK metal valve stem kit is the better choice if you need the metal stem hardware now and want to order sensors as you use them. Both include the same TS508WF tool.
