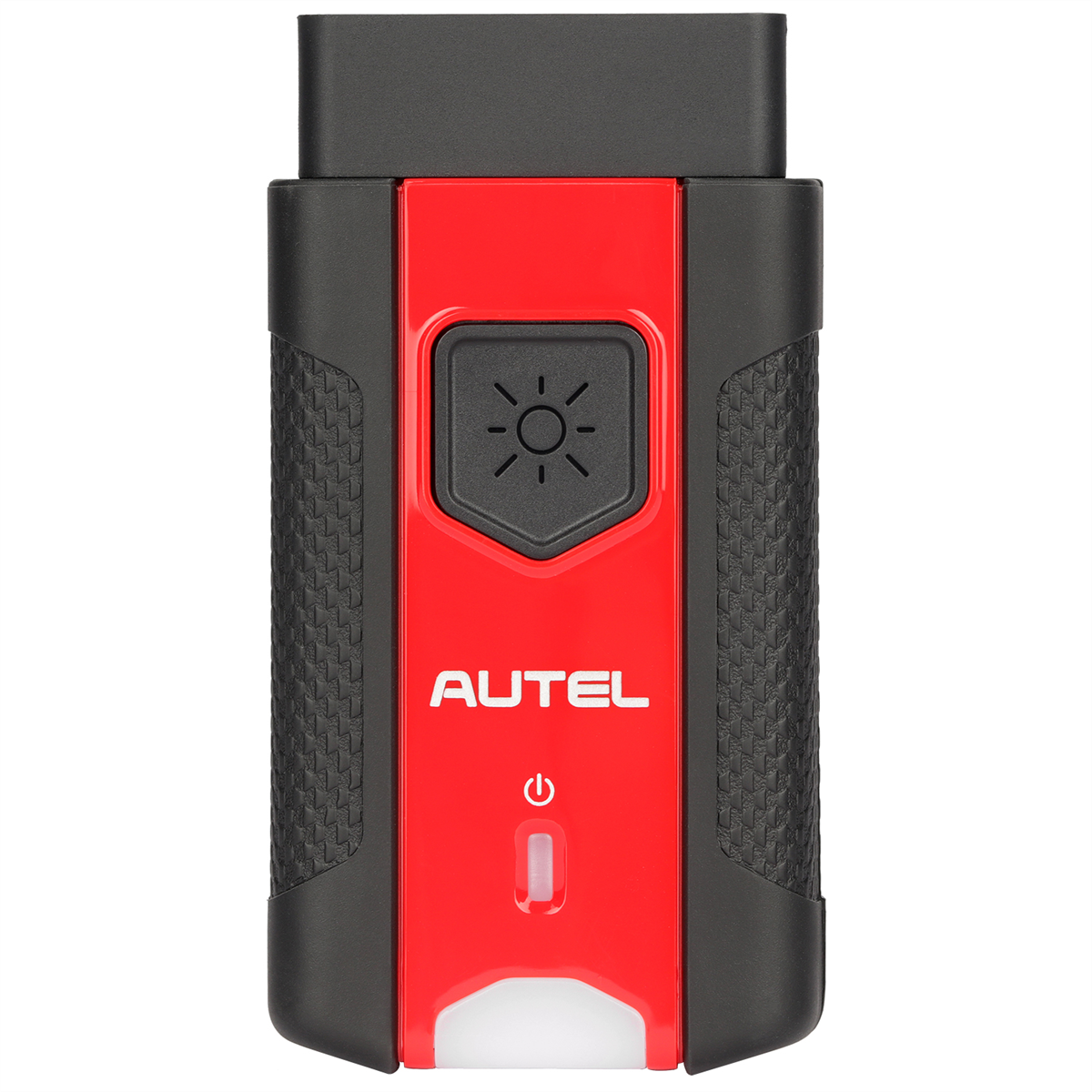

Autel MaxiVCI 200

Autel MaxiVCI 200 -- Replacement Bluetooth VCI for MaxiBAS BT608 and BT609

The Autel MaxiVCI VC200 is a direct replacement Bluetooth vehicle communication interface designed specifically for use with the MaxiBAS BT608 and MaxiBAS BT609 battery and electrical system service tools. If your original VCI dongle was lost, damaged, or stopped pairing reliably, the VC200 gets your BT608 or BT609 back in service without replacing the entire kit. This is not a standalone diagnostic VCI and it is not compatible with MaxiSYS diagnostic tablets -- it is purpose-built for the MaxiBAS battery service platform.

DoIP and CAN FD Support

Modern vehicles -- including BMW F and G series and 2020+ GM vehicles that use CAN FD architecture -- require communication interfaces that support the newer protocols. The VC200 includes a 4-pin connector set and supports both DoIP (Diagnostics over Internet Protocol) and CAN FD (Controller Area Network Flexible Data-rate), so your BT608 or BT609 stays capable on late-model vehicles without any workarounds.

• DoIP support for Ethernet-based vehicle diagnostics (BMW, Mercedes, Audi/VW)
• CAN FD support for 2020+ GM trucks and SUVs
• 4-pin connector set included for modern OBD configurations
• Bluetooth pairing to MaxiBAS tablet -- no cable required during testing

Compact, Purpose-Built Design

The VC200 plugs directly into the vehicle's OBD-II port and stays out of the way while the MaxiBAS tablet runs battery registration, SOH testing, and system scans. At under a third of a pound and roughly the size of a deck of cards, it fits easily in a tool bag or apron pocket.

• Dimensions: 5.5" L x 3.5" W x 1.5" H
• Weight: 0.3 lbs
• Wireless Bluetooth communication to MaxiBAS host tablet
• Plug-in OBD-II form factor -- no mounting hardware needed

Technical Specifications

• Compatible Devices: Autel MaxiBAS BT608, MaxiBAS BT609
• Connectivity: Bluetooth (to MaxiBAS tablet)
• Protocols Supported: DoIP, CAN FD
• Connector: 4-pin set for modern vehicle interfaces
• Dimensions: 5.5" L x 3.5" W x 1.5" H
• Weight: 0.3 lbs
• UPC: 849438007867
• Warranty: One-year limited

What's in the Box

• MaxiVCI VC200 Bluetooth VCI dongle
• 4-pin connector set
• Quick start documentation

Compatibility

The MaxiVCI VC200 is compatible with the Autel MaxiBAS BT608 and MaxiBAS BT609 battery and electrical system service tools only. It is not designed for use with MaxiSYS diagnostic tablets (MS906, MS919, Ultra series, etc.). If you need a VCI for a MaxiSYS tablet, see the MaxiVCI Mini or MaxiFlash VCMI.

Why Buy From OEM Diagnostic Tools?

• Autel specialist since 2016
• Free shipping on orders over $500
• Free tech support -- call (866) 217-0063
• Full manufacturer warranty included

Lost or damaged your BT608 or BT609's VCI? The MaxiVCI VC200 is the correct OEM replacement -- not an aftermarket substitute. Order direct or call us at (866) 217-0063 if you need to confirm compatibility with your specific MaxiBAS unit before ordering.

Product May Not Be As Pictured
