The Autel CV ADAS LDW MA600 with MS909CV (CVMALDWT) is a mobile commercial vehicle ADAS calibration package built around the MA600 frame. Unlike the standard calibration frame that lives in a fixed bay, the MA600 rolls to wherever the vehicle is -- fleet yards, mobile service trucks, or multi-bay shops that cannot dedicate a permanent calibration lane. Ships with the MS909CV commercial vehicle diagnostic tablet and CV-specific LDW targets including Bendix Wingman coverage.
MA600 Mobile Frame
The MA600 is Autel's mobile ADAS frame designed for shops and fleets that need ADAS calibration without a dedicated fixed bay. The frame assembles and positions at the vehicle, making it practical for mobile technicians and fleet service operations where vehicles cannot easily be moved to a calibration bay.
- Mobile design -- rolls to the vehicle instead of requiring a fixed bay
- 5-line and 2-line laser positioning tools for vehicle-to-frame alignment
- Compatible with standard and CV-specific calibration targets
Commercial Vehicle LDW Coverage
Covers Lane Departure Warning camera calibration for light, medium, and heavy-duty commercial vehicles:
- Mercedes-Benz Sprinter vans -- LDW camera calibration
- RAM ProMaster vans -- LDW camera calibration
- Bendix Wingman equipped trucks -- Front collision warning and LDW pattern (CV pattern CSC0611-06) for Class 6-8 heavy-duty vehicles
- ACC reflector -- For radar calibration on Bendix Wingman systems
- CV Pattern Bracket -- Mounting bracket for commercial vehicle-specific patterns
Dynamic and Static Calibration
- Dynamic calibration on Class 3-5 vehicles
- Dynamic calibration on Class 6-8 vehicles
- Static calibration for Mercedes-Benz Sprinter and RAM ProMaster vans
- Static calibration for Bendix Wingman-equipped heavy-duty vehicles
MaxiSYS MS909CV Tablet
The MS909CV provides ADAS calibration software and full commercial vehicle diagnostics covering Cummins, Detroit, PACCAR, Navistar, Allison, Bendix, WABCO, and all major HD systems. Between calibrations, it functions as a complete Class 1-9 diagnostic platform with Topology mapping, active tests, and J2534 programming.

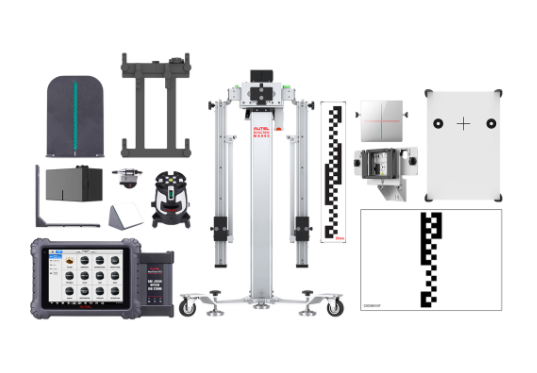

What Ships in the Box
- MaxiSYS MS909CV tablet with ADAS calibration software
- MA600 Mobile ADAS Calibration Frame
- 5-line and 2-line laser positioning tools
- CV LDW calibration targets (Sprinter, ProMaster, Bendix Wingman)
- CV Pattern Bracket
- ACC reflector for Bendix Wingman radar calibration
- Front collision warning and LDW pattern (CSC0611-06)
- All cables, adapters, and mounting hardware
MPN: CVMALDWT
One-year limited warranty. For the MA600 CV ADAS LDW without tablet, see CVMALDW. For the standard (non-mobile) frame version, see CVALDW20T.
